vtkWindowLevelLookupTable Class Reference

#include <vtkWindowLevelLookupTable.h>

Inheritance diagram for vtkWindowLevelLookupTable:

Inheritance graph
[legend]

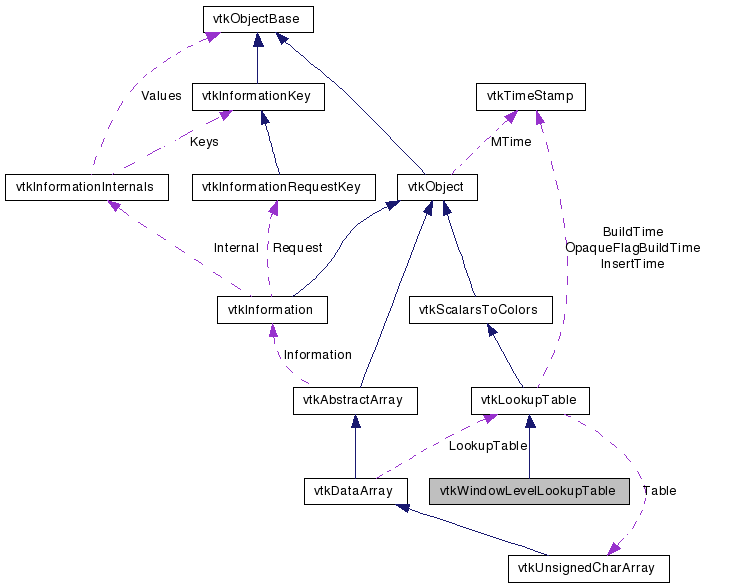

Collaboration diagram for vtkWindowLevelLookupTable:

Collaboration graph
[legend]

List of all members.


Detailed Description

map scalar values into colors or colors to scalars; generate color table

vtkWindowLevelLookupTable is an object that is used by mapper objects to map scalar values into rgba (red-green-blue-alpha transparency) color specification, or rgba into scalar values. The color table can be created by direct insertion of color values, or by specifying a window and level. Window / Level is used in medical imaging to specify a linear greyscale ramp. The Level is the center of the ramp. The Window is the width of the ramp.

Warning:
vtkWindowLevelLookupTable is a reference counted object. Therefore, you should always use operator "new" to construct new objects. This procedure will avoid memory problems (see text).
See also:
vtkLogLookupTable

Definition at line 40 of file vtkWindowLevelLookupTable.h.


Public Types

typedef vtkLookupTable Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Build ()
void SetWindow (double window)
virtual double GetWindow ()
void SetLevel (double level)
virtual double GetLevel ()
void SetInverseVideo (int iv)
virtual int GetInverseVideo ()
virtual void InverseVideoOn ()
virtual void InverseVideoOff ()
virtual void SetMinimumTableValue (double, double, double, double)
virtual void SetMinimumTableValue (double[4])
virtual double * GetMinimumTableValue ()
virtual void GetMinimumTableValue (double &, double &, double &, double &)
virtual void GetMinimumTableValue (double[4])
virtual void SetMaximumTableValue (double, double, double, double)
virtual void SetMaximumTableValue (double[4])
virtual double * GetMaximumTableValue ()
virtual void GetMaximumTableValue (double &, double &, double &, double &)
virtual void GetMaximumTableValue (double[4])
void SetMinimumColor (int r, int g, int b, int a)
void SetMinimumColor (const unsigned char rgba[4])
void GetMinimumColor (unsigned char rgba[4])
unsigned char * GetMinimumColor ()
void SetMaximumColor (int r, int g, int b, int a)
void SetMaximumColor (const unsigned char rgba[4])
void GetMaximumColor (unsigned char rgba[4])
unsigned char * GetMaximumColor ()

Static Public Member Functions

static vtkWindowLevelLookupTableNew ()
static int IsTypeOf (const char *type)
static vtkWindowLevelLookupTableSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkWindowLevelLookupTable (int sze=256, int ext=256)
 ~vtkWindowLevelLookupTable ()

Protected Attributes

double Window
double Level
int InverseVideo
double MaximumTableValue [4]
double MinimumTableValue [4]

Member Typedef Documentation

Reimplemented from vtkLookupTable.

Definition at line 44 of file vtkWindowLevelLookupTable.h.


Constructor & Destructor Documentation

vtkWindowLevelLookupTable::vtkWindowLevelLookupTable ( int  sze = 256,
int  ext = 256
) [protected]

vtkWindowLevelLookupTable::~vtkWindowLevelLookupTable (  )  [inline, protected]

Definition at line 116 of file vtkWindowLevelLookupTable.h.


Member Function Documentation

static vtkWindowLevelLookupTable* vtkWindowLevelLookupTable::New (  )  [static]

Construct with range=[0,1]; and hsv ranges set up for rainbow color table (from red to blue).

Reimplemented from vtkLookupTable.

virtual const char* vtkWindowLevelLookupTable::GetClassName (  )  [virtual]

Reimplemented from vtkLookupTable.

static int vtkWindowLevelLookupTable::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkLookupTable.

virtual int vtkWindowLevelLookupTable::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkLookupTable.

static vtkWindowLevelLookupTable* vtkWindowLevelLookupTable::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkLookupTable.

void vtkWindowLevelLookupTable::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLookupTable.

void vtkWindowLevelLookupTable::Build (  )  [virtual]

Generate lookup table as a linear ramp between MinimumTableValue and MaximumTableValue.

Reimplemented from vtkLookupTable.

void vtkWindowLevelLookupTable::SetWindow ( double  window  )  [inline]

Set the window for the lookup table. The window is the difference between TableRange[0] and TableRange[1].

Definition at line 54 of file vtkWindowLevelLookupTable.h.

virtual double vtkWindowLevelLookupTable::GetWindow (  )  [virtual]

Set the window for the lookup table. The window is the difference between TableRange[0] and TableRange[1].

void vtkWindowLevelLookupTable::SetLevel ( double  level  )  [inline]

Set the Level for the lookup table. The level is the average of TableRange[0] and TableRange[1].

Definition at line 65 of file vtkWindowLevelLookupTable.h.

virtual double vtkWindowLevelLookupTable::GetLevel (  )  [virtual]

Set the Level for the lookup table. The level is the average of TableRange[0] and TableRange[1].

void vtkWindowLevelLookupTable::SetInverseVideo ( int  iv  )

Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual int vtkWindowLevelLookupTable::GetInverseVideo (  )  [virtual]

Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual void vtkWindowLevelLookupTable::InverseVideoOn (  )  [virtual]

Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual void vtkWindowLevelLookupTable::InverseVideoOff (  )  [virtual]

Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual void vtkWindowLevelLookupTable::SetMinimumTableValue ( double  ,
double  ,
double  ,
double
) [virtual]

Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::SetMinimumTableValue ( double  [4]  )  [virtual]

Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual double* vtkWindowLevelLookupTable::GetMinimumTableValue (  )  [virtual]

Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMinimumTableValue ( double &  ,
double &  ,
double &  ,
double &
) [virtual]

Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMinimumTableValue ( double  [4]  )  [virtual]

Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::SetMaximumTableValue ( double  ,
double  ,
double  ,
double
) [virtual]

Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::SetMaximumTableValue ( double  [4]  )  [virtual]

Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual double* vtkWindowLevelLookupTable::GetMaximumTableValue (  )  [virtual]

Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMaximumTableValue ( double &  ,
double &  ,
double &  ,
double &
) [virtual]

Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMaximumTableValue ( double  [4]  )  [virtual]

Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

void vtkWindowLevelLookupTable::SetMinimumColor ( int  r,
int  g,
int  b,
int  a
)

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

void vtkWindowLevelLookupTable::SetMinimumColor ( const unsigned char  rgba[4]  )

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

void vtkWindowLevelLookupTable::GetMinimumColor ( unsigned char  rgba[4]  )

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

unsigned char* vtkWindowLevelLookupTable::GetMinimumColor (  )

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

void vtkWindowLevelLookupTable::SetMaximumColor ( int  r,
int  g,
int  b,
int  a
)

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

void vtkWindowLevelLookupTable::SetMaximumColor ( const unsigned char  rgba[4]  )

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

void vtkWindowLevelLookupTable::GetMaximumColor ( unsigned char  rgba[4]  )

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].

unsigned char* vtkWindowLevelLookupTable::GetMaximumColor (  )

Deprecated:
For backwards compatibility: specify the color using integers in the range [0,255].


Member Data Documentation

Definition at line 116 of file vtkWindowLevelLookupTable.h.

Definition at line 119 of file vtkWindowLevelLookupTable.h.

Definition at line 120 of file vtkWindowLevelLookupTable.h.

Definition at line 121 of file vtkWindowLevelLookupTable.h.

Definition at line 122 of file vtkWindowLevelLookupTable.h.


The documentation for this class was generated from the following file:
