vtkBorderWidget Class Reference

#include <vtkBorderWidget.h>

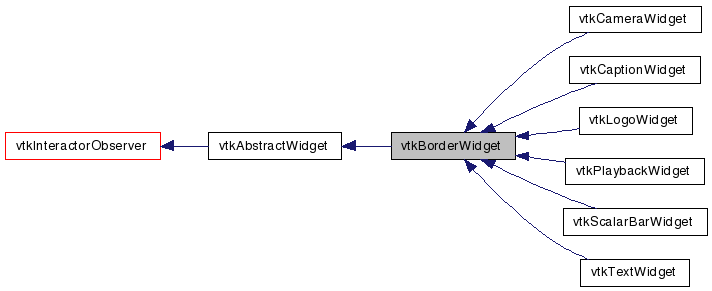

Inheritance diagram for vtkBorderWidget:

Inheritance graph
[legend]

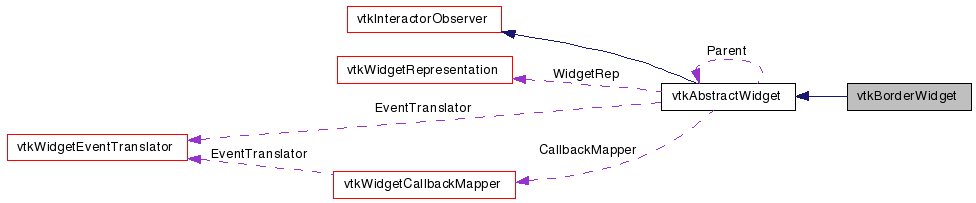

Collaboration diagram for vtkBorderWidget:

Collaboration graph
[legend]

List of all members.


Detailed Description

place a border around a 2D rectangular region

This class is a superclass for 2D widgets that may require a rectangular border. Besides drawing a border, the widget provides methods for resizing and moving the rectangular region (and associated border). The widget provides methods and internal data members so that subclasses can take advantage of this widgets capabilities, requiring only that the subclass defines a "representation", i.e., some combination of props or actors that can be managed in the 2D rectangular region.

The class defines basic positioning functionality, including the ability to size the widget with locked x/y proportions. The area within the border may be made "selectable" as well, meaning that a selection event interior to the widget invokes a virtual SelectRegion() method, which can be used to pick objects or otherwise manipulate data interior to the widget.

Event Bindings:
By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
 On the boundary of the widget:
   LeftButtonPressEvent - select boundary
   LeftButtonReleaseEvent - deselect boundary
   MouseMoveEvent - move/resize widget depending on which portion of the
                    boundary was selected.
 On the interior of the widget:
   LeftButtonPressEvent - invoke SelectButton() callback (if the ivar
                          Selectable is on)
 Anywhere on the widget:
   MiddleButtonPressEvent - move the widget

Event Bindings:
Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkBorderWidget's widget events:
   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Translate -- the widget is to be translated
   vtkWidgetEvent::Move -- a request for slider motion has been invoked

Event Bindings:
In turn, when these widget events are processed, this widget invokes the following VTK events on itself (which observers can listen for):
   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)

See also:
vtkInteractorObserver vtkCameraInterpolator
Events:
vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::WidgetActivateEvent
Tests:
vtkBorderWidget (Tests)

Definition at line 86 of file vtkBorderWidget.h.

typedef vtkAbstractWidget Superclass
static int IsTypeOf (const char *type)
static vtkBorderWidgetSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

virtual void CreateDefaultRepresentation ()
virtual void SetSelectable (int)
virtual int GetSelectable ()
virtual void SelectableOn ()
virtual void SelectableOff ()
virtual void SetResizable (int)
virtual int GetResizable ()
virtual void ResizableOn ()
virtual void ResizableOff ()
void SetRepresentation (vtkBorderRepresentation *r)

Static Public Member Functions

static vtkBorderWidgetNew ()

Protected Types

enum  _WidgetState { Start = 0, Define, Manipulate, Selected }

Protected Member Functions

 vtkBorderWidget ()
 ~vtkBorderWidget ()
virtual void SelectRegion (double eventPos[2])
virtual int SubclassSelectAction ()
virtual int SubclassTranslateAction ()
virtual int SubclassEndSelectAction ()
virtual int SubclassMoveAction ()
virtual void SetCursor (int State)

Static Protected Member Functions

static void SelectAction (vtkAbstractWidget *)
static void TranslateAction (vtkAbstractWidget *)
static void EndSelectAction (vtkAbstractWidget *)
static void MoveAction (vtkAbstractWidget *)

Protected Attributes

int Selectable
int Resizable
int WidgetState

Member Typedef Documentation

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

Definition at line 94 of file vtkBorderWidget.h.


Member Enumeration Documentation

Enumerator:
Start
Define
Manipulate
Selected

Definition at line 162 of file vtkBorderWidget.h.


Constructor & Destructor Documentation

vtkBorderWidget::vtkBorderWidget (  )  [protected]

vtkBorderWidget::~vtkBorderWidget (  )  [protected]


Member Function Documentation

static vtkBorderWidget* vtkBorderWidget::New (  )  [static]

Method to instantiate class.

Reimplemented from vtkObject.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual const char* vtkBorderWidget::GetClassName (  )  [virtual]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

static int vtkBorderWidget::IsTypeOf ( const char *  type  )  [static]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual int vtkBorderWidget::IsA ( const char *  type  )  [virtual]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

static vtkBorderWidget* vtkBorderWidget::SafeDownCast ( vtkObject o  )  [static]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

void vtkBorderWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual void vtkBorderWidget::SetSelectable ( int   )  [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual int vtkBorderWidget::GetSelectable (  )  [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual void vtkBorderWidget::SelectableOn (  )  [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual void vtkBorderWidget::SelectableOff (  )  [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual void vtkBorderWidget::SetResizable ( int   )  [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

virtual int vtkBorderWidget::GetResizable (  )  [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

virtual void vtkBorderWidget::ResizableOn (  )  [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

virtual void vtkBorderWidget::ResizableOff (  )  [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

void vtkBorderWidget::SetRepresentation ( vtkBorderRepresentation r  )  [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 123 of file vtkBorderWidget.h.

virtual void vtkBorderWidget::CreateDefaultRepresentation (  )  [virtual]

Create the default widget representation if one is not set.

Implements vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual void vtkBorderWidget::SelectRegion ( double  eventPos[2]  )  [protected, virtual]

Subclasses generally implement this method. The SelectRegion() method offers a subclass the chance to do something special if the interior of the widget is selected.

Reimplemented in vtkCameraWidget, and vtkPlaybackWidget.

static void vtkBorderWidget::SelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkBorderWidget::TranslateAction ( vtkAbstractWidget  )  [static, protected]

static void vtkBorderWidget::EndSelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkBorderWidget::MoveAction ( vtkAbstractWidget  )  [static, protected]

Reimplemented in vtkScalarBarWidget.

virtual int vtkBorderWidget::SubclassSelectAction (  )  [inline, protected, virtual]

Definition at line 151 of file vtkBorderWidget.h.

virtual int vtkBorderWidget::SubclassTranslateAction (  )  [inline, protected, virtual]

Definition at line 152 of file vtkBorderWidget.h.

virtual int vtkBorderWidget::SubclassEndSelectAction (  )  [inline, protected, virtual]

Definition at line 153 of file vtkBorderWidget.h.

virtual int vtkBorderWidget::SubclassMoveAction (  )  [inline, protected, virtual]

Definition at line 154 of file vtkBorderWidget.h.

virtual void vtkBorderWidget::SetCursor ( int  State  )  [protected, virtual]

Reimplemented in vtkScalarBarWidget.


Member Data Documentation

int vtkBorderWidget::Selectable [protected]

Definition at line 140 of file vtkBorderWidget.h.

int vtkBorderWidget::Resizable [protected]

Definition at line 141 of file vtkBorderWidget.h.

Definition at line 161 of file vtkBorderWidget.h.


The documentation for this class was generated from the following file:
