vtkBridgePointIterator Class Reference

#include <vtkBridgePointIterator.h>

Inheritance diagram for vtkBridgePointIterator:

[legend]

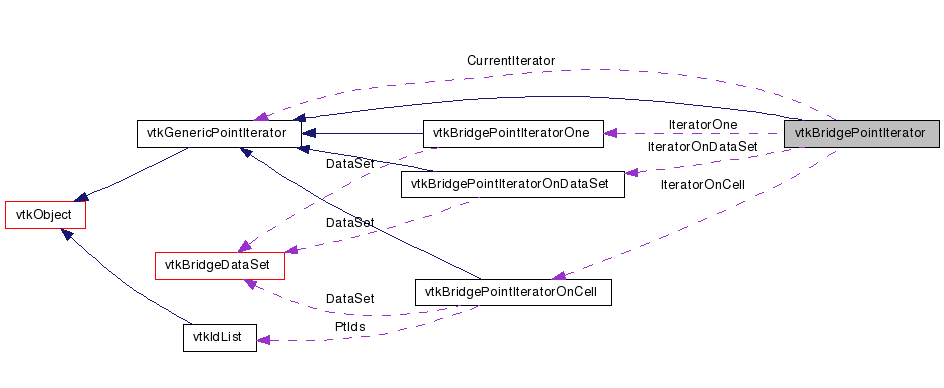

Collaboration diagram for vtkBridgePointIterator:

[legend]

List of all members.

---

Detailed Description

Implementation of vtkGenericPointIterator.

It is just an example that show how to implement the Generic API. It is also used for testing and evaluating the Generic framework.

See also:

vtkGenericPointIterator, vtkBridgeDataSet

Tests:

vtkBridgePointIterator (Tests)

Definition at line 40 of file vtkBridgePointIterator.h.

Public Types
typedef vtkGenericPointIterator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Begin ()
int	IsAtEnd ()
void	Next ()
double *	GetPosition ()
void	GetPosition (double x[3])
vtkIdType	GetId ()
void	InitWithDataSet (vtkBridgeDataSet *ds)
void	InitWithCell (vtkBridgeCell *cell)
void	InitWithOnePoint (vtkBridgeDataSet *ds, vtkIdType id)
Static Public Member Functions
static vtkBridgePointIterator *	New ()
static int	IsTypeOf (const char *type)
static vtkBridgePointIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBridgePointIterator ()
virtual	~vtkBridgePointIterator ()
Protected Attributes
vtkGenericPointIterator *	CurrentIterator
vtkBridgePointIteratorOnDataSet *	IteratorOnDataSet
vtkBridgePointIteratorOne *	IteratorOne
vtkBridgePointIteratorOnCell *	IteratorOnCell

---

Member Typedef Documentation

typedef vtkGenericPointIterator vtkBridgePointIterator::Superclass

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

Definition at line 44 of file vtkBridgePointIterator.h.

---

Constructor & Destructor Documentation

vtkBridgePointIterator::vtkBridgePointIterator

(

)

[protected]

Default constructor.

virtual vtkBridgePointIterator::~vtkBridgePointIterator

(

)

[protected, virtual]

Destructor.

---

Member Function Documentation

static vtkBridgePointIterator* vtkBridgePointIterator::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgePointIterator::GetClassName

(

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

static int vtkBridgePointIterator::IsTypeOf

(

const char *

type

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

virtual int vtkBridgePointIterator::IsA

(

const char *

type

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

static vtkBridgePointIterator* vtkBridgePointIterator::SafeDownCast

(

vtkObject *

o

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIterator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIterator::Begin

(

)

[virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericPointIterator.

int vtkBridgePointIterator::IsAtEnd

(

)

[virtual]

Is there no point at iterator position? (exit condition).

Implements vtkGenericPointIterator.

void vtkBridgePointIterator::Next

(

)

[virtual]

Move iterator to next position. (loop progression).

Precondition:

not_off: !IsAtEnd()

Implements vtkGenericPointIterator.

double* vtkBridgePointIterator::GetPosition

(

)

[virtual]

Point at iterator position.

Precondition:

not_off: !IsAtEnd()

Postcondition:

result_exists: result!=0

Implements vtkGenericPointIterator.

void vtkBridgePointIterator::GetPosition

(

double

x[3]

)

[virtual]

Point at iterator position.

Precondition:

not_off: !IsAtEnd()

x_exists: x!=0

Implements vtkGenericPointIterator.

vtkIdType vtkBridgePointIterator::GetId

(

)

[virtual]

Unique identifier for the point, could be non-contiguous

Precondition:

not_off: !IsAtEnd()

Implements vtkGenericPointIterator.

void vtkBridgePointIterator::InitWithDataSet

(

vtkBridgeDataSet *

ds

)

Used internally by vtkBridgeDataSet. Iterate over points of `ds'.

Precondition:

ds_exists: ds!=0

void vtkBridgePointIterator::InitWithOnePoint	(	vtkBridgeDataSet *	ds,
		vtkIdType	id
	)

Used internally by vtkBridgeDataSet. Iterate over one point of identifier `id' on dataset `ds'.

Precondition:

ds_can_be_null: ds!=0 || ds==0

valid_id: vtkImplies(ds!=0,(id>=0)&&(id<=ds->GetNumberOfCells()))

void vtkBridgePointIterator::InitWithCell

(

vtkBridgeCell *

cell

)

The iterator will iterate over the point of a cell

Precondition:

cell_exists: cell!=0

---

Member Data Documentation

vtkGenericPointIterator* vtkBridgePointIterator::CurrentIterator [protected]

Definition at line 93 of file vtkBridgePointIterator.h.

vtkBridgePointIteratorOnDataSet* vtkBridgePointIterator::IteratorOnDataSet [protected]

Definition at line 94 of file vtkBridgePointIterator.h.

vtkBridgePointIteratorOne* vtkBridgePointIterator::IteratorOne [protected]

Definition at line 95 of file vtkBridgePointIterator.h.

vtkBridgePointIteratorOnCell* vtkBridgePointIterator::IteratorOnCell [protected]

Definition at line 96 of file vtkBridgePointIterator.h.

---

The documentation for this class was generated from the following file:

• dox/GenericFiltering/Testing/Cxx/vtkBridgePointIterator.h
