vtkChart Class Reference

#include <vtkChart.h>

Inheritance diagram for vtkChart:

Inheritance graph
[legend]

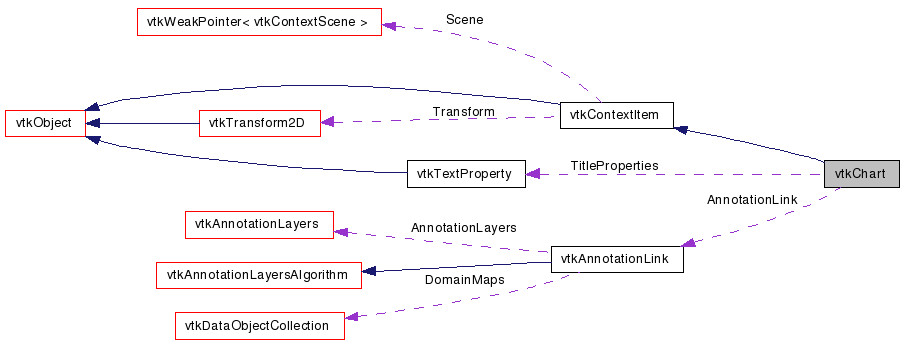

Collaboration diagram for vtkChart:

Collaboration graph
[legend]

List of all members.


Detailed Description

Factory class for drawing 2D charts.

This defines the interface for a chart.

Tests:
vtkChart (Tests)

Definition at line 41 of file vtkChart.h.


Public Types

typedef vtkContextItem Superclass
enum  { LINE, POINTS, BAR, STACKED }

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual bool Paint (vtkContext2D *painter)=0
virtual vtkPlotAddPlot (int type)
virtual bool RemovePlot (vtkIdType index)
virtual bool RemovePlotInstance (vtkPlot *plot)
virtual void ClearPlots ()
virtual vtkPlotGetPlot (vtkIdType index)
virtual vtkIdType GetNumberOfPlots ()
virtual vtkAxisGetAxis (int axisIndex)
virtual vtkIdType GetNumberOfAxes ()
virtual void RecalculateBounds ()
virtual void SetAnnotationLink (vtkAnnotationLink *link)
void SetBorders (int left, int bottom, int right, int top)
virtual vtkAnnotationLinkGetAnnotationLink ()
virtual void SetGeometry (int, int)
void SetGeometry (int[2])
virtual int * GetGeometry ()
virtual void GetGeometry (int &, int &)
virtual void GetGeometry (int[2])
virtual void SetPoint1 (int, int)
void SetPoint1 (int[2])
virtual int * GetPoint1 ()
virtual void GetPoint1 (int &, int &)
virtual void GetPoint1 (int[2])
virtual void SetPoint2 (int, int)
void SetPoint2 (int[2])
virtual int * GetPoint2 ()
virtual void GetPoint2 (int &, int &)
virtual void GetPoint2 (int[2])
virtual void SetShowLegend (bool)
virtual bool GetShowLegend ()
virtual void SetTitle (const char *)
virtual char * GetTitle ()
virtual vtkTextPropertyGetTitleProperties ()
void SetBottomBorder (int border)
void SetTopBorder (int border)
void SetLeftBorder (int border)
void SetRightBorder (int border)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkChartSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkChart ()
 ~vtkChart ()

Protected Attributes

vtkAnnotationLinkAnnotationLink
int Geometry [2]
int Point1 [2]
int Point2 [2]
bool ShowLegend
char * Title
vtkTextPropertyTitleProperties

Member Typedef Documentation

Reimplemented from vtkContextItem.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

Definition at line 44 of file vtkChart.h.


Member Enumeration Documentation

anonymous enum

Enum of the available chart types

Enumerator:
LINE
POINTS
BAR
STACKED

Definition at line 50 of file vtkChart.h.


Constructor & Destructor Documentation

vtkChart::vtkChart (  )  [protected]

vtkChart::~vtkChart (  )  [protected]


Member Function Documentation

virtual const char* vtkChart::GetClassName (  )  [virtual]

Reimplemented from vtkContextItem.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

static int vtkChart::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkContextItem.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual int vtkChart::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkContextItem.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

static vtkChart* vtkChart::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkContextItem.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual void vtkChart::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkContextItem.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual bool vtkChart::Paint ( vtkContext2D painter  )  [pure virtual]

Paint event for the chart, called whenever the chart needs to be drawn

Implements vtkContextItem.

Implemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual vtkPlot* vtkChart::AddPlot ( int  type  )  [virtual]

Add a plot to the chart, defaults to using the name of the y column

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual bool vtkChart::RemovePlot ( vtkIdType  index  )  [virtual]

Remove the plot at the specified index, returns true if successful, false if the index was invalid.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual bool vtkChart::RemovePlotInstance ( vtkPlot plot  )  [virtual]

Remove the given plot. Returns true if successful, false if the plot was not contained in this chart. Note, the base implementation of this method performs a linear search to locate the plot.

virtual void vtkChart::ClearPlots (  )  [virtual]

Remove all plots from the chart.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual vtkPlot* vtkChart::GetPlot ( vtkIdType  index  )  [virtual]

Get the plot at the specified index, returns null if the index is invalid.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual vtkIdType vtkChart::GetNumberOfPlots (  )  [virtual]

Get the number of plots the chart contains.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual vtkAxis* vtkChart::GetAxis ( int  axisIndex  )  [virtual]

Get the axis specified by axisIndex. 0 is x, 1 is y. This should probably be improved either using a string or enum to select the axis.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual vtkIdType vtkChart::GetNumberOfAxes (  )  [virtual]

Get the number of axes in the current chart.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual void vtkChart::RecalculateBounds (  )  [virtual]

Request that the chart recalculates the range of its axes. Especially useful in applications after the parameters of plots have been modified.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual void vtkChart::SetAnnotationLink ( vtkAnnotationLink link  )  [virtual]

Set the vtkAnnotationLink for the chart.

virtual vtkAnnotationLink* vtkChart::GetAnnotationLink (  )  [virtual]

Get the vtkAnnotationLink for the chart.

virtual void vtkChart::SetGeometry ( int  ,
int
) [virtual]

Set/get the width and the height of the chart.

void vtkChart::SetGeometry ( int  [2]  )

Set/get the width and the height of the chart.

virtual int* vtkChart::GetGeometry (  )  [virtual]

Set/get the width and the height of the chart.

virtual void vtkChart::GetGeometry ( int &  ,
int &
) [virtual]

Set/get the width and the height of the chart.

virtual void vtkChart::GetGeometry ( int  [2]  )  [virtual]

Set/get the width and the height of the chart.

virtual void vtkChart::SetPoint1 ( int  ,
int
) [virtual]

Set/get the first point in the chart (the bottom left).

void vtkChart::SetPoint1 ( int  [2]  )

Set/get the first point in the chart (the bottom left).

virtual int* vtkChart::GetPoint1 (  )  [virtual]

Set/get the first point in the chart (the bottom left).

virtual void vtkChart::GetPoint1 ( int &  ,
int &
) [virtual]

Set/get the first point in the chart (the bottom left).

virtual void vtkChart::GetPoint1 ( int  [2]  )  [virtual]

Set/get the first point in the chart (the bottom left).

virtual void vtkChart::SetPoint2 ( int  ,
int
) [virtual]

Set/get the second point in the chart (the top right).

void vtkChart::SetPoint2 ( int  [2]  )

Set/get the second point in the chart (the top right).

virtual int* vtkChart::GetPoint2 (  )  [virtual]

Set/get the second point in the chart (the top right).

virtual void vtkChart::GetPoint2 ( int &  ,
int &
) [virtual]

Set/get the second point in the chart (the top right).

virtual void vtkChart::GetPoint2 ( int  [2]  )  [virtual]

Set/get the second point in the chart (the top right).

virtual void vtkChart::SetShowLegend ( bool   )  [virtual]

Set/get whether the chart should draw a legend.

virtual bool vtkChart::GetShowLegend (  )  [virtual]

Set/get whether the chart should draw a legend.

virtual void vtkChart::SetTitle ( const char *   )  [virtual]

Get/set the title text of the chart.

virtual char* vtkChart::GetTitle (  )  [virtual]

Get/set the title text of the chart.

virtual vtkTextProperty* vtkChart::GetTitleProperties (  )  [virtual]

Get the vtkTextProperty that governs how the chart title is displayed.

void vtkChart::SetBottomBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetTopBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetLeftBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetRightBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetBorders ( int  left,
int  bottom,
int  right,
int  top
)

Set/get the borders of the chart (space in pixels around the chart).


Member Data Documentation

Our annotation link, used for sharing selections etc.

Definition at line 158 of file vtkChart.h.

int vtkChart::Geometry[2] [protected]

The width and the height of the chart.

Definition at line 161 of file vtkChart.h.

int vtkChart::Point1[2] [protected]

The position of the lower left corner of the chart.

Definition at line 164 of file vtkChart.h.

int vtkChart::Point2[2] [protected]

The position of the upper right corner of the chart.

Definition at line 167 of file vtkChart.h.

bool vtkChart::ShowLegend [protected]

Display the legend?

Definition at line 170 of file vtkChart.h.

char* vtkChart::Title [protected]

The title of the chart

Definition at line 173 of file vtkChart.h.

The text properties associated with the chart

Definition at line 176 of file vtkChart.h.


The documentation for this class was generated from the following file:
