vtkDuplicatePolyData Class Reference

#include <vtkDuplicatePolyData.h>

Inheritance diagram for vtkDuplicatePolyData:

Inheritance graph
[legend]

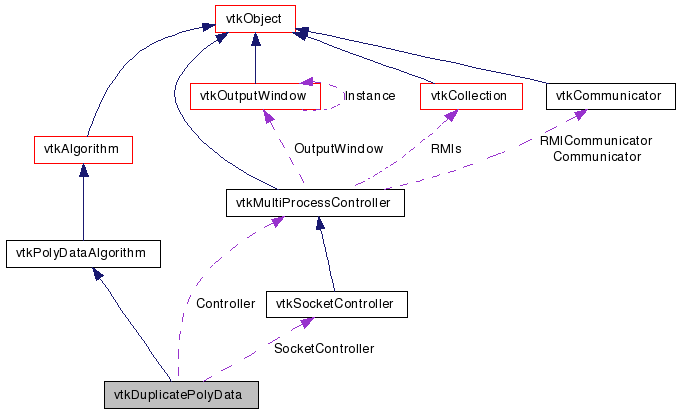

Collaboration diagram for vtkDuplicatePolyData:

Collaboration graph
[legend]

List of all members.


Detailed Description

For distributed tiled displays.

This filter collects poly data and duplicates it on every node. Converts data parallel so every node has a complete copy of the data. The filter is used at the end of a pipeline for driving a tiled display.

Definition at line 31 of file vtkDuplicatePolyData.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void InitializeSchedule (int numProcs)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetSynchronous (int)
virtual int GetSynchronous ()
virtual void SynchronousOn ()
virtual void SynchronousOff ()
vtkSocketControllerGetSocketController ()
void SetSocketController (vtkSocketController *controller)
virtual void SetClientFlag (int)
virtual int GetClientFlag ()
virtual unsigned long GetMemorySize ()

Static Public Member Functions

static vtkDuplicatePolyDataNew ()
static int IsTypeOf (const char *type)
static vtkDuplicatePolyDataSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkDuplicatePolyData ()
 ~vtkDuplicatePolyData ()
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void ClientExecute (vtkPolyData *output)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkMultiProcessControllerController
int Synchronous
int NumberOfProcesses
int ScheduleLength
int ** Schedule
vtkSocketControllerSocketController
int ClientFlag
unsigned long MemorySize

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 35 of file vtkDuplicatePolyData.h.


Constructor & Destructor Documentation

vtkDuplicatePolyData::vtkDuplicatePolyData (  )  [protected]

vtkDuplicatePolyData::~vtkDuplicatePolyData (  )  [protected]


Member Function Documentation

static vtkDuplicatePolyData* vtkDuplicatePolyData::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkDuplicatePolyData::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkDuplicatePolyData::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkDuplicatePolyData::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkDuplicatePolyData* vtkDuplicatePolyData::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkDuplicatePolyData::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkDuplicatePolyData::SetController ( vtkMultiProcessController  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkDuplicatePolyData::GetController (  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

void vtkDuplicatePolyData::InitializeSchedule ( int  numProcs  )

virtual void vtkDuplicatePolyData::SetSynchronous ( int   )  [virtual]

This flag causes sends and receives to be matched. When this flag is off, two sends occur then two receives. I want to see if it makes a difference in performance. The flag is on by default.

virtual int vtkDuplicatePolyData::GetSynchronous (  )  [virtual]

This flag causes sends and receives to be matched. When this flag is off, two sends occur then two receives. I want to see if it makes a difference in performance. The flag is on by default.

virtual void vtkDuplicatePolyData::SynchronousOn (  )  [virtual]

This flag causes sends and receives to be matched. When this flag is off, two sends occur then two receives. I want to see if it makes a difference in performance. The flag is on by default.

virtual void vtkDuplicatePolyData::SynchronousOff (  )  [virtual]

This flag causes sends and receives to be matched. When this flag is off, two sends occur then two receives. I want to see if it makes a difference in performance. The flag is on by default.

vtkSocketController* vtkDuplicatePolyData::GetSocketController (  )  [inline]

This duplicate filter works in client server mode when this controller is set. We have a client flag to diferentiate the client and server because the socket controller is odd: Proth processes think their id is 0.

Definition at line 61 of file vtkDuplicatePolyData.h.

void vtkDuplicatePolyData::SetSocketController ( vtkSocketController controller  )

This duplicate filter works in client server mode when this controller is set. We have a client flag to diferentiate the client and server because the socket controller is odd: Proth processes think their id is 0.

virtual void vtkDuplicatePolyData::SetClientFlag ( int   )  [virtual]

This duplicate filter works in client server mode when this controller is set. We have a client flag to diferentiate the client and server because the socket controller is odd: Proth processes think their id is 0.

virtual int vtkDuplicatePolyData::GetClientFlag (  )  [virtual]

This duplicate filter works in client server mode when this controller is set. We have a client flag to diferentiate the client and server because the socket controller is odd: Proth processes think their id is 0.

virtual unsigned long vtkDuplicatePolyData::GetMemorySize (  )  [virtual]

This returns to size of the output (on this process). This method is not really used. It is needed to have the same API as vtkCollectPolyData.

virtual int vtkDuplicatePolyData::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkDuplicatePolyData::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

void vtkDuplicatePolyData::ClientExecute ( vtkPolyData output  )  [protected]

virtual int vtkDuplicatePolyData::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 84 of file vtkDuplicatePolyData.h.

Definition at line 85 of file vtkDuplicatePolyData.h.

Definition at line 87 of file vtkDuplicatePolyData.h.

Definition at line 88 of file vtkDuplicatePolyData.h.

int** vtkDuplicatePolyData::Schedule [protected]

Definition at line 89 of file vtkDuplicatePolyData.h.

Definition at line 92 of file vtkDuplicatePolyData.h.

Definition at line 93 of file vtkDuplicatePolyData.h.

unsigned long vtkDuplicatePolyData::MemorySize [protected]

Definition at line 95 of file vtkDuplicatePolyData.h.


The documentation for this class was generated from the following file:
