vtkExodusIIReaderPrivate::BlockSetInfoType Struct Reference

#include <vtkExodusIIReaderPrivate.h>

Inheritance diagram for vtkExodusIIReaderPrivate::BlockSetInfoType:

[legend]

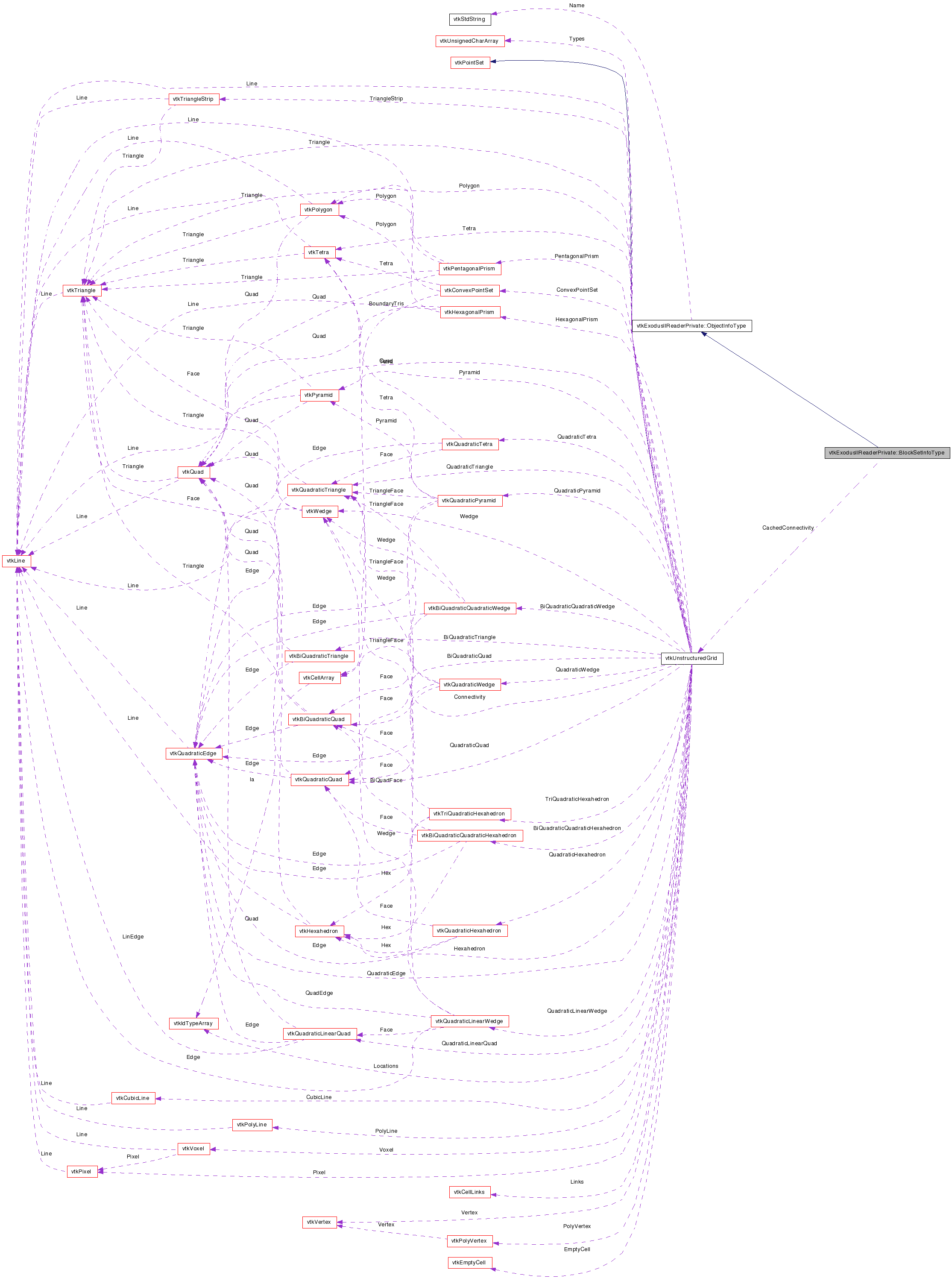

Collaboration diagram for vtkExodusIIReaderPrivate::BlockSetInfoType:

[legend]

List of all members.

---

Detailed Description

A struct to hold information about Exodus blocks or sets (they have some members in common).

Definition at line 340 of file vtkExodusIIReaderPrivate.h.

Public Member Functions
	BlockSetInfoType ()
Public Attributes
vtkIdType	FileOffset
	Id (1-based) of first entry in file-local list across all blocks in file.
vtkstd::map< vtkIdType, vtkIdType >	PointMap
	A map from nodal IDs in an Exodus file to nodal IDs in the output mesh.
vtkstd::map< vtkIdType, vtkIdType >	ReversePointMap
	A map from nodal ids in the output mesh to those in an Exodus file.
vtkIdType	NextSqueezePoint
	The next vtk ID to use for a connectivity entry when point squeezing is on and no point ID exists.
vtkUnstructuredGrid *	CachedConnectivity
	Cached cell connectivity arrays for mesh.

---

Constructor & Destructor Documentation

vtkExodusIIReaderPrivate::BlockSetInfoType::BlockSetInfoType

(

)

[inline]

Definition at line 360 of file vtkExodusIIReaderPrivate.h.

---

Member Data Documentation

vtkIdType vtkExodusIIReaderPrivate::BlockSetInfoType::FileOffset

Id (1-based) of first entry in file-local list across all blocks in file.

Definition at line 342 of file vtkExodusIIReaderPrivate.h.

vtkstd::map<vtkIdType,vtkIdType> vtkExodusIIReaderPrivate::BlockSetInfoType::PointMap

A map from nodal IDs in an Exodus file to nodal IDs in the output mesh.

Should only be used when SqueezePoints is true. Otherwise, just subtract 1 from any Exodus node ID to get the VTK node ID.

Definition at line 347 of file vtkExodusIIReaderPrivate.h.

vtkstd::map<vtkIdType,vtkIdType> vtkExodusIIReaderPrivate::BlockSetInfoType::ReversePointMap

A map from nodal ids in the output mesh to those in an Exodus file.

Should only be used when SqueezePoints is true. Otherwise, just add 1 to any VTK node ID to get the Exodus node ID.

Definition at line 352 of file vtkExodusIIReaderPrivate.h.

vtkIdType vtkExodusIIReaderPrivate::BlockSetInfoType::NextSqueezePoint

The next vtk ID to use for a connectivity entry when point squeezing is on and no point ID exists.

Definition at line 356 of file vtkExodusIIReaderPrivate.h.

vtkUnstructuredGrid* vtkExodusIIReaderPrivate::BlockSetInfoType::CachedConnectivity

Cached cell connectivity arrays for mesh.

Definition at line 358 of file vtkExodusIIReaderPrivate.h.

---

The documentation for this struct was generated from the following file:

• dox/Hybrid/vtkExodusIIReaderPrivate.h
