vtkGenericDataSetAlgorithm Class Reference

#include <vtkGenericDataSetAlgorithm.h>

Inheritance diagram for vtkGenericDataSetAlgorithm:

Inheritance graph
[legend]

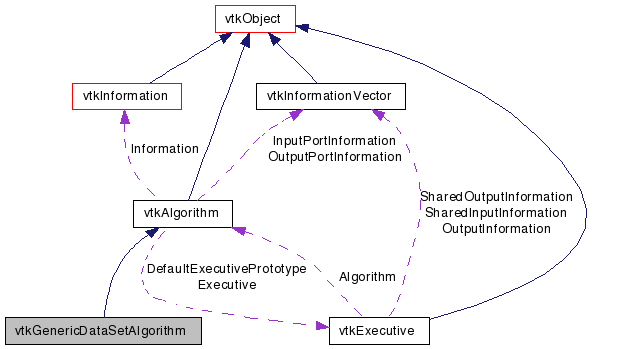

Collaboration diagram for vtkGenericDataSetAlgorithm:

Collaboration graph
[legend]

List of all members.


Detailed Description

Objects that generate adapted data sets.

vtkGenericDataSetAlgorithm is a convenience class to make writing algorithms easier. It is also designed to help transition old algorithms to the new pipeline architecture. Ther are some assumptions and defaults made by this class you should be aware of. This class defaults such that your filter will have one input port and one output port. If that is not the case simply change it with SetNumberOfInputPorts etc. See this classes constructor for the default. This class also provides a FillInputPortInfo method that by default says that all inputs will be GenericDataSet. If that isn't the case then please override this method in your subclass. This class breaks out the downstream requests into seperate functions such as ExecuteData and ExecuteInformation. For new algorithms you should implement RequestData( request, inputVec, outputVec) but for older filters there is a default implementation that calls the old ExecuteData(output) signature, for even older filters that don;t implement ExecuteData the default implementation calls the even older Execute() signature.

Definition at line 45 of file vtkGenericDataSetAlgorithm.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkDataObjectGetInput ()
vtkDataObjectGetInput (int port)
vtkGenericDataSetGetGenericDataSetInput (int port)
vtkGenericDataSetGetOutput ()
vtkGenericDataSetGetOutput (int)
virtual void SetOutput (vtkDataObject *d)
virtual int ProcessRequest (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void SetInput (vtkDataObject *)
void SetInput (int, vtkDataObject *)
void AddInput (vtkDataObject *)
void AddInput (int, vtkDataObject *)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkGenericDataSetAlgorithmSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkGenericDataSetAlgorithm ()
 ~vtkGenericDataSetAlgorithm ()
virtual int RequestInformation (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int FillOutputPortInformation (int port, vtkInformation *info)
virtual int FillInputPortInformation (int port, vtkInformation *info)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int RequestDataObject (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)=0
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ExecuteData (vtkDataObject *output)
virtual void Execute ()

Member Typedef Documentation

Reimplemented from vtkAlgorithm.

Definition at line 48 of file vtkGenericDataSetAlgorithm.h.


Constructor & Destructor Documentation

vtkGenericDataSetAlgorithm::vtkGenericDataSetAlgorithm (  )  [protected]

vtkGenericDataSetAlgorithm::~vtkGenericDataSetAlgorithm (  )  [protected]


Member Function Documentation

virtual const char* vtkGenericDataSetAlgorithm::GetClassName (  )  [virtual]

Reimplemented from vtkAlgorithm.

static int vtkGenericDataSetAlgorithm::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

virtual int vtkGenericDataSetAlgorithm::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

static vtkGenericDataSetAlgorithm* vtkGenericDataSetAlgorithm::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAlgorithm.

void vtkGenericDataSetAlgorithm::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

vtkGenericDataSet* vtkGenericDataSetAlgorithm::GetOutput (  )

Get the output data object for a port on this algorithm.

vtkGenericDataSet* vtkGenericDataSetAlgorithm::GetOutput ( int   )

Get the output data object for a port on this algorithm.

virtual void vtkGenericDataSetAlgorithm::SetOutput ( vtkDataObject d  )  [virtual]

Get the output data object for a port on this algorithm.

virtual int vtkGenericDataSetAlgorithm::ProcessRequest ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [virtual]

see vtkAlgorithm for details

Reimplemented from vtkAlgorithm.

vtkDataObject* vtkGenericDataSetAlgorithm::GetInput (  )

vtkDataObject* vtkGenericDataSetAlgorithm::GetInput ( int  port  )

vtkGenericDataSet* vtkGenericDataSetAlgorithm::GetGenericDataSetInput ( int  port  )

void vtkGenericDataSetAlgorithm::SetInput ( vtkDataObject  )

Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.

void vtkGenericDataSetAlgorithm::SetInput ( int  ,
vtkDataObject
)

Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.

void vtkGenericDataSetAlgorithm::AddInput ( vtkDataObject  )

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

void vtkGenericDataSetAlgorithm::AddInput ( int  ,
vtkDataObject
)

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

virtual int vtkGenericDataSetAlgorithm::RequestInformation ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

virtual int vtkGenericDataSetAlgorithm::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override. See ProcessRequest for details about arguments and return value.

virtual int vtkGenericDataSetAlgorithm::RequestDataObject ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, pure virtual]

This is called by the superclass. This is the method you should override. See ProcessRequest for details about arguments and return value.

virtual int vtkGenericDataSetAlgorithm::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override. See ProcessRequest for details about arguments and return value.

virtual void vtkGenericDataSetAlgorithm::ExecuteData ( vtkDataObject output  )  [protected, virtual]

This method is the old style execute method

virtual void vtkGenericDataSetAlgorithm::Execute (  )  [protected, virtual]

This method is the old style execute method

virtual int vtkGenericDataSetAlgorithm::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

virtual int vtkGenericDataSetAlgorithm::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.


The documentation for this class was generated from the following file:
