vtkImageStencilSource Class Reference

#include <vtkImageStencilSource.h>

Inheritance diagram for vtkImageStencilSource:

Inheritance graph
[legend]

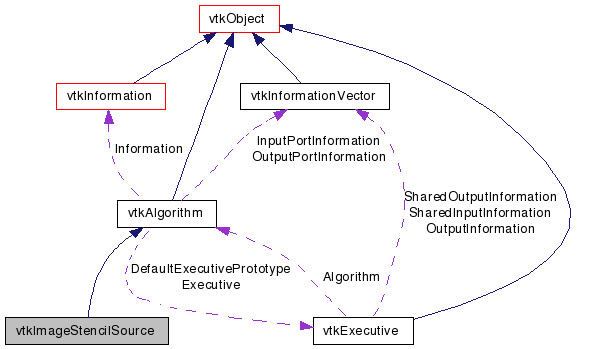

Collaboration diagram for vtkImageStencilSource:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate an image stencil

vtkImageStencilSource is a superclass for filters that generate image stencils. Given a clipping object such as a vtkImplicitFunction, it will set up a list of clipping extents for each x-row through the image data. The extents for each x-row can be retrieved via the GetNextExtent() method after the extent lists have been built with the BuildExtents() method. For large images, using clipping extents is much more memory efficient (and slightly more time-efficient) than building a mask. This class can be subclassed to allow clipping with objects other than vtkImplicitFunction.

See also:
vtkImplicitFunction vtkImageStencil vtkPolyDataToImageStencil

Definition at line 39 of file vtkImageStencilSource.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetOutput (vtkImageStencilData *output)
vtkImageStencilDataGetOutput ()
virtual int ProcessRequest (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Static Public Member Functions

static vtkImageStencilSourceNew ()
static int IsTypeOf (const char *type)
static vtkImageStencilSourceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageStencilSource ()
 ~vtkImageStencilSource ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
vtkImageStencilDataAllocateOutputData (vtkDataObject *out, int *updateExt)
virtual int FillOutputPortInformation (int, vtkInformation *)

Member Typedef Documentation

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPolyDataToImageStencil, vtkImageToImageStencil, and vtkImplicitFunctionToImageStencil.

Definition at line 43 of file vtkImageStencilSource.h.


Constructor & Destructor Documentation

vtkImageStencilSource::vtkImageStencilSource (  )  [protected]

vtkImageStencilSource::~vtkImageStencilSource (  )  [protected]


Member Function Documentation

static vtkImageStencilSource* vtkImageStencilSource::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPolyDataToImageStencil, vtkImageToImageStencil, and vtkImplicitFunctionToImageStencil.

virtual const char* vtkImageStencilSource::GetClassName (  )  [virtual]

static int vtkImageStencilSource::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPolyDataToImageStencil, vtkImageToImageStencil, and vtkImplicitFunctionToImageStencil.

virtual int vtkImageStencilSource::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPolyDataToImageStencil, vtkImageToImageStencil, and vtkImplicitFunctionToImageStencil.

static vtkImageStencilSource* vtkImageStencilSource::SafeDownCast ( vtkObject o  )  [static]

void vtkImageStencilSource::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPolyDataToImageStencil, vtkImageToImageStencil, and vtkImplicitFunctionToImageStencil.

void vtkImageStencilSource::SetOutput ( vtkImageStencilData output  )

Get or set the output for this source.

vtkImageStencilData* vtkImageStencilSource::GetOutput (  )

Get or set the output for this source.

virtual int vtkImageStencilSource::ProcessRequest ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [virtual]

see vtkAlgorithm for details

Reimplemented from vtkAlgorithm.

virtual int vtkImageStencilSource::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

virtual int vtkImageStencilSource::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

virtual int vtkImageStencilSource::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

Reimplemented in vtkImageToImageStencil.

Definition at line 68 of file vtkImageStencilSource.h.

vtkImageStencilData* vtkImageStencilSource::AllocateOutputData ( vtkDataObject out,
int *  updateExt
) [protected]

virtual int vtkImageStencilSource::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.


The documentation for this class was generated from the following file:
