vtkImageViewer2 Class Reference

#include <vtkImageViewer2.h>

Inheritance diagram for vtkImageViewer2:

Inheritance graph
[legend]

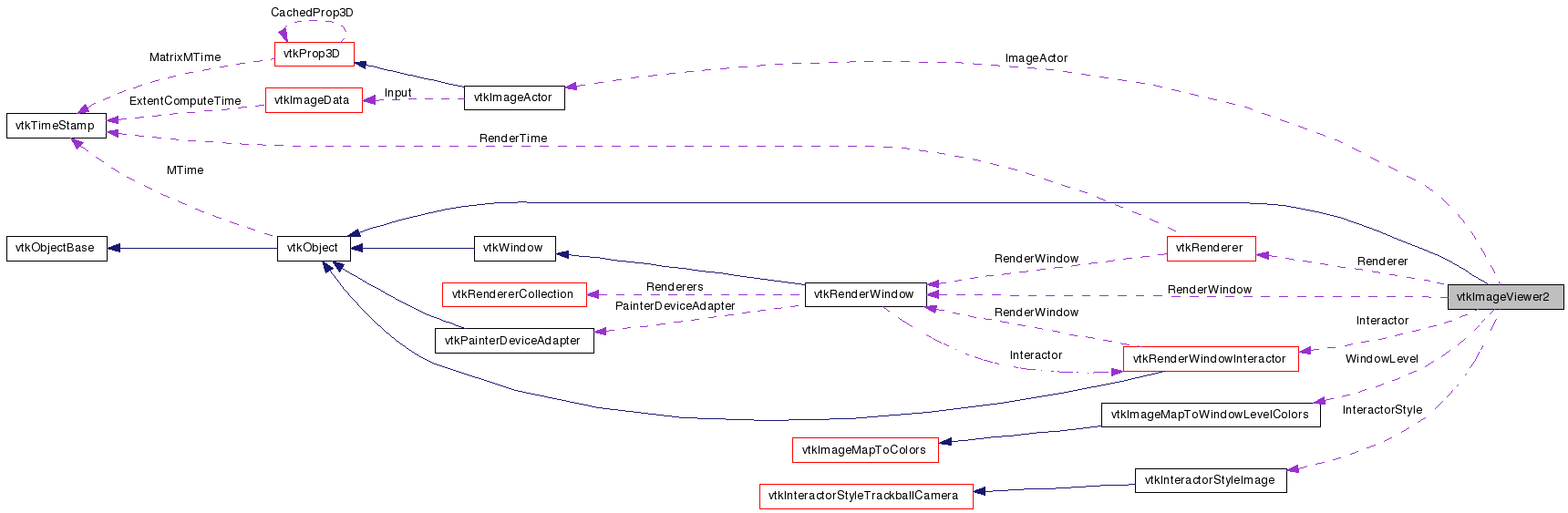

Collaboration diagram for vtkImageViewer2:

Collaboration graph
[legend]

List of all members.


Detailed Description

Display a 2D image.

vtkImageViewer2 is a convenience class for displaying a 2D image. It packages up the functionality found in vtkRenderWindow, vtkRenderer, vtkImageActor and vtkImageMapToWindowLevelColors into a single easy to use class. This class also creates an image interactor style (vtkInteractorStyleImage) that allows zooming and panning of images, and supports interactive window/level operations on the image. Note that vtkImageViewer2 is simply a wrapper around these classes.

vtkImageViewer2 uses the 3D rendering and texture mapping engine to draw an image on a plane. This allows for rapid rendering, zooming, and panning. The image is placed in the 3D scene at a depth based on the z-coordinate of the particular image slice. Each call to SetSlice() changes the image data (slice) displayed AND changes the depth of the displayed slice in the 3D scene. This can be controlled by the AutoAdjustCameraClippingRange ivar of the InteractorStyle member.

It is possible to mix images and geometry, using the methods:

viewer->SetInput( myImage ); viewer->GetRenderer()->AddActor( myActor );

This can be used to annotate an image with a PolyData of "edges" or or highlight sections of an image or display a 3D isosurface with a slice from the volume, etc. Any portions of your geometry that are in front of the displayed slice will be visible; any portions of your geometry that are behind the displayed slice will be obscured. A more general framework (with respect to viewing direction) for achieving this effect is provided by the vtkImagePlaneWidget .

Note that pressing 'r' will reset the window/level and pressing shift+'r' or control+'r' will reset the camera.

See also:
vtkRenderWindow vtkRenderer vtkImageActor vtkImageMapToWindowLevelColors
Tests:
vtkImageViewer2 (Tests)

Definition at line 73 of file vtkImageViewer2.h.

enum  { SLICE_ORIENTATION_YZ = 0, SLICE_ORIENTATION_XZ = 1, SLICE_ORIENTATION_XY = 2 }
virtual int GetSliceOrientation ()
virtual void SetSliceOrientation (int orientation)
virtual void SetSliceOrientationToXY ()
virtual void SetSliceOrientationToYZ ()
virtual void SetSliceOrientationToXZ ()

Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual const char * GetWindowName ()
virtual void Render (void)
virtual void UpdateDisplayExtent ()
virtual void SetupInteractor (vtkRenderWindowInteractor *)
int GetWholeZMin ()
int GetWholeZMax ()
int GetZSlice ()
void SetZSlice (int)
virtual void SetInput (vtkImageData *in)
virtual vtkImageDataGetInput ()
virtual void SetInputConnection (vtkAlgorithmOutput *input)
virtual int GetSlice ()
virtual void SetSlice (int s)
virtual int GetSliceMin ()
virtual int GetSliceMax ()
virtual void GetSliceRange (int range[2])
virtual void GetSliceRange (int &min, int &max)
virtual int * GetSliceRange ()
virtual double GetColorWindow ()
virtual double GetColorLevel ()
virtual void SetColorWindow (double s)
virtual void SetColorLevel (double s)
virtual void SetDisplayId (void *a)
virtual void SetWindowId (void *a)
virtual void SetParentId (void *a)
virtual int * GetPosition ()
virtual void SetPosition (int a, int b)
virtual void SetPosition (int a[2])
virtual int * GetSize ()
virtual void SetSize (int a, int b)
virtual void SetSize (int a[2])
virtual vtkRenderWindowGetRenderWindow ()
virtual vtkRendererGetRenderer ()
virtual vtkImageActorGetImageActor ()
virtual
vtkImageMapToWindowLevelColors
GetWindowLevel ()
virtual vtkInteractorStyleImageGetInteractorStyle ()
virtual void SetRenderWindow (vtkRenderWindow *arg)
virtual void SetRenderer (vtkRenderer *arg)
virtual void SetOffScreenRendering (int)
virtual int GetOffScreenRendering ()
virtual void OffScreenRenderingOn ()
virtual void OffScreenRenderingOff ()

Static Public Member Functions

static vtkImageViewer2New ()
static int IsTypeOf (const char *type)
static vtkImageViewer2SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageViewer2 ()
 ~vtkImageViewer2 ()
virtual void InstallPipeline ()
virtual void UnInstallPipeline ()
virtual void UpdateOrientation ()

Protected Attributes

vtkImageMapToWindowLevelColorsWindowLevel
vtkRenderWindowRenderWindow
vtkRendererRenderer
vtkImageActorImageActor
vtkRenderWindowInteractorInteractor
vtkInteractorStyleImageInteractorStyle
int SliceOrientation
int FirstRender
int Slice

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 77 of file vtkImageViewer2.h.


Member Enumeration Documentation

anonymous enum

Set/get the slice orientation BTX

Enumerator:
SLICE_ORIENTATION_YZ
SLICE_ORIENTATION_XZ
SLICE_ORIENTATION_XY

Definition at line 95 of file vtkImageViewer2.h.


Constructor & Destructor Documentation

vtkImageViewer2::vtkImageViewer2 (  )  [protected]

vtkImageViewer2::~vtkImageViewer2 (  )  [protected]


Member Function Documentation

static vtkImageViewer2* vtkImageViewer2::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageViewer2::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkImageViewer2::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkImageViewer2::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkImageViewer2* vtkImageViewer2::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkImageViewer2::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual const char* vtkImageViewer2::GetWindowName (  )  [virtual]

Get the name of rendering window.

virtual void vtkImageViewer2::Render ( void   )  [virtual]

Render the resulting image.

virtual void vtkImageViewer2::SetInput ( vtkImageData in  )  [virtual]

Set/Get the input image to the viewer.

virtual vtkImageData* vtkImageViewer2::GetInput (  )  [virtual]

Set/Get the input image to the viewer.

virtual void vtkImageViewer2::SetInputConnection ( vtkAlgorithmOutput input  )  [virtual]

Set/Get the input image to the viewer.

virtual int vtkImageViewer2::GetSliceOrientation (  )  [virtual]

Set/get the slice orientation BTX

virtual void vtkImageViewer2::SetSliceOrientation ( int  orientation  )  [virtual]

Set/get the slice orientation BTX

virtual void vtkImageViewer2::SetSliceOrientationToXY (  )  [inline, virtual]

Set/get the slice orientation BTX

Definition at line 104 of file vtkImageViewer2.h.

virtual void vtkImageViewer2::SetSliceOrientationToYZ (  )  [inline, virtual]

Set/get the slice orientation BTX

Definition at line 106 of file vtkImageViewer2.h.

virtual void vtkImageViewer2::SetSliceOrientationToXZ (  )  [inline, virtual]

Set/get the slice orientation BTX

Definition at line 108 of file vtkImageViewer2.h.

virtual int vtkImageViewer2::GetSlice (  )  [virtual]

Set/Get the current slice to display (depending on the orientation this can be in X, Y or Z).

virtual void vtkImageViewer2::SetSlice ( int  s  )  [virtual]

Set/Get the current slice to display (depending on the orientation this can be in X, Y or Z).

virtual void vtkImageViewer2::UpdateDisplayExtent (  )  [virtual]

Update the display extent manually so that the proper slice for the given orientation is displayed. It will also try to set a reasonable camera clipping range. This method is called automatically when the Input is changed, but most of the time the input of this class is likely to remain the same, i.e. connected to the output of a filter, or an image reader. When the input of this filter or reader itself is changed, an error message might be displayed since the current display extent is probably outside the new whole extent. Calling this method will ensure that the display extent is reset properly.

virtual int vtkImageViewer2::GetSliceMin (  )  [virtual]

Return the minimum and maximum slice values (depending on the orientation this can be in X, Y or Z).

virtual int vtkImageViewer2::GetSliceMax (  )  [virtual]

Return the minimum and maximum slice values (depending on the orientation this can be in X, Y or Z).

virtual void vtkImageViewer2::GetSliceRange ( int  range[2]  )  [inline, virtual]

Return the minimum and maximum slice values (depending on the orientation this can be in X, Y or Z).

Definition at line 135 of file vtkImageViewer2.h.

virtual void vtkImageViewer2::GetSliceRange ( int &  min,
int &  max
) [virtual]

Return the minimum and maximum slice values (depending on the orientation this can be in X, Y or Z).

virtual int* vtkImageViewer2::GetSliceRange (  )  [virtual]

Return the minimum and maximum slice values (depending on the orientation this can be in X, Y or Z).

virtual double vtkImageViewer2::GetColorWindow (  )  [virtual]

Set window and level for mapping pixels to colors.

virtual double vtkImageViewer2::GetColorLevel (  )  [virtual]

Set window and level for mapping pixels to colors.

virtual void vtkImageViewer2::SetColorWindow ( double  s  )  [virtual]

Set window and level for mapping pixels to colors.

virtual void vtkImageViewer2::SetColorLevel ( double  s  )  [virtual]

Set window and level for mapping pixels to colors.

virtual void vtkImageViewer2::SetDisplayId ( void *  a  )  [virtual]

These are here when using a Tk window.

virtual void vtkImageViewer2::SetWindowId ( void *  a  )  [virtual]

These are here when using a Tk window.

virtual void vtkImageViewer2::SetParentId ( void *  a  )  [virtual]

These are here when using a Tk window.

virtual int* vtkImageViewer2::GetPosition (  )  [virtual]

Set/Get the position in screen coordinates of the rendering window.

virtual void vtkImageViewer2::SetPosition ( int  a,
int  b
) [virtual]

Set/Get the position in screen coordinates of the rendering window.

virtual void vtkImageViewer2::SetPosition ( int  a[2]  )  [inline, virtual]

Set/Get the position in screen coordinates of the rendering window.

Definition at line 160 of file vtkImageViewer2.h.

virtual int* vtkImageViewer2::GetSize (  )  [virtual]

Set/Get the size of the window in screen coordinates in pixels.

virtual void vtkImageViewer2::SetSize ( int  a,
int  b
) [virtual]

Set/Get the size of the window in screen coordinates in pixels.

virtual void vtkImageViewer2::SetSize ( int  a[2]  )  [inline, virtual]

Set/Get the size of the window in screen coordinates in pixels.

Definition at line 167 of file vtkImageViewer2.h.

virtual vtkRenderWindow* vtkImageViewer2::GetRenderWindow (  )  [virtual]

Get the internal render window, renderer, image actor, and image map instances.

virtual vtkRenderer* vtkImageViewer2::GetRenderer (  )  [virtual]

Get the internal render window, renderer, image actor, and image map instances.

virtual vtkImageActor* vtkImageViewer2::GetImageActor (  )  [virtual]

Get the internal render window, renderer, image actor, and image map instances.

virtual vtkImageMapToWindowLevelColors* vtkImageViewer2::GetWindowLevel (  )  [virtual]

Get the internal render window, renderer, image actor, and image map instances.

virtual vtkInteractorStyleImage* vtkImageViewer2::GetInteractorStyle (  )  [virtual]

Get the internal render window, renderer, image actor, and image map instances.

virtual void vtkImageViewer2::SetRenderWindow ( vtkRenderWindow arg  )  [virtual]

Set your own renderwindow and renderer

virtual void vtkImageViewer2::SetRenderer ( vtkRenderer arg  )  [virtual]

Set your own renderwindow and renderer

virtual void vtkImageViewer2::SetupInteractor ( vtkRenderWindowInteractor  )  [virtual]

Attach an interactor for the internal render window.

virtual void vtkImageViewer2::SetOffScreenRendering ( int   )  [virtual]

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

virtual int vtkImageViewer2::GetOffScreenRendering (  )  [virtual]

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

virtual void vtkImageViewer2::OffScreenRenderingOn (  )  [virtual]

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

virtual void vtkImageViewer2::OffScreenRenderingOff (  )  [virtual]

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

int vtkImageViewer2::GetWholeZMin (  )

Deprecated:
Replaced by vtkImageViewer2::GetSliceMin() as of VTK 5.0.

int vtkImageViewer2::GetWholeZMax (  )

Deprecated:
Replaced by vtkImageViewer2::GetSliceMax() as of VTK 5.0.

int vtkImageViewer2::GetZSlice (  )

Deprecated:
Replaced by vtkImageViewer2::GetSlice() as of VTK 5.0.

void vtkImageViewer2::SetZSlice ( int   )

Deprecated:
Replaced by vtkImageViewer2::SetSlice() as of VTK 5.0.

virtual void vtkImageViewer2::InstallPipeline (  )  [protected, virtual]

virtual void vtkImageViewer2::UnInstallPipeline (  )  [protected, virtual]

virtual void vtkImageViewer2::UpdateOrientation (  )  [protected, virtual]


Member Data Documentation

Definition at line 217 of file vtkImageViewer2.h.

Definition at line 218 of file vtkImageViewer2.h.

Definition at line 219 of file vtkImageViewer2.h.

Definition at line 220 of file vtkImageViewer2.h.

Definition at line 221 of file vtkImageViewer2.h.

Definition at line 222 of file vtkImageViewer2.h.

Definition at line 224 of file vtkImageViewer2.h.

Definition at line 225 of file vtkImageViewer2.h.

int vtkImageViewer2::Slice [protected]

Definition at line 226 of file vtkImageViewer2.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:29:50 2010 for VTK by  doxygen 1.5.6
