vtkImporter Class Reference

#include <vtkImporter.h>

Inheritance diagram for vtkImporter:

Inheritance graph
[legend]

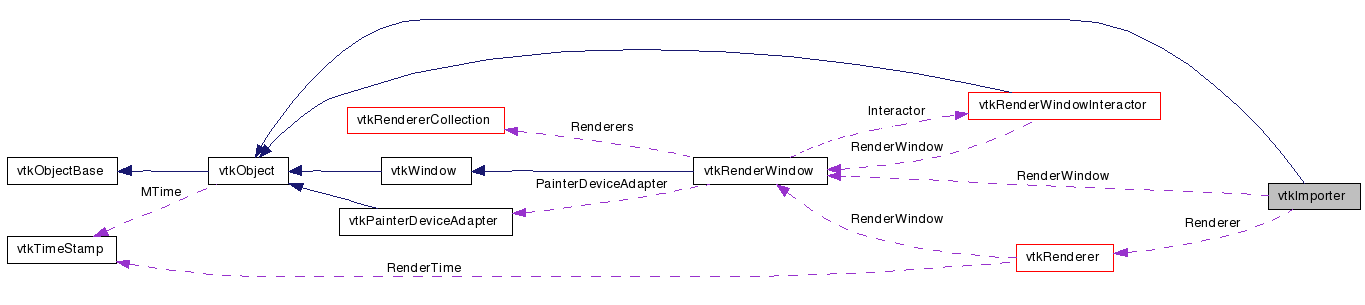

Collaboration diagram for vtkImporter:

Collaboration graph
[legend]

List of all members.


Detailed Description

importer abstract class

vtkImporter is an abstract class that specifies the protocol for importing actors, cameras, lights and properties into a vtkRenderWindow. The following takes place: 1) Create a RenderWindow and Renderer if none is provided. 2) Call ImportBegin, if ImportBegin returns False, return 3) Call ReadData, which calls: a) Import the Actors b) Import the cameras c) Import the lights d) Import the Properties 7) Call ImportEnd

Subclasses optionally implement the ImportActors, ImportCameras, ImportLights and ImportProperties or ReadData methods. An ImportBegin and ImportEnd can optionally be provided to perform Importer-specific initialization and termination. The Read method initiates the import process. If a RenderWindow is provided, its Renderer will contained the imported objects. If the RenderWindow has no Renderer, one is created. If no RenderWindow is provided, both a RenderWindow and Renderer will be created. Both the RenderWindow and Renderer can be accessed using Get methods.

See also:
vtk3DSImporter vtkExporter

Definition at line 52 of file vtkImporter.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkRendererGetRenderer ()
virtual void SetRenderWindow (vtkRenderWindow *)
virtual vtkRenderWindowGetRenderWindow ()
void Read ()
void Update ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkImporterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImporter ()
 ~vtkImporter ()
virtual int ImportBegin ()
virtual void ImportEnd ()
virtual void ImportActors (vtkRenderer *)
virtual void ImportCameras (vtkRenderer *)
virtual void ImportLights (vtkRenderer *)
virtual void ImportProperties (vtkRenderer *)
virtual void ReadData ()

Protected Attributes

vtkRendererRenderer
vtkRenderWindowRenderWindow

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 55 of file vtkImporter.h.


Constructor & Destructor Documentation

vtkImporter::vtkImporter (  )  [protected]

vtkImporter::~vtkImporter (  )  [protected]


Member Function Documentation

virtual const char* vtkImporter::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

static int vtkImporter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

virtual int vtkImporter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

static vtkImporter* vtkImporter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

void vtkImporter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

virtual vtkRenderer* vtkImporter::GetRenderer (  )  [virtual]

Get the renderer that contains the imported actors, cameras and lights.

virtual void vtkImporter::SetRenderWindow ( vtkRenderWindow  )  [virtual]

Set the vtkRenderWindow to contain the imported actors, cameras and lights, If no vtkRenderWindow is set, one will be created and can be obtained with the GetRenderWindow method. If the vtkRenderWindow has been specified, the first vtkRenderer it has will be used to import the objects. If the vtkRenderWindow has no Renderer, one will be created and can be accessed using GetRenderer.

virtual vtkRenderWindow* vtkImporter::GetRenderWindow (  )  [virtual]

Set the vtkRenderWindow to contain the imported actors, cameras and lights, If no vtkRenderWindow is set, one will be created and can be obtained with the GetRenderWindow method. If the vtkRenderWindow has been specified, the first vtkRenderer it has will be used to import the objects. If the vtkRenderWindow has no Renderer, one will be created and can be accessed using GetRenderer.

void vtkImporter::Read (  )

Import the actors, cameras, lights and properties into a vtkRenderWindow.

void vtkImporter::Update (  )  [inline]

Import the actors, cameras, lights and properties into a vtkRenderWindow.

Definition at line 81 of file vtkImporter.h.

virtual int vtkImporter::ImportBegin (  )  [inline, protected, virtual]

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 89 of file vtkImporter.h.

virtual void vtkImporter::ImportEnd (  )  [inline, protected, virtual]

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 90 of file vtkImporter.h.

virtual void vtkImporter::ImportActors ( vtkRenderer  )  [inline, protected, virtual]

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 91 of file vtkImporter.h.

virtual void vtkImporter::ImportCameras ( vtkRenderer  )  [inline, protected, virtual]

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 92 of file vtkImporter.h.

virtual void vtkImporter::ImportLights ( vtkRenderer  )  [inline, protected, virtual]

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 93 of file vtkImporter.h.

virtual void vtkImporter::ImportProperties ( vtkRenderer  )  [inline, protected, virtual]

Reimplemented in vtk3DSImporter, and vtkVRMLImporter.

Definition at line 94 of file vtkImporter.h.

virtual void vtkImporter::ReadData (  )  [protected, virtual]


Member Data Documentation

Definition at line 94 of file vtkImporter.h.

Definition at line 97 of file vtkImporter.h.


The documentation for this class was generated from the following file:
