vtkJavaProgrammableFilter Class Reference

#include <vtkJavaProgrammableFilter.h>

Inheritance diagram for vtkJavaProgrammableFilter:

[legend]

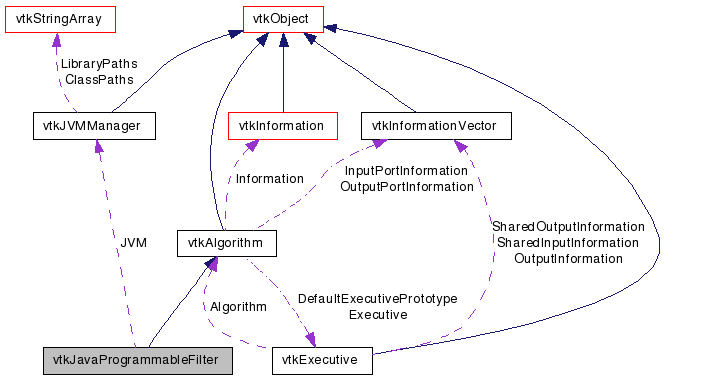

Collaboration diagram for vtkJavaProgrammableFilter:

[legend]

List of all members.

Detailed Description

Execute an algorithm defined in a Java class.

vtkJavaProgrammableFilter executes code from a Java class. The Java class must be a subclass of vtk.Algorithm, which is defined in the VTK jar file built when VTK_WRAP_JAVA is on. The subclass of vtk.Algorithm works just as if it was a vtkAlgorithm subclass, with the following exceptions: Inside the Java class, you have access to the "real" algorithm which is an attribute called VTKAlgorithm. Use this to set parameters, get filter input and output, etc. You initialize parameters and set the number of input/output ports in the method named "initialize" instead of the constructor. Parameters are set using SetParameter(name, value) and are retrieved in Java by GetXParameter(name), where X is Int, Double, or String.

The default algorithm will take one input and produce an output. You must minimally override

bool requestData(vtkInformation, vtkInformationVector[], vtkInformationVector)

which performs the same function as vtkAlgorithm::RequestData(). See VTK/Wrapping/Java/vtk/SampleAlgorithm.java as an example Algorithm subclass.

To use this filter, the application must first call the static methods vtkJVMManager::AddLibraryPath() and vtkJVMManager::AddClassPath() with the paths to the VTK libraries and vtk.jar, respectively. Then, on this filter you must call SetJavaClassPath() with the location of the .jar file or .class files which contain your vtk.Algorithm subclass. Also use SetJavaClassName() to set the name of the vtk.Algorithm subclass. See VTK/Graphics/Testing/Cxx/TestJavaProgrammableFilter.cxx for an example of how to set up the programmable filter.

Tests:: vtkJavaProgrammableFilter (Tests)

Definition at line 66 of file vtkJavaProgrammableFilter.h.


Public Types
typedef vtkAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
bool	Initialize ()

void	SetParameter (const char *name, int value)
void	SetParameter (const char *name, double value)
void	SetParameter (const char name, const char value)
int	GetIntParameter (const char *name)
double	GetDoubleParameter (const char *name)
const char *	GetStringParameter (const char *name)

virtual void	SetJavaClassName (const char *name)
virtual const char *	GetJavaClassName ()

virtual void	SetJavaClassPath (const char *path)
virtual const char *	GetJavaClassPath ()

void	SetNumberOfInputPorts (int n)
void	SetNumberOfOutputPorts (int n)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Static Public Member Functions
static vtkJavaProgrammableFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkJavaProgrammableFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkJavaProgrammableFilter ()
	~vtkJavaProgrammableFilter ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
virtual int	FillOutputPortInformation (int port, vtkInformation *info)
virtual void	SetJavaClassNameInternal (const char *)
virtual void	SetJavaClassPathInternal (const char *)

virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
char *	JavaClassNameInternal
char *	JavaClassPathInternal
vtkJVMManager *	JVM
vtkJavaProgrammableFilterInternals *	Internals

Member Typedef Documentation

typedef vtkAlgorithm vtkJavaProgrammableFilter::Superclass

Reimplemented from vtkAlgorithm.

Definition at line 70 of file vtkJavaProgrammableFilter.h.

Constructor & Destructor Documentation

vtkJavaProgrammableFilter::vtkJavaProgrammableFilter ( ) [protected]

vtkJavaProgrammableFilter::~vtkJavaProgrammableFilter ( ) [protected]

Member Function Documentation

static vtkJavaProgrammableFilter* vtkJavaProgrammableFilter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkJavaProgrammableFilter::GetClassName ( ) [virtual]

Reimplemented from vtkAlgorithm.

static int vtkJavaProgrammableFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

virtual int vtkJavaProgrammableFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

static vtkJavaProgrammableFilter* vtkJavaProgrammableFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkAlgorithm.

void vtkJavaProgrammableFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

void vtkJavaProgrammableFilter::SetParameter	(	const char *	name,
		int	value
	)
