vtkLegendBoxActor Class Reference

#include <vtkLegendBoxActor.h>

Inheritance diagram for vtkLegendBoxActor:

[legend]

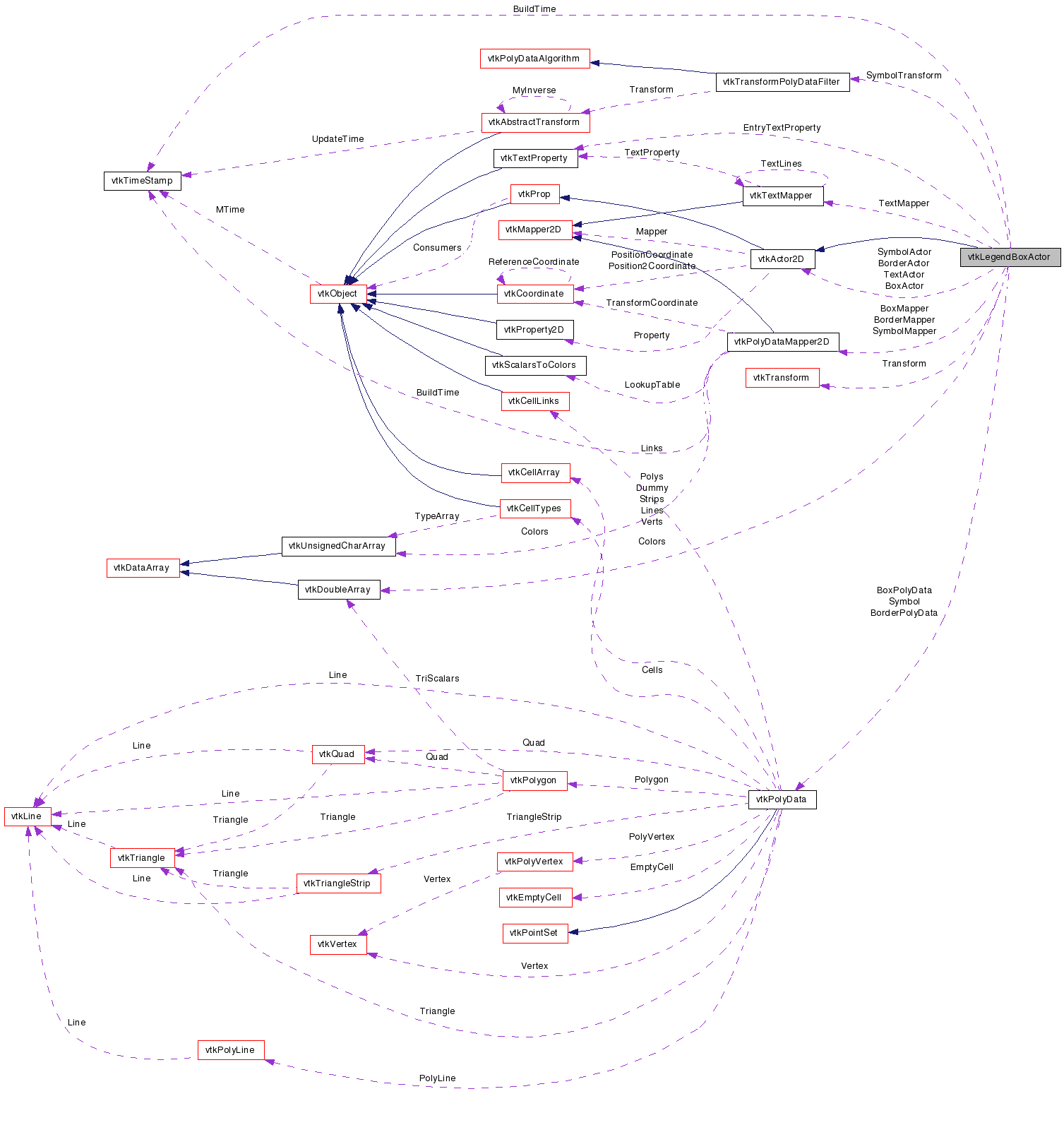

Collaboration diagram for vtkLegendBoxActor:

[legend]

List of all members.

Detailed Description

draw symbols with text

vtkLegendBoxActor is used to associate a symbol with a text string. The user specifies a vtkPolyData to use as the symbol, and a string associated with the symbol. The actor can then be placed in the scene in the same way that any other vtkActor2D can be used.

To use this class, you must define the position of the legend box by using the superclasses' vtkActor2D::Position coordinate and Position2 coordinate. Then define the set of symbols and text strings that make up the menu box. The font attributes of the entries can be set through the vtkTextProperty associated to this actor. The class will scale the symbols and text to fit in the legend box defined by (Position,Position2). Optional features like turning on a border line and setting the spacing between the border and the symbols/text can also be set.

See also:: vtkXYPlotActor vtkActor2D vtkGlyphSource2D

Definition at line 53 of file vtkLegendBoxActor.h.


Public Types
typedef vtkActor2D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkProperty2D *	GetBoxProperty ()
void	ShallowCopy (vtkProp *prop)
virtual void	ReleaseGraphicsResources (vtkWindow *)
virtual int	HasTranslucentPolygonalGeometry ()

void	SetNumberOfEntries (int num)
int	GetNumberOfEntries ()

void	SetEntry (int i, vtkPolyData symbol, const char string, double color[3])
void	SetEntrySymbol (int i, vtkPolyData *symbol)
void	SetEntryString (int i, const char *string)
void	SetEntryColor (int i, double color[3])
void	SetEntryColor (int i, double r, double g, double b)
vtkPolyData *	GetEntrySymbol (int i)
const char *	GetEntryString (int i)
double *	GetEntryColor (int i)

virtual void	SetEntryTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetEntryTextProperty ()

virtual void	SetBorder (int)
virtual int	GetBorder ()
virtual void	BorderOn ()
virtual void	BorderOff ()

virtual void	SetLockBorder (int)
virtual int	GetLockBorder ()
virtual void	LockBorderOn ()
virtual void	LockBorderOff ()

virtual void	SetBox (int)
virtual int	GetBox ()
virtual void	BoxOn ()
virtual void	BoxOff ()

virtual void	SetPadding (int)
virtual int	GetPadding ()

virtual void	SetScalarVisibility (int)
virtual int	GetScalarVisibility ()
virtual void	ScalarVisibilityOn ()
virtual void	ScalarVisibilityOff ()

int	RenderOpaqueGeometry (vtkViewport *viewport)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)
int	RenderOverlay (vtkViewport *viewport)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkLegendBoxActor *	SafeDownCast (vtkObject *o)
static vtkLegendBoxActor *	New ()
Protected Member Functions
	vtkLegendBoxActor ()
	~vtkLegendBoxActor ()
void	InitializeEntries ()
Protected Attributes
int	Border
int	Box
int	Padding
int	LockBorder
int	ScalarVisibility
double	BoxOpacity
int	NumberOfEntries
int	Size
vtkDoubleArray *	Colors
vtkTextMapper **	TextMapper
vtkActor2D **	TextActor
vtkPolyData **	Symbol
vtkTransform **	Transform
vtkTransformPolyDataFilter **	SymbolTransform
vtkPolyDataMapper2D **	SymbolMapper
vtkActor2D **	SymbolActor
vtkPolyData *	BorderPolyData
vtkPolyDataMapper2D *	BorderMapper
vtkActor2D *	BorderActor
vtkPolyData *	BoxPolyData
vtkPolyDataMapper2D *	BoxMapper
vtkActor2D *	BoxActor
vtkTextProperty *	EntryTextProperty
int	LegendEntriesVisible
int	CachedSize [2]
vtkTimeStamp	BuildTime

Member Typedef Documentation

typedef vtkActor2D vtkLegendBoxActor::Superclass

Reimplemented from vtkActor2D.

Definition at line 56 of file vtkLegendBoxActor.h.

Constructor & Destructor Documentation

vtkLegendBoxActor::vtkLegendBoxActor ( ) [protected]

vtkLegendBoxActor::~vtkLegendBoxActor ( ) [protected]

Member Function Documentation

virtual const char* vtkLegendBoxActor::GetClassName ( ) [virtual]

Reimplemented from vtkActor2D.

static int vtkLegendBoxActor::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

static vtkLegendBoxActor* vtkLegendBoxActor::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkActor2D.

void vtkLegendBoxActor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor2D.

static vtkLegendBoxActor* vtkLegendBoxActor::New ( ) [static]

Instantiate object with a rectangle in normaled view coordinates of (0.2,0.85, 0.8, 0.95).

Reimplemented from vtkActor2D.

void vtkLegendBoxActor::SetNumberOfEntries ( int num )

Specify the number of entries in the legend box.

int vtkLegendBoxActor::GetNumberOfEntries ( ) [inline]

Specify the number of entries in the legend box.

Definition at line 66 of file vtkLegendBoxActor.h.

void vtkLegendBoxActor::SetEntry	(	int	i,
		vtkPolyData *	symbol,
		const char *	string,
		double	color[3]
	)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntrySymbol	(	int	i,
		vtkPolyData *	symbol
	)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryString	(	int	i,
		const char *	string
	)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryColor	(	int	i,
		double	color[3]
	)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryColor	(	int	i,
		double	r,
		double	g,
		double	b
	)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

vtkPolyData* vtkLegendBoxActor::GetEntrySymbol ( int i )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

const char* vtkLegendBoxActor::GetEntryString ( int i )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

double* vtkLegendBoxActor::GetEntryColor ( int i )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

virtual void vtkLegendBoxActor::SetEntryTextProperty ( vtkTextProperty * p ) [virtual]

Set/Get the text property.

virtual vtkTextProperty* vtkLegendBoxActor::GetEntryTextProperty ( ) [virtual]

Set/Get the text property.

virtual void vtkLegendBoxActor::SetBorder ( int ) [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual int vtkLegendBoxActor::GetBorder ( ) [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::BorderOn ( ) [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::BorderOff ( ) [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::SetLockBorder ( int ) [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual int vtkLegendBoxActor::GetLockBorder ( ) [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::LockBorderOn ( ) [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::LockBorderOff ( ) [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::SetBox ( int ) [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

virtual int vtkLegendBoxActor::GetBox ( ) [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

virtual void vtkLegendBoxActor::BoxOn ( ) [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

virtual void vtkLegendBoxActor::BoxOff ( ) [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

vtkProperty2D* vtkLegendBoxActor::GetBoxProperty ( ) [inline]

Get the box vtkProperty2D.

Definition at line 124 of file vtkLegendBoxActor.h.

virtual void vtkLegendBoxActor::SetPadding ( int ) [virtual]

Set/Get the padding between the legend entries and the border. The value is specified in pixels.

virtual int vtkLegendBoxActor::GetPadding ( ) [virtual]

Set/Get the padding between the legend entries and the border. The value is specified in pixels.

virtual void vtkLegendBoxActor::SetScalarVisibility ( int ) [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual int vtkLegendBoxActor::GetScalarVisibility ( ) [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual void vtkLegendBoxActor::ScalarVisibilityOn ( ) [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual void vtkLegendBoxActor::ScalarVisibilityOff ( ) [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

void vtkLegendBoxActor::ShallowCopy ( vtkProp * prop ) [virtual]

Shallow copy of this scaled text actor. Overloads the virtual vtkProp method.

Reimplemented from vtkActor2D.

virtual void vtkLegendBoxActor::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkActor2D.

int vtkLegendBoxActor::RenderOpaqueGeometry ( vtkViewport * viewport ) [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen.

Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::RenderTranslucentPolygonalGeometry ( vtkViewport * ) [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen.

Reimplemented from vtkActor2D.

Definition at line 158 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::RenderOverlay ( vtkViewport * viewport ) [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen.

Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::HasTranslucentPolygonalGeometry ( ) [virtual]
