vtkMultiThreader Class Reference

#include <vtkMultiThreader.h>

Inheritance diagram for vtkMultiThreader:

Inheritance graph
[legend]

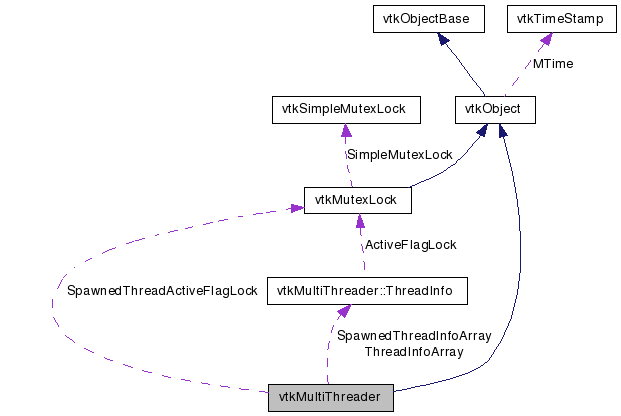

Collaboration diagram for vtkMultiThreader:

Collaboration graph
[legend]

List of all members.


Detailed Description

A class for performing multithreaded execution.

vtkMultithreader is a class that provides support for multithreaded execution using sproc() on an SGI, or pthread_create on any platform supporting POSIX threads. This class can be used to execute a single method on multiple threads, or to specify a method per thread.

Tests:
vtkMultiThreader (Tests)

Definition at line 92 of file vtkMultiThreader.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SingleMethodExecute ()
void MultipleMethodExecute ()
void SetSingleMethod (vtkThreadFunctionType, void *data)
void SetMultipleMethod (int index, vtkThreadFunctionType, void *data)
int SpawnThread (vtkThreadFunctionType, void *data)
void TerminateThread (int thread_id)
int IsThreadActive (int threadID)
virtual void SetNumberOfThreads (int)
virtual int GetNumberOfThreads ()

Static Public Member Functions

static vtkMultiThreaderNew ()
static int IsTypeOf (const char *type)
static vtkMultiThreaderSafeDownCast (vtkObject *o)
static vtkMultiThreaderIDType GetCurrentThreadID ()
static void SetGlobalMaximumNumberOfThreads (int val)
static int GetGlobalMaximumNumberOfThreads ()
static void SetGlobalDefaultNumberOfThreads (int val)
static int GetGlobalDefaultNumberOfThreads ()
static int ThreadsEqual (vtkMultiThreaderIDType t1, vtkMultiThreaderIDType t2)

Protected Member Functions

 vtkMultiThreader ()
 ~vtkMultiThreader ()

Protected Attributes

int NumberOfThreads
ThreadInfo ThreadInfoArray [VTK_MAX_THREADS]
vtkThreadFunctionType SingleMethod
vtkThreadFunctionType MultipleMethod [VTK_MAX_THREADS]
int SpawnedThreadActiveFlag [VTK_MAX_THREADS]
vtkMutexLockSpawnedThreadActiveFlagLock [VTK_MAX_THREADS]
vtkThreadProcessIDType SpawnedThreadProcessID [VTK_MAX_THREADS]
ThreadInfo SpawnedThreadInfoArray [VTK_MAX_THREADS]
void * SingleData
void * MultipleData [VTK_MAX_THREADS]

Classes

class  ThreadInfo

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 97 of file vtkMultiThreader.h.


Constructor & Destructor Documentation

vtkMultiThreader::vtkMultiThreader (  )  [protected]

vtkMultiThreader::~vtkMultiThreader (  )  [protected]


Member Function Documentation

static vtkMultiThreader* vtkMultiThreader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkMultiThreader::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkMultiThreader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkMultiThreader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkMultiThreader* vtkMultiThreader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkMultiThreader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual void vtkMultiThreader::SetNumberOfThreads ( int   )  [virtual]

Get/Set the number of threads to create. It will be clamped to the range 1 - VTK_MAX_THREADS, so the caller of this method should check that the requested number of threads was accepted.

virtual int vtkMultiThreader::GetNumberOfThreads (  )  [virtual]

Get/Set the number of threads to create. It will be clamped to the range 1 - VTK_MAX_THREADS, so the caller of this method should check that the requested number of threads was accepted.

static void vtkMultiThreader::SetGlobalMaximumNumberOfThreads ( int  val  )  [static]

Set/Get the maximum number of threads to use when multithreading. This limits and overrides any other settings for multithreading. A value of zero indicates no limit.

static int vtkMultiThreader::GetGlobalMaximumNumberOfThreads (  )  [static]

Set/Get the maximum number of threads to use when multithreading. This limits and overrides any other settings for multithreading. A value of zero indicates no limit.

static void vtkMultiThreader::SetGlobalDefaultNumberOfThreads ( int  val  )  [static]

Set/Get the value which is used to initialize the NumberOfThreads in the constructor. Initially this default is set to the number of processors or VTK_MAX_THREADS (which ever is less).

static int vtkMultiThreader::GetGlobalDefaultNumberOfThreads (  )  [static]

Set/Get the value which is used to initialize the NumberOfThreads in the constructor. Initially this default is set to the number of processors or VTK_MAX_THREADS (which ever is less).

void vtkMultiThreader::SingleMethodExecute (  )

Execute the SingleMethod (as define by SetSingleMethod) using this->NumberOfThreads threads.

void vtkMultiThreader::MultipleMethodExecute (  )

Execute the MultipleMethods (as define by calling SetMultipleMethod for each of the required this->NumberOfThreads methods) using this->NumberOfThreads threads.

void vtkMultiThreader::SetSingleMethod ( vtkThreadFunctionType  ,
void *  data
)

Set the SingleMethod to f() and the UserData field of the ThreadInfo that is passed to it will be data. This method (and all the methods passed to SetMultipleMethod) must be of type vtkThreadFunctionType and must take a single argument of type void *.

void vtkMultiThreader::SetMultipleMethod ( int  index,
vtkThreadFunctionType  ,
void *  data
)

Set the MultipleMethod at the given index to f() and the UserData field of the ThreadInfo that is passed to it will be data.

int vtkMultiThreader::SpawnThread ( vtkThreadFunctionType  ,
void *  data
)

Create a new thread for the given function. Return a thread id which is a number between 0 and VTK_MAX_THREADS - 1. This id should be used to kill the thread at a later time.

void vtkMultiThreader::TerminateThread ( int  thread_id  )

Terminate the thread that was created with a SpawnThreadExecute()

int vtkMultiThreader::IsThreadActive ( int  threadID  )

Determine if a thread is still active

static vtkMultiThreaderIDType vtkMultiThreader::GetCurrentThreadID (  )  [static]

Get the thread identifier of the calling thread.

static int vtkMultiThreader::ThreadsEqual ( vtkMultiThreaderIDType  t1,
vtkMultiThreaderIDType  t2
) [static]

Check whether two thread identifiers refer to the same thread.


Member Data Documentation

Definition at line 197 of file vtkMultiThreader.h.

ThreadInfo vtkMultiThreader::ThreadInfoArray[VTK_MAX_THREADS] [protected]

Definition at line 202 of file vtkMultiThreader.h.

Definition at line 205 of file vtkMultiThreader.h.

Definition at line 206 of file vtkMultiThreader.h.

int vtkMultiThreader::SpawnedThreadActiveFlag[VTK_MAX_THREADS] [protected]

Definition at line 210 of file vtkMultiThreader.h.

Definition at line 211 of file vtkMultiThreader.h.

Definition at line 212 of file vtkMultiThreader.h.

Definition at line 213 of file vtkMultiThreader.h.

void* vtkMultiThreader::SingleData [protected]

Definition at line 218 of file vtkMultiThreader.h.

void* vtkMultiThreader::MultipleData[VTK_MAX_THREADS] [protected]

Definition at line 219 of file vtkMultiThreader.h.


The documentation for this class was generated from the following file:
