vtkParallelCoordinatesRepresentation Class Reference

#include <vtkParallelCoordinatesRepresentation.h>

Inheritance diagram for vtkParallelCoordinatesRepresentation:

Inheritance graph
[legend]

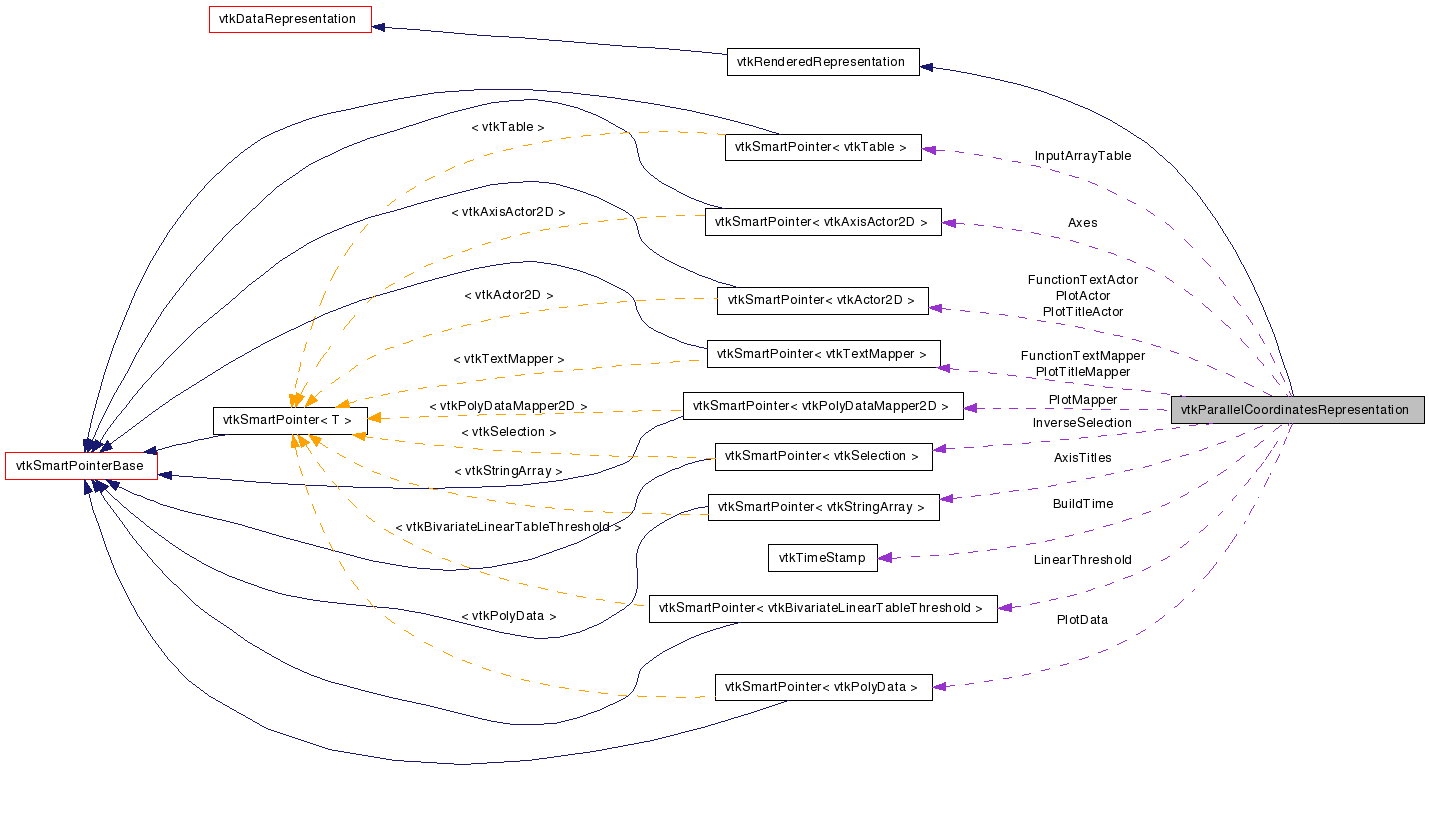

Collaboration diagram for vtkParallelCoordinatesRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

Data representation that takes generic multivariate data and produces a parallel coordinates plot.

A parallel coordinates plot represents each variable in a multivariate data set as a separate axis. Individual samples of that data set are represented as a polyline that pass through each variable axis at positions that correspond to data values. vtkParallelCoordinatesRepresentation generates this plot when added to a vtkParallelCoordinatesView, which handles interaction and highlighting. Sample polylines can alternatively be represented as s-curves by enabling the UseCurves flag.

There are three selection modes: lasso, angle, and function. Lasso selection picks sample lines that pass through a polyline. Angle selection picks sample lines that have similar slope to a line segment. Function selection picks sample lines that are near a linear function defined on two variables. This function specified by passing two (x,y) variable value pairs.

All primitives are plotted in normalized view coordinates [0,1].

See also:
vtkParallelCoordinatesView vtkParallelCoordinatesHistogramRepresentation vtkSCurveSpline
Thanks:
Developed by David Feng at Sandia National Laboratories

Definition at line 83 of file vtkParallelCoordinatesRepresentation.h.


Public Types

enum  InputPorts { INPUT_DATA = 0, INPUT_TITLES, NUM_INPUT_PORTS }
typedef vtkRenderedRepresentation Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void ApplyViewTheme (vtkViewTheme *theme)
virtual const char * GetHoverText (vtkView *view, int x, int y)
void SetPlotTitle (const char *)
void ResetAxes ()
int SetPositionAndSize (double *position, double *size)
int GetPositionAndSize (double *position, double *size)
void SetAxisTitles (vtkStringArray *)
void SetAxisTitles (vtkAlgorithmOutput *)
virtual int GetNumberOfAxes ()
virtual int GetNumberOfSamples ()
void SetNumberOfAxisLabels (int num)
virtual int GetNumberOfAxisLabels ()
virtual int SwapAxisPositions (int position1, int position2)
int SetXCoordinateOfPosition (int position, double xcoord)
double GetXCoordinateOfPosition (int axis)
void GetXCoordinatesOfPositions (double *coords)
int GetPositionNearXCoordinate (double xcoord)
virtual void SetUseCurves (int)
virtual int GetUseCurves ()
virtual void UseCurvesOn ()
virtual void UseCurvesOff ()
virtual void SetCurveResolution (int)
virtual int GetCurveResolution ()
virtual double GetLineOpacity ()
virtual double GetFontSize ()
virtual double * GetLineColor ()
virtual void GetLineColor (double &, double &, double &)
virtual void GetLineColor (double[3])
virtual double * GetAxisColor ()
virtual void GetAxisColor (double &, double &, double &)
virtual void GetAxisColor (double[3])
virtual double * GetAxisLabelColor ()
virtual void GetAxisLabelColor (double &, double &, double &)
virtual void GetAxisLabelColor (double[3])
virtual void SetLineOpacity (double)
virtual void SetFontSize (double)
virtual void SetLineColor (double, double, double)
virtual void SetLineColor (double[3])
virtual void SetAxisColor (double, double, double)
virtual void SetAxisColor (double[3])
virtual void SetAxisLabelColor (double, double, double)
virtual void SetAxisLabelColor (double[3])
virtual void SetAngleBrushThreshold (double)
virtual double GetAngleBrushThreshold ()
virtual void SetFunctionBrushThreshold (double)
virtual double GetFunctionBrushThreshold ()
int GetRangeAtPosition (int position, double range[2])
virtual int SetRangeAtPosition (int position, double range[2])
virtual void LassoSelect (int brushClass, int brushOperator, vtkPoints *brushPoints)
virtual void AngleSelect (int brushClass, int brushOperator, double *p1, double *p2)
virtual void FunctionSelect (int brushClass, int brushOperator, double *p1, double *p2, double *q1, double *q2)
virtual void RangeSelect (int brushClass, int brushOperator, double *p1, double *p2)

Static Public Member Functions

static
vtkParallelCoordinatesRepresentation
New ()
static int IsTypeOf (const char *type)
static
vtkParallelCoordinatesRepresentation
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkParallelCoordinatesRepresentation ()
virtual ~vtkParallelCoordinatesRepresentation ()
virtual int FillInputPortInformation (int port, vtkInformation *info)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void UpdateHoverHighlight (vtkView *view, int x, int y)
int PlaceAxes ()
virtual int PlaceSelection (vtkPolyData *polyData, vtkTable *data, vtkSelectionNode *selectionNode)
virtual int ComputeDataProperties ()
virtual int UpdatePlotProperties (vtkStringArray *inputTitles)
virtual int ReallocateInternals ()
void BuildDefaultSCurve (vtkDoubleArray *array, int numValues)
virtual void LassoSelectInternal (vtkPoints *brushPoints, vtkIdTypeArray *outIds)
virtual void UpdateSelectionActors ()
vtkPolyDataMapper2DGetSelectionMapper (int idx)
int GetNumberOfSelections ()
virtual char * GetInternalHoverText ()
virtual void SetInternalHoverText (const char *)
virtual bool AddToView (vtkView *view)
virtual bool RemoveFromView (vtkView *view)
virtual void PrepareForRendering (vtkRenderView *view)
virtual int AllocatePolyData (vtkPolyData *polyData, int numLines, int numPointsPerLine, int numStrips, int numPointsPerStrip, int numQuads, int numPoints, int numCellScalars, int numPointScalars)
virtual int PlaceLines (vtkPolyData *polyData, vtkTable *data, vtkIdTypeArray *idsToPlot)
virtual int PlaceCurves (vtkPolyData *polyData, vtkTable *data, vtkIdTypeArray *idsToPlot)
int ComputePointPosition (double *p)
int ComputeLinePosition (double *p1, double *p2)
virtual void SelectRows (vtkIdType brushClass, vtkIdType brushOperator, vtkIdTypeArray *rowIds)
virtual vtkSelectionConvertSelection (vtkView *view, vtkSelection *selection)
virtual void BuildInverseSelection ()
virtual vtkPolyDataMapper2DInitializePlotMapper (vtkPolyData *input, vtkActor2D *actor, bool forceStandard=false)

Protected Attributes

vtkSmartPointer< vtkPolyDataPlotData
vtkSmartPointer
< vtkPolyDataMapper2D
PlotMapper
vtkSmartPointer< vtkActor2DPlotActor
vtkSmartPointer< vtkTextMapperPlotTitleMapper
vtkSmartPointer< vtkActor2DPlotTitleActor
vtkSmartPointer< vtkTextMapperFunctionTextMapper
vtkSmartPointer< vtkActor2DFunctionTextActor
vtkSmartPointer< vtkSelectionInverseSelection
vtkSmartPointer
< vtkBivariateLinearTableThreshold
LinearThreshold
Internals * I
int NumberOfAxes
int NumberOfAxisLabels
int NumberOfSamples
double YMin
double YMax
int CurveResolution
int UseCurves
double AngleBrushThreshold
double FunctionBrushThreshold
double SwapThreshold
double * Xs
double * Mins
double * Maxs
double * MinOffsets
double * MaxOffsets
vtkSmartPointer< vtkAxisActor2D > * Axes
vtkSmartPointer< vtkTableInputArrayTable
vtkSmartPointer< vtkStringArrayAxisTitles
vtkTimeStamp BuildTime
double LineOpacity
double FontSize
double LineColor [3]
double AxisColor [3]
double AxisLabelColor [3]
char * InternalHoverText

Member Typedef Documentation


Member Enumeration Documentation

Enumerator:
INPUT_DATA
INPUT_TITLES
NUM_INPUT_PORTS

Definition at line 199 of file vtkParallelCoordinatesRepresentation.h.


Constructor & Destructor Documentation

vtkParallelCoordinatesRepresentation::vtkParallelCoordinatesRepresentation (  )  [protected]

virtual vtkParallelCoordinatesRepresentation::~vtkParallelCoordinatesRepresentation (  )  [protected, virtual]


Member Function Documentation

static vtkParallelCoordinatesRepresentation* vtkParallelCoordinatesRepresentation::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual const char* vtkParallelCoordinatesRepresentation::GetClassName (  )  [virtual]

static int vtkParallelCoordinatesRepresentation::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

static vtkParallelCoordinatesRepresentation* vtkParallelCoordinatesRepresentation::SafeDownCast ( vtkObject o  )  [static]

void vtkParallelCoordinatesRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual void vtkParallelCoordinatesRepresentation::ApplyViewTheme ( vtkViewTheme theme  )  [virtual]

Apply the theme to this view. CellColor is used for line coloring and titles. EdgeLabelColor is used for axis color. CellOpacity is used for line opacity.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual const char* vtkParallelCoordinatesRepresentation::GetHoverText ( vtkView view,
int  x,
int  y
) [virtual]

Returns the hover text at an x,y location.

int vtkParallelCoordinatesRepresentation::SetPositionAndSize ( double *  position,
double *  size
)

Change the position of the plot

int vtkParallelCoordinatesRepresentation::GetPositionAndSize ( double *  position,
double *  size
)

Change the position of the plot

void vtkParallelCoordinatesRepresentation::SetAxisTitles ( vtkStringArray  )

Set/Get the axis titles

void vtkParallelCoordinatesRepresentation::SetAxisTitles ( vtkAlgorithmOutput  )

Set/Get the axis titles

void vtkParallelCoordinatesRepresentation::SetPlotTitle ( const char *   )

Set the title for the entire plot

virtual int vtkParallelCoordinatesRepresentation::GetNumberOfAxes (  )  [virtual]

Get the number of axes in the plot

virtual int vtkParallelCoordinatesRepresentation::GetNumberOfSamples (  )  [virtual]

Get the number of samples in the plot

void vtkParallelCoordinatesRepresentation::SetNumberOfAxisLabels ( int  num  )

Set/Get the number of labels to display on each axis

virtual int vtkParallelCoordinatesRepresentation::GetNumberOfAxisLabels (  )  [virtual]

Set/Get the number of labels to display on each axis

virtual int vtkParallelCoordinatesRepresentation::SwapAxisPositions ( int  position1,
int  position2
) [virtual]

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

int vtkParallelCoordinatesRepresentation::SetXCoordinateOfPosition ( int  position,
double  xcoord
)

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

double vtkParallelCoordinatesRepresentation::GetXCoordinateOfPosition ( int  axis  )

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

void vtkParallelCoordinatesRepresentation::GetXCoordinatesOfPositions ( double *  coords  )

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

int vtkParallelCoordinatesRepresentation::GetPositionNearXCoordinate ( double  xcoord  )

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

virtual void vtkParallelCoordinatesRepresentation::SetUseCurves ( int   )  [virtual]

Whether or not to display using curves

virtual int vtkParallelCoordinatesRepresentation::GetUseCurves (  )  [virtual]

Whether or not to display using curves

virtual void vtkParallelCoordinatesRepresentation::UseCurvesOn (  )  [virtual]

Whether or not to display using curves

virtual void vtkParallelCoordinatesRepresentation::UseCurvesOff (  )  [virtual]

Whether or not to display using curves

virtual void vtkParallelCoordinatesRepresentation::SetCurveResolution ( int   )  [virtual]

Resolution of the curves displayed, enabled by setting UseCurves

virtual int vtkParallelCoordinatesRepresentation::GetCurveResolution (  )  [virtual]

Resolution of the curves displayed, enabled by setting UseCurves

virtual double vtkParallelCoordinatesRepresentation::GetLineOpacity (  )  [virtual]

Access plot properties

virtual double vtkParallelCoordinatesRepresentation::GetFontSize (  )  [virtual]

Access plot properties

virtual double* vtkParallelCoordinatesRepresentation::GetLineColor (  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetLineColor ( double &  ,
double &  ,
double &
) [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetLineColor ( double  [3]  )  [virtual]

Access plot properties

virtual double* vtkParallelCoordinatesRepresentation::GetAxisColor (  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisColor ( double &  ,
double &  ,
double &
) [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisColor ( double  [3]  )  [virtual]

Access plot properties

virtual double* vtkParallelCoordinatesRepresentation::GetAxisLabelColor (  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisLabelColor ( double &  ,
double &  ,
double &
) [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisLabelColor ( double  [3]  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetLineOpacity ( double   )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetFontSize ( double   )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetLineColor ( double  ,
double  ,
double
) [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetLineColor ( double  [3]  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisColor ( double  ,
double  ,
double
) [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisColor ( double  [3]  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisLabelColor ( double  ,
double  ,
double
) [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisLabelColor ( double  [3]  )  [virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAngleBrushThreshold ( double   )  [virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

virtual double vtkParallelCoordinatesRepresentation::GetAngleBrushThreshold (  )  [virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

virtual void vtkParallelCoordinatesRepresentation::SetFunctionBrushThreshold ( double   )  [virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

virtual double vtkParallelCoordinatesRepresentation::GetFunctionBrushThreshold (  )  [virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

int vtkParallelCoordinatesRepresentation::GetRangeAtPosition ( int  position,
double  range[2]
)

Set/get the value range of the axis at a particular screen position

virtual int vtkParallelCoordinatesRepresentation::SetRangeAtPosition ( int  position,
double  range[2]
) [virtual]

Set/get the value range of the axis at a particular screen position

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

void vtkParallelCoordinatesRepresentation::ResetAxes (  )

Reset the axes to their default positions and orders

virtual void vtkParallelCoordinatesRepresentation::LassoSelect ( int  brushClass,
int  brushOperator,
vtkPoints brushPoints
) [virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual void vtkParallelCoordinatesRepresentation::AngleSelect ( int  brushClass,
int  brushOperator,
double *  p1,
double *  p2
) [virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual void vtkParallelCoordinatesRepresentation::FunctionSelect ( int  brushClass,
int  brushOperator,
double *  p1,
double *  p2,
double *  q1,
double *  q2
) [virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual void vtkParallelCoordinatesRepresentation::RangeSelect ( int  brushClass,
int  brushOperator,
double *  p1,
double *  p2
) [virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual int vtkParallelCoordinatesRepresentation::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPassInputTypeAlgorithm.

virtual int vtkParallelCoordinatesRepresentation::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Subclasses should override this to connect inputs to the internal pipeline as necessary. Since most representations are "meta-filters" (i.e. filters containing other filters), you should create shallow copies of your input before connecting to the internal pipeline. The convenience method GetInternalOutputPort will create a cached shallow copy of a specified input for you. The related helper functions GetInternalAnnotationOutputPort, GetInternalSelectionOutputPort should be used to obtain a selection or annotation port whose selections are localized for a particular input data object.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual bool vtkParallelCoordinatesRepresentation::AddToView ( vtkView view  )  [protected, virtual]

Add/remove the props and actors to/from a view

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual bool vtkParallelCoordinatesRepresentation::RemoveFromView ( vtkView view  )  [protected, virtual]

Add/remove the props and actors to/from a view

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual void vtkParallelCoordinatesRepresentation::PrepareForRendering ( vtkRenderView view  )  [protected, virtual]

Add/remove the props and actors to/from a view

Reimplemented from vtkRenderedRepresentation.

void vtkParallelCoordinatesRepresentation::UpdateHoverHighlight ( vtkView view,
int  x,
int  y
) [protected]

This function is not actually used, but as left as a stub in case it becomes useful at some point.

virtual int vtkParallelCoordinatesRepresentation::AllocatePolyData ( vtkPolyData polyData,
int  numLines,
int  numPointsPerLine,
int  numStrips,
int  numPointsPerStrip,
int  numQuads,
int  numPoints,
int  numCellScalars,
int  numPointScalars
) [protected, virtual]

Allocate the cells/points/scalars for a vtkPolyData

int vtkParallelCoordinatesRepresentation::PlaceAxes (  )  [protected]

Put the axis actors in their correct positions.

virtual int vtkParallelCoordinatesRepresentation::PlaceLines ( vtkPolyData polyData,
vtkTable data,
vtkIdTypeArray idsToPlot
) [protected, virtual]

Place line primitives into a vtkPolyData from the input data. idsToPlot is a list of which rows/samples should be plotted. If NULL, all rows/samples are plotted.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::PlaceCurves ( vtkPolyData polyData,
vtkTable data,
vtkIdTypeArray idsToPlot
) [protected, virtual]

Place line primitives into a vtkPolyData from the input data. idsToPlot is a list of which rows/samples should be plotted. If NULL, all rows/samples are plotted.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::PlaceSelection ( vtkPolyData polyData,
vtkTable data,
vtkSelectionNode selectionNode
) [protected, virtual]

Takes the selection list (assumed to be a vtkIdTypeArray) from a vtkSelectionNode and plots lines/curves into polyData for just those row/sample ids.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::ComputeDataProperties (  )  [protected, virtual]

Compute the number of axes and their individual ranges

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::UpdatePlotProperties ( vtkStringArray inputTitles  )  [protected, virtual]

Set plot actor properties (line thickness, opacity, etc)

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::ReallocateInternals (  )  [protected, virtual]

Delete and reallocate the internals, resetting to default values

int vtkParallelCoordinatesRepresentation::ComputePointPosition ( double *  p  )  [protected]

Compute which screen position a point belongs to (returns the left position)

int vtkParallelCoordinatesRepresentation::ComputeLinePosition ( double *  p1,
double *  p2
) [protected]

Compute which screen position a point belongs to (returns the left position)

virtual void vtkParallelCoordinatesRepresentation::SelectRows ( vtkIdType  brushClass,
vtkIdType  brushOperator,
vtkIdTypeArray rowIds
) [protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

virtual vtkSelection* vtkParallelCoordinatesRepresentation::ConvertSelection ( vtkView view,
vtkSelection selection
) [protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

Reimplemented from vtkDataRepresentation.

virtual void vtkParallelCoordinatesRepresentation::BuildInverseSelection (  )  [protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

virtual vtkPolyDataMapper2D* vtkParallelCoordinatesRepresentation::InitializePlotMapper ( vtkPolyData input,
vtkActor2D actor,
bool  forceStandard = false
) [protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

void vtkParallelCoordinatesRepresentation::BuildDefaultSCurve ( vtkDoubleArray array,
int  numValues
) [protected]

Build an s-curve passing through (0,0) and (1,1) with a specified number of values. This is used as a lookup table when plotting curved primitives.

virtual void vtkParallelCoordinatesRepresentation::LassoSelectInternal ( vtkPoints brushPoints,
vtkIdTypeArray outIds
) [protected, virtual]

same as public version, but assumes that the brushpoints coming in are all within two neighboring axes.

virtual void vtkParallelCoordinatesRepresentation::UpdateSelectionActors (  )  [protected, virtual]

todo

vtkPolyDataMapper2D* vtkParallelCoordinatesRepresentation::GetSelectionMapper ( int  idx  )  [protected]

int vtkParallelCoordinatesRepresentation::GetNumberOfSelections (  )  [protected]

virtual char* vtkParallelCoordinatesRepresentation::GetInternalHoverText (  )  [protected, virtual]

virtual void vtkParallelCoordinatesRepresentation::SetInternalHoverText ( const char *   )  [protected, virtual]


Member Data Documentation

Definition at line 300 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 301 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 302 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 303 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 304 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 305 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 306 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 308 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 309 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 311 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 315 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 316 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 317 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 318 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 319 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 321 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 322 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 323 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 324 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 325 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 328 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 329 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 330 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 331 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 332 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 335 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 336 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 337 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 340 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 342 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 343 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 344 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 345 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 346 of file vtkParallelCoordinatesRepresentation.h.

Definition at line 349 of file vtkParallelCoordinatesRepresentation.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:38:37 2010 for VTK by  doxygen 1.5.6
