vtkPCosmoReader Class Reference

#include <vtkPCosmoReader.h>

Inheritance diagram for vtkPCosmoReader:

Inheritance graph
[legend]

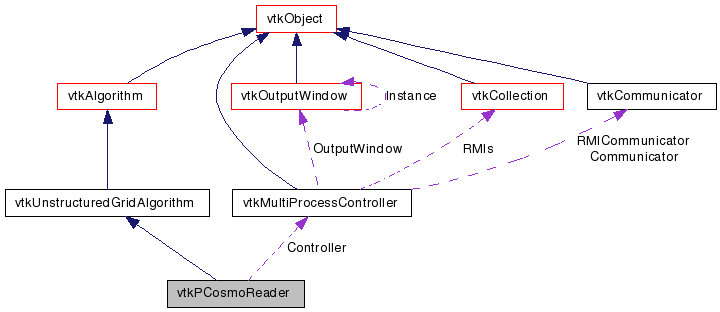

Collaboration diagram for vtkPCosmoReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

Read a binary cosmology data file.

vtkPCosmoReader creates a vtkUnstructuredGrid from a binary cosmology file. The file contains fields for: x_position, x_velocity (float) y_position, y_velocity (float) z-position, z_velocity (float) mass (float) identification tag (integer)

If the file contains particle information x,y,z is the location of the particle in simulation space with a velocity vector and a mass which will be the same for all particles.

Definition at line 87 of file vtkPCosmoReader.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetRL (float)
virtual float GetRL ()
virtual void SetOverlap (float)
virtual float GetOverlap ()
virtual void SetReadMode (int)
virtual int GetReadMode ()
virtual void SetCosmoFormat (int)
virtual int GetCosmoFormat ()
virtual vtkMultiProcessControllerGetController ()
virtual void SetController (vtkMultiProcessController *)

Static Public Member Functions

static vtkPCosmoReaderNew ()
static int IsTypeOf (const char *type)
static vtkPCosmoReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPCosmoReader ()
 ~vtkPCosmoReader ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkMultiProcessControllerController
char * FileName
float RL
float Overlap
int ReadMode
int CosmoFormat

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 91 of file vtkPCosmoReader.h.


Constructor & Destructor Documentation

vtkPCosmoReader::vtkPCosmoReader (  )  [protected]

vtkPCosmoReader::~vtkPCosmoReader (  )  [protected]


Member Function Documentation

static vtkPCosmoReader* vtkPCosmoReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkPCosmoReader::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkPCosmoReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkPCosmoReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkPCosmoReader* vtkPCosmoReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkPCosmoReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkPCosmoReader::SetFileName ( const char *   )  [virtual]

Specify the name of the cosmology particle binary file to read

virtual char* vtkPCosmoReader::GetFileName (  )  [virtual]

Specify the name of the cosmology particle binary file to read

virtual void vtkPCosmoReader::SetRL ( float   )  [virtual]

Specify the physical box dimensions size (rL) (default 91)

virtual float vtkPCosmoReader::GetRL (  )  [virtual]

Specify the physical box dimensions size (rL) (default 91)

virtual void vtkPCosmoReader::SetOverlap ( float   )  [virtual]

Specify the ghost cell spacing (edge boundary of box) (default 5)

virtual float vtkPCosmoReader::GetOverlap (  )  [virtual]

Specify the ghost cell spacing (edge boundary of box) (default 5)

virtual void vtkPCosmoReader::SetReadMode ( int   )  [virtual]

Set the read mode (0 = one-to-one, 1 = default, round-robin)

virtual int vtkPCosmoReader::GetReadMode (  )  [virtual]

Set the read mode (0 = one-to-one, 1 = default, round-robin)

virtual void vtkPCosmoReader::SetCosmoFormat ( int   )  [virtual]

Set the filetype to Gadget or Cosmo read mode (0 = Gadget, 1 = default, Cosmo)

virtual int vtkPCosmoReader::GetCosmoFormat (  )  [virtual]

Set the filetype to Gadget or Cosmo read mode (0 = Gadget, 1 = default, Cosmo)

virtual vtkMultiProcessController* vtkPCosmoReader::GetController (  )  [virtual]

Set the communicator object for interprocess communication

virtual void vtkPCosmoReader::SetController ( vtkMultiProcessController  )  [virtual]

Set the communicator object for interprocess communication

virtual int vtkPCosmoReader::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkPCosmoReader::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.


Member Data Documentation

Definition at line 140 of file vtkPCosmoReader.h.

char* vtkPCosmoReader::FileName [protected]

Definition at line 142 of file vtkPCosmoReader.h.

float vtkPCosmoReader::RL [protected]

Definition at line 143 of file vtkPCosmoReader.h.

float vtkPCosmoReader::Overlap [protected]

Definition at line 144 of file vtkPCosmoReader.h.

int vtkPCosmoReader::ReadMode [protected]

Definition at line 145 of file vtkPCosmoReader.h.

Definition at line 146 of file vtkPCosmoReader.h.


The documentation for this class was generated from the following file:
