vtkPipelineGraphSource Class Reference

#include <vtkPipelineGraphSource.h>

Inheritance diagram for vtkPipelineGraphSource:

[legend]

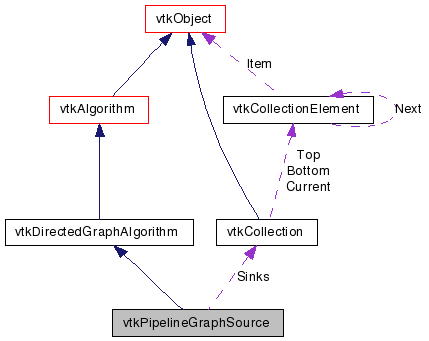

Collaboration diagram for vtkPipelineGraphSource:

[legend]

List of all members.

---

Detailed Description

a graph constructed from a VTK pipeline

Definition at line 29 of file vtkPipelineGraphSource.h.

Public Types
typedef vtkDirectedGraphAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	AddSink (vtkObject *object)
void	RemoveSink (vtkObject *object)
Static Public Member Functions
static vtkPipelineGraphSource *	New ()
static int	IsTypeOf (const char *type)
static vtkPipelineGraphSource *	SafeDownCast (vtkObject *o)
static void	PipelineToDot (vtkAlgorithm *sink, ostream &output, const vtkStdString &graph_name="")
static void	PipelineToDot (vtkCollection *sinks, ostream &output, const vtkStdString &graph_name="")
Protected Member Functions
	vtkPipelineGraphSource ()
	~vtkPipelineGraphSource ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
Protected Attributes
vtkCollection *	Sinks

---

Member Typedef Documentation

typedef vtkDirectedGraphAlgorithm vtkPipelineGraphSource::Superclass

Reimplemented from vtkDirectedGraphAlgorithm.

Definition at line 33 of file vtkPipelineGraphSource.h.

---

Constructor & Destructor Documentation

vtkPipelineGraphSource::vtkPipelineGraphSource

(

)

[protected]

vtkPipelineGraphSource::~vtkPipelineGraphSource

(

)

[protected]

---

Member Function Documentation

static vtkPipelineGraphSource* vtkPipelineGraphSource::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDirectedGraphAlgorithm.

virtual const char* vtkPipelineGraphSource::GetClassName

(

)

[virtual]

Reimplemented from vtkDirectedGraphAlgorithm.

static int vtkPipelineGraphSource::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDirectedGraphAlgorithm.

virtual int vtkPipelineGraphSource::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDirectedGraphAlgorithm.

static vtkPipelineGraphSource* vtkPipelineGraphSource::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDirectedGraphAlgorithm.

void vtkPipelineGraphSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDirectedGraphAlgorithm.

void vtkPipelineGraphSource::AddSink

(

vtkObject *

object

)

void vtkPipelineGraphSource::RemoveSink

(

vtkObject *

object

)

static void vtkPipelineGraphSource::PipelineToDot	(	vtkAlgorithm *	sink,
		ostream &	output,
		const vtkStdString &	graph_name = ""
	)			[static]

Generates a GraphViz DOT file that describes the VTK pipeline terminating at the given sink.

static void vtkPipelineGraphSource::PipelineToDot	(	vtkCollection *	sinks,
		ostream &	output,
		const vtkStdString &	graph_name = ""
	)			[static]

Generates a GraphViz DOT file that describes the VTK pipeline terminating at the given sink.

int vtkPipelineGraphSource::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkDirectedGraphAlgorithm.

---

Member Data Documentation

vtkCollection* vtkPipelineGraphSource::Sinks [protected]

Definition at line 60 of file vtkPipelineGraphSource.h.

---

The documentation for this class was generated from the following file:

• dox/Views/vtkPipelineGraphSource.h
