vtkPixelBufferObject Class Reference

#include <vtkPixelBufferObject.h>

Inheritance diagram for vtkPixelBufferObject:

[legend]

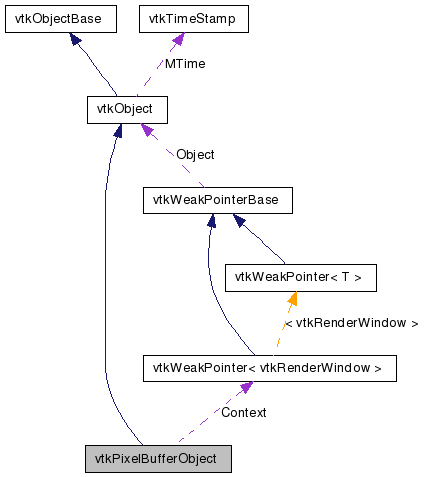

Collaboration diagram for vtkPixelBufferObject:

[legend]

List of all members.

Detailed Description

abstracts an OpenGL pixel buffer object.

Provides low-level access to GPU memory. Used to pass raw data to GPU. The data is uploaded into a pixel buffer.

See also:: OpenGL Pixel Buffer Object Extension Spec (ARB_pixel_buffer_object): http://www.opengl.org/registry/specs/ARB/pixel_buffer_object.txt

Warning:: Since most GPUs don't support double format all double data is converted to float and then uploaded. DON'T PLAY WITH IT YET.

Definition at line 38 of file vtkPixelBufferObject.h.


Public Types
enum	{ StreamDraw = 0, StreamRead, StreamCopy, StaticDraw, StaticRead, StaticCopy, DynamicDraw, DynamicRead, DynamicCopy, NumberOfUsages }
enum	BufferType { PACKED_BUFFER, UNPACKED_BUFFER }
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	BindToUnPackedBuffer ()
void	UnBind ()
void	Bind (BufferType buffer)
void	ReleaseMemory ()

void	SetContext (vtkRenderWindow *context)
vtkRenderWindow *	GetContext ()

virtual int	GetUsage ()
virtual void	SetUsage (int)

bool	Upload1D (int type, void *data, unsigned int numtuples, int comps, vtkIdType increment)

bool	Upload2D (int type, void *data, unsigned int dims[2], int comps, vtkIdType increments[2])

bool	Upload3D (int type, void data, unsigned int dims[3], int comps, vtkIdType increments[3], int components, int componentList)

virtual int	GetType ()

virtual unsigned int	GetSize ()

virtual unsigned int	GetHandle ()

bool	Download1D (int type, void *data, unsigned int dim, int numcomps, vtkIdType increment)

bool	Download2D (int type, void *data, unsigned int dims[2], int numcomps, vtkIdType increments[2])

bool	Download3D (int type, void *data, unsigned int dims[3], int numcomps, vtkIdType increments[3])

void	BindToPackedBuffer ()

void	Allocate (unsigned int size, int type)
Static Public Member Functions
static vtkPixelBufferObject *	New ()
static int	IsTypeOf (const char *type)
static vtkPixelBufferObject *	SafeDownCast (vtkObject *o)
static bool	IsSupported (vtkRenderWindow *renWin)
Protected Member Functions
	vtkPixelBufferObject ()
	~vtkPixelBufferObject ()
bool	LoadRequiredExtensions (vtkOpenGLExtensionManager *mgr)
void	CreateBuffer ()
void	DestroyBuffer ()
Protected Attributes
int	Usage
unsigned int	BufferTarget
int	Type
unsigned int	Size
vtkWeakPointer< vtkRenderWindow >	Context
unsigned int	Handle

Member Typedef Documentation

typedef vtkObject vtkPixelBufferObject::Superclass

Reimplemented from vtkObject.

Definition at line 60 of file vtkPixelBufferObject.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

StreamDraw
StreamRead
StreamCopy
StaticDraw
StaticRead
StaticCopy
DynamicDraw
DynamicRead
DynamicCopy
NumberOfUsages

Definition at line 44 of file vtkPixelBufferObject.h.

enum vtkPixelBufferObject::BufferType

Enumerator:

PACKED_BUFFER
UNPACKED_BUFFER

Definition at line 227 of file vtkPixelBufferObject.h.

Constructor & Destructor Documentation

vtkPixelBufferObject::vtkPixelBufferObject ( ) [protected]

vtkPixelBufferObject::~vtkPixelBufferObject ( ) [protected]

Member Function Documentation

static vtkPixelBufferObject* vtkPixelBufferObject::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPixelBufferObject::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

static int vtkPixelBufferObject::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkPixelBufferObject::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkPixelBufferObject* vtkPixelBufferObject::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

void vtkPixelBufferObject::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkPixelBufferObject::SetContext ( vtkRenderWindow * context )

Get/Set the context. Context must be a vtkOpenGLRenderWindow. This does not increase the reference count of the context to avoid reference loops. SetContext() may raise an error is the OpenGL context does not support the required OpenGL extensions.

vtkRenderWindow* vtkPixelBufferObject::GetContext ( )

Get/Set the context. Context must be a vtkOpenGLRenderWindow. This does not increase the reference count of the context to avoid reference loops. SetContext() may raise an error is the OpenGL context does not support the required OpenGL extensions.

virtual int vtkPixelBufferObject::GetUsage ( ) [virtual]

Usage is a performance hint. Valid values are: - StreamDraw specified once by A, used few times S - StreamRead specified once by R, queried a few times by A - StreamCopy specified once by R, used a few times S

StaticDraw specified once by A, used many times S - StaticRead specificed once by R, queried many times by A - StaticCopy specified once by R, used many times S - DynamicDraw respecified repeatedly by A, used many times S - DynamicRead respecified repeatedly by R, queried many times by A - DynamicCopy respecified repeatedly by R, used many times S A: the application S: as the source for GL drawing and image specification commands. R: reading data from the GL Initial value is StaticDraw, as in OpenGL spec.

virtual void vtkPixelBufferObject::SetUsage ( int ) [virtual]

Usage is a performance hint. Valid values are: - StreamDraw specified once by A, used few times S - StreamRead specified once by R, queried a few times by A - StreamCopy specified once by R, used a few times S

StaticDraw specified once by A, used many times S - StaticRead specificed once by R, queried many times by A - StaticCopy specified once by R, used many times S - DynamicDraw respecified repeatedly by A, used many times S - DynamicRead respecified repeatedly by R, queried many times by A - DynamicCopy respecified repeatedly by R, used many times S A: the application S: as the source for GL drawing and image specification commands. R: reading data from the GL Initial value is StaticDraw, as in OpenGL spec.

bool vtkPixelBufferObject::Upload1D	(	int	type,
		void *	data,
		unsigned int	numtuples,
		int	comps,
		vtkIdType	increment
	)			`[inline]`

Upload data to GPU. The input data can be freed after this call. The data ptr is treated as an 1D array with the given number of tuples and given number of components in each tuple to be copied to the GPU. increment is the offset added after the last component in each tuple is transferred. Look at the documentation for ContinuousIncrements in vtkImageData for details about how increments are specified.

Definition at line 95 of file vtkPixelBufferObject.h.

bool vtkPixelBufferObject::Upload2D	(	int	type,
		void *	data,
		unsigned int	dims[2],
		int	comps,
		vtkIdType	increments[2]
	)			`[inline]`

Update data to GPU sourcing it from a 2D array. The input data can be freed after this call. The data ptr is treated as a 2D array with increments indicating how to iterate over the data. Look at the documentation for ContinuousIncrements in vtkImageData for details about how increments are specified.

Definition at line 116 of file vtkPixelBufferObject.h.

bool vtkPixelBufferObject::Upload3D	(	int	type,
		void *	data,
		unsigned int	dims[3],
		int	comps,
		vtkIdType	increments[3],
		int	components,
		int *	componentList
	)

Update data to GPU sourcing it from a 3D array. The input data can be freed after this call. The data ptr is treated as a 3D array with increments indicating how to iterate over the data. Look at the documentation for ContinuousIncrements in vtkImageData for details about how increments are specified.

virtual int vtkPixelBufferObject::GetType ( ) [virtual]

Get the type with which the data is loaded into the GPU. eg. VTK_FLOAT for float32, VTK_CHAR for byte, VTK_UNSIGNED_CHAR for unsigned byte etc.

virtual unsigned int vtkPixelBufferObject::GetSize ( ) [virtual]

Get the size of the data loaded into the GPU. Size is in the number of elements of the uploaded Type.

virtual unsigned int vtkPixelBufferObject::GetHandle ( ) [virtual]

Get the openGL buffer handle.

bool vtkPixelBufferObject::Download1D	(	int	type,
		void *	data,
		unsigned int	dim,
		int	numcomps,
		vtkIdType	increment
	)			`[inline]`

Download data from pixel buffer to the 1D array. The length of the array must be equal to the size of the data in the memory.

Definition at line 167 of file vtkPixelBufferObject.h.

bool vtkPixelBufferObject::Download2D	(	int	type,
		void *	data,
		unsigned int	dims[2],
		int	numcomps,
		vtkIdType	increments[2]
	)			`[inline]`

Download data from pixel buffer to the 2D array. (lengthx * lengthy) must be equal to the size of the data in the memory.

Definition at line 187 of file vtkPixelBufferObject.h.

bool vtkPixelBufferObject::Download3D	(	int	type,
		void *	data,
		unsigned int	dims[3],
		int	numcomps,
		vtkIdType	increments[3]
	)

Download data from pixel buffer to the 3D array. (lengthx * lengthy * lengthz) must be equal to the size of the data in the memory.

void vtkPixelBufferObject::BindToPackedBuffer ( ) [inline]

For wrapping.

Definition at line 214 of file vtkPixelBufferObject.h.

void vtkPixelBufferObject::BindToUnPackedBuffer ( ) [inline]

Definition at line 218 of file vtkPixelBufferObject.h.

void vtkPixelBufferObject::UnBind ( )

Inactivate the buffer.

void vtkPixelBufferObject::Bind ( BufferType buffer )

Make the buffer active.

void vtkPixelBufferObject::Allocate	(	unsigned int	size,
		int	type
	)

Allocate the memory. size is in number of bytes. type is a VTK type.

void vtkPixelBufferObject::ReleaseMemory ( )

Release the memory allocated without destroying the PBO handle.

static bool vtkPixelBufferObject::IsSupported ( vtkRenderWindow * renWin ) [static]

Returns if the context supports the required extensions.

bool vtkPixelBufferObject::LoadRequiredExtensions ( vtkOpenGLExtensionManager * mgr ) [protected]

Loads all required OpenGL extensions. Must be called every time a new context is set.

void vtkPixelBufferObject::CreateBuffer ( ) [protected]

Create the pixel buffer object.

void vtkPixelBufferObject::DestroyBuffer ( ) [protected]

Destroys the pixel buffer object.

Member Data Documentation

int vtkPixelBufferObject::Usage [protected]

Definition at line 263 of file vtkPixelBufferObject.h.

unsigned int vtkPixelBufferObject::BufferTarget [protected]

Definition at line 264 of file vtkPixelBufferObject.h.

int vtkPixelBufferObject::Type [protected]

Definition at line 265 of file vtkPixelBufferObject.h.

unsigned int vtkPixelBufferObject::Size [protected]

Definition at line 266 of file vtkPixelBufferObject.h.

vtkWeakPointer<vtkRenderWindow> vtkPixelBufferObject::Context [protected]

Definition at line 267 of file vtkPixelBufferObject.h.

unsigned int vtkPixelBufferObject::Handle [protected]

Definition at line 268 of file vtkPixelBufferObject.h.

The documentation for this class was generated from the following file:

dox/Rendering/vtkPixelBufferObject.h
