vtkPKMeansStatistics Class Reference

#include <vtkPKMeansStatistics.h>

Inheritance diagram for vtkPKMeansStatistics:

[legend]

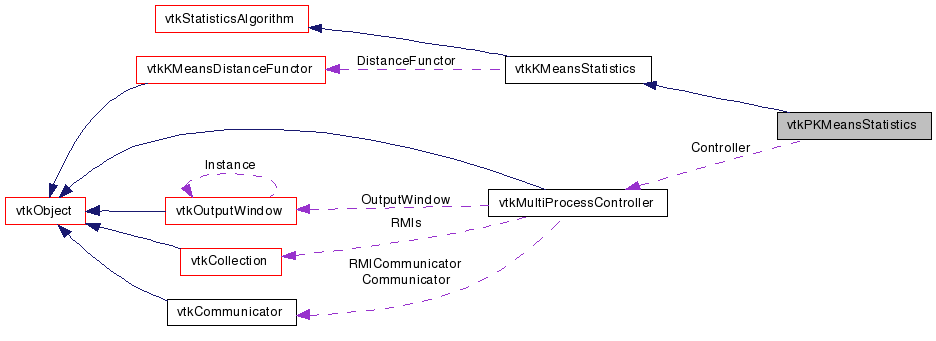

Collaboration diagram for vtkPKMeansStatistics:

[legend]

List of all members.

---

Detailed Description

Definition at line 34 of file vtkPKMeansStatistics.h.

Public Types
typedef vtkKMeansStatistics	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkIdType	GetTotalNumberOfObservations (vtkIdType numObservations)
virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
virtual void	UpdateClusterCenters (vtkTable *newClusterElements, vtkTable *curClusterElements, vtkIdTypeArray *numMembershipChanges, vtkIdTypeArray *numElementsInCluster, vtkDoubleArray *error, vtkIdTypeArray *startRunID, vtkIdTypeArray *endRunID, vtkIntArray *computeRun)
virtual void	CreateInitialClusterCenters (vtkIdType numToAllocate, vtkIdTypeArray *numberOfClusters, vtkTable *inData, vtkTable *curClusterElements, vtkTable *newClusterElements)
Static Public Member Functions
static vtkPKMeansStatistics *	New ()
static int	IsTypeOf (const char *type)
static vtkPKMeansStatistics *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPKMeansStatistics ()
	~vtkPKMeansStatistics ()
Protected Attributes
vtkMultiProcessController *	Controller

---

Member Typedef Documentation

typedef vtkKMeansStatistics vtkPKMeansStatistics::Superclass

Reimplemented from vtkKMeansStatistics.

Definition at line 38 of file vtkPKMeansStatistics.h.

---

Constructor & Destructor Documentation

vtkPKMeansStatistics::vtkPKMeansStatistics

(

)

[protected]

vtkPKMeansStatistics::~vtkPKMeansStatistics

(

)

[protected]

---

Member Function Documentation

static vtkPKMeansStatistics* vtkPKMeansStatistics::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkKMeansStatistics.

virtual const char* vtkPKMeansStatistics::GetClassName

(

)

[virtual]

Reimplemented from vtkKMeansStatistics.

static int vtkPKMeansStatistics::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkKMeansStatistics.

virtual int vtkPKMeansStatistics::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkKMeansStatistics.

static vtkPKMeansStatistics* vtkPKMeansStatistics::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkKMeansStatistics.

void vtkPKMeansStatistics::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkKMeansStatistics.

virtual void vtkPKMeansStatistics::SetController

(

vtkMultiProcessController *

)

[virtual]

Get/Set the multiprocess controller. If no controller is set, single process is assumed.

virtual vtkMultiProcessController* vtkPKMeansStatistics::GetController

(

)

[virtual]

Get/Set the multiprocess controller. If no controller is set, single process is assumed.

virtual void vtkPKMeansStatistics::UpdateClusterCenters	(	vtkTable *	newClusterElements,
		vtkTable *	curClusterElements,
		vtkIdTypeArray *	numMembershipChanges,
		vtkIdTypeArray *	numElementsInCluster,
		vtkDoubleArray *	error,
		vtkIdTypeArray *	startRunID,
		vtkIdTypeArray *	endRunID,
		vtkIntArray *	computeRun
	)			[virtual]

Subroutine to update new cluster centers from the old centers.

Reimplemented from vtkKMeansStatistics.

virtual vtkIdType vtkPKMeansStatistics::GetTotalNumberOfObservations

(

vtkIdType

numObservations

)

[virtual]

Subroutine to get the total number of data objects.

Reimplemented from vtkKMeansStatistics.

virtual void vtkPKMeansStatistics::CreateInitialClusterCenters	(	vtkIdType	numToAllocate,
		vtkIdTypeArray *	numberOfClusters,
		vtkTable *	inData,
		vtkTable *	curClusterElements,
		vtkTable *	newClusterElements
	)			[virtual]

Subroutine to initialize cluster centerss if not provided by the user.

Reimplemented from vtkKMeansStatistics.

---

Member Data Documentation

vtkMultiProcessController* vtkPKMeansStatistics::Controller [protected]

Definition at line 78 of file vtkPKMeansStatistics.h.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkPKMeansStatistics.h
