vtkPlotGrid Class Reference

#include <vtkPlotGrid.h>

Inheritance diagram for vtkPlotGrid:

Inheritance graph
[legend]

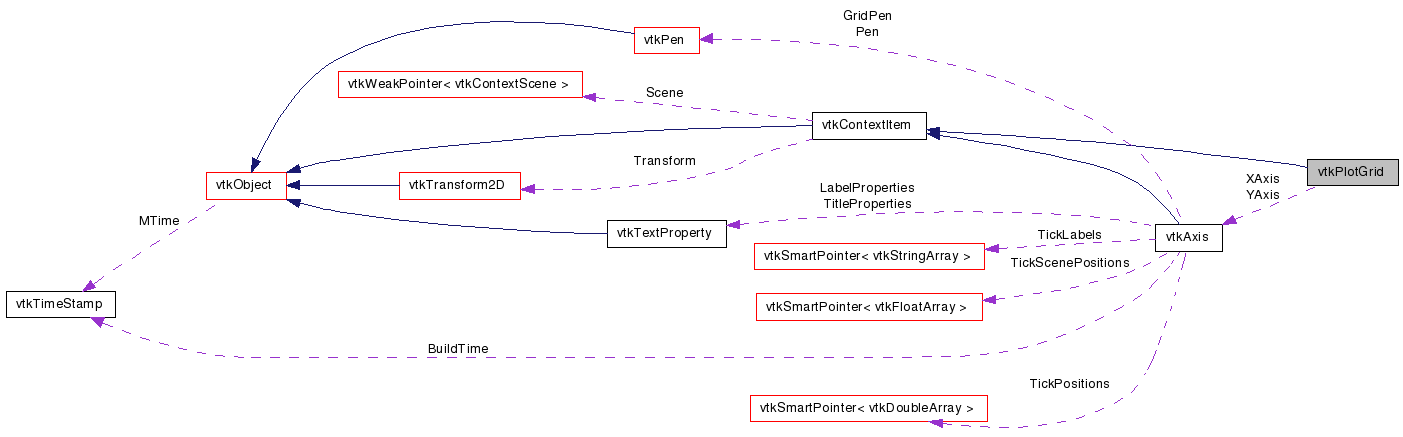

Collaboration diagram for vtkPlotGrid:

Collaboration graph
[legend]

List of all members.


Detailed Description

takes care of drawing the plot grid

The vtkPlotGrid is drawn in screen coordinates. It is usually one of the first elements of a chart to be drawn, and will generally be obscured by all other elements of the chart. It builds up its own plot locations from the parameters of the x and y axis of the plot.

Definition at line 36 of file vtkPlotGrid.h.


Public Types

typedef vtkContextItem Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetXAxis (vtkAxis *axis)
virtual void SetYAxis (vtkAxis *axis)
virtual bool Paint (vtkContext2D *painter)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkPlotGridSafeDownCast (vtkObject *o)
static vtkPlotGridNew ()

Protected Member Functions

 vtkPlotGrid ()
 ~vtkPlotGrid ()

Protected Attributes

vtkAxisXAxis
vtkAxisYAxis

Member Typedef Documentation

Reimplemented from vtkContextItem.

Definition at line 39 of file vtkPlotGrid.h.


Constructor & Destructor Documentation

vtkPlotGrid::vtkPlotGrid (  )  [protected]

vtkPlotGrid::~vtkPlotGrid (  )  [protected]


Member Function Documentation

virtual const char* vtkPlotGrid::GetClassName (  )  [virtual]

Reimplemented from vtkContextItem.

static int vtkPlotGrid::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkContextItem.

virtual int vtkPlotGrid::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkContextItem.

static vtkPlotGrid* vtkPlotGrid::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkContextItem.

virtual void vtkPlotGrid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkContextItem.

static vtkPlotGrid* vtkPlotGrid::New (  )  [static]

Creates a 2D Chart object.

Reimplemented from vtkObject.

virtual void vtkPlotGrid::SetXAxis ( vtkAxis axis  )  [virtual]

Set the X axis of the grid.

virtual void vtkPlotGrid::SetYAxis ( vtkAxis axis  )  [virtual]

Set the X axis of the grid.

virtual bool vtkPlotGrid::Paint ( vtkContext2D painter  )  [virtual]

Paint event for the axis, called whenever the axis needs to be drawn

Implements vtkContextItem.


Member Data Documentation

The vtkAxis objects are used to figure out where the grid lines should be drawn.

Definition at line 62 of file vtkPlotGrid.h.

The vtkAxis objects are used to figure out where the grid lines should be drawn.

Definition at line 63 of file vtkPlotGrid.h.


The documentation for this class was generated from the following file:
