vtkProbeFilter Class Reference

#include <vtkProbeFilter.h>

Inheritance diagram for vtkProbeFilter:

Inheritance graph
[legend]

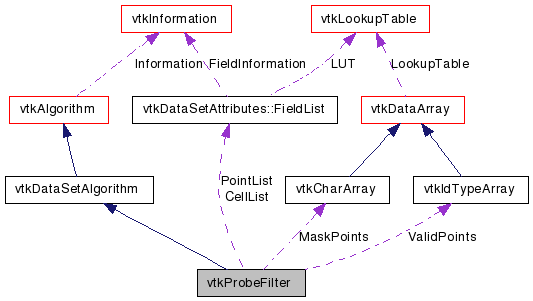

Collaboration diagram for vtkProbeFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

sample data values at specified point locations

vtkProbeFilter is a filter that computes point attributes (e.g., scalars, vectors, etc.) at specified point positions. The filter has two inputs: the Input and Source. The Input geometric structure is passed through the filter. The point attributes are computed at the Input point positions by interpolating into the source data. For example, we can compute data values on a plane (plane specified as Input) from a volume (Source). The cell data of the source data is copied to the output based on in which source cell each input point is. If an array of the same name exists both in source's point and cell data, only the one from the point data is probed.

This filter can be used to resample data, or convert one dataset form into another. For example, an unstructured grid (vtkUnstructuredGrid) can be probed with a volume (three-dimensional vtkImageData), and then volume rendering techniques can be used to visualize the results. Another example: a line or curve can be used to probe data to produce x-y plots along that line or curve.

Examples:
vtkProbeFilter (Examples)
Tests:
vtkProbeFilter (Tests)

Definition at line 53 of file vtkProbeFilter.h.


Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetSourceConnection (vtkAlgorithmOutput *algOutput)
void SetSource (vtkDataObject *source)
vtkDataObjectGetSource ()
virtual void SetSpatialMatch (int)
virtual int GetSpatialMatch ()
virtual void SpatialMatchOn ()
virtual void SpatialMatchOff ()
virtual vtkIdTypeArrayGetValidPoints ()
virtual void SetValidPointMaskArrayName (const char *)
virtual char * GetValidPointMaskArrayName ()

Static Public Member Functions

static vtkProbeFilterNew ()
static int IsTypeOf (const char *type)
static vtkProbeFilterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkProbeFilter ()
 ~vtkProbeFilter ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void Probe (vtkDataSet *input, vtkDataSet *source, vtkDataSet *output)
void BuildFieldList (vtkDataSet *source)
virtual void InitializeForProbing (vtkDataSet *input, vtkDataSet *output)
void ProbeEmptyPoints (vtkDataSet *input, int srcIdx, vtkDataSet *source, vtkDataSet *output)

Protected Attributes

int SpatialMatch
char * ValidPointMaskArrayName
vtkIdTypeArrayValidPoints
vtkCharArrayMaskPoints
int NumberOfValidPoints
bool UseNullPoint
vtkDataSetAttributes::FieldListCellList
vtkDataSetAttributes::FieldListPointList

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

Definition at line 57 of file vtkProbeFilter.h.


Constructor & Destructor Documentation

vtkProbeFilter::vtkProbeFilter (  )  [protected]

vtkProbeFilter::~vtkProbeFilter (  )  [protected]


Member Function Documentation

static vtkProbeFilter* vtkProbeFilter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

virtual const char* vtkProbeFilter::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

static int vtkProbeFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

virtual int vtkProbeFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

static vtkProbeFilter* vtkProbeFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

void vtkProbeFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

void vtkProbeFilter::SetSource ( vtkDataObject source  )

Specify the point locations used to probe input. Any geometry can be used. Old style. Do not use unless for backwards compatibility.

vtkDataObject* vtkProbeFilter::GetSource (  )

Specify the point locations used to probe input. Any geometry can be used. Old style. Do not use unless for backwards compatibility.

void vtkProbeFilter::SetSourceConnection ( vtkAlgorithmOutput algOutput  )

Specify the point locations used to probe input. Any geometry can be used. New style. Equivalent to SetInputConnection(1, algOutput).

virtual void vtkProbeFilter::SetSpatialMatch ( int   )  [virtual]

This flag is used only when a piece is requested to update. By default the flag is off. Because no spatial correspondence between input pieces and source pieces is known, all of the source has to be requested no matter what piece of the output is requested. When there is a spatial correspondence, the user/application can set this flag. This hint allows the breakup of the probe operation to be much more efficient. When piece m of n is requested for update by the user, then only n of m needs to be requested of the source.

virtual int vtkProbeFilter::GetSpatialMatch (  )  [virtual]

This flag is used only when a piece is requested to update. By default the flag is off. Because no spatial correspondence between input pieces and source pieces is known, all of the source has to be requested no matter what piece of the output is requested. When there is a spatial correspondence, the user/application can set this flag. This hint allows the breakup of the probe operation to be much more efficient. When piece m of n is requested for update by the user, then only n of m needs to be requested of the source.

virtual void vtkProbeFilter::SpatialMatchOn (  )  [virtual]

This flag is used only when a piece is requested to update. By default the flag is off. Because no spatial correspondence between input pieces and source pieces is known, all of the source has to be requested no matter what piece of the output is requested. When there is a spatial correspondence, the user/application can set this flag. This hint allows the breakup of the probe operation to be much more efficient. When piece m of n is requested for update by the user, then only n of m needs to be requested of the source.

virtual void vtkProbeFilter::SpatialMatchOff (  )  [virtual]

This flag is used only when a piece is requested to update. By default the flag is off. Because no spatial correspondence between input pieces and source pieces is known, all of the source has to be requested no matter what piece of the output is requested. When there is a spatial correspondence, the user/application can set this flag. This hint allows the breakup of the probe operation to be much more efficient. When piece m of n is requested for update by the user, then only n of m needs to be requested of the source.

virtual vtkIdTypeArray* vtkProbeFilter::GetValidPoints (  )  [virtual]

Get the list of point ids in the output that contain attribute data interpolated from the source.

virtual void vtkProbeFilter::SetValidPointMaskArrayName ( const char *   )  [virtual]

Returns the name of the char array added to the output with values 1 for valid points and 0 for invalid points. Set to "vtkValidPointMask" by default.

virtual char* vtkProbeFilter::GetValidPointMaskArrayName (  )  [virtual]

Returns the name of the char array added to the output with values 1 for valid points and 0 for invalid points. Set to "vtkValidPointMask" by default.

virtual int vtkProbeFilter::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkCompositeDataProbeFilter, and vtkPProbeFilter.

virtual int vtkProbeFilter::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks for Information. Typically an algorithm provides whatever lightweight information about its output that it can here without doing any lengthy computations. This happens in the first pass of the pipeline execution.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkPProbeFilter.

virtual int vtkProbeFilter::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when each filter in the pipeline decides what portion of its input is needed to create the portion of its output that the downstream filter asks for. This happens during the second pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

Reimplemented in vtkPProbeFilter.

void vtkProbeFilter::Probe ( vtkDataSet input,
vtkDataSet source,
vtkDataSet output
) [protected]

Equivalent to calling InitializeForProbing(); ProbeEmptyPoints().

void vtkProbeFilter::BuildFieldList ( vtkDataSet source  )  [protected]

Build the field lists. This is required before calling InitializeForProbing().

virtual void vtkProbeFilter::InitializeForProbing ( vtkDataSet input,
vtkDataSet output
) [protected, virtual]

Initializes output and various arrays which keep track for probing status.

Reimplemented in vtkCompositeDataProbeFilter.

void vtkProbeFilter::ProbeEmptyPoints ( vtkDataSet input,
int  srcIdx,
vtkDataSet source,
vtkDataSet output
) [protected]

Probe only those points that are marked as not-probed by the MaskPoints array. srcIdx is the index in the PointList for the given source.


Member Data Documentation

Definition at line 104 of file vtkProbeFilter.h.

Definition at line 132 of file vtkProbeFilter.h.

Definition at line 133 of file vtkProbeFilter.h.

Definition at line 134 of file vtkProbeFilter.h.

Definition at line 135 of file vtkProbeFilter.h.

bool vtkProbeFilter::UseNullPoint [protected]

Definition at line 141 of file vtkProbeFilter.h.

Definition at line 143 of file vtkProbeFilter.h.

Definition at line 144 of file vtkProbeFilter.h.


The documentation for this class was generated from the following file:
