vtkProcess Class Reference

#include <vtkProcess.h>

Inheritance diagram for vtkProcess:

Inheritance graph
[legend]

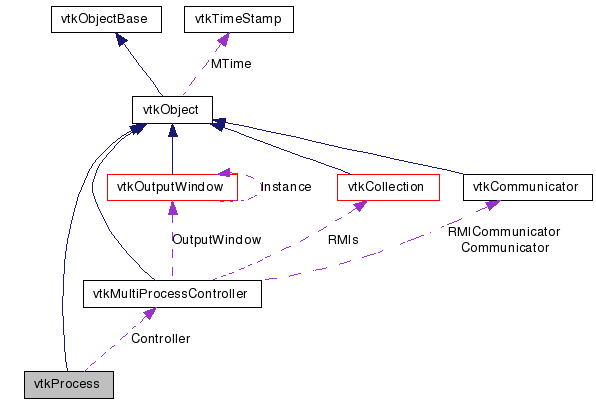

Collaboration diagram for vtkProcess:

Collaboration graph
[legend]

List of all members.


Detailed Description

a process that can be launched by a vtkMultiProcessController

vtkProcess is an abstract class representing a process that can be launched by a vtkMultiProcessController. Concrete classes just have to implement Execute() method and make sure it set the proper value in ReturnValue.

Example:
class MyProcess: public vtkProcess ... vtkMultiProcessController *c; MyProcess *p=new MyProcess::New(); p->SetArgs(argc,argv); // some parameters specific to the process p->SetX(10.0); // ... c->SetSingleProcess(p); c->SingleMethodExecute(); int returnValue=p->GetReturnValue();
See also:
vtkMultiProcessController
Tests:
vtkProcess (Tests)

Definition at line 47 of file vtkProcess.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Execute ()=0
vtkMultiProcessControllerGetController ()
void SetController (vtkMultiProcessController *aController)
int GetReturnValue ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkProcessSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkProcess ()

Protected Attributes

vtkMultiProcessControllerController
int ReturnValue

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 50 of file vtkProcess.h.


Constructor & Destructor Documentation

vtkProcess::vtkProcess (  )  [protected]


Member Function Documentation

virtual const char* vtkProcess::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkProcess::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkProcess::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkProcess* vtkProcess::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkProcess::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual void vtkProcess::Execute (  )  [pure virtual]

Entry point of the process. This method is expected to update ReturnValue.

vtkMultiProcessController* vtkProcess::GetController (  )

Give access to the controller that launched the process. Initial value is NULL.

void vtkProcess::SetController ( vtkMultiProcessController aController  )

This method should not be called directly but set by the controller itself.

int vtkProcess::GetReturnValue (  )

Value set at the end of a call to Execute.


Member Data Documentation

Definition at line 71 of file vtkProcess.h.

int vtkProcess::ReturnValue [protected]

Definition at line 72 of file vtkProcess.h.


The documentation for this class was generated from the following file:
