vtkProperty Class Reference

#include <vtkProperty.h>

Inheritance diagram for vtkProperty:

[legend]

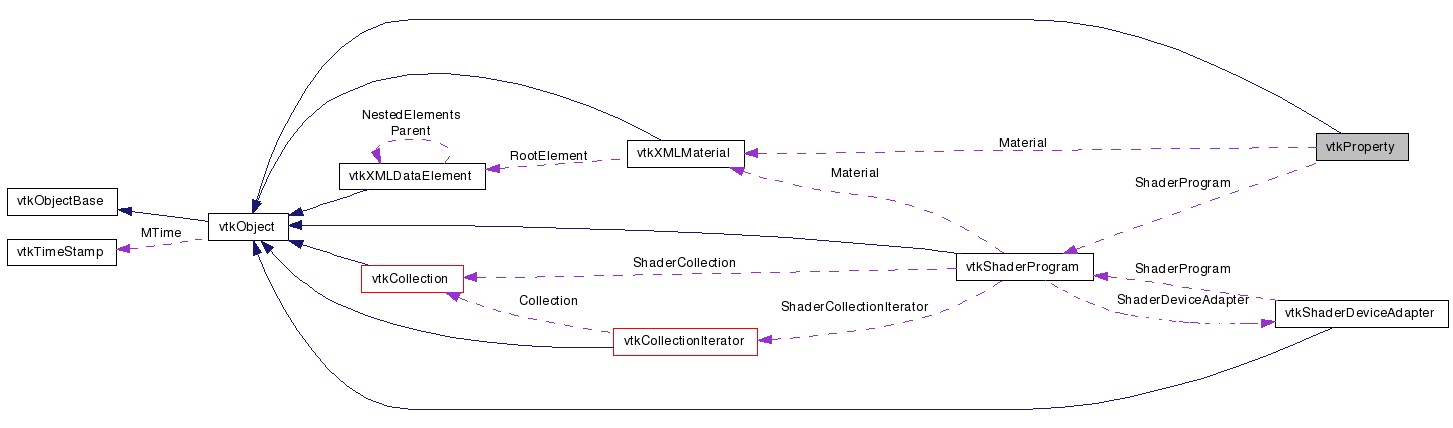

Collaboration diagram for vtkProperty:

[legend]

List of all members.

Detailed Description

represent surface properties of a geometric object

vtkProperty is an object that represents lighting and other surface properties of a geometric object. The primary properties that can be set are colors (overall, ambient, diffuse, specular, and edge color); specular power; opacity of the object; the representation of the object (points, wireframe, or surface); and the shading method to be used (flat, Gouraud, and Phong). Also, some special graphics features like backface properties can be set and manipulated with this object.

See also:: vtkActor vtkPropertyDevice

Examples:: vtkProperty (Examples)

Tests:: vtkProperty (Tests)

Definition at line 61 of file vtkProperty.h.


Public Types
typedef vtkObject	Superclass

enum	VTKTextureUnit { VTK_TEXTURE_UNIT_0 = 0, VTK_TEXTURE_UNIT_1, VTK_TEXTURE_UNIT_2, VTK_TEXTURE_UNIT_3, VTK_TEXTURE_UNIT_4, VTK_TEXTURE_UNIT_5, VTK_TEXTURE_UNIT_6, VTK_TEXTURE_UNIT_7 }
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	DeepCopy (vtkProperty *p)
virtual void	Render (vtkActor , vtkRenderer )
virtual void	BackfaceRender (vtkActor , vtkRenderer )
void	LoadMaterial (const char *name)
void	LoadMaterialFromString (const char *materialxml)
void	LoadMaterial (vtkXMLMaterial *)
void	RemoveTexture (const char *name)
void	RemoveAllTextures ()
int	GetNumberOfTextures ()
virtual void	ReleaseGraphicsResources (vtkWindow *win)

virtual void	PostRender (vtkActor , vtkRenderer )

virtual bool	GetLighting ()
virtual void	SetLighting (bool)
virtual void	LightingOn ()
virtual void	LightingOff ()

virtual void	SetInterpolation (int)
virtual int	GetInterpolation ()
void	SetInterpolationToFlat ()
void	SetInterpolationToGouraud ()
void	SetInterpolationToPhong ()
const char *	GetInterpolationAsString ()

virtual void	SetRepresentation (int)
virtual int	GetRepresentation ()
void	SetRepresentationToPoints ()
void	SetRepresentationToWireframe ()
void	SetRepresentationToSurface ()
const char *	GetRepresentationAsString ()

void	SetColor (double r, double g, double b)
void	SetColor (double a[3])
double *	GetColor ()
void	GetColor (double rgb[3])
void	GetColor (double &r, double &g, double &b)

virtual void	SetAmbient (double)
virtual double	GetAmbient ()

virtual void	SetDiffuse (double)
virtual double	GetDiffuse ()

virtual void	SetSpecular (double)
virtual double	GetSpecular ()

virtual void	SetSpecularPower (double)
virtual double	GetSpecularPower ()

virtual void	SetOpacity (double)
virtual double	GetOpacity ()

virtual void	SetAmbientColor (double, double, double)
virtual void	SetAmbientColor (double[3])
virtual double *	GetAmbientColor ()
virtual void	GetAmbientColor (double &, double &, double &)
virtual void	GetAmbientColor (double[3])

virtual void	SetDiffuseColor (double, double, double)
virtual void	SetDiffuseColor (double[3])
virtual double *	GetDiffuseColor ()
virtual void	GetDiffuseColor (double &, double &, double &)
virtual void	GetDiffuseColor (double[3])

virtual void	SetSpecularColor (double, double, double)
virtual void	SetSpecularColor (double[3])
virtual double *	GetSpecularColor ()
virtual void	GetSpecularColor (double &, double &, double &)
virtual void	GetSpecularColor (double[3])

virtual int	GetEdgeVisibility ()
virtual void	SetEdgeVisibility (int)
virtual void	EdgeVisibilityOn ()
virtual void	EdgeVisibilityOff ()

virtual void	SetEdgeColor (double, double, double)
virtual void	SetEdgeColor (double[3])
virtual double *	GetEdgeColor ()
virtual void	GetEdgeColor (double &, double &, double &)
virtual void	GetEdgeColor (double[3])

virtual void	SetLineWidth (float)
virtual float	GetLineWidth ()

virtual void	SetLineStipplePattern (int)
virtual int	GetLineStipplePattern ()

virtual void	SetLineStippleRepeatFactor (int)
virtual int	GetLineStippleRepeatFactor ()

virtual void	SetPointSize (float)
virtual float	GetPointSize ()

virtual int	GetBackfaceCulling ()
virtual void	SetBackfaceCulling (int)
virtual void	BackfaceCullingOn ()
virtual void	BackfaceCullingOff ()

virtual int	GetFrontfaceCulling ()
virtual void	SetFrontfaceCulling (int)
virtual void	FrontfaceCullingOn ()
virtual void	FrontfaceCullingOff ()

virtual vtkXMLMaterial *	GetMaterial ()

virtual char *	GetMaterialName ()

virtual void	SetShading (int)
virtual int	GetShading ()
virtual void	ShadingOn ()
virtual void	ShadingOff ()

virtual vtkShaderProgram *	GetShaderProgram ()

virtual void	AddShaderVariable (const char name, int numVars, int x)
virtual void	AddShaderVariable (const char name, int numVars, float x)
virtual void	AddShaderVariable (const char name, int numVars, double x)

void	AddShaderVariable (const char *name, int v)
void	AddShaderVariable (const char *name, float v)
void	AddShaderVariable (const char *name, double v)
void	AddShaderVariable (const char *name, int v1, int v2)
void	AddShaderVariable (const char *name, float v1, float v2)
void	AddShaderVariable (const char *name, double v1, double v2)
void	AddShaderVariable (const char *name, int v1, int v2, int v3)
void	AddShaderVariable (const char *name, float v1, float v2, float v3)
void	AddShaderVariable (const char *name, double v1, double v2, double v3)

void	SetTexture (const char name, vtkTexture texture)
vtkTexture *	GetTexture (const char *name)

void	SetTexture (int unit, vtkTexture *texture)
vtkTexture *	GetTexture (int unit)
void	RemoveTexture (int unit)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkProperty *	SafeDownCast (vtkObject *o)
static vtkProperty *	New ()
Protected Member Functions
	vtkProperty ()
	~vtkProperty ()
virtual void	SetMaterialName (const char *)
void	SetShaderProgram (vtkShaderProgram *)
virtual void	ReadFrameworkMaterial ()
vtkTexture *	GetTextureAtIndex (int index)
int	GetTextureUnitAtIndex (int index)
int	GetTextureUnit (const char *name)

void	LoadProperty ()
void	LoadTextures ()
void	LoadTexture (vtkXMLDataElement *elem)
void	LoadPerlineNoise (vtkXMLDataElement *)
void	LoadMember (vtkXMLDataElement *elem)
Protected Attributes
double	Color [3]
double	AmbientColor [3]
double	DiffuseColor [3]
double	SpecularColor [3]
double	EdgeColor [3]
double	Ambient
double	Diffuse
double	Specular
double	SpecularPower
double	Opacity
float	PointSize
float	LineWidth
int	LineStipplePattern
int	LineStippleRepeatFactor
int	Interpolation
int	Representation
int	EdgeVisibility
int	BackfaceCulling
int	FrontfaceCulling
bool	Lighting
int	Shading
char *	MaterialName
vtkShaderProgram *	ShaderProgram
vtkXMLMaterial *	Material
Friends
class	vtkGLSLShaderProgram
class	vtkShader

Member Typedef Documentation

typedef vtkObject vtkProperty::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

Definition at line 64 of file vtkProperty.h.

Member Enumeration Documentation

enum vtkProperty::VTKTextureUnit

Used to specify which texture unit a texture will use. Only relevant when multitexturing. BTX

Enumerator:

VTK_TEXTURE_UNIT_0
VTK_TEXTURE_UNIT_1
VTK_TEXTURE_UNIT_2
VTK_TEXTURE_UNIT_3
VTK_TEXTURE_UNIT_4
VTK_TEXTURE_UNIT_5
VTK_TEXTURE_UNIT_6
VTK_TEXTURE_UNIT_7

Definition at line 397 of file vtkProperty.h.

Constructor & Destructor Documentation

vtkProperty::vtkProperty ( ) [protected]

vtkProperty::~vtkProperty ( ) [protected]

Member Function Documentation

virtual const char* vtkProperty::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

static int vtkProperty::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

virtual int vtkProperty::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

static vtkProperty* vtkProperty::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

void vtkProperty::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

static vtkProperty* vtkProperty::New ( ) [static]

Construct object with object color, ambient color, diffuse color, specular color, and edge color white; ambient coefficient=0; diffuse coefficient=0; specular coefficient=0; specular power=1; Gouraud shading; and surface representation. Backface and frontface culling are off.

Reimplemented from vtkObject.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

void vtkProperty::DeepCopy ( vtkProperty * p )

Assign one property to another.

virtual void vtkProperty::Render	(	vtkActor *	,
		vtkRenderer *
	)			`[virtual]`

This method causes the property to set up whatever is required for its instance variables. This is actually handled by a subclass of vtkProperty, which is created automatically. This method includes the invoking actor as an argument which can be used by property devices that require the actor.

Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

virtual void vtkProperty::BackfaceRender	(	vtkActor *	,
		vtkRenderer *
	)			`[inline, virtual]`

This method renders the property as a backface property. TwoSidedLighting must be turned off to see any backface properties. Note that only colors and opacity are used for backface properties. Other properties such as Representation, Culling are specified by the Property.

Reimplemented in vtkMesaProperty, and vtkOpenGLProperty.

Definition at line 89 of file vtkProperty.h.

virtual void vtkProperty::PostRender	(	vtkActor *	,
		vtkRenderer *
	)			`[virtual]`

This method is called after the actor has been rendered. Don't call this directly. This method cleans up any shaders allocated.

Reimplemented in vtkOpenGLProperty.

virtual bool vtkProperty::GetLighting ( ) [virtual]

Set/Get lighting flag for an object. Initial value is true.

virtual void vtkProperty::SetLighting ( bool ) [virtual]

Set/Get lighting flag for an object. Initial value is true.

virtual void vtkProperty::LightingOn ( ) [virtual]

Set/Get lighting flag for an object. Initial value is true.

virtual void vtkProperty::LightingOff ( ) [virtual]

Set/Get lighting flag for an object. Initial value is true.

virtual void vtkProperty::SetInterpolation ( int ) [virtual]

Set the shading interpolation method for an object.

virtual int vtkProperty::GetInterpolation ( ) [virtual]

Set the shading interpolation method for an object.

void vtkProperty::SetInterpolationToFlat ( ) [inline]

Set the shading interpolation method for an object.

Definition at line 110 of file vtkProperty.h.

void vtkProperty::SetInterpolationToGouraud ( ) [inline]

Set the shading interpolation method for an object.

Definition at line 111 of file vtkProperty.h.

void vtkProperty::SetInterpolationToPhong ( ) [inline]

Set the shading interpolation method for an object.

Definition at line 112 of file vtkProperty.h.

const char * vtkProperty::GetInterpolationAsString ( void ) [inline]

Return the method of shading as a descriptive character string.

Definition at line 480 of file vtkProperty.h.

virtual void vtkProperty::SetRepresentation ( int ) [virtual]

Control the surface geometry representation for the object.

virtual int vtkProperty::GetRepresentation ( ) [virtual]

Control the surface geometry representation for the object.

void vtkProperty::SetRepresentationToPoints ( ) [inline]

Control the surface geometry representation for the object.

Definition at line 120 of file vtkProperty.h.

void vtkProperty::SetRepresentationToWireframe ( ) [inline]

Control the surface geometry representation for the object.

Definition at line 121 of file vtkProperty.h.

void vtkProperty::SetRepresentationToSurface ( ) [inline]

Control the surface geometry representation for the object.

Definition at line 123 of file vtkProperty.h.

const char * vtkProperty::GetRepresentationAsString ( void ) [inline]

Return the method of shading as a descriptive character string.

Definition at line 498 of file vtkProperty.h.

void vtkProperty::SetColor	(	double	r,
		double	g,
		double	b
	)

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

void vtkProperty::SetColor ( double a[3] ) [inline]

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

Definition at line 132 of file vtkProperty.h.

double* vtkProperty::GetColor ( )

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

void vtkProperty::GetColor ( double rgb[3] )

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

void vtkProperty::GetColor	(	double &	r,
		double &	g,
		double &	b
	)

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

virtual void vtkProperty::SetAmbient ( double ) [virtual]

Set/Get the ambient lighting coefficient.

virtual double vtkProperty::GetAmbient ( ) [virtual]

Set/Get the ambient lighting coefficient.

virtual void vtkProperty::SetDiffuse ( double ) [virtual]

Set/Get the diffuse lighting coefficient.

virtual double vtkProperty::GetDiffuse ( ) [virtual]

Set/Get the diffuse lighting coefficient.

virtual void vtkProperty::SetSpecular ( double ) [virtual]

Set/Get the specular lighting coefficient.

virtual double vtkProperty::GetSpecular ( ) [virtual]

Set/Get the specular lighting coefficient.

virtual void vtkProperty::SetSpecularPower ( double ) [virtual]

Set/Get the specular power.

virtual double vtkProperty::GetSpecularPower ( ) [virtual]

Set/Get the specular power.

virtual void vtkProperty::SetOpacity ( double ) [virtual]

Set/Get the object's opacity. 1.0 is totally opaque and 0.0 is completely transparent.

virtual double vtkProperty::GetOpacity ( ) [virtual]

Set/Get the object's opacity. 1.0 is totally opaque and 0.0 is completely transparent.

virtual void vtkProperty::SetAmbientColor	(	double	,
		double	,
		double
	)			`[virtual]`

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::SetAmbientColor ( double [3] ) [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual double* vtkProperty::GetAmbientColor ( ) [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::GetAmbientColor	(	double &	,
		double &	,
		double &
	)			`[virtual]`

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::GetAmbientColor ( double [3] ) [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::SetDiffuseColor	(	double	,
		double	,
		double
	)			`[virtual]`

Set/Get the diffuse surface color.

virtual void vtkProperty::SetDiffuseColor ( double [3] ) [virtual]

Set/Get the diffuse surface color.

virtual double* vtkProperty::GetDiffuseColor ( ) [virtual]

Set/Get the diffuse surface color.

virtual void vtkProperty::GetDiffuseColor	(	double &	,
		double &	,
		double &
	)			`[virtual]`

Set/Get the diffuse surface color.

virtual void vtkProperty::GetDiffuseColor ( double [3] ) [virtual]

Set/Get the diffuse surface color.

virtual void vtkProperty::SetSpecularColor	(	double	,
		double	,
		double
	)			`[virtual]`

Set/Get the specular surface color.

virtual void vtkProperty::SetSpecularColor ( double [3] ) [virtual]

Set/Get the specular surface color.

virtual double* vtkProperty::GetSpecularColor ( ) [virtual]

Set/Get the specular surface color.

virtual void vtkProperty::GetSpecularColor	(	double &	,
		double &	,
		double &
	)			`[virtual]`

Set/Get the specular surface color.

virtual void vtkProperty::GetSpecularColor ( double [3] ) [virtual]

Set/Get the specular surface color.

virtual int vtkProperty::GetEdgeVisibility ( ) [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::SetEdgeVisibility ( int ) [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::EdgeVisibilityOn ( ) [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::EdgeVisibilityOff ( ) [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::SetEdgeColor	(	double	,
		double	,
		double
	)			`[virtual]`

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::SetEdgeColor ( double [3] ) [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual double* vtkProperty::GetEdgeColor ( ) [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::GetEdgeColor	(	double &	,
		double &	,
		double &
	)			`[virtual]`

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::GetEdgeColor ( double [3] ) [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::SetLineWidth ( float ) [virtual]

Set/Get the width of a Line. The width is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual float vtkProperty::GetLineWidth ( ) [virtual]

Set/Get the width of a Line. The width is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual void vtkProperty::SetLineStipplePattern ( int ) [virtual]

Set/Get the stippling pattern of a Line, as a 16-bit binary pattern (1 = pixel on, 0 = pixel off). This is only implemented for OpenGL. The default is 0xFFFF.

virtual int vtkProperty::GetLineStipplePattern ( ) [virtual]

Set/Get the stippling pattern of a Line, as a 16-bit binary pattern (1 = pixel on, 0 = pixel off). This is only implemented for OpenGL. The default is 0xFFFF.

virtual void vtkProperty::SetLineStippleRepeatFactor ( int ) [virtual]

Set/Get the stippling repeat factor of a Line, which specifies how many times each bit in the pattern is to be repeated. This is only implemented for OpenGL. The default is 1.

virtual int vtkProperty::GetLineStippleRepeatFactor ( ) [virtual]

Set/Get the stippling repeat factor of a Line, which specifies how many times each bit in the pattern is to be repeated. This is only implemented for OpenGL. The default is 1.

virtual void vtkProperty::SetPointSize ( float ) [virtual]

Set/Get the diameter of a point. The size is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual float vtkProperty::GetPointSize ( ) [virtual]

Set/Get the diameter of a point. The size is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual int vtkProperty::GetBackfaceCulling ( ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual void vtkProperty::SetBackfaceCulling ( int ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual void vtkProperty::BackfaceCullingOn ( ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual void vtkProperty::BackfaceCullingOff ( ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual int vtkProperty::GetFrontfaceCulling ( ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual void vtkProperty::SetFrontfaceCulling ( int ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual void vtkProperty::FrontfaceCullingOn ( ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual void vtkProperty::FrontfaceCullingOff ( ) [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual vtkXMLMaterial* vtkProperty::GetMaterial ( ) [virtual]

Get the material representation used for shading. The material will be used only when shading is enabled.

virtual char* vtkProperty::GetMaterialName ( ) [virtual]

Returns the name of the material currenly loaded, if any.

void vtkProperty::LoadMaterial ( const char * name )

Load the material. The material can be the name of a built-on material or the filename for a VTK material XML description.

void vtkProperty::LoadMaterialFromString ( const char * materialxml )

Load the material given the contents of the material file.

void vtkProperty::LoadMaterial ( vtkXMLMaterial * )

Load the material given the material representation.

virtual void vtkProperty::SetShading ( int ) [virtual]

Enable/Disable shading. When shading is enabled, the Material must be set.

virtual int vtkProperty::GetShading ( ) [virtual]

Enable/Disable shading. When shading is enabled, the Material must be set.

virtual void vtkProperty::ShadingOn ( ) [virtual]

Enable/Disable shading. When shading is enabled, the Material must be set.

virtual void vtkProperty::ShadingOff ( ) [virtual]

Enable/Disable shading. When shading is enabled, the Material must be set.

virtual vtkShaderProgram* vtkProperty::GetShaderProgram ( ) [virtual]

Get the Shader program. If Material is not set/or not loaded properly, this will return null.

virtual void vtkProperty::AddShaderVariable	(	const char *	name,
		int	numVars,
		int *	x
	)			`[virtual]`

Provide values to initialize shader variables. Useful to initialize shader variables that change over time (animation, GUI widgets inputs, etc. ) - name - hardware name of the uniform variable - numVars - number of variables being set - x - values

Reimplemented in vtkOpenGLProperty.

virtual void vtkProperty::AddShaderVariable	(	const char *	name,
		int	numVars,
		float *	x
	)			`[virtual]`

Provide values to initialize shader variables. Useful to initialize shader variables that change over time (animation, GUI widgets inputs, etc. ) - name - hardware name of the uniform variable - numVars - number of variables being set - x - values

Reimplemented in vtkOpenGLProperty.

virtual void vtkProperty::AddShaderVariable	(	const char *	name,
		int	numVars,
		double *	x
	)			`[virtual]`

Provide values to initialize shader variables. Useful to initialize shader variables that change over time (animation, GUI widgets inputs, etc. ) - name - hardware name of the uniform variable - numVars - number of variables being set - x - values

Reimplemented in vtkOpenGLProperty.

void vtkProperty::AddShaderVariable	(	const char *	name,
		int	v
	)			`[inline]`
