vtkQtChartSeriesLayer Class Reference

#include <vtkQtChartSeriesLayer.h>

Inheritance diagram for vtkQtChartSeriesLayer:

Inheritance graph
[legend]

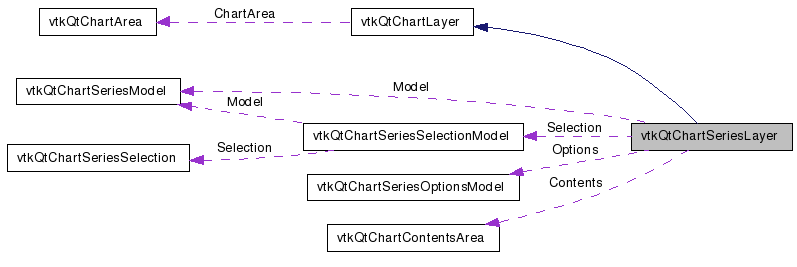

Collaboration diagram for vtkQtChartSeriesLayer:

Collaboration graph
[legend]

List of all members.


Detailed Description

The vtkQtChartSeriesLayer class is the base class for chart layers that use the chart series model.

It stores the pointer to the chart series model and the list of options for the series.

Definition at line 48 of file vtkQtChartSeriesLayer.h.


Public Types

enum  { Type = vtkQtChart_SeriesLayerType }

Public Slots

void setXOffset (float offset)
 Sets the contents x-axis offset.
void setYOffset (float offset)
 Sets the contents y-axis offset.

Signals

void modelChanged (vtkQtChartSeriesModel *previous, vtkQtChartSeriesModel *current)
 Emitted when the series model is changed.
void modelSeriesChanged (int first, int last)
 Emitted when the name or icon changes for a set of series.

Public Member Functions

 vtkQtChartSeriesLayer (bool useContents=true)
virtual ~vtkQtChartSeriesLayer ()
virtual void setChartArea (vtkQtChartArea *area)
 Sets the chart area for the chart layer.
vtkQtChartSeriesModelgetModel () const
 Gets the chart series model.
virtual void setModel (vtkQtChartSeriesModel *model)
 Sets the chart series model.
vtkQtChartSeriesOptionsModelgetOptionsModel () const
 Gets the chart series options model.
virtual void setOptionsModel (vtkQtChartSeriesOptionsModel *model)
 Sets the chart series options model.
vtkQtChartSeriesOptionsgetSeriesOptions (int series) const
 Gets the drawing options for the given series.
int getSeriesOptionsIndex (vtkQtChartSeriesOptions *options) const
 Gets the index for the given series options.
virtual QPixmap getSeriesIcon (int series) const
 Gets the icon for a given series.
vtkQtChartSeriesSelectionModelgetSelectionModel () const
 Gets the chart series selection model.
virtual void getSeriesAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
 Gets the list of series at a given position.
virtual void getPointsAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
 Gets the list of points at a given position.
virtual void getSeriesIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
 Gets the list of series in a given area.
virtual void getPointsIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
 Gets the list of points in a given area.

Protected Slots

virtual void handleOptionsChanged (vtkQtChartSeriesOptions *, int type, const QVariant &newvalue, const QVariant &oldvalue)
 Called when any of the series options are changed.

Protected Member Functions

virtual void setupOptions (vtkQtChartSeriesOptions *options)
 Sets up the default values for the series options object.
virtual void cleanupOptions (vtkQtChartSeriesOptions *options)
 Cleans up the options by deallocating the style reservation for the option.

Protected Attributes

vtkQtChartSeriesSelectionModelSelection
 Stores the series/point selection.
vtkQtChartSeriesModelModel
 Stores the series model.
vtkQtChartContentsAreaContents
 Used for panning.
vtkQtChartSeriesOptionsModelOptions
 Stores the series options.

Member Enumeration Documentation

anonymous enum

Enumerator:
Type

Definition at line 53 of file vtkQtChartSeriesLayer.h.


Constructor & Destructor Documentation

vtkQtChartSeriesLayer::vtkQtChartSeriesLayer ( bool  useContents = true  )

virtual vtkQtChartSeriesLayer::~vtkQtChartSeriesLayer (  )  [inline, virtual]

Definition at line 57 of file vtkQtChartSeriesLayer.h.


Member Function Documentation

virtual void vtkQtChartSeriesLayer::setChartArea ( vtkQtChartArea area  )  [virtual]

Sets the chart area for the chart layer.

If the model is set before the chart layer is added to a chart area, series options will not be available. Setting the chart area will create the series options for the model in this case. Subclasses can extend this method to handle the new options.

Parameters:
area The new chart area.

Reimplemented from vtkQtChartLayer.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesModel* vtkQtChartSeriesLayer::getModel (  )  const [inline]

Gets the chart series model.

Returns:
A pointer to the chart series model.

Definition at line 74 of file vtkQtChartSeriesLayer.h.

virtual void vtkQtChartSeriesLayer::setModel ( vtkQtChartSeriesModel model  )  [virtual]

Sets the chart series model.

Parameters:
model The new chart series model.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesOptionsModel* vtkQtChartSeriesLayer::getOptionsModel (  )  const [inline]

Gets the chart series options model.

Returns:
A pointer to the current chart series options model.

Definition at line 85 of file vtkQtChartSeriesLayer.h.

virtual void vtkQtChartSeriesLayer::setOptionsModel ( vtkQtChartSeriesOptionsModel model  )  [virtual]

Sets the chart series options model.

Parameters:
model The new chart series options model.

vtkQtChartSeriesOptions* vtkQtChartSeriesLayer::getSeriesOptions ( int  series  )  const

Gets the drawing options for the given series.

Parameters:
series The index of the series.
Returns:
A pointer to the drawing options for the given series.

int vtkQtChartSeriesLayer::getSeriesOptionsIndex ( vtkQtChartSeriesOptions options  )  const

Gets the index for the given series options.

Parameters:
options The series options object.
Returns:
The index for the given series options.

virtual QPixmap vtkQtChartSeriesLayer::getSeriesIcon ( int  series  )  const [virtual]

Gets the icon for a given series.

The icon is used by the chart legend.

Parameters:
series The index of the series.
Returns:
A pixmap representation of the series.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesSelectionModel* vtkQtChartSeriesLayer::getSelectionModel (  )  const

Gets the chart series selection model.

Returns:
A pointer to the chart series selection model.

virtual void vtkQtChartSeriesLayer::getSeriesAt ( const QPointF &  point,
vtkQtChartSeriesSelection selection
) const [virtual]

Gets the list of series at a given position.

Parameters:
point The position in scene coordinates.
selection Used to return the list of series.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getPointsAt ( const QPointF &  point,
vtkQtChartSeriesSelection selection
) const [virtual]

Gets the list of points at a given position.

Parameters:
point The position in scene coordinates.
selection Used to return the list of points.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getSeriesIn ( const QRectF &  area,
vtkQtChartSeriesSelection selection
) const [virtual]

Gets the list of series in a given area.

Parameters:
area The rectangle in scene coordinates.
selection Used to return the list of series.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getPointsIn ( const QRectF &  area,
vtkQtChartSeriesSelection selection
) const [virtual]

Gets the list of points in a given area.

Parameters:
area The rectangle in scene coordinates.
selection Used to return the list of points.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

void vtkQtChartSeriesLayer::setXOffset ( float  offset  )  [slot]

Sets the contents x-axis offset.

Parameters:
offset The new x-axis offset.

void vtkQtChartSeriesLayer::setYOffset ( float  offset  )  [slot]

Sets the contents y-axis offset.

Parameters:
offset The new y-axis offset.

void vtkQtChartSeriesLayer::modelChanged ( vtkQtChartSeriesModel previous,
vtkQtChartSeriesModel current
) [signal]

Emitted when the series model is changed.

Parameters:
previous The previous series model.
current The current series model.

void vtkQtChartSeriesLayer::modelSeriesChanged ( int  first,
int  last
) [signal]

Emitted when the name or icon changes for a set of series.

Parameters:
first The first series index of the range.
last The last series index of the range.

virtual void vtkQtChartSeriesLayer::handleOptionsChanged ( vtkQtChartSeriesOptions ,
int  type,
const QVariant &  newvalue,
const QVariant &  oldvalue
) [protected, virtual, slot]

Called when any of the series options are changed.

Default implementation fires the modelSeriesChanged() signal.

Parameters:
options The options that fired the dataChanged() signal.
type Type of the option that was changed.
newValue The new value for the option.
oldValue The previous value for the option, if any.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::setupOptions ( vtkQtChartSeriesOptions options  )  [protected, virtual]

Sets up the default values for the series options object.

The style manager should be used to help set up the series options. Subclass must call this method every time a new series options is set up.

Parameters:
options The newly created series options.

Reimplemented in vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::cleanupOptions ( vtkQtChartSeriesOptions options  )  [protected, virtual]

Cleans up the options by deallocating the style reservation for the option.

Subclass must call this method before a series options object is cleaned up.


Member Data Documentation

Stores the series/point selection.

Definition at line 205 of file vtkQtChartSeriesLayer.h.

Stores the series model.

Definition at line 206 of file vtkQtChartSeriesLayer.h.

Used for panning.

Definition at line 207 of file vtkQtChartSeriesLayer.h.

Stores the series options.

Definition at line 208 of file vtkQtChartSeriesLayer.h.


The documentation for this class was generated from the following file:
