vtkSphereHandleRepresentation Class Reference

#include <vtkSphereHandleRepresentation.h>

Inheritance diagram for vtkSphereHandleRepresentation:

Inheritance graph
[legend]

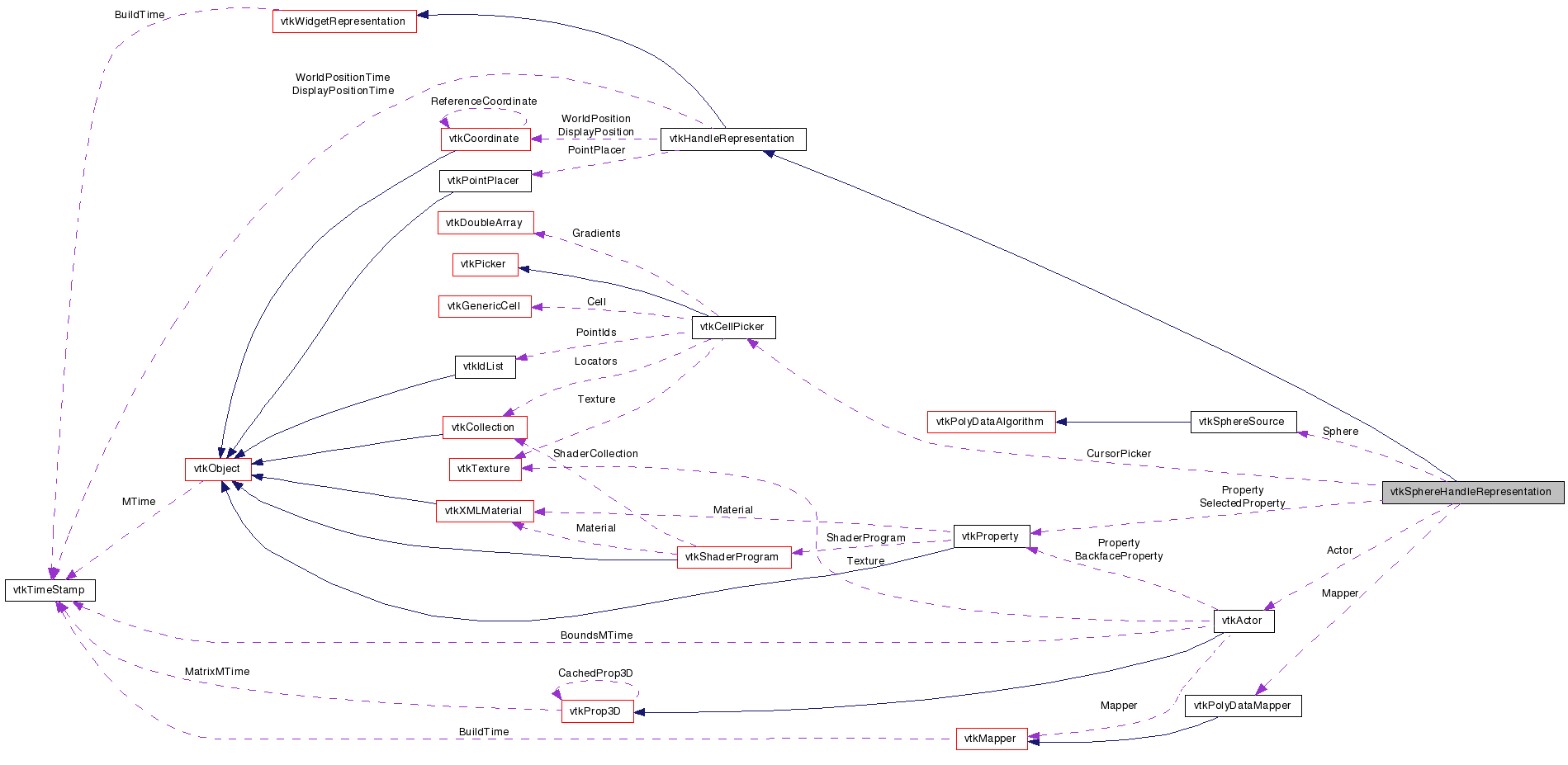

Collaboration diagram for vtkSphereHandleRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

A spherical rendition of point in 3D space.

This class is a concrete implementation of vtkHandleRepresentation. It renders handles as spherical blobs in 3D space.

See also:
vtkHandleRepresentation vtkHandleWidget vtkSphereSource
Tests:
vtkSphereHandleRepresentation (Tests)

Definition at line 41 of file vtkSphereHandleRepresentation.h.

typedef vtkHandleRepresentation Superclass
static int IsTypeOf (const char *type)
static
vtkSphereHandleRepresentation
SafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

void SetSphereRadius (double)
double GetSphereRadius ()
virtual void SetHandleSize (double size)
virtual void SetWorldPosition (double p[3])
virtual void SetDisplayPosition (double p[3])
virtual void SetTranslationMode (int)
virtual int GetTranslationMode ()
virtual void TranslationModeOn ()
virtual void TranslationModeOff ()
void SetProperty (vtkProperty *)
void SetSelectedProperty (vtkProperty *)
virtual vtkPropertyGetProperty ()
virtual vtkPropertyGetSelectedProperty ()
virtual void SetHotSpotSize (double)
virtual double GetHotSpotSize ()
virtual double * GetBounds ()
virtual void BuildRepresentation ()
virtual void StartWidgetInteraction (double eventPos[2])
virtual void WidgetInteraction (double eventPos[2])
virtual int ComputeInteractionState (int X, int Y, int modify=0)
virtual void PlaceWidget (double bounds[6])
virtual void ShallowCopy (vtkProp *prop)
virtual void DeepCopy (vtkProp *prop)
virtual void GetActors (vtkPropCollection *)
virtual void ReleaseGraphicsResources (vtkWindow *)
virtual int RenderOpaqueGeometry (vtkViewport *viewport)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *viewport)
virtual int HasTranslucentPolygonalGeometry ()

Static Public Member Functions

static
vtkSphereHandleRepresentation
New ()

Protected Member Functions

 vtkSphereHandleRepresentation ()
 ~vtkSphereHandleRepresentation ()
void Highlight (int highlight)
void Translate (double *p1, double *p2)
void Scale (double *p1, double *p2, double eventPos[2])
void MoveFocus (double *p1, double *p2)
void SizeBounds ()
void CreateDefaultProperties ()
int DetermineConstraintAxis (int constraint, double *x)

Protected Attributes

vtkActorActor
vtkPolyDataMapperMapper
vtkSphereSourceSphere
vtkCellPickerCursorPicker
double LastPickPosition [3]
double LastEventPosition [2]
int ConstraintAxis
vtkPropertyProperty
vtkPropertySelectedProperty
double HotSpotSize
int WaitingForMotion
int WaitCount
double CurrentHandleSize
int TranslationMode

Member Typedef Documentation

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

Definition at line 50 of file vtkSphereHandleRepresentation.h.


Constructor & Destructor Documentation

vtkSphereHandleRepresentation::vtkSphereHandleRepresentation (  )  [protected]

vtkSphereHandleRepresentation::~vtkSphereHandleRepresentation (  )  [protected]


Member Function Documentation

static vtkSphereHandleRepresentation* vtkSphereHandleRepresentation::New (  )  [static]

Instantiate this class.

Reimplemented from vtkObject.

virtual const char* vtkSphereHandleRepresentation::GetClassName (  )  [virtual]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

static int vtkSphereHandleRepresentation::IsTypeOf ( const char *  type  )  [static]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

virtual int vtkSphereHandleRepresentation::IsA ( const char *  type  )  [virtual]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

static vtkSphereHandleRepresentation* vtkSphereHandleRepresentation::SafeDownCast ( vtkObject o  )  [static]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

void vtkSphereHandleRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

virtual void vtkSphereHandleRepresentation::SetWorldPosition ( double  p[3]  )  [virtual]

Set the position of the point in world and display coordinates. Note that if the position is set outside of the bounding box, it will be clamped to the boundary of the bounding box. This method overloads the superclasses' SetWorldPosition() and SetDisplayPosition() in order to set the focal point of the cursor properly.

Reimplemented from vtkHandleRepresentation.

virtual void vtkSphereHandleRepresentation::SetDisplayPosition ( double  p[3]  )  [virtual]

Set the position of the point in world and display coordinates. Note that if the position is set outside of the bounding box, it will be clamped to the boundary of the bounding box. This method overloads the superclasses' SetWorldPosition() and SetDisplayPosition() in order to set the focal point of the cursor properly.

Reimplemented from vtkHandleRepresentation.

virtual void vtkSphereHandleRepresentation::SetTranslationMode ( int   )  [virtual]

If translation mode is on, as the widget is moved the bounding box, shadows, and cursor are all translated simultaneously as the point moves (i.e., the left and middle mouse buttons act the same). Otherwise, only the cursor focal point moves, which is constrained by the bounds of the point representation. (Note that the bounds can be scaled up using the right mouse button.)

virtual int vtkSphereHandleRepresentation::GetTranslationMode (  )  [virtual]

If translation mode is on, as the widget is moved the bounding box, shadows, and cursor are all translated simultaneously as the point moves (i.e., the left and middle mouse buttons act the same). Otherwise, only the cursor focal point moves, which is constrained by the bounds of the point representation. (Note that the bounds can be scaled up using the right mouse button.)

virtual void vtkSphereHandleRepresentation::TranslationModeOn (  )  [virtual]

If translation mode is on, as the widget is moved the bounding box, shadows, and cursor are all translated simultaneously as the point moves (i.e., the left and middle mouse buttons act the same). Otherwise, only the cursor focal point moves, which is constrained by the bounds of the point representation. (Note that the bounds can be scaled up using the right mouse button.)

virtual void vtkSphereHandleRepresentation::TranslationModeOff (  )  [virtual]

If translation mode is on, as the widget is moved the bounding box, shadows, and cursor are all translated simultaneously as the point moves (i.e., the left and middle mouse buttons act the same). Otherwise, only the cursor focal point moves, which is constrained by the bounds of the point representation. (Note that the bounds can be scaled up using the right mouse button.)

void vtkSphereHandleRepresentation::SetSphereRadius ( double   )

double vtkSphereHandleRepresentation::GetSphereRadius (  )

void vtkSphereHandleRepresentation::SetProperty ( vtkProperty  )

Set/Get the handle properties when unselected and selected.

void vtkSphereHandleRepresentation::SetSelectedProperty ( vtkProperty  )

Set/Get the handle properties when unselected and selected.

virtual vtkProperty* vtkSphereHandleRepresentation::GetProperty (  )  [virtual]

Set/Get the handle properties when unselected and selected.

virtual vtkProperty* vtkSphereHandleRepresentation::GetSelectedProperty (  )  [virtual]

Set/Get the handle properties when unselected and selected.

virtual void vtkSphereHandleRepresentation::SetHotSpotSize ( double   )  [virtual]

Set the "hot spot" size; i.e., the region around the focus, in which the motion vector is used to control the constrained sliding action. Note the size is specified as a fraction of the length of the diagonal of the point widget's bounding box.

virtual double vtkSphereHandleRepresentation::GetHotSpotSize (  )  [virtual]

Set the "hot spot" size; i.e., the region around the focus, in which the motion vector is used to control the constrained sliding action. Note the size is specified as a fraction of the length of the diagonal of the point widget's bounding box.

virtual void vtkSphereHandleRepresentation::SetHandleSize ( double  size  )  [virtual]

Overload the superclasses SetHandleSize() method to update internal variables.

Reimplemented from vtkWidgetRepresentation.

virtual double* vtkSphereHandleRepresentation::GetBounds (  )  [virtual]

Methods to make this class properly act like a vtkWidgetRepresentation.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkSphereHandleRepresentation::BuildRepresentation (  )  [virtual]

Methods to make this class properly act like a vtkWidgetRepresentation.

Implements vtkWidgetRepresentation.

virtual void vtkSphereHandleRepresentation::StartWidgetInteraction ( double  eventPos[2]  )  [virtual]

Methods to make this class properly act like a vtkWidgetRepresentation.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkSphereHandleRepresentation::WidgetInteraction ( double  eventPos[2]  )  [virtual]

Methods to make this class properly act like a vtkWidgetRepresentation.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkSphereHandleRepresentation::ComputeInteractionState ( int  X,
int  Y,
int  modify = 0
) [virtual]

Methods to make this class properly act like a vtkWidgetRepresentation.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkSphereHandleRepresentation::PlaceWidget ( double  bounds[6]  )  [virtual]

Methods to make this class properly act like a vtkWidgetRepresentation.

virtual void vtkSphereHandleRepresentation::ShallowCopy ( vtkProp prop  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkHandleRepresentation.

virtual void vtkSphereHandleRepresentation::DeepCopy ( vtkProp prop  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkHandleRepresentation.

virtual void vtkSphereHandleRepresentation::GetActors ( vtkPropCollection  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkSphereHandleRepresentation::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkSphereHandleRepresentation::RenderOpaqueGeometry ( vtkViewport viewport  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkProp.

virtual int vtkSphereHandleRepresentation::RenderTranslucentPolygonalGeometry ( vtkViewport viewport  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkProp.

virtual int vtkSphereHandleRepresentation::HasTranslucentPolygonalGeometry (  )  [virtual]

Methods to make this class behave as a vtkProp.

Reimplemented from vtkWidgetRepresentation.

void vtkSphereHandleRepresentation::Highlight ( int  highlight  )  [protected]

void vtkSphereHandleRepresentation::Translate ( double *  p1,
double *  p2
) [protected]

void vtkSphereHandleRepresentation::Scale ( double *  p1,
double *  p2,
double  eventPos[2]
) [protected]

void vtkSphereHandleRepresentation::MoveFocus ( double *  p1,
double *  p2
) [protected]

void vtkSphereHandleRepresentation::SizeBounds (  )  [protected]

void vtkSphereHandleRepresentation::CreateDefaultProperties (  )  [protected]

int vtkSphereHandleRepresentation::DetermineConstraintAxis ( int  constraint,
double *  x
) [protected]


Member Data Documentation

Definition at line 127 of file vtkSphereHandleRepresentation.h.

Definition at line 128 of file vtkSphereHandleRepresentation.h.

Definition at line 129 of file vtkSphereHandleRepresentation.h.

Definition at line 133 of file vtkSphereHandleRepresentation.h.

Definition at line 134 of file vtkSphereHandleRepresentation.h.

Definition at line 135 of file vtkSphereHandleRepresentation.h.

Definition at line 138 of file vtkSphereHandleRepresentation.h.

Definition at line 146 of file vtkSphereHandleRepresentation.h.

Definition at line 147 of file vtkSphereHandleRepresentation.h.

Definition at line 151 of file vtkSphereHandleRepresentation.h.

Definition at line 153 of file vtkSphereHandleRepresentation.h.

Definition at line 154 of file vtkSphereHandleRepresentation.h.

Definition at line 157 of file vtkSphereHandleRepresentation.h.

Definition at line 160 of file vtkSphereHandleRepresentation.h.


The documentation for this class was generated from the following file:
