vtkTemporalDataSetAlgorithm Class Reference

#include <vtkTemporalDataSetAlgorithm.h>

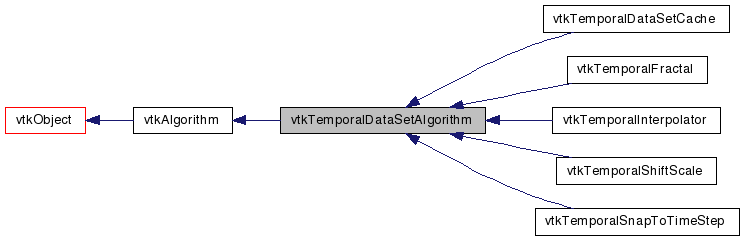

Inheritance diagram for vtkTemporalDataSetAlgorithm:

Inheritance graph
[legend]

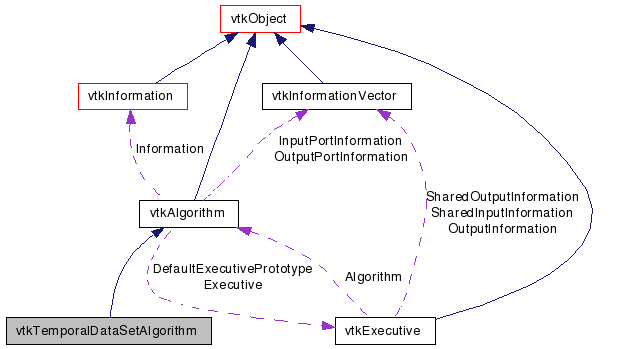

Collaboration diagram for vtkTemporalDataSetAlgorithm:

Collaboration graph
[legend]

List of all members.


Detailed Description

Superclass for algorithms that produce only vtkTemporalDataSet as output.

Algorithms that take any type of data object (including composite dataset) and produce a vtkTemporalDataSet in the output can subclass from this class.

Definition at line 30 of file vtkTemporalDataSetAlgorithm.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkTemporalDataSetGetOutput ()
vtkTemporalDataSetGetOutput (int)
void SetInput (vtkDataObject *)
void SetInput (int, vtkDataObject *)
virtual int ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Static Public Member Functions

static
vtkTemporalDataSetAlgorithm
New ()
static int IsTypeOf (const char *type)
static
vtkTemporalDataSetAlgorithm
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTemporalDataSetAlgorithm ()
 ~vtkTemporalDataSetAlgorithm ()
virtual vtkExecutiveCreateDefaultExecutive ()
virtual int FillOutputPortInformation (int port, vtkInformation *info)
virtual int FillInputPortInformation (int port, vtkInformation *info)
vtkDataObjectGetInput (int port)
virtual int RequestDataObject (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Member Typedef Documentation


Constructor & Destructor Documentation

vtkTemporalDataSetAlgorithm::vtkTemporalDataSetAlgorithm (  )  [protected]

vtkTemporalDataSetAlgorithm::~vtkTemporalDataSetAlgorithm (  )  [inline, protected]

Definition at line 64 of file vtkTemporalDataSetAlgorithm.h.


Member Function Documentation

static vtkTemporalDataSetAlgorithm* vtkTemporalDataSetAlgorithm::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkTemporalDataSetCache, vtkTemporalInterpolator, vtkTemporalShiftScale, vtkTemporalSnapToTimeStep, and vtkTemporalFractal.

virtual const char* vtkTemporalDataSetAlgorithm::GetClassName (  )  [virtual]

static int vtkTemporalDataSetAlgorithm::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkTemporalDataSetCache, vtkTemporalInterpolator, vtkTemporalShiftScale, vtkTemporalSnapToTimeStep, and vtkTemporalFractal.

virtual int vtkTemporalDataSetAlgorithm::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkTemporalDataSetCache, vtkTemporalInterpolator, vtkTemporalShiftScale, vtkTemporalSnapToTimeStep, and vtkTemporalFractal.

static vtkTemporalDataSetAlgorithm* vtkTemporalDataSetAlgorithm::SafeDownCast ( vtkObject o  )  [static]

void vtkTemporalDataSetAlgorithm::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkTemporalDataSetCache, vtkTemporalInterpolator, vtkTemporalShiftScale, vtkTemporalSnapToTimeStep, and vtkTemporalFractal.

vtkTemporalDataSet* vtkTemporalDataSetAlgorithm::GetOutput (  )

Get the output data object for a port on this algorithm.

vtkTemporalDataSet* vtkTemporalDataSetAlgorithm::GetOutput ( int   )

Get the output data object for a port on this algorithm.

void vtkTemporalDataSetAlgorithm::SetInput ( vtkDataObject  )

Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.

void vtkTemporalDataSetAlgorithm::SetInput ( int  ,
vtkDataObject
)

Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.

virtual int vtkTemporalDataSetAlgorithm::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [virtual]

see vtkAlgorithm for details

Reimplemented from vtkAlgorithm.

virtual int vtkTemporalDataSetAlgorithm::RequestDataObject ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

This is called by the superclass. This is the method you should override.

Definition at line 69 of file vtkTemporalDataSetAlgorithm.h.

virtual int vtkTemporalDataSetAlgorithm::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented in vtkTemporalInterpolator, vtkTemporalShiftScale, vtkTemporalSnapToTimeStep, and vtkTemporalFractal.

Definition at line 77 of file vtkTemporalDataSetAlgorithm.h.

virtual int vtkTemporalDataSetAlgorithm::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented in vtkTemporalDataSetCache, vtkTemporalInterpolator, vtkTemporalShiftScale, vtkTemporalSnapToTimeStep, and vtkTemporalFractal.

Definition at line 85 of file vtkTemporalDataSetAlgorithm.h.

virtual int vtkTemporalDataSetAlgorithm::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented in vtkTemporalDataSetCache, vtkTemporalInterpolator, vtkTemporalShiftScale, and vtkTemporalSnapToTimeStep.

Definition at line 93 of file vtkTemporalDataSetAlgorithm.h.

virtual vtkExecutive* vtkTemporalDataSetAlgorithm::CreateDefaultExecutive (  )  [protected, virtual]

Create a default executive. If the DefaultExecutivePrototype is set, a copy of it is created in CreateDefaultExecutive() using NewInstance(). Otherwise, vtkStreamingDemandDrivenPipeline is created.

Reimplemented from vtkAlgorithm.

virtual int vtkTemporalDataSetAlgorithm::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

virtual int vtkTemporalDataSetAlgorithm::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkTemporalDataSetCache.

vtkDataObject* vtkTemporalDataSetAlgorithm::GetInput ( int  port  )  [protected]


The documentation for this class was generated from the following file:
