vtkTemporalInterpolatedVelocityField Class Reference

#include <vtkTemporalInterpolatedVelocityField.h>

Inheritance diagram for vtkTemporalInterpolatedVelocityField:

Inheritance graph
[legend]

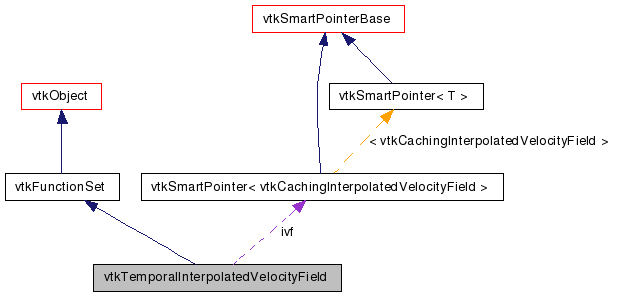

Collaboration diagram for vtkTemporalInterpolatedVelocityField:

Collaboration graph
[legend]

List of all members.


Detailed Description

A helper class for interpolating between times during particle tracing.

vtkTemporalInterpolatedVelocityField is a general purpose helper for the temporal particle tracing code (vtkTemporalStreamTracer)

It maintains two copies of vtkCachingInterpolatedVelocityField internally and uses them to obtain velocity values at time T0 and T1.

In fact the class does quite a bit more than this because when the geometry of the datasets is the same at T0 and T1, we can re-use cached cell Ids and weights used in the cell interpolation routines. Additionally, the same weights can be used when interpolating (point) scalar values and computing vorticity etc.

Warning:
vtkTemporalInterpolatedVelocityField is probably not thread safe. A new instance should be created by each thread.

Datasets are added in lists. The list for T1 must be idential to that for T0 in structure/topology and dataset order, and any datasets marked as static, must remain so for all T - changing a dataset from static to dynamic between time steps will result in undefined behaviour (=crash probably)

See also:
vtkCachingInterpolatedVelocityField vtkTemporalStreamTracer

Definition at line 67 of file vtkTemporalInterpolatedVelocityField.h.


Public Types

typedef vtkFunctionSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void SetDataSetAtTime (int I, int N, double T, vtkDataSet *dataset, bool staticdataset)
void ClearCache ()
bool InterpolatePoint (vtkPointData *outPD1, vtkPointData *outPD2, vtkIdType outIndex)
bool InterpolatePoint (int T, vtkPointData *outPD1, vtkIdType outIndex)
bool GetVorticityData (int T, double pcoords[3], double *weights, vtkGenericCell *&cell, vtkDoubleArray *cellVectors)
void ShowCacheResults ()
bool IsStatic (int datasetIndex)
void AdvanceOneTimeStep ()
virtual int FunctionValues (double *x, double *u)
int FunctionValuesAtT (int T, double *x, double *u)
void SelectVectors (const char *fieldName)
bool GetCachedCellIds (vtkIdType id[2], int ds[2])
void SetCachedCellIds (vtkIdType id[2], int ds[2])
int TestPoint (double *x)
int QuickTestPoint (double *x)
virtual double * GetLastGoodVelocity ()
virtual void GetLastGoodVelocity (double &, double &, double &)
virtual void GetLastGoodVelocity (double[3])
virtual double GetCurrentWeight ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkTemporalInterpolatedVelocityField
SafeDownCast (vtkObject *o)
static
vtkTemporalInterpolatedVelocityField
New ()

Protected Member Functions

 vtkTemporalInterpolatedVelocityField ()
 ~vtkTemporalInterpolatedVelocityField ()
int FunctionValues (vtkDataSet *ds, double *x, double *f)
virtual void SetVectorsSelection (const char *v)

Protected Attributes

double vals1 [3]
double vals2 [3]
double times [2]
double LastGoodVelocity [3]
double CurrentWeight
double OneMinusWeight
double ScaleCoeff
vtkSmartPointer
< vtkCachingInterpolatedVelocityField
ivf [2]
vtkstd::vector< bool > StaticDataSets

Member Typedef Documentation

Reimplemented from vtkFunctionSet.

Definition at line 70 of file vtkTemporalInterpolatedVelocityField.h.


Constructor & Destructor Documentation

vtkTemporalInterpolatedVelocityField::vtkTemporalInterpolatedVelocityField (  )  [protected]

vtkTemporalInterpolatedVelocityField::~vtkTemporalInterpolatedVelocityField (  )  [protected]


Member Function Documentation

virtual const char* vtkTemporalInterpolatedVelocityField::GetClassName (  )  [virtual]

Reimplemented from vtkFunctionSet.

static int vtkTemporalInterpolatedVelocityField::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

virtual int vtkTemporalInterpolatedVelocityField::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

static vtkTemporalInterpolatedVelocityField* vtkTemporalInterpolatedVelocityField::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkFunctionSet.

virtual void vtkTemporalInterpolatedVelocityField::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkFunctionSet.

static vtkTemporalInterpolatedVelocityField* vtkTemporalInterpolatedVelocityField::New (  )  [static]

Construct a vtkTemporalInterpolatedVelocityField with no initial data set. Caching is on. LastCellId is set to -1.

Reimplemented from vtkObject.

virtual int vtkTemporalInterpolatedVelocityField::FunctionValues ( double *  x,
double *  u
) [virtual]

Evaluate the velocity field, f, at (x, y, z, t). For now, t is ignored.

Implements vtkFunctionSet.

int vtkTemporalInterpolatedVelocityField::FunctionValuesAtT ( int  T,
double *  x,
double *  u
)

Evaluate the velocity field, f, at (x, y, z, t). For now, t is ignored.

void vtkTemporalInterpolatedVelocityField::SelectVectors ( const char *  fieldName  )  [inline]

If you want to work with an arbitrary vector array, then set its name here. By default this is NULL and the filter will use the active vector array.

Definition at line 88 of file vtkTemporalInterpolatedVelocityField.h.

void vtkTemporalInterpolatedVelocityField::SetDataSetAtTime ( int  I,
int  N,
double  T,
vtkDataSet dataset,
bool  staticdataset
)

In order to use this class, two sets of data must be supplied, corresponding to times T1 and T2. Data is added via this function.

bool vtkTemporalInterpolatedVelocityField::GetCachedCellIds ( vtkIdType  id[2],
int  ds[2]
)

Between iterations of the Particle Tracer, Id's of the Cell are stored and then at the start of the next particle the Ids are set to 'pre-fill' the cache.

void vtkTemporalInterpolatedVelocityField::SetCachedCellIds ( vtkIdType  id[2],
int  ds[2]
)

Between iterations of the Particle Tracer, Id's of the Cell are stored and then at the start of the next particle the Ids are set to 'pre-fill' the cache.

void vtkTemporalInterpolatedVelocityField::ClearCache (  )

Set the last cell id to -1 so that the next search does not start from the previous cell

int vtkTemporalInterpolatedVelocityField::TestPoint ( double *  x  )

A utility function which evaluates the point at T1, T2 to see if it is inside the data at both times or only one.

int vtkTemporalInterpolatedVelocityField::QuickTestPoint ( double *  x  )

A utility function which evaluates the point at T1, T2 to see if it is inside the data at both times or only one.

virtual double* vtkTemporalInterpolatedVelocityField::GetLastGoodVelocity (  )  [virtual]

If an interpolation was successful, we can retrieve the last computed value from here. Initial value is (0.0,0.0,0.0)

virtual void vtkTemporalInterpolatedVelocityField::GetLastGoodVelocity ( double &  ,
double &  ,
double &
) [virtual]

If an interpolation was successful, we can retrieve the last computed value from here. Initial value is (0.0,0.0,0.0)

virtual void vtkTemporalInterpolatedVelocityField::GetLastGoodVelocity ( double  [3]  )  [virtual]

If an interpolation was successful, we can retrieve the last computed value from here. Initial value is (0.0,0.0,0.0)

virtual double vtkTemporalInterpolatedVelocityField::GetCurrentWeight (  )  [virtual]

Get the most recent weight between 0->1 from T1->T2. Initial value is 0.

bool vtkTemporalInterpolatedVelocityField::InterpolatePoint ( vtkPointData outPD1,
vtkPointData outPD2,
vtkIdType  outIndex
)

bool vtkTemporalInterpolatedVelocityField::InterpolatePoint ( int  T,
vtkPointData outPD1,
vtkIdType  outIndex
)

bool vtkTemporalInterpolatedVelocityField::GetVorticityData ( int  T,
double  pcoords[3],
double *  weights,
vtkGenericCell *&  cell,
vtkDoubleArray cellVectors
)

void vtkTemporalInterpolatedVelocityField::ShowCacheResults (  )

bool vtkTemporalInterpolatedVelocityField::IsStatic ( int  datasetIndex  )

void vtkTemporalInterpolatedVelocityField::AdvanceOneTimeStep (  )

int vtkTemporalInterpolatedVelocityField::FunctionValues ( vtkDataSet ds,
double *  x,
double *  f
) [protected]

virtual void vtkTemporalInterpolatedVelocityField::SetVectorsSelection ( const char *  v  )  [protected, virtual]


Member Data Documentation

Definition at line 148 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 149 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 150 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 151 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 155 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 157 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 159 of file vtkTemporalInterpolatedVelocityField.h.

Definition at line 161 of file vtkTemporalInterpolatedVelocityField.h.

vtkstd::vector<bool> vtkTemporalInterpolatedVelocityField::StaticDataSets [protected]

Definition at line 163 of file vtkTemporalInterpolatedVelocityField.h.
