vtkActor Class Reference

#include <vtkActor.h>

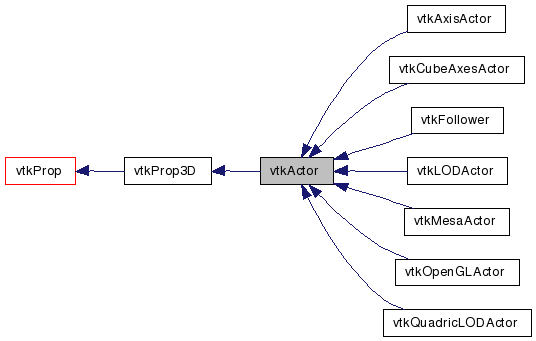

Inheritance diagram for vtkActor:

Inheritance graph
[legend]

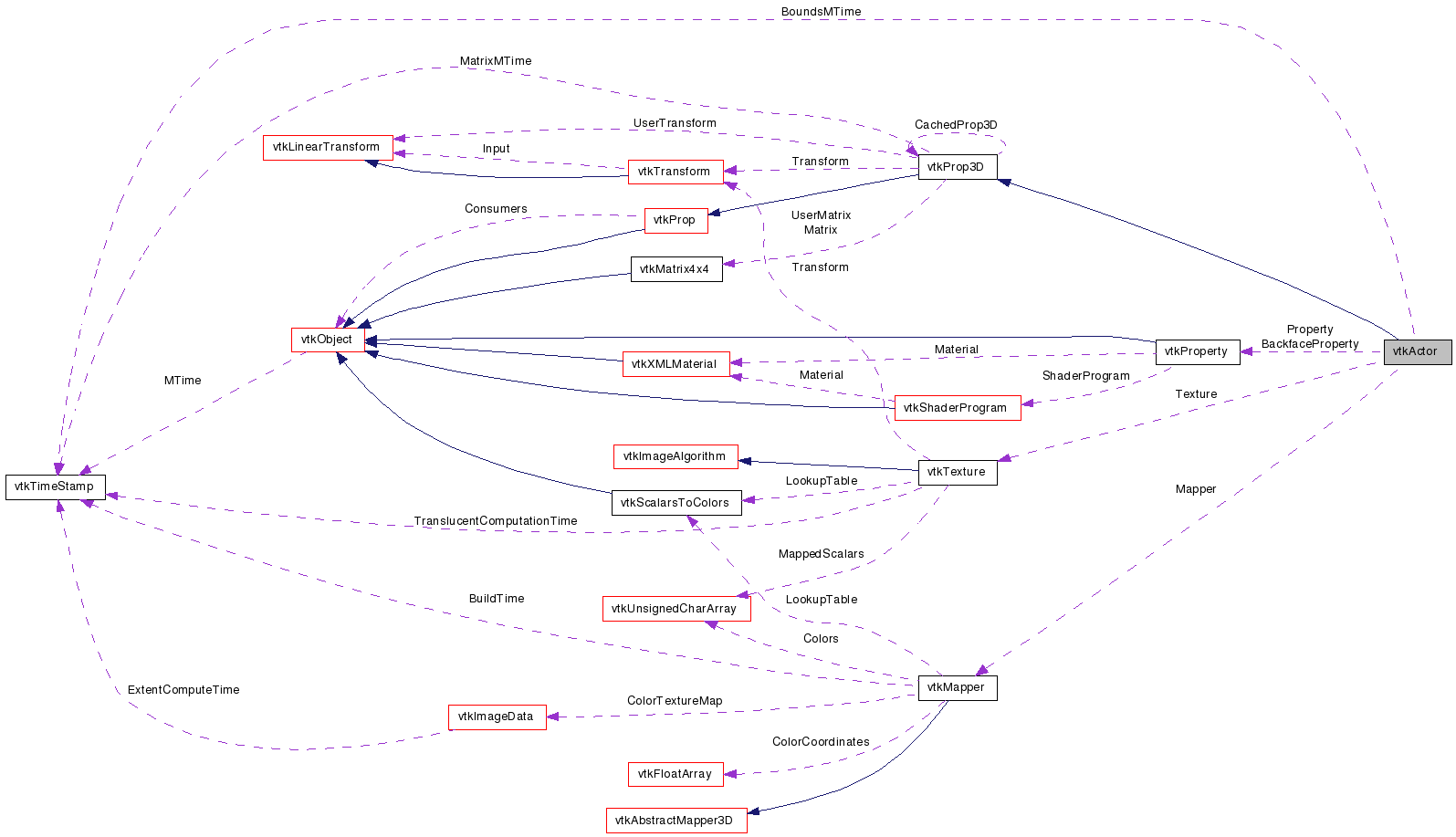

Collaboration diagram for vtkActor:

Collaboration graph
[legend]

List of all members.


Detailed Description

represents an object (geometry & properties) in a rendered scene

vtkActor is used to represent an entity in a rendering scene. It inherits functions related to the actors position, and orientation from vtkProp. The actor also has scaling and maintains a reference to the defining geometry (i.e., the mapper), rendering properties, and possibly a texture map. vtkActor combines these instance variables into one 4x4 transformation matrix as follows: [x y z 1] = [x y z 1] Translate(-origin) Scale(scale) Rot(y) Rot(x) Rot (z) Trans(origin) Trans(position)

See also:
vtkProperty vtkTexture vtkMapper vtkAssembly vtkFollower vtkLODActor
Examples:
vtkActor (Examples)
Tests:
vtkActor (Tests)

Definition at line 49 of file vtkActor.h.


Public Types

typedef vtkProp3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void GetActors (vtkPropCollection *)
virtual int HasTranslucentPolygonalGeometry ()
virtual void Render (vtkRenderer *, vtkMapper *)
void ShallowCopy (vtkProp *prop)
void ReleaseGraphicsResources (vtkWindow *)
virtual vtkPropertyMakeProperty ()
virtual void SetMapper (vtkMapper *)
virtual void ApplyProperties ()
unsigned long int GetMTime ()
virtual unsigned long GetRedrawMTime ()
virtual bool GetSupportsSelection ()
virtual int RenderOpaqueGeometry (vtkViewport *viewport)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *viewport)
void SetProperty (vtkProperty *lut)
vtkPropertyGetProperty ()
void SetBackfaceProperty (vtkProperty *lut)
virtual vtkPropertyGetBackfaceProperty ()
virtual void SetTexture (vtkTexture *)
virtual vtkTextureGetTexture ()
virtual vtkMapperGetMapper ()
void GetBounds (double bounds[6])
double * GetBounds ()
virtual void InitPartTraversal ()
virtual vtkActorGetNextPart ()
virtual int GetNumberOfParts ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkActorSafeDownCast (vtkObject *o)
static vtkActorNew ()

Protected Member Functions

 vtkActor ()
 ~vtkActor ()
int GetIsOpaque ()

Protected Attributes

vtkPropertyProperty
vtkPropertyBackfaceProperty
vtkTextureTexture
vtkMapperMapper
double MapperBounds [6]
vtkTimeStamp BoundsMTime

Member Typedef Documentation

Reimplemented from vtkProp3D.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, vtkMesaActor, vtkOpenGLActor, and vtkQuadricLODActor.

Definition at line 52 of file vtkActor.h.


Constructor & Destructor Documentation

vtkActor::vtkActor (  )  [protected]

vtkActor::~vtkActor (  )  [protected]


Member Function Documentation

virtual const char* vtkActor::GetClassName (  )  [virtual]

static int vtkActor::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, vtkMesaActor, vtkOpenGLActor, and vtkQuadricLODActor.

virtual int vtkActor::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, vtkMesaActor, vtkOpenGLActor, and vtkQuadricLODActor.

static vtkActor* vtkActor::SafeDownCast ( vtkObject o  )  [static]

void vtkActor::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProp3D.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, vtkMesaActor, vtkOpenGLActor, and vtkQuadricLODActor.

static vtkActor* vtkActor::New (  )  [static]

Creates an actor with the following defaults: origin(0,0,0) position=(0,0,0) scale=(1,1,1) visibility=1 pickable=1 dragable=1 orientation=(0,0,0). No user defined matrix and no texture map.

Reimplemented from vtkObject.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, vtkMesaActor, vtkOpenGLActor, and vtkQuadricLODActor.

virtual void vtkActor::GetActors ( vtkPropCollection  )  [virtual]

For some exporters and other other operations we must be able to collect all the actors or volumes. These methods are used in that process.

Reimplemented from vtkProp.

virtual int vtkActor::RenderOpaqueGeometry ( vtkViewport viewport  )  [virtual]

Support the standard render methods.

Reimplemented from vtkProp.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, and vtkQuadricLODActor.

virtual int vtkActor::RenderTranslucentPolygonalGeometry ( vtkViewport viewport  )  [virtual]

Support the standard render methods.

Reimplemented from vtkProp.

Reimplemented in vtkFollower.

virtual int vtkActor::HasTranslucentPolygonalGeometry (  )  [virtual]

Does this prop have some translucent polygonal geometry?

Reimplemented from vtkProp.

Reimplemented in vtkFollower.

virtual void vtkActor::Render ( vtkRenderer ,
vtkMapper
) [inline, virtual]

This causes the actor to be rendered. It in turn will render the actor's property, texture map and then mapper. If a property hasn't been assigned, then the actor will create one automatically. Note that a side effect of this method is that the pipeline will be updated.

Reimplemented in vtkLODActor, vtkMesaActor, vtkOpenGLActor, and vtkQuadricLODActor.

Definition at line 79 of file vtkActor.h.

void vtkActor::ShallowCopy ( vtkProp prop  )  [virtual]

Shallow copy of an actor. Overloads the virtual vtkProp method.

Reimplemented from vtkProp3D.

Reimplemented in vtkAxisActor, vtkFollower, vtkLODActor, and vtkQuadricLODActor.

void vtkActor::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkProp.

Reimplemented in vtkAxisActor, vtkCubeAxesActor, vtkFollower, vtkLODActor, and vtkQuadricLODActor.

void vtkActor::SetProperty ( vtkProperty lut  )

Set/Get the property object that controls this actors surface properties. This should be an instance of a vtkProperty object. Every actor must have a property associated with it. If one isn't specified, then one will be generated automatically. Multiple actors can share one property object.

vtkProperty* vtkActor::GetProperty (  )

Set/Get the property object that controls this actors surface properties. This should be an instance of a vtkProperty object. Every actor must have a property associated with it. If one isn't specified, then one will be generated automatically. Multiple actors can share one property object.

virtual vtkProperty* vtkActor::MakeProperty (  )  [virtual]

Create a new property suitable for use with this type of Actor. For example, a vtkMesaActor should create a vtkMesaProperty in this function. The default is to just call vtkProperty::New.

Reimplemented in vtkMesaActor.

void vtkActor::SetBackfaceProperty ( vtkProperty lut  )

Set/Get the property object that controls this actors backface surface properties. This should be an instance of a vtkProperty object. If one isn't specified, then the front face properties will be used. Multiple actors can share one property object.

virtual vtkProperty* vtkActor::GetBackfaceProperty (  )  [virtual]

Set/Get the property object that controls this actors backface surface properties. This should be an instance of a vtkProperty object. If one isn't specified, then the front face properties will be used. Multiple actors can share one property object.

virtual void vtkActor::SetTexture ( vtkTexture  )  [virtual]

Set/Get the texture object to control rendering texture maps. This will be a vtkTexture object. An actor does not need to have an associated texture map and multiple actors can share one texture.

virtual vtkTexture* vtkActor::GetTexture (  )  [virtual]

Set/Get the texture object to control rendering texture maps. This will be a vtkTexture object. An actor does not need to have an associated texture map and multiple actors can share one texture.

virtual void vtkActor::SetMapper ( vtkMapper  )  [virtual]

This is the method that is used to connect an actor to the end of a visualization pipeline, i.e. the mapper. This should be a subclass of vtkMapper. Typically vtkPolyDataMapper and vtkDataSetMapper will be used.

virtual vtkMapper* vtkActor::GetMapper (  )  [virtual]

Returns the Mapper that this actor is getting its data from.

void vtkActor::GetBounds ( double  bounds[6]  )  [inline]

Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). (The method GetBounds(double bounds[6]) is available from the superclass.)

Reimplemented from vtkProp3D.

Reimplemented in vtkAxisActor, and vtkCubeAxesActor.

Definition at line 136 of file vtkActor.h.

double* vtkActor::GetBounds (  )  [virtual]

Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). (The method GetBounds(double bounds[6]) is available from the superclass.)

Implements vtkProp3D.

Reimplemented in vtkAxisActor, and vtkCubeAxesActor.

virtual void vtkActor::ApplyProperties (  )  [inline, virtual]

Apply the current properties to all parts that compose this actor. This method is overloaded in vtkAssembly to apply the assemblies' properties to all its parts in a recursive manner. Typically the use of this method is to set the desired properties in the assembly, and then push the properties down to the assemblies parts with ApplyProperties().

Definition at line 146 of file vtkActor.h.

unsigned long int vtkActor::GetMTime (  )  [virtual]

Get the actors mtime plus consider its properties and texture if set.

Reimplemented from vtkProp3D.

virtual unsigned long vtkActor::GetRedrawMTime (  )  [virtual]

Return the mtime of anything that would cause the rendered image to appear differently. Usually this involves checking the mtime of the prop plus anything else it depends on such as properties, textures etc.

Reimplemented from vtkProp.

virtual void vtkActor::InitPartTraversal (  )  [virtual]

The following methods are for compatibility. The methods will be deprecated in the near future. Use vtkProp::GetNextPath() (and related functionality) to get the parts in an assembly (or more correctly, the paths in the assembly).

virtual vtkActor* vtkActor::GetNextPart (  )  [virtual]

The following methods are for compatibility. The methods will be deprecated in the near future. Use vtkProp::GetNextPath() (and related functionality) to get the parts in an assembly (or more correctly, the paths in the assembly).

virtual int vtkActor::GetNumberOfParts (  )  [virtual]

The following methods are for compatibility. The methods will be deprecated in the near future. Use vtkProp::GetNextPath() (and related functionality) to get the parts in an assembly (or more correctly, the paths in the assembly).

virtual bool vtkActor::GetSupportsSelection (  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Used by vtkHardwareSelector to determine if the prop supports hardware selection.

Reimplemented from vtkProp.

int vtkActor::GetIsOpaque (  )  [protected]


Member Data Documentation

Definition at line 177 of file vtkActor.h.

Definition at line 178 of file vtkActor.h.

Definition at line 179 of file vtkActor.h.

Definition at line 180 of file vtkActor.h.

double vtkActor::MapperBounds[6] [protected]

Definition at line 187 of file vtkActor.h.

Definition at line 188 of file vtkActor.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:28:21 2011 for VTK by  doxygen 1.5.6
