vtkAxesTransformRepresentation Class Reference

#include <vtkAxesTransformRepresentation.h>

Inheritance diagram for vtkAxesTransformRepresentation:

[legend]

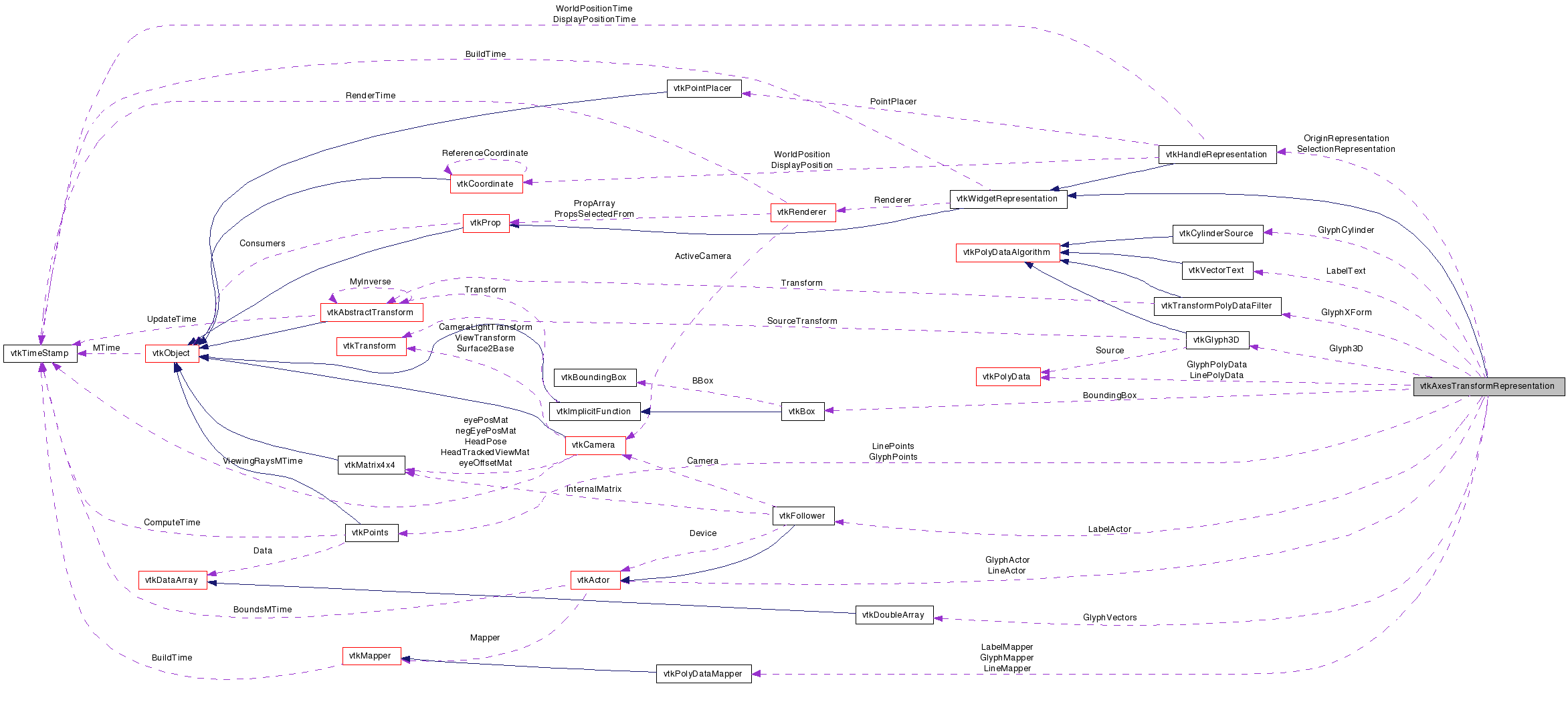

Collaboration diagram for vtkAxesTransformRepresentation:

[legend]

List of all members.

Detailed Description

represent the vtkAxesTransformWidget

The vtkAxesTransformRepresentation is a representation for the vtkAxesTransformWidget. This representation consists of a origin sphere with three tubed axes with cones at the end of the axes. In addition an optional lable provides delta values of motion. Note that this particular widget draws its representation in 3D space, so the widget can be occluded.

See also:: vtkDistanceWidget vtkDistanceRepresentation vtkDistanceRepresentation2D

Tests:: vtkAxesTransformRepresentation (Tests)

Definition at line 51 of file vtkAxesTransformRepresentation.h.


typedef vtkWidgetRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkAxesTransformRepresentation *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Types
enum	{ Outside = 0, OnOrigin, OnX, OnY, OnZ, OnXEnd, OnYEnd, OnZEnd }
Public Member Functions
virtual vtkProperty *	GetLabelProperty ()

virtual vtkHandleRepresentation *	GetOriginRepresentation ()
virtual vtkHandleRepresentation *	GetSelectionRepresentation ()

double *	GetOriginWorldPosition ()
void	GetOriginWorldPosition (double pos[3])
void	SetOriginWorldPosition (double pos[3])
void	SetOriginDisplayPosition (double pos[3])
void	GetOriginDisplayPosition (double pos[3])

virtual void	SetTolerance (int)
virtual int	GetTolerance ()

virtual void	SetLabelFormat (const char *)
virtual char *	GetLabelFormat ()

virtual void	SetInteractionState (int)

virtual void	BuildRepresentation ()
virtual int	ComputeInteractionState (int X, int Y, int modify=0)
virtual void	StartWidgetInteraction (double e[2])
virtual void	WidgetInteraction (double e[2])
virtual double *	GetBounds ()

virtual void	ReleaseGraphicsResources (vtkWindow *w)
virtual int	RenderOpaqueGeometry (vtkViewport *viewport)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *viewport)

void	SetLabelScale (double x, double y, double z)
virtual void	SetLabelScale (double scale[3])
virtual double *	GetLabelScale ()
Static Public Member Functions
static vtkAxesTransformRepresentation *	New ()
Protected Member Functions
	vtkAxesTransformRepresentation ()
	~vtkAxesTransformRepresentation ()
Protected Attributes
vtkHandleRepresentation *	OriginRepresentation
vtkHandleRepresentation *	SelectionRepresentation
int	Tolerance
char *	LabelFormat
vtkPoints *	LinePoints
vtkPolyData *	LinePolyData
vtkPolyDataMapper *	LineMapper
vtkActor *	LineActor
vtkVectorText *	LabelText
vtkPolyDataMapper *	LabelMapper
vtkFollower *	LabelActor
vtkPoints *	GlyphPoints
vtkDoubleArray *	GlyphVectors
vtkPolyData *	GlyphPolyData
vtkCylinderSource *	GlyphCylinder
vtkTransformPolyDataFilter *	GlyphXForm
vtkGlyph3D *	Glyph3D
vtkPolyDataMapper *	GlyphMapper
vtkActor *	GlyphActor
vtkBox *	BoundingBox
double	LastEventPosition [3]

Member Typedef Documentation

typedef vtkWidgetRepresentation vtkAxesTransformRepresentation::Superclass

Standard VTK methods.

Reimplemented from vtkWidgetRepresentation.

Definition at line 59 of file vtkAxesTransformRepresentation.h.

Member Enumeration Documentation

anonymous enum

Enum used to communicate interaction state.

Enumerator:

Outside
OnOrigin
OnX
OnY
OnZ
OnXEnd
OnYEnd
OnZEnd

Definition at line 102 of file vtkAxesTransformRepresentation.h.

Constructor & Destructor Documentation

vtkAxesTransformRepresentation::vtkAxesTransformRepresentation ( ) [protected]

vtkAxesTransformRepresentation::~vtkAxesTransformRepresentation ( ) [protected]

Member Function Documentation

static vtkAxesTransformRepresentation* vtkAxesTransformRepresentation::New ( ) [static]

Instantiate class.

Reimplemented from vtkObject.

virtual const char* vtkAxesTransformRepresentation::GetClassName ( ) [virtual]

Standard VTK methods.

Reimplemented from vtkWidgetRepresentation.

static int vtkAxesTransformRepresentation::IsTypeOf ( const char * type ) [static]

Standard VTK methods.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkAxesTransformRepresentation::IsA ( const char * type ) [virtual]

Standard VTK methods.

Reimplemented from vtkWidgetRepresentation.

static vtkAxesTransformRepresentation* vtkAxesTransformRepresentation::SafeDownCast ( vtkObject * o ) [static]

Standard VTK methods.

Reimplemented from vtkWidgetRepresentation.

void vtkAxesTransformRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard VTK methods.

Reimplemented from vtkWidgetRepresentation.

virtual vtkHandleRepresentation* vtkAxesTransformRepresentation::GetOriginRepresentation ( ) [virtual]

Set/Get the two handle representations used for the vtkAxesTransformWidget. (Note: properties can be set by grabbing these representations and setting the properties appropriately.)

virtual vtkHandleRepresentation* vtkAxesTransformRepresentation::GetSelectionRepresentation ( ) [virtual]

Set/Get the two handle representations used for the vtkAxesTransformWidget. (Note: properties can be set by grabbing these representations and setting the properties appropriately.)

double* vtkAxesTransformRepresentation::GetOriginWorldPosition ( )
