vtkBoxWidget2 Class Reference

#include <vtkBoxWidget2.h>

Inheritance diagram for vtkBoxWidget2:

Inheritance graph
[legend]

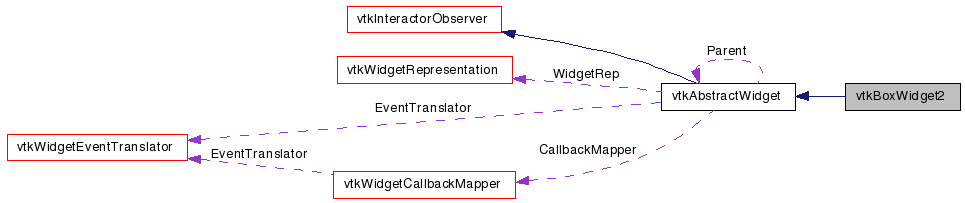

Collaboration diagram for vtkBoxWidget2:

Collaboration graph
[legend]

List of all members.

Detailed Description

3D widget for manipulating a box

This 3D widget interacts with a vtkBoxRepresentation class (i.e., it handles the events that drive its corresponding representation). The representation is assumed to represent a region of interest that is represented by an arbitrarily oriented hexahedron (or box) with interior face angles of 90 degrees (i.e., orthogonal faces). The representation manifests seven handles that can be moused on and manipulated, plus the six faces can also be interacted with. The first six handles are placed on the six faces, the seventh is in the center of the box. In addition, a bounding box outline is shown, the "faces" of which can be selected for object rotation or scaling. A nice feature of vtkBoxWidget2, like any 3D widget, will work with the current interactor style. That is, if vtkBoxWidget2 does not handle an event, then all other registered observers (including the interactor style) have an opportunity to process the event. Otherwise, the vtkBoxWidget will terminate the processing of the event that it handles.

To use this widget, you generally pair it with a vtkBoxRepresentation (or a subclass). Variuos options are available in the representation for controlling how the widget appears, and how the widget functions.

Event Bindings:
By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
 If one of the seven handles are selected:
   LeftButtonPressEvent - select the appropriate handle
   LeftButtonReleaseEvent - release the currently selected handle
   MouseMoveEvent - move the handle
 If one of the faces is selected:
   LeftButtonPressEvent - select a box face
   LeftButtonReleaseEvent - release the box face
   MouseMoveEvent - rotate the box
 In all the cases, independent of what is picked, the widget responds to the
 following VTK events:
   MiddleButtonPressEvent - translate the widget
   MiddleButtonReleaseEvent - release the widget
   RightButtonPressEvent - scale the widget's representation
   RightButtonReleaseEvent - stop scaling the widget
   MouseMoveEvent - scale (if right button) or move (if middle button) the widget
Event Bindings:
Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkBoxWidget2's widget events:
   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Scale -- some part of the widget has been selected
   vtkWidgetEvent::EndScale -- the selection process has completed
   vtkWidgetEvent::Translate -- some part of the widget has been selected
   vtkWidgetEvent::EndTranslate -- the selection process has completed
   vtkWidgetEvent::Move -- a request for motion has been invoked
Event Bindings:
In turn, when these widget events are processed, the vtkBoxWidget2 invokes the following VTK events on itself (which observers can listen for):
   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)
Warning:
Note that in some cases the widget can be picked even when it is "behind" other actors. This is an intended feature and not a bug.

This class, and the affiliated vtkBoxRepresentation, are second generation VTK widgets. An earlier version of this functionality was defined in the class vtkBoxWidget.

See also:
vtkBoxRepresentation vtkBoxWidget
Events:
vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent
Tests:
vtkBoxWidget2 (Tests)

Definition at line 110 of file vtkBoxWidget2.h.

typedef vtkAbstractWidget Superclass
static int IsTypeOf (const char *type)
static vtkBoxWidget2 * SafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

void CreateDefaultRepresentation ()
void SetRepresentation (vtkBoxRepresentation *r)
virtual void SetTranslationEnabled (int)
virtual int GetTranslationEnabled ()
virtual void TranslationEnabledOn ()
virtual void TranslationEnabledOff ()
virtual void SetScalingEnabled (int)
virtual int GetScalingEnabled ()
virtual void ScalingEnabledOn ()
virtual void ScalingEnabledOff ()
virtual void SetRotationEnabled (int)
virtual int GetRotationEnabled ()
virtual void RotationEnabledOn ()
virtual void RotationEnabledOff ()
virtual void SetMoveFacesEnabled (int)
virtual int GetMoveFacesEnabled ()
virtual void MoveFacesEnabledOn ()
virtual void MoveFacesEnabledOff ()

Static Public Member Functions

static vtkBoxWidget2 * New ()

Protected Types

enum  _WidgetState { Start = 0, Active }

Protected Member Functions

 vtkBoxWidget2 ()
 ~vtkBoxWidget2 ()

Static Protected Member Functions

static void SelectAction (vtkAbstractWidget *)
static void EndSelectAction (vtkAbstractWidget *)
static void TranslateAction (vtkAbstractWidget *)
static void ScaleAction (vtkAbstractWidget *)
static void MoveAction (vtkAbstractWidget *)

Protected Attributes

int WidgetState
int TranslationEnabled
int ScalingEnabled
int RotationEnabled
int MoveFacesEnabled

Member Typedef Documentation

typedef vtkAbstractWidget vtkBoxWidget2::Superclass

Standard class methods for type information and printing.

Reimplemented from vtkAbstractWidget.

Definition at line 118 of file vtkBoxWidget2.h.

Member Enumeration Documentation

enum vtkBoxWidget2::_WidgetState [protected]

Enumerator:
Start
Active

Definition at line 161 of file vtkBoxWidget2.h.

Constructor & Destructor Documentation

vtkBoxWidget2::vtkBoxWidget2 (  )  [protected]

vtkBoxWidget2::~vtkBoxWidget2 (  )  [protected]

Member Function Documentation

static vtkBoxWidget2* vtkBoxWidget2::New (  )  [static]

Instantiate the object.

Reimplemented from vtkObject.

virtual const char* vtkBoxWidget2::GetClassName (  )  [virtual]

Standard class methods for type information and printing.

Reimplemented from vtkAbstractWidget.

static int vtkBoxWidget2::IsTypeOf ( const char *  type  )  [static]

Standard class methods for type information and printing.

Reimplemented from vtkAbstractWidget.

virtual int vtkBoxWidget2::IsA ( const char *  type  )  [virtual]

Standard class methods for type information and printing.

Reimplemented from vtkAbstractWidget.

static vtkBoxWidget2* vtkBoxWidget2::SafeDownCast ( vtkObject *  o  )  [static]

Standard class methods for type information and printing.

Reimplemented from vtkAbstractWidget.

void vtkBoxWidget2::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard class methods for type information and printing.

Reimplemented from vtkAbstractWidget.

void vtkBoxWidget2::SetRepresentation ( vtkBoxRepresentation *  r  )  [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 126 of file vtkBoxWidget2.h.

virtual void vtkBoxWidget2::SetTranslationEnabled ( int   )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual int vtkBoxWidget2::GetTranslationEnabled (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::TranslationEnabledOn (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::TranslationEnabledOff (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::SetScalingEnabled ( int   )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual int vtkBoxWidget2::GetScalingEnabled (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::ScalingEnabledOn (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::ScalingEnabledOff (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::SetRotationEnabled ( int   )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual int vtkBoxWidget2::GetRotationEnabled (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::RotationEnabledOn (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::RotationEnabledOff (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::SetMoveFacesEnabled ( int   )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual int vtkBoxWidget2::GetMoveFacesEnabled (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::MoveFacesEnabledOn (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

virtual void vtkBoxWidget2::MoveFacesEnabledOff (  )  [virtual]

Control the behavior of the widget (i.e., how it processes events). Translation, rotation, scaling and face movement can all be enabled and disabled. Scaling refers to scaling of the whole widget at once, (default is through right mouse button) while face movement refers to scaling of the widget one face (axis) at a time (default through grabbing one of the representation spherical handles).

void vtkBoxWidget2::CreateDefaultRepresentation (  )  [virtual]

Create the default widget representation if one is not set. By default, this is an instance of the vtkBoxRepresentation class.

Implements vtkAbstractWidget.

static void vtkBoxWidget2::SelectAction ( vtkAbstractWidget *   )  [static, protected]

static void vtkBoxWidget2::EndSelectAction ( vtkAbstractWidget *   )  [static, protected]

static void vtkBoxWidget2::TranslateAction ( vtkAbstractWidget *   )  [static, protected]

static void vtkBoxWidget2::ScaleAction ( vtkAbstractWidget *   )  [static, protected]

static void vtkBoxWidget2::MoveAction ( vtkAbstractWidget *   )  [static, protected]

Member Data Documentation

int vtkBoxWidget2::WidgetState [protected]

Definition at line 160 of file vtkBoxWidget2.h.

int vtkBoxWidget2::TranslationEnabled [protected]

Definition at line 172 of file vtkBoxWidget2.h.

int vtkBoxWidget2::ScalingEnabled [protected]

Definition at line 173 of file vtkBoxWidget2.h.

int vtkBoxWidget2::RotationEnabled [protected]

Definition at line 174 of file vtkBoxWidget2.h.

int vtkBoxWidget2::MoveFacesEnabled [protected]

Definition at line 175 of file vtkBoxWidget2.h.

The documentation for this class was generated from the following file:
