vtkChartHistogram2D Class Reference

#include <vtkChartHistogram2D.h>

Inheritance diagram for vtkChartHistogram2D:

[legend]

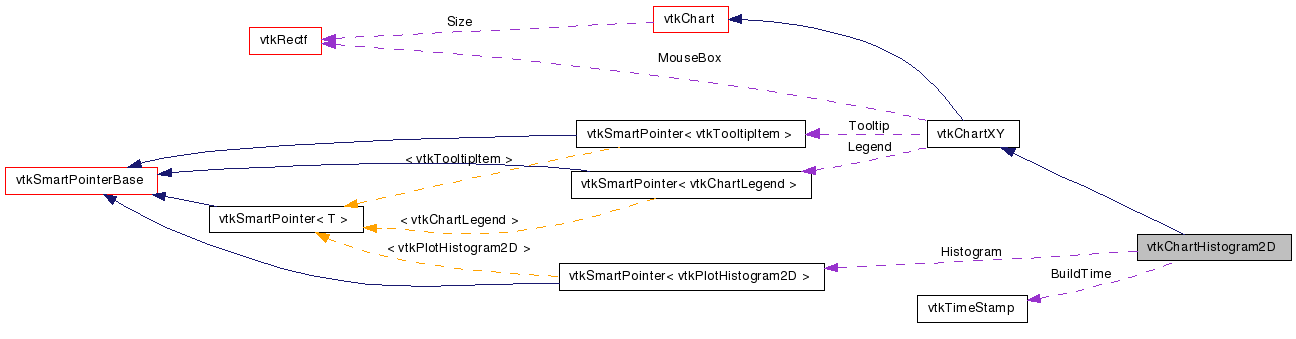

Collaboration diagram for vtkChartHistogram2D:

[legend]

List of all members.

Detailed Description

Definition at line 34 of file vtkChartHistogram2D.h.


Public Types
typedef vtkChartXY	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
virtual void	SetInput (vtkImageData *data, vtkIdType z=0)
virtual void	SetTransferFunction (vtkScalarsToColors *function)
virtual bool	Hit (const vtkContextMouseEvent &mouse)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkChartHistogram2D *	SafeDownCast (vtkObject *o)
static vtkChartHistogram2D *	New ()
Protected Member Functions
	vtkChartHistogram2D ()
	~vtkChartHistogram2D ()
virtual bool	UpdateLayout (vtkContext2D *painter)
Protected Attributes
vtkSmartPointer < vtkPlotHistogram2D >	Histogram
vtkTimeStamp	BuildTime
Private *	Storage

Member Typedef Documentation

typedef vtkChartXY vtkChartHistogram2D::Superclass

Reimplemented from vtkChartXY.

Definition at line 37 of file vtkChartHistogram2D.h.

Constructor & Destructor Documentation

vtkChartHistogram2D::vtkChartHistogram2D ( ) [protected]

vtkChartHistogram2D::~vtkChartHistogram2D ( ) [protected]

Member Function Documentation

virtual const char* vtkChartHistogram2D::GetClassName ( ) [virtual]

Reimplemented from vtkChartXY.

static int vtkChartHistogram2D::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkChartXY.

virtual int vtkChartHistogram2D::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkChartXY.

static vtkChartHistogram2D* vtkChartHistogram2D::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkChartXY.

virtual void vtkChartHistogram2D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkChartXY.

static vtkChartHistogram2D* vtkChartHistogram2D::New ( ) [static]

Creates a 2D histogram chart

Reimplemented from vtkChartXY.

virtual void vtkChartHistogram2D::Update ( ) [virtual]

Perform any updates to the item that may be necessary before rendering. The scene should take care of calling this on all items before their Paint function is invoked.

Reimplemented from vtkChartXY.

virtual void vtkChartHistogram2D::SetInput	(	vtkImageData *	data,
		vtkIdType	z = `0`
	)			`[virtual]`

virtual void vtkChartHistogram2D::SetTransferFunction ( vtkScalarsToColors * function ) [virtual]

virtual bool vtkChartHistogram2D::Hit ( const vtkContextMouseEvent & mouse ) [virtual]

Return true if the supplied x, y coordinate is inside the item.

Reimplemented from vtkChartXY.

virtual bool vtkChartHistogram2D::UpdateLayout ( vtkContext2D * painter ) [protected, virtual]

Update the layout of the chart, this may require the vtkContext2D in order to get font metrics etc. Initially this was added to resize the charts according in response to the size of the axes.

Reimplemented from vtkChartXY.
