vtkDistanceWidget Class Reference

#include <vtkDistanceWidget.h>

Inheritance diagram for vtkDistanceWidget:

Inheritance graph
[legend]

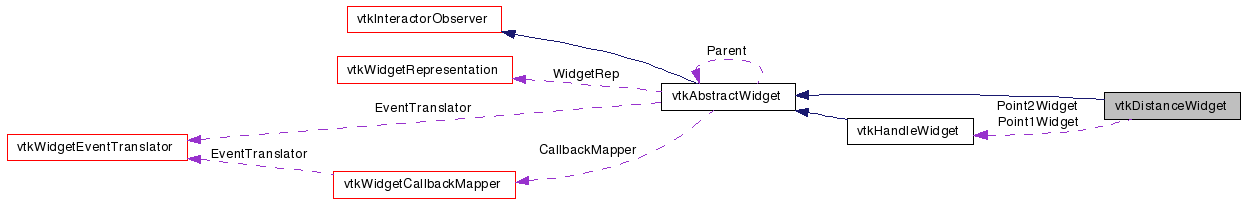

Collaboration diagram for vtkDistanceWidget:

Collaboration graph
[legend]

List of all members.


Detailed Description

measure the distance between two points

The vtkDistanceWidget is used to measure the distance between two points. The two end points can be positioned independently, and when they are released, a special PlacePointEvent is invoked so that special operations may be take to reposition the point (snap to grid, etc.) The widget has two different modes of interaction: when initially defined (i.e., placing the two points) and then a manipulate mode (adjusting the position of the two points).

To use this widget, specify an instance of vtkDistanceWidget and a representation (a subclass of vtkDistanceRepresentation). The widget is implemented using two instances of vtkHandleWidget which are used to position the end points of the line. The representations for these two handle widgets are provided by the vtkDistanceRepresentation.

Event Bindings:
By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
   LeftButtonPressEvent - add a point or select a handle
   MouseMoveEvent - position the second point or move a handle
   LeftButtonReleaseEvent - release the handle

Event Bindings:
Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkDistanceWidget's widget events:
   vtkWidgetEvent::AddPoint -- add one point; depending on the state
                               it may the first or second point added. Or,
                               if near a handle, select the handle.
   vtkWidgetEvent::Move -- move the second point or handle depending on the state.
   vtkWidgetEvent::EndSelect -- the handle manipulation process has completed.

Event Bindings:
This widget invokes the following VTK events on itself (which observers can listen for):
   vtkCommand::StartInteractionEvent (beginning to interact)
   vtkCommand::EndInteractionEvent (completing interaction)
   vtkCommand::InteractionEvent (moving after selecting something)
   vtkCommand::PlacePointEvent (after point is positioned;
                                call data includes handle id (0,1))

See also:
vtkHandleWidget
Events:
vtkCommand::DisableEvent vtkCommand::EndInteractionEvent vtkCommand::MouseMoveEvent vtkCommand::InteractionEvent vtkCommand::EnableEvent vtkCommand::LeftButtonPressEvent vtkCommand::StartInteractionEvent vtkCommand::PlacePointEvent vtkCommand::LeftButtonReleaseEvent
Tests:
vtkDistanceWidget (Tests)

Definition at line 84 of file vtkDistanceWidget.h.

typedef vtkAbstractWidget Superclass
static int IsTypeOf (const char *type)
static vtkDistanceWidgetSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Types

enum  { Start = 0, Define, Manipulate }

Public Member Functions

virtual void SetEnabled (int)
void CreateDefaultRepresentation ()
virtual void SetProcessEvents (int)
void SetRepresentation (vtkDistanceRepresentation *r)
vtkDistanceRepresentationGetDistanceRepresentation ()
virtual void SetWidgetStateToStart ()
virtual void SetWidgetStateToManipulate ()
virtual int GetWidgetState ()

Static Public Member Functions

static vtkDistanceWidgetNew ()

Protected Member Functions

 vtkDistanceWidget ()
 ~vtkDistanceWidget ()
void StartDistanceInteraction (int handleNum)
void DistanceInteraction (int handleNum)
void EndDistanceInteraction (int handleNum)

Static Protected Member Functions

static void AddPointAction (vtkAbstractWidget *)
static void MoveAction (vtkAbstractWidget *)
static void EndSelectAction (vtkAbstractWidget *)

Protected Attributes

int WidgetState
int CurrentHandle
vtkHandleWidgetPoint1Widget
vtkHandleWidgetPoint2Widget
vtkDistanceWidgetCallback * DistanceWidgetCallback1
vtkDistanceWidgetCallback * DistanceWidgetCallback2

Friends

class vtkDistanceWidgetCallback

Member Typedef Documentation

Standard methods for a VTK class.

Reimplemented from vtkAbstractWidget.

Definition at line 92 of file vtkDistanceWidget.h.


Member Enumeration Documentation

anonymous enum

Description: Enum defining the state of the widget. By default the widget is in Start mode, and expects to be interactively placed. While placing the points the widget transitions to Define state. Once placed, the widget enters the Manipulate state. BTX

Enumerator:
Start
Define
Manipulate

Definition at line 128 of file vtkDistanceWidget.h.


Constructor & Destructor Documentation

vtkDistanceWidget::vtkDistanceWidget (  )  [protected]

vtkDistanceWidget::~vtkDistanceWidget (  )  [protected]


Member Function Documentation

static vtkDistanceWidget* vtkDistanceWidget::New (  )  [static]

Instantiate this class.

Reimplemented from vtkObject.

virtual const char* vtkDistanceWidget::GetClassName (  )  [virtual]

Standard methods for a VTK class.

Reimplemented from vtkAbstractWidget.

static int vtkDistanceWidget::IsTypeOf ( const char *  type  )  [static]

Standard methods for a VTK class.

Reimplemented from vtkAbstractWidget.

virtual int vtkDistanceWidget::IsA ( const char *  type  )  [virtual]

Standard methods for a VTK class.

Reimplemented from vtkAbstractWidget.

static vtkDistanceWidget* vtkDistanceWidget::SafeDownCast ( vtkObject o  )  [static]

Standard methods for a VTK class.

Reimplemented from vtkAbstractWidget.

void vtkDistanceWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for a VTK class.

Reimplemented from vtkAbstractWidget.

virtual void vtkDistanceWidget::SetEnabled ( int   )  [virtual]

The method for activiating and deactiviating this widget. This method must be overridden because it is a composite widget and does more than its superclasses' vtkAbstractWidget::SetEnabled() method.

Reimplemented from vtkAbstractWidget.

void vtkDistanceWidget::SetRepresentation ( vtkDistanceRepresentation r  )  [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 105 of file vtkDistanceWidget.h.

vtkDistanceRepresentation* vtkDistanceWidget::GetDistanceRepresentation (  )  [inline]

Return the representation as a vtkDistanceRepresentation.

Definition at line 112 of file vtkDistanceWidget.h.

void vtkDistanceWidget::CreateDefaultRepresentation (  )  [virtual]

Create the default widget representation if one is not set.

Implements vtkAbstractWidget.

virtual void vtkDistanceWidget::SetProcessEvents ( int   )  [virtual]

Methods to change the whether the widget responds to interaction. Overridden to pass the state to component widgets.

Reimplemented from vtkAbstractWidget.

virtual void vtkDistanceWidget::SetWidgetStateToStart (  )  [virtual]

Set the state of the widget. If the state is set to "Manipulate" then it is assumed that the widget and its representation will be initialized programmatically and is not interactively placed. Initially the widget state is set to "Start" which means nothing will appear and the user must interactively place the widget with repeated mouse selections. Set the state to "Start" if you want interactive placement. Generally state changes must be followed by a Render() for things to visually take effect.

virtual void vtkDistanceWidget::SetWidgetStateToManipulate (  )  [virtual]

Set the state of the widget. If the state is set to "Manipulate" then it is assumed that the widget and its representation will be initialized programmatically and is not interactively placed. Initially the widget state is set to "Start" which means nothing will appear and the user must interactively place the widget with repeated mouse selections. Set the state to "Start" if you want interactive placement. Generally state changes must be followed by a Render() for things to visually take effect.

virtual int vtkDistanceWidget::GetWidgetState (  )  [inline, virtual]

Return the current widget state.

Definition at line 147 of file vtkDistanceWidget.h.

static void vtkDistanceWidget::AddPointAction ( vtkAbstractWidget  )  [static, protected]

static void vtkDistanceWidget::MoveAction ( vtkAbstractWidget  )  [static, protected]

static void vtkDistanceWidget::EndSelectAction ( vtkAbstractWidget  )  [static, protected]

void vtkDistanceWidget::StartDistanceInteraction ( int  handleNum  )  [protected]

void vtkDistanceWidget::DistanceInteraction ( int  handleNum  )  [protected]

void vtkDistanceWidget::EndDistanceInteraction ( int  handleNum  )  [protected]


Friends And Related Function Documentation

friend class vtkDistanceWidgetCallback [friend]

Definition at line 178 of file vtkDistanceWidget.h.


Member Data Documentation

Definition at line 156 of file vtkDistanceWidget.h.

Definition at line 157 of file vtkDistanceWidget.h.

Definition at line 166 of file vtkDistanceWidget.h.

Definition at line 167 of file vtkDistanceWidget.h.

vtkDistanceWidgetCallback* vtkDistanceWidget::DistanceWidgetCallback1 [protected]

Definition at line 168 of file vtkDistanceWidget.h.

vtkDistanceWidgetCallback* vtkDistanceWidget::DistanceWidgetCallback2 [protected]

Definition at line 169 of file vtkDistanceWidget.h.


The documentation for this class was generated from the following file:
