vtkMapper Class Reference

#include <vtkMapper.h>

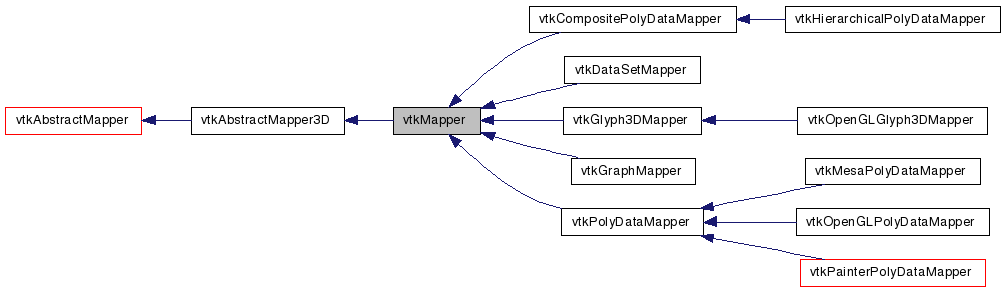

Inheritance diagram for vtkMapper:

Inheritance graph
[legend]

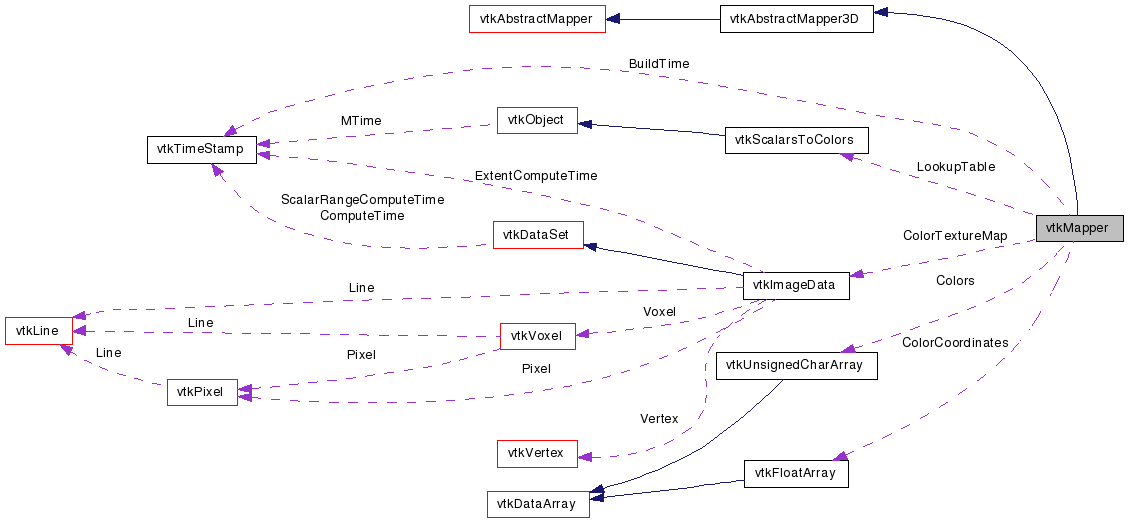

Collaboration diagram for vtkMapper:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract class specifies interface to map data to graphics primitives

vtkMapper is an abstract class to specify interface between data and graphics primitives. Subclasses of vtkMapper map data through a lookuptable and control the creation of rendering primitives that interface to the graphics library. The mapping can be controlled by supplying a lookup table and specifying a scalar range to map data through.

There are several important control mechanisms affecting the behavior of this object. The ScalarVisibility flag controls whether scalar data (if any) controls the color of the associated actor(s) that refer to the mapper. The ScalarMode ivar is used to determine whether scalar point data or cell data is used to color the object. By default, point data scalars are used unless there are none, in which cell scalars are used. Or you can explicitly control whether to use point or cell scalar data. Finally, the mapping of scalars through the lookup table varies depending on the setting of the ColorMode flag. See the documentation for the appropriate methods for an explanation.

Another important feature of this class is whether to use immediate mode rendering (ImmediateModeRenderingOn) or display list rendering (ImmediateModeRenderingOff). If display lists are used, a data structure is constructed (generally in the rendering library) which can then be rapidly traversed and rendered by the rendering library. The disadvantage of display lists is that they require additionally memory which may affect the performance of the system.

Another important feature of the mapper is the ability to shift the z-buffer to resolve coincident topology. For example, if you'd like to draw a mesh with some edges a different color, and the edges lie on the mesh, this feature can be useful to get nice looking lines. (See the ResolveCoincidentTopology-related methods.)

See also:
vtkDataSetMapper vtkPolyDataMapper
Examples:
vtkMapper (Examples)
Tests:
vtkMapper (Tests)

Definition at line 85 of file vtkMapper.h.

virtual bool GetSupportsSelection ()
 vtkMapper ()
 ~vtkMapper ()

Public Types

typedef vtkAbstractMapper3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ShallowCopy (vtkAbstractMapper *m)
unsigned long GetMTime ()
virtual void Render (vtkRenderer *ren, vtkActor *a)=0
virtual void ReleaseGraphicsResources (vtkWindow *)
virtual void CreateDefaultLookupTable ()
const char * GetColorModeAsString ()
const char * GetScalarModeAsString ()
vtkUnsignedCharArrayMapScalars (double alpha)
const char * GetScalarMaterialModeAsString ()
void SetLookupTable (vtkScalarsToColors *lut)
vtkScalarsToColorsGetLookupTable ()
virtual void SetScalarVisibility (int)
virtual int GetScalarVisibility ()
virtual void ScalarVisibilityOn ()
virtual void ScalarVisibilityOff ()
virtual void SetStatic (int)
virtual int GetStatic ()
virtual void StaticOn ()
virtual void StaticOff ()
virtual void SetColorMode (int)
virtual int GetColorMode ()
void SetColorModeToDefault ()
void SetColorModeToMapScalars ()
virtual void SetInterpolateScalarsBeforeMapping (int)
virtual int GetInterpolateScalarsBeforeMapping ()
virtual void InterpolateScalarsBeforeMappingOn ()
virtual void InterpolateScalarsBeforeMappingOff ()
virtual void SetUseLookupTableScalarRange (int)
virtual int GetUseLookupTableScalarRange ()
virtual void UseLookupTableScalarRangeOn ()
virtual void UseLookupTableScalarRangeOff ()
virtual void SetScalarRange (double, double)
void SetScalarRange (double[2])
virtual double * GetScalarRange ()
virtual void GetScalarRange (double data[2])
virtual void SetImmediateModeRendering (int)
virtual int GetImmediateModeRendering ()
virtual void ImmediateModeRenderingOn ()
virtual void ImmediateModeRenderingOff ()
virtual int GetForceCompileOnly ()
void SetForceCompileOnly (int value)
virtual void SetScalarMode (int)
virtual int GetScalarMode ()
void SetScalarModeToDefault ()
void SetScalarModeToUsePointData ()
void SetScalarModeToUseCellData ()
void SetScalarModeToUsePointFieldData ()
void SetScalarModeToUseCellFieldData ()
void SetScalarModeToUseFieldData ()
void SelectColorArray (int arrayNum)
void SelectColorArray (const char *arrayName)
void ColorByArrayComponent (int arrayNum, int component)
void ColorByArrayComponent (const char *arrayName, int component)
char * GetArrayName ()
int GetArrayId ()
int GetArrayAccessMode ()
int GetArrayComponent ()
virtual double * GetBounds ()
virtual void GetBounds (double bounds[6])
void SetRenderTime (double time)
virtual double GetRenderTime ()
vtkDataSetGetInput ()
vtkDataSetGetInputAsDataSet ()
virtual void SetScalarMaterialMode (int)
virtual int GetScalarMaterialMode ()
void SetScalarMaterialModeToDefault ()
void SetScalarMaterialModeToAmbient ()
void SetScalarMaterialModeToDiffuse ()
void SetScalarMaterialModeToAmbientAndDiffuse ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMapperSafeDownCast (vtkObject *o)
static void SetGlobalImmediateModeRendering (int val)
static void GlobalImmediateModeRenderingOn ()
static void GlobalImmediateModeRenderingOff ()
static int GetGlobalImmediateModeRendering ()
static void SetResolveCoincidentTopology (int val)
static int GetResolveCoincidentTopology ()
static void SetResolveCoincidentTopologyToDefault ()
static void SetResolveCoincidentTopologyToOff ()
static void SetResolveCoincidentTopologyToPolygonOffset ()
static void SetResolveCoincidentTopologyToShiftZBuffer ()
static void SetResolveCoincidentTopologyPolygonOffsetParameters (double factor, double units)
static void GetResolveCoincidentTopologyPolygonOffsetParameters (double &factor, double &units)
static void SetResolveCoincidentTopologyPolygonOffsetFaces (int faces)
static int GetResolveCoincidentTopologyPolygonOffsetFaces ()
static void SetResolveCoincidentTopologyZShift (double val)
static double GetResolveCoincidentTopologyZShift ()

Protected Member Functions

void MapScalarsToTexture (vtkDataArray *scalars, double alpha)

Protected Attributes

vtkUnsignedCharArrayColors
int InterpolateScalarsBeforeMapping
vtkFloatArrayColorCoordinates
vtkImageDataColorTextureMap
vtkScalarsToColorsLookupTable
int ScalarVisibility
vtkTimeStamp BuildTime
double ScalarRange [2]
int UseLookupTableScalarRange
int ImmediateModeRendering
int ColorMode
int ScalarMode
int ScalarMaterialMode
double RenderTime
int ArrayId
char ArrayName [256]
int ArrayComponent
int ArrayAccessMode
int Static
int ForceCompileOnly

Member Typedef Documentation


Constructor & Destructor Documentation

vtkMapper::vtkMapper (  )  [protected]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Used by vtkHardwareSelector to determine if the prop supports hardware selection.

vtkMapper::~vtkMapper (  )  [protected]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Used by vtkHardwareSelector to determine if the prop supports hardware selection.


Member Function Documentation

virtual const char* vtkMapper::GetClassName (  )  [virtual]

static int vtkMapper::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper3D.

Reimplemented in vtkCompositePolyDataMapper, vtkCompositePolyDataMapper2, vtkDataSetMapper, vtkGlyph3DMapper, vtkGraphMapper, vtkHierarchicalPolyDataMapper, vtkMesaPolyDataMapper, vtkOpenGLGlyph3DMapper, vtkOpenGLPolyDataMapper, vtkPainterPolyDataMapper, and vtkPolyDataMapper.

virtual int vtkMapper::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper3D.

Reimplemented in vtkCompositePolyDataMapper, vtkCompositePolyDataMapper2, vtkDataSetMapper, vtkGlyph3DMapper, vtkGraphMapper, vtkHierarchicalPolyDataMapper, vtkMesaPolyDataMapper, vtkOpenGLGlyph3DMapper, vtkOpenGLPolyDataMapper, vtkPainterPolyDataMapper, and vtkPolyDataMapper.

static vtkMapper* vtkMapper::SafeDownCast ( vtkObject o  )  [static]

void vtkMapper::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractMapper3D.

Reimplemented in vtkCompositePolyDataMapper, vtkCompositePolyDataMapper2, vtkDataSetMapper, vtkGlyph3DMapper, vtkGraphMapper, vtkHierarchicalPolyDataMapper, vtkMesaPolyDataMapper, vtkOpenGLGlyph3DMapper, vtkOpenGLPolyDataMapper, vtkPainterPolyDataMapper, and vtkPolyDataMapper.

void vtkMapper::ShallowCopy ( vtkAbstractMapper m  )

Make a shallow copy of this mapper.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkPolyDataMapper.

unsigned long vtkMapper::GetMTime (  )  [virtual]

Overload standard modified time function. If lookup table is modified, then this object is modified as well.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkDataSetMapper, and vtkGraphMapper.

virtual void vtkMapper::Render ( vtkRenderer ren,
vtkActor a
) [pure virtual]

Method initiates the mapping process. Generally sent by the actor as each frame is rendered.

Implemented in vtkCompositePolyDataMapper, vtkDataSetMapper, vtkGlyph3DMapper, vtkGraphMapper, vtkOpenGLGlyph3DMapper, and vtkPolyDataMapper.

virtual void vtkMapper::ReleaseGraphicsResources ( vtkWindow  )  [inline, virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkCompositePolyDataMapper, vtkDataSetMapper, vtkGraphMapper, vtkMesaPolyDataMapper, vtkOpenGLGlyph3DMapper, vtkOpenGLPolyDataMapper, and vtkPainterPolyDataMapper.

Definition at line 105 of file vtkMapper.h.

void vtkMapper::SetLookupTable ( vtkScalarsToColors lut  )

Specify a lookup table for the mapper to use.

vtkScalarsToColors* vtkMapper::GetLookupTable (  )

Specify a lookup table for the mapper to use.

virtual void vtkMapper::CreateDefaultLookupTable (  )  [virtual]

Create default lookup table. Generally used to create one when none is available with the scalar data.

virtual void vtkMapper::SetScalarVisibility ( int   )  [virtual]

Turn on/off flag to control whether scalar data is used to color objects.

virtual int vtkMapper::GetScalarVisibility (  )  [virtual]

Turn on/off flag to control whether scalar data is used to color objects.

virtual void vtkMapper::ScalarVisibilityOn (  )  [virtual]

Turn on/off flag to control whether scalar data is used to color objects.

virtual void vtkMapper::ScalarVisibilityOff (  )  [virtual]

Turn on/off flag to control whether scalar data is used to color objects.

virtual void vtkMapper::SetStatic ( int   )  [virtual]

Turn on/off flag to control whether the mapper's data is static. Static data means that the mapper does not propagate updates down the pipeline, greatly decreasing the time it takes to update many mappers. This should only be used if the data never changes.

virtual int vtkMapper::GetStatic (  )  [virtual]

Turn on/off flag to control whether the mapper's data is static. Static data means that the mapper does not propagate updates down the pipeline, greatly decreasing the time it takes to update many mappers. This should only be used if the data never changes.

virtual void vtkMapper::StaticOn (  )  [virtual]

Turn on/off flag to control whether the mapper's data is static. Static data means that the mapper does not propagate updates down the pipeline, greatly decreasing the time it takes to update many mappers. This should only be used if the data never changes.

virtual void vtkMapper::StaticOff (  )  [virtual]

Turn on/off flag to control whether the mapper's data is static. Static data means that the mapper does not propagate updates down the pipeline, greatly decreasing the time it takes to update many mappers. This should only be used if the data never changes.

virtual void vtkMapper::SetColorMode ( int   )  [virtual]

Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the SelectColorArray() method.)

virtual int vtkMapper::GetColorMode (  )  [virtual]

Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the SelectColorArray() method.)

void vtkMapper::SetColorModeToDefault (  )  [inline]

Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the SelectColorArray() method.)

Definition at line 145 of file vtkMapper.h.

void vtkMapper::SetColorModeToMapScalars (  )  [inline]

Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the SelectColorArray() method.)

Definition at line 147 of file vtkMapper.h.

const char* vtkMapper::GetColorModeAsString (  )

Return the method of coloring scalar data.

virtual void vtkMapper::SetInterpolateScalarsBeforeMapping ( int   )  [virtual]

By default, vertex color is used to map colors to a surface. Colors are interpolated after being mapped. This option avoids color interpolation by using a one dimensional texture map for the colors.

virtual int vtkMapper::GetInterpolateScalarsBeforeMapping (  )  [virtual]

By default, vertex color is used to map colors to a surface. Colors are interpolated after being mapped. This option avoids color interpolation by using a one dimensional texture map for the colors.

virtual void vtkMapper::InterpolateScalarsBeforeMappingOn (  )  [virtual]

By default, vertex color is used to map colors to a surface. Colors are interpolated after being mapped. This option avoids color interpolation by using a one dimensional texture map for the colors.

virtual void vtkMapper::InterpolateScalarsBeforeMappingOff (  )  [virtual]

By default, vertex color is used to map colors to a surface. Colors are interpolated after being mapped. This option avoids color interpolation by using a one dimensional texture map for the colors.

virtual void vtkMapper::SetUseLookupTableScalarRange ( int   )  [virtual]

Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged.

virtual int vtkMapper::GetUseLookupTableScalarRange (  )  [virtual]

Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged.

virtual void vtkMapper::UseLookupTableScalarRangeOn (  )  [virtual]

Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged.

virtual void vtkMapper::UseLookupTableScalarRangeOff (  )  [virtual]

Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged.

virtual void vtkMapper::SetScalarRange ( double  ,
double
) [virtual]

Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true.

void vtkMapper::SetScalarRange ( double  [2]  )

Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true.

virtual double* vtkMapper::GetScalarRange (  )  [virtual]

Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true.

virtual void vtkMapper::GetScalarRange ( double  data[2]  )  [virtual]

Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true.

virtual void vtkMapper::SetImmediateModeRendering ( int   )  [virtual]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

virtual int vtkMapper::GetImmediateModeRendering (  )  [virtual]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

virtual void vtkMapper::ImmediateModeRenderingOn (  )  [virtual]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

virtual void vtkMapper::ImmediateModeRenderingOff (  )  [virtual]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

static void vtkMapper::SetGlobalImmediateModeRendering ( int  val  )  [static]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

static void vtkMapper::GlobalImmediateModeRenderingOn (  )  [inline, static]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

Definition at line 201 of file vtkMapper.h.

static void vtkMapper::GlobalImmediateModeRenderingOff (  )  [inline, static]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

Definition at line 203 of file vtkMapper.h.

static int vtkMapper::GetGlobalImmediateModeRendering (  )  [static]

Turn on/off flag to control whether data is rendered using immediate mode or note. Immediate mode rendering tends to be slower but it can handle larger datasets. The default value is immediate mode off. If you are having problems rendering a large dataset you might want to consider using immediate more rendering.

virtual int vtkMapper::GetForceCompileOnly (  )  [virtual]

Force compile only mode in case display lists are used (ImmediateModeRendering is false). If ImmediateModeRendering is true, no rendering happens. Changing the value of this flag does not change modified time of the mapper. Initial value is false. This can be used by another rendering class which also uses display lists (call of display lists can be nested but not their creation.) There is no good reason to expose it to wrappers.

void vtkMapper::SetForceCompileOnly ( int  value  )

Force compile only mode in case display lists are used (ImmediateModeRendering is false). If ImmediateModeRendering is true, no rendering happens. Changing the value of this flag does not change modified time of the mapper. Initial value is false. This can be used by another rendering class which also uses display lists (call of display lists can be nested but not their creation.) There is no good reason to expose it to wrappers.

virtual void vtkMapper::SetScalarMode ( int   )  [virtual]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

virtual int vtkMapper::GetScalarMode (  )  [virtual]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

void vtkMapper::SetScalarModeToDefault (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

Definition at line 240 of file vtkMapper.h.

void vtkMapper::SetScalarModeToUsePointData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

Definition at line 242 of file vtkMapper.h.

void vtkMapper::SetScalarModeToUseCellData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

Definition at line 244 of file vtkMapper.h.

void vtkMapper::SetScalarModeToUsePointFieldData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

Definition at line 246 of file vtkMapper.h.

void vtkMapper::SetScalarModeToUseCellFieldData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

Definition at line 248 of file vtkMapper.h.

void vtkMapper::SetScalarModeToUseFieldData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call SelectColorArray before you call GetColors. When ScalarMode is set to use Field Data (ScalarModeToFieldData), you must call SelectColorArray to choose the field data array to be used to color cells. In this mode, if the poly data has triangle strips, the field data is treated as the celldata for each mini-cell formed by a triangle in the strip rather than the entire strip.

Definition at line 250 of file vtkMapper.h.

void vtkMapper::SelectColorArray ( int  arrayNum  )

When ScalarMode is set to UsePointFieldData or UseCellFieldData, you can specify which array to use for coloring using these methods. The lookup table will decide how to convert vectors to colors.

void vtkMapper::SelectColorArray ( const char *  arrayName  )

When ScalarMode is set to UsePointFieldData or UseCellFieldData, you can specify which array to use for coloring using these methods. The lookup table will decide how to convert vectors to colors.

void vtkMapper::ColorByArrayComponent ( int  arrayNum,
int  component
)

Legacy: These methods used to be used to specify the array component. It is better to do this in the lookup table.

void vtkMapper::ColorByArrayComponent ( const char *  arrayName,
int  component
)

Legacy: These methods used to be used to specify the array component. It is better to do this in the lookup table.

char* vtkMapper::GetArrayName (  )  [inline]

Get the array name or number and component to color by.

Definition at line 271 of file vtkMapper.h.

int vtkMapper::GetArrayId (  )  [inline]

Get the array name or number and component to color by.

Definition at line 272 of file vtkMapper.h.

int vtkMapper::GetArrayAccessMode (  )  [inline]

Get the array name or number and component to color by.

Definition at line 273 of file vtkMapper.h.

int vtkMapper::GetArrayComponent (  )  [inline]

Get the array name or number and component to color by.

Definition at line 274 of file vtkMapper.h.

const char* vtkMapper::GetScalarModeAsString (  )

Return the method for obtaining scalar data.

static void vtkMapper::SetResolveCoincidentTopology ( int  val  )  [static]

Set/Get a global flag that controls whether coincident topology (e.g., a line on top of a polygon) is shifted to avoid z-buffer resolution (and hence rendering problems). If not off, there are two methods to choose from. PolygonOffset uses graphics systems calls to shift polygons, but does not distinguish vertices and lines from one another. ShiftZBuffer remaps the z-buffer to distinguish vertices, lines, and polygons, but does not always produce acceptable results. If you use the ShiftZBuffer approach, you may also want to set the ResolveCoincidentTopologyZShift value. (Note: not all mappers/graphics systems implement this functionality.)

static int vtkMapper::GetResolveCoincidentTopology (  )  [static]

Set/Get a global flag that controls whether coincident topology (e.g., a line on top of a polygon) is shifted to avoid z-buffer resolution (and hence rendering problems). If not off, there are two methods to choose from. PolygonOffset uses graphics systems calls to shift polygons, but does not distinguish vertices and lines from one another. ShiftZBuffer remaps the z-buffer to distinguish vertices, lines, and polygons, but does not always produce acceptable results. If you use the ShiftZBuffer approach, you may also want to set the ResolveCoincidentTopologyZShift value. (Note: not all mappers/graphics systems implement this functionality.)

static void vtkMapper::SetResolveCoincidentTopologyToDefault (  )  [static]

Set/Get a global flag that controls whether coincident topology (e.g., a line on top of a polygon) is shifted to avoid z-buffer resolution (and hence rendering problems). If not off, there are two methods to choose from. PolygonOffset uses graphics systems calls to shift polygons, but does not distinguish vertices and lines from one another. ShiftZBuffer remaps the z-buffer to distinguish vertices, lines, and polygons, but does not always produce acceptable results. If you use the ShiftZBuffer approach, you may also want to set the ResolveCoincidentTopologyZShift value. (Note: not all mappers/graphics systems implement this functionality.)

static void vtkMapper::SetResolveCoincidentTopologyToOff (  )  [inline, static]

Set/Get a global flag that controls whether coincident topology (e.g., a line on top of a polygon) is shifted to avoid z-buffer resolution (and hence rendering problems). If not off, there are two methods to choose from. PolygonOffset uses graphics systems calls to shift polygons, but does not distinguish vertices and lines from one another. ShiftZBuffer remaps the z-buffer to distinguish vertices, lines, and polygons, but does not always produce acceptable results. If you use the ShiftZBuffer approach, you may also want to set the ResolveCoincidentTopologyZShift value. (Note: not all mappers/graphics systems implement this functionality.)

Definition at line 294 of file vtkMapper.h.

static void vtkMapper::SetResolveCoincidentTopologyToPolygonOffset (  )  [inline, static]

Set/Get a global flag that controls whether coincident topology (e.g., a line on top of a polygon) is shifted to avoid z-buffer resolution (and hence rendering problems). If not off, there are two methods to choose from. PolygonOffset uses graphics systems calls to shift polygons, but does not distinguish vertices and lines from one another. ShiftZBuffer remaps the z-buffer to distinguish vertices, lines, and polygons, but does not always produce acceptable results. If you use the ShiftZBuffer approach, you may also want to set the ResolveCoincidentTopologyZShift value. (Note: not all mappers/graphics systems implement this functionality.)

Definition at line 296 of file vtkMapper.h.

static void vtkMapper::SetResolveCoincidentTopologyToShiftZBuffer (  )  [inline, static]

Set/Get a global flag that controls whether coincident topology (e.g., a line on top of a polygon) is shifted to avoid z-buffer resolution (and hence rendering problems). If not off, there are two methods to choose from. PolygonOffset uses graphics systems calls to shift polygons, but does not distinguish vertices and lines from one another. ShiftZBuffer remaps the z-buffer to distinguish vertices, lines, and polygons, but does not always produce acceptable results. If you use the ShiftZBuffer approach, you may also want to set the ResolveCoincidentTopologyZShift value. (Note: not all mappers/graphics systems implement this functionality.)

Definition at line 298 of file vtkMapper.h.

static void vtkMapper::SetResolveCoincidentTopologyPolygonOffsetParameters ( double  factor,
double  units
) [static]

Used to set the polygon offset scale factor and units. Used when ResolveCoincidentTopology is set to PolygonOffset. These are global variables.

static void vtkMapper::GetResolveCoincidentTopologyPolygonOffsetParameters ( double &  factor,
double &  units
) [static]

Used to set the polygon offset scale factor and units. Used when ResolveCoincidentTopology is set to PolygonOffset. These are global variables.

static void vtkMapper::SetResolveCoincidentTopologyPolygonOffsetFaces ( int  faces  )  [static]

Used when ResolveCoincidentTopology is set to PolygonOffset. The polygon offset can be applied either to the solid polygonal faces or the lines/vertices. When set (default), the offset is applied to the faces otherwise it is applied to lines and vertices. This is a global variable.

static int vtkMapper::GetResolveCoincidentTopologyPolygonOffsetFaces (  )  [static]

Used when ResolveCoincidentTopology is set to PolygonOffset. The polygon offset can be applied either to the solid polygonal faces or the lines/vertices. When set (default), the offset is applied to the faces otherwise it is applied to lines and vertices. This is a global variable.

static void vtkMapper::SetResolveCoincidentTopologyZShift ( double  val  )  [static]

Used to set the z-shift if ResolveCoincidentTopology is set to ShiftZBuffer. This is a global variable.

static double vtkMapper::GetResolveCoincidentTopologyZShift (  )  [static]

Used to set the z-shift if ResolveCoincidentTopology is set to ShiftZBuffer. This is a global variable.

virtual double* vtkMapper::GetBounds (  )  [virtual]

Return bounding box (array of six doubles) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax).

Implements vtkAbstractMapper3D.

Reimplemented in vtkCompositePolyDataMapper, vtkGlyph3DMapper, vtkGraphMapper, and vtkPolyDataMapper.

virtual void vtkMapper::GetBounds ( double  bounds[6]  )  [inline, virtual]

Return bounding box (array of six doubles) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax).

Reimplemented from vtkAbstractMapper3D.

Reimplemented in vtkCompositePolyDataMapper, vtkGlyph3DMapper, and vtkPolyDataMapper.

Definition at line 333 of file vtkMapper.h.

void vtkMapper::SetRenderTime ( double  time  )  [inline]

This instance variable is used by vtkLODActor to determine which mapper to use. It is an estimate of the time necessary to render. Setting the render time does not modify the mapper.

Definition at line 341 of file vtkMapper.h.

virtual double vtkMapper::GetRenderTime (  )  [virtual]

This instance variable is used by vtkLODActor to determine which mapper to use. It is an estimate of the time necessary to render. Setting the render time does not modify the mapper.

vtkDataSet* vtkMapper::GetInput (  )

Get the input as a vtkDataSet. This method is overridden in the specialized mapper classes to return more specific data types.

Reimplemented in vtkDataSetMapper, vtkGraphMapper, and vtkPolyDataMapper.

vtkDataSet* vtkMapper::GetInputAsDataSet (  )  [inline]

Get the input to this mapper as a vtkDataSet, instead of as a more specialized data type that the subclass may return from GetInput(). This method is provided for use in the wrapper languages, C++ programmers should use GetInput() instead.

Definition at line 358 of file vtkMapper.h.

vtkUnsignedCharArray* vtkMapper::MapScalars ( double  alpha  )

Map the scalars (if there are any scalars and ScalarVisibility is on) through the lookup table, returning an unsigned char RGBA array. This is typically done as part of the rendering process. The alpha parameter allows the blending of the scalars with an additional alpha (typically which comes from a vtkActor, etc.)

virtual void vtkMapper::SetScalarMaterialMode ( int   )  [virtual]

Set/Get the light-model color mode.

virtual int vtkMapper::GetScalarMaterialMode (  )  [virtual]

Set/Get the light-model color mode.

void vtkMapper::SetScalarMaterialModeToDefault (  )  [inline]

Set/Get the light-model color mode.

Definition at line 373 of file vtkMapper.h.

void vtkMapper::SetScalarMaterialModeToAmbient (  )  [inline]

Set/Get the light-model color mode.

Definition at line 375 of file vtkMapper.h.

void vtkMapper::SetScalarMaterialModeToDiffuse (  )  [inline]

Set/Get the light-model color mode.

Definition at line 377 of file vtkMapper.h.

void vtkMapper::SetScalarMaterialModeToAmbientAndDiffuse (  )  [inline]

Set/Get the light-model color mode.

Definition at line 379 of file vtkMapper.h.

const char* vtkMapper::GetScalarMaterialModeAsString (  )

Return the light-model color mode.

virtual bool vtkMapper::GetSupportsSelection (  )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Used by vtkHardwareSelector to determine if the prop supports hardware selection.

Reimplemented in vtkGlyph3DMapper, and vtkPainterPolyDataMapper.

Definition at line 391 of file vtkMapper.h.

void vtkMapper::MapScalarsToTexture ( vtkDataArray scalars,
double  alpha
) [protected]


Member Data Documentation

Definition at line 398 of file vtkMapper.h.

Definition at line 401 of file vtkMapper.h.

Definition at line 403 of file vtkMapper.h.

Definition at line 405 of file vtkMapper.h.

Definition at line 408 of file vtkMapper.h.

int vtkMapper::ScalarVisibility [protected]

Definition at line 409 of file vtkMapper.h.

Definition at line 410 of file vtkMapper.h.

double vtkMapper::ScalarRange[2] [protected]

Definition at line 411 of file vtkMapper.h.

Definition at line 412 of file vtkMapper.h.

Definition at line 413 of file vtkMapper.h.

int vtkMapper::ColorMode [protected]

Definition at line 414 of file vtkMapper.h.

int vtkMapper::ScalarMode [protected]

Definition at line 415 of file vtkMapper.h.

Definition at line 416 of file vtkMapper.h.

double vtkMapper::RenderTime [protected]

Definition at line 418 of file vtkMapper.h.

int vtkMapper::ArrayId [protected]

Definition at line 421 of file vtkMapper.h.

char vtkMapper::ArrayName[256] [protected]

Definition at line 422 of file vtkMapper.h.

int vtkMapper::ArrayComponent [protected]

Definition at line 423 of file vtkMapper.h.

int vtkMapper::ArrayAccessMode [protected]

Definition at line 424 of file vtkMapper.h.

int vtkMapper::Static [protected]

Definition at line 426 of file vtkMapper.h.

int vtkMapper::ForceCompileOnly [protected]

Definition at line 428 of file vtkMapper.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:46:42 2011 for VTK by  doxygen 1.5.6
