vtkUnstructuredGrid Class Reference

#include <vtkUnstructuredGrid.h>

Inheritance diagram for vtkUnstructuredGrid:

Inheritance graph
[legend]

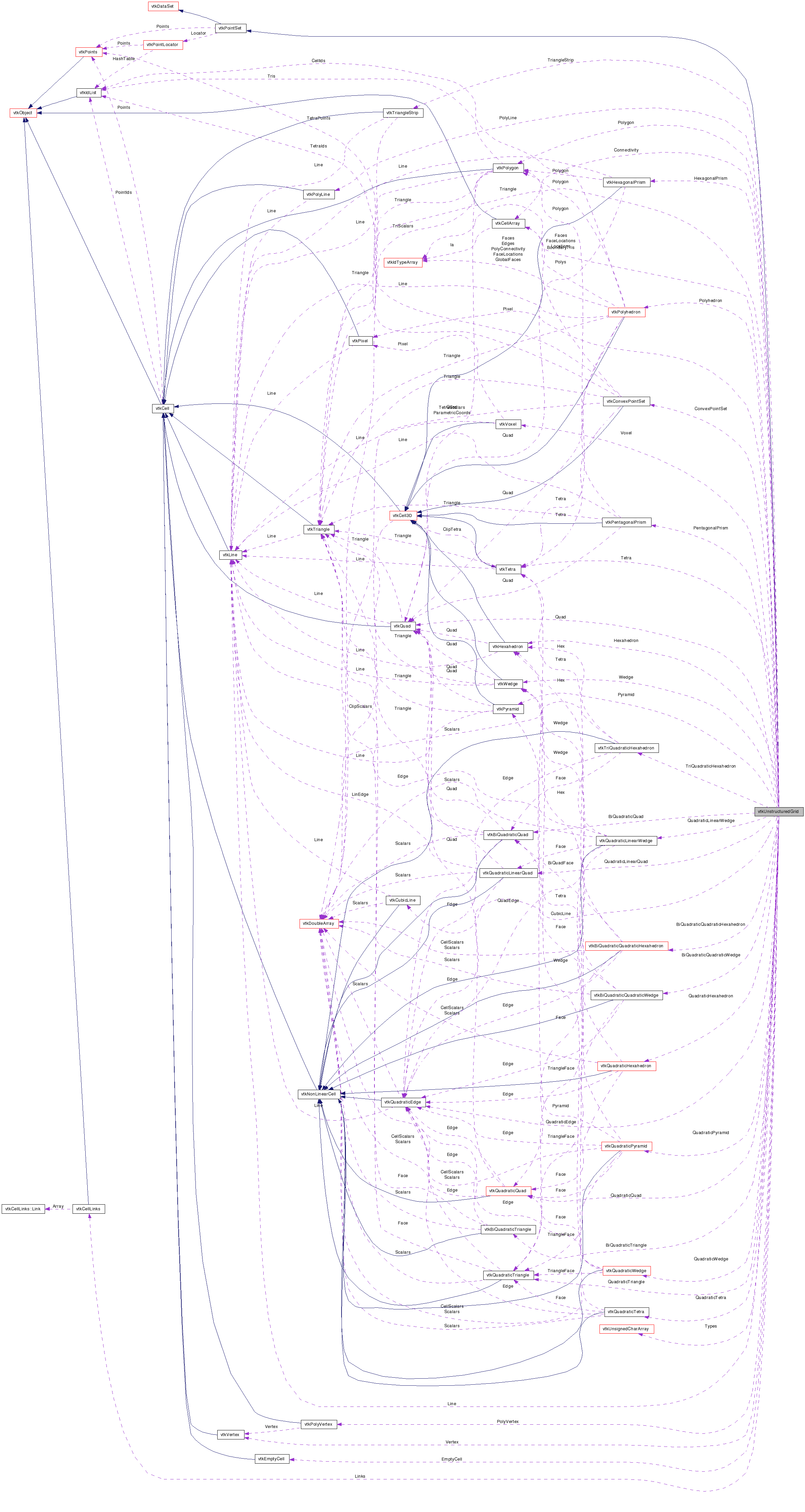

Collaboration diagram for vtkUnstructuredGrid:

Collaboration graph
[legend]

List of all members.


Detailed Description

dataset represents arbitrary combinations of all possible cell types

vtkUnstructuredGrid is a data object that is a concrete implementation of vtkDataSet. vtkUnstructuredGrid represents any combinations of any cell types. This includes 0D (e.g., points), 1D (e.g., lines, polylines), 2D (e.g., triangles, polygons), and 3D (e.g., hexahedron, tetrahedron, polyhedron, etc.).

Examples:
vtkUnstructuredGrid (Examples)
Tests:
vtkUnstructuredGrid (Tests)

Definition at line 78 of file vtkUnstructuredGrid.h.


Public Types

typedef vtkPointSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkIdType InsertNextCell (int type, vtkIdType npts, vtkIdType *ptIds)
vtkIdType InsertNextCell (int type, vtkIdList *ptIds)
vtkIdType InsertNextCell (int type, vtkIdType npts, vtkIdType *ptIds, vtkIdType nfaces, vtkIdType *faces)
int GetCellType (vtkIdType cellId)
vtkUnsignedCharArrayGetCellTypesArray ()
vtkIdTypeArrayGetCellLocationsArray ()
void Squeeze ()
void Initialize ()
int GetMaxCellSize ()
void BuildLinks ()
vtkCellLinksGetCellLinks ()
virtual void GetCellPoints (vtkIdType cellId, vtkIdType &npts, vtkIdType *&pts)
void GetFaceStream (vtkIdType cellId, vtkIdList *ptIds)
void GetFaceStream (vtkIdType cellId, vtkIdType &nfaces, vtkIdType *&ptIds)
vtkCellArrayGetCells ()
void ReplaceCell (vtkIdType cellId, int npts, vtkIdType *pts)
vtkIdType InsertNextLinkedCell (int type, int npts, vtkIdType *pts)
void RemoveReferenceToCell (vtkIdType ptId, vtkIdType cellId)
void AddReferenceToCell (vtkIdType ptId, vtkIdType cellId)
void ResizeCellList (vtkIdType ptId, int size)
void GetUpdateExtent (int &piece, int &numPieces, int &ghostLevel)
virtual int GetGhostLevel ()
unsigned long GetActualMemorySize ()
void GetIdsOfCellsOfType (int type, vtkIdTypeArray *array)
int IsHomogeneous ()
void RemoveGhostCells (int level)
vtkIdTypeGetFaces (vtkIdType cellId)
int InitializeFacesRepresentation (vtkIdType numPrevCells)
int GetDataObjectType ()
virtual void Allocate (vtkIdType numCells=1000, int extSize=1000)
void Reset ()
virtual void CopyStructure (vtkDataSet *ds)
vtkIdType GetNumberOfCells ()
virtual vtkCellGetCell (vtkIdType cellId)
virtual void GetCell (vtkIdType cellId, vtkGenericCell *cell)
virtual void GetCellBounds (vtkIdType cellId, double bounds[6])
virtual void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
void SetCells (int type, vtkCellArray *cells)
void SetCells (int *types, vtkCellArray *cells)
void SetCells (vtkUnsignedCharArray *cellTypes, vtkIdTypeArray *cellLocations, vtkCellArray *cells)
void SetCells (vtkUnsignedCharArray *cellTypes, vtkIdTypeArray *cellLocations, vtkCellArray *cells, vtkIdTypeArray *faceLocations, vtkIdTypeArray *faces)
virtual void GetCellNeighbors (vtkIdType cellId, vtkIdList *ptIds, vtkIdList *cellIds)
virtual int * GetUpdateExtent ()
virtual void GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)
virtual void GetUpdateExtent (int extent[6])
virtual int GetPiece ()
virtual int GetNumberOfPieces ()
virtual void ShallowCopy (vtkDataObject *src)
virtual void DeepCopy (vtkDataObject *src)
vtkIdTypeArrayGetFaces ()
vtkIdTypeArrayGetFaceLocations ()

Static Public Member Functions

static vtkUnstructuredGridNew ()
static int IsTypeOf (const char *type)
static vtkUnstructuredGridSafeDownCast (vtkObject *o)
static void DecomposeAPolyhedronCell (vtkIdType *polyhedronCellStream, vtkIdType &nCellpts, vtkIdType &nCellfaces, vtkCellArray *cellArray, vtkIdTypeArray *faces)
static vtkUnstructuredGridGetData (vtkInformation *info)
static vtkUnstructuredGridGetData (vtkInformationVector *v, int i=0)
static void DecomposeAPolyhedronCell (vtkCellArray *polyhedronCellArray, vtkIdType &nCellpts, vtkIdType &nCellfaces, vtkCellArray *cellArray, vtkIdTypeArray *faces)
static void DecomposeAPolyhedronCell (vtkIdType nCellFaces, vtkIdType *inFaceStream, vtkIdType &nCellpts, vtkCellArray *cellArray, vtkIdTypeArray *faces)
static void ConvertFaceStreamPointIds (vtkIdList *faceStream, vtkIdType *idMap)
static void ConvertFaceStreamPointIds (vtkIdType nfaces, vtkIdType *faceStream, vtkIdType *idMap)

Protected Member Functions

 vtkUnstructuredGrid ()
 ~vtkUnstructuredGrid ()

Protected Attributes

vtkVertexVertex
vtkPolyVertexPolyVertex
vtkLineLine
vtkPolyLinePolyLine
vtkTriangleTriangle
vtkTriangleStripTriangleStrip
vtkPixelPixel
vtkQuadQuad
vtkPolygonPolygon
vtkTetraTetra
vtkVoxelVoxel
vtkHexahedronHexahedron
vtkWedgeWedge
vtkPyramidPyramid
vtkPentagonalPrismPentagonalPrism
vtkHexagonalPrismHexagonalPrism
vtkQuadraticEdgeQuadraticEdge
vtkQuadraticTriangleQuadraticTriangle
vtkQuadraticQuadQuadraticQuad
vtkQuadraticTetraQuadraticTetra
vtkQuadraticHexahedronQuadraticHexahedron
vtkQuadraticWedgeQuadraticWedge
vtkQuadraticPyramidQuadraticPyramid
vtkQuadraticLinearQuadQuadraticLinearQuad
vtkBiQuadraticQuadBiQuadraticQuad
vtkTriQuadraticHexahedronTriQuadraticHexahedron
vtkQuadraticLinearWedgeQuadraticLinearWedge
vtkBiQuadraticQuadraticWedgeBiQuadraticQuadraticWedge
vtkBiQuadraticQuadraticHexahedronBiQuadraticQuadraticHexahedron
vtkBiQuadraticTriangleBiQuadraticTriangle
vtkCubicLineCubicLine
vtkConvexPointSetConvexPointSet
vtkPolyhedronPolyhedron
vtkEmptyCellEmptyCell
vtkCellArrayConnectivity
vtkCellLinksLinks
vtkUnsignedCharArrayTypes
vtkIdTypeArrayLocations
vtkIdTypeArrayFaces
vtkIdTypeArrayFaceLocations

Member Typedef Documentation

Reimplemented from vtkPointSet.

Definition at line 83 of file vtkUnstructuredGrid.h.


Constructor & Destructor Documentation

vtkUnstructuredGrid::vtkUnstructuredGrid (  )  [protected]

vtkUnstructuredGrid::~vtkUnstructuredGrid (  )  [protected]


Member Function Documentation

static vtkUnstructuredGrid* vtkUnstructuredGrid::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

virtual const char* vtkUnstructuredGrid::GetClassName (  )  [virtual]

Reimplemented from vtkPointSet.

static int vtkUnstructuredGrid::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

virtual int vtkUnstructuredGrid::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

static vtkUnstructuredGrid* vtkUnstructuredGrid::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPointSet.

void vtkUnstructuredGrid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointSet.

int vtkUnstructuredGrid::GetDataObjectType (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 88 of file vtkUnstructuredGrid.h.

virtual void vtkUnstructuredGrid::Allocate ( vtkIdType  numCells = 1000,
int  extSize = 1000
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

vtkIdType vtkUnstructuredGrid::InsertNextCell ( int  type,
vtkIdType  npts,
vtkIdType ptIds
)

Insert/create cell in object by type and list of point ids defining cell topology. Most cells require just a type which implicitly defines a set of points and their ordering. For non-polyhedron cell type, npts is the number of unique points in the cell. pts are the list of global point Ids. For polyhedron cell, a special input format is required. npts is the number of faces in the cell. ptIds is the list of face stream: (numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...)

vtkIdType vtkUnstructuredGrid::InsertNextCell ( int  type,
vtkIdList ptIds
)

Insert/create cell in object by a list of point ids defining cell topology. Most cells require just a type which implicitly defines a set of points and their ordering. For non-polyhedron cell type, ptIds is the list of global Ids of unique cell points. For polyhedron cell, a special ptIds input format is required: (numCellFaces, numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...)

vtkIdType vtkUnstructuredGrid::InsertNextCell ( int  type,
vtkIdType  npts,
vtkIdType ptIds,
vtkIdType  nfaces,
vtkIdType faces
)

void vtkUnstructuredGrid::Reset (  )

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

virtual void vtkUnstructuredGrid::CopyStructure ( vtkDataSet ds  )  [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Reimplemented from vtkPointSet.

vtkIdType vtkUnstructuredGrid::GetNumberOfCells (  )  [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Implements vtkDataSet.

virtual vtkCell* vtkUnstructuredGrid::GetCell ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Implements vtkDataSet.

virtual void vtkUnstructuredGrid::GetCell ( vtkIdType  cellId,
vtkGenericCell cell
) [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Implements vtkDataSet.

virtual void vtkUnstructuredGrid::GetCellBounds ( vtkIdType  cellId,
double  bounds[6]
) [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Reimplemented from vtkDataSet.

virtual void vtkUnstructuredGrid::GetCellPoints ( vtkIdType  cellId,
vtkIdList ptIds
) [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Implements vtkDataSet.

void vtkUnstructuredGrid::GetPointCells ( vtkIdType  ptId,
vtkIdList cellIds
) [virtual]

Standard vtkDataSet methods; see vtkDataSet.h for documentation.

Implements vtkDataSet.

int vtkUnstructuredGrid::GetCellType ( vtkIdType  cellId  )  [virtual]

Get type of cell with cellId such that: 0 <= cellId < NumberOfCells. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implements vtkDataSet.

vtkUnsignedCharArray* vtkUnstructuredGrid::GetCellTypesArray (  )  [inline]

Definition at line 132 of file vtkUnstructuredGrid.h.

vtkIdTypeArray* vtkUnstructuredGrid::GetCellLocationsArray (  )  [inline]

Definition at line 133 of file vtkUnstructuredGrid.h.

void vtkUnstructuredGrid::Squeeze (  )  [virtual]

Reclaim any unused memory.

Reimplemented from vtkPointSet.

void vtkUnstructuredGrid::Initialize (  )  [virtual]

Reset to an empty state and free any memory.

Reimplemented from vtkPointSet.

int vtkUnstructuredGrid::GetMaxCellSize (  )  [virtual]

Convenience method returns largest cell size in dataset. This is generally used to allocate memory for supporting data structures. THIS METHOD IS THREAD SAFE

Implements vtkDataSet.

void vtkUnstructuredGrid::BuildLinks (  )

vtkCellLinks* vtkUnstructuredGrid::GetCellLinks (  )  [inline]

Definition at line 138 of file vtkUnstructuredGrid.h.

virtual void vtkUnstructuredGrid::GetCellPoints ( vtkIdType  cellId,
vtkIdType npts,
vtkIdType *&  pts
) [virtual]

void vtkUnstructuredGrid::GetFaceStream ( vtkIdType  cellId,
vtkIdList ptIds
)

Get the face stream of a polyhedron cell in the following format: (numCellFaces, numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...). If the requested cell is not a polyhedron, then the standard GetCellPoints is called to return a list of unique point ids (id1, id2, id3, ...).

void vtkUnstructuredGrid::GetFaceStream ( vtkIdType  cellId,
vtkIdType nfaces,
vtkIdType *&  ptIds
)

Get the number of face and the face stream of a polyhedron cell. Result ptIds is in the following format: (numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...). If the requested cell is not a polyhedron, then the standard GetCellPoints is called to return the number of points and a list of unique point ids (id1, id2, id3, ...).

void vtkUnstructuredGrid::SetCells ( int  type,
vtkCellArray cells
)

Special methods specific to vtkUnstructuredGrid for defining the cells composing the dataset. Most cells require just arrays of cellTypes, cellLocations and cellConnectivities which implicitly define the set of points in each cell and their ordering. In those cases the cellConnectivities are of the format (numFace0Pts, id1, id2, id3, numFace1Pts, id1, id2, id3...). However, some cells like vtkPolyhedron require points plus a list of faces. To handle vtkPolyhedron, SetCells() support a special input cellConnectivities format (numCellFaces, numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...) The functions use vtkPolyhedron::DecomposeAPolyhedronCell() to convert polyhedron cells into standard format.

void vtkUnstructuredGrid::SetCells ( int *  types,
vtkCellArray cells
)

Special methods specific to vtkUnstructuredGrid for defining the cells composing the dataset. Most cells require just arrays of cellTypes, cellLocations and cellConnectivities which implicitly define the set of points in each cell and their ordering. In those cases the cellConnectivities are of the format (numFace0Pts, id1, id2, id3, numFace1Pts, id1, id2, id3...). However, some cells like vtkPolyhedron require points plus a list of faces. To handle vtkPolyhedron, SetCells() support a special input cellConnectivities format (numCellFaces, numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...) The functions use vtkPolyhedron::DecomposeAPolyhedronCell() to convert polyhedron cells into standard format.

void vtkUnstructuredGrid::SetCells ( vtkUnsignedCharArray cellTypes,
vtkIdTypeArray cellLocations,
vtkCellArray cells
)

Special methods specific to vtkUnstructuredGrid for defining the cells composing the dataset. Most cells require just arrays of cellTypes, cellLocations and cellConnectivities which implicitly define the set of points in each cell and their ordering. In those cases the cellConnectivities are of the format (numFace0Pts, id1, id2, id3, numFace1Pts, id1, id2, id3...). However, some cells like vtkPolyhedron require points plus a list of faces. To handle vtkPolyhedron, SetCells() support a special input cellConnectivities format (numCellFaces, numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...) The functions use vtkPolyhedron::DecomposeAPolyhedronCell() to convert polyhedron cells into standard format.

void vtkUnstructuredGrid::SetCells ( vtkUnsignedCharArray cellTypes,
vtkIdTypeArray cellLocations,
vtkCellArray cells,
vtkIdTypeArray faceLocations,
vtkIdTypeArray faces
)

Special methods specific to vtkUnstructuredGrid for defining the cells composing the dataset. Most cells require just arrays of cellTypes, cellLocations and cellConnectivities which implicitly define the set of points in each cell and their ordering. In those cases the cellConnectivities are of the format (numFace0Pts, id1, id2, id3, numFace1Pts, id1, id2, id3...). However, some cells like vtkPolyhedron require points plus a list of faces. To handle vtkPolyhedron, SetCells() support a special input cellConnectivities format (numCellFaces, numFace0Pts, id1, id2, id3, numFace1Pts,id1, id2, id3, ...) The functions use vtkPolyhedron::DecomposeAPolyhedronCell() to convert polyhedron cells into standard format.

vtkCellArray* vtkUnstructuredGrid::GetCells (  )  [inline]

Definition at line 178 of file vtkUnstructuredGrid.h.

void vtkUnstructuredGrid::ReplaceCell ( vtkIdType  cellId,
int  npts,
vtkIdType pts
)

vtkIdType vtkUnstructuredGrid::InsertNextLinkedCell ( int  type,
int  npts,
vtkIdType pts
)

void vtkUnstructuredGrid::RemoveReferenceToCell ( vtkIdType  ptId,
vtkIdType  cellId
)

void vtkUnstructuredGrid::AddReferenceToCell ( vtkIdType  ptId,
vtkIdType  cellId
)

void vtkUnstructuredGrid::ResizeCellList ( vtkIdType  ptId,
int  size
)

virtual void vtkUnstructuredGrid::GetCellNeighbors ( vtkIdType  cellId,
vtkIdList ptIds,
vtkIdList cellIds
) [virtual]

Topological inquiry to get all cells using list of points exclusive of cell specified (e.g., cellId). THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Reimplemented from vtkDataSet.

void vtkUnstructuredGrid::GetUpdateExtent ( int &  piece,
int &  numPieces,
int &  ghostLevel
)

For streaming. User/next filter specifies which piece the want updated. The source of this poly data has to return exactly this piece.

virtual int* vtkUnstructuredGrid::GetUpdateExtent (  )  [virtual]

We need this here to avoid hiding superclass method

Reimplemented from vtkDataObject.

virtual void vtkUnstructuredGrid::GetUpdateExtent ( int &  x0,
int &  x1,
int &  y0,
int &  y1,
int &  z0,
int &  z1
) [virtual]

We need this here to avoid hiding superclass method

Reimplemented from vtkDataObject.

virtual void vtkUnstructuredGrid::GetUpdateExtent ( int  extent[6]  )  [virtual]

We need this here to avoid hiding superclass method

Reimplemented from vtkDataObject.

virtual int vtkUnstructuredGrid::GetPiece (  )  [virtual]

Set / Get the piece and the number of pieces. Similar to extent in 3D.

virtual int vtkUnstructuredGrid::GetNumberOfPieces (  )  [virtual]

Set / Get the piece and the number of pieces. Similar to extent in 3D.

virtual int vtkUnstructuredGrid::GetGhostLevel (  )  [virtual]

Get the ghost level.

unsigned long vtkUnstructuredGrid::GetActualMemorySize (  )  [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.

Reimplemented from vtkPointSet.

virtual void vtkUnstructuredGrid::ShallowCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkPointSet.

virtual void vtkUnstructuredGrid::DeepCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkPointSet.

void vtkUnstructuredGrid::GetIdsOfCellsOfType ( int  type,
vtkIdTypeArray array
)

Fill vtkIdTypeArray container with list of cell Ids. This method traverses all cells and, for a particular cell type, inserts the cell Id into the container.

int vtkUnstructuredGrid::IsHomogeneous (  )

Traverse cells and determine if cells are all of the same type.

void vtkUnstructuredGrid::RemoveGhostCells ( int  level  )

This method will remove any cell that has a ghost level array value greater or equal to level.

static vtkUnstructuredGrid* vtkUnstructuredGrid::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkPointSet.

static vtkUnstructuredGrid* vtkUnstructuredGrid::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkPointSet.

vtkIdType* vtkUnstructuredGrid::GetFaces ( vtkIdType  cellId  )

Special support for polyhedron. Return NULL for all other cell types.

vtkIdTypeArray* vtkUnstructuredGrid::GetFaces (  )  [inline]

Get pointer to faces and facelocations. Support for polyhedron cells.

Definition at line 254 of file vtkUnstructuredGrid.h.

vtkIdTypeArray* vtkUnstructuredGrid::GetFaceLocations (  )  [inline]

Get pointer to faces and facelocations. Support for polyhedron cells.

Definition at line 255 of file vtkUnstructuredGrid.h.

int vtkUnstructuredGrid::InitializeFacesRepresentation ( vtkIdType  numPrevCells  )

Special function used by vtkUnstructuredGridReader. By default vtkUnstructuredGrid does not contain face information, which is only used by polyhedron cells. If so far no polyhedron cells have been added, Faces and FaceLocations pointers will be NULL. In this case, need to initialize the arrays and assign values to the previous non-polyhedron cells.

static void vtkUnstructuredGrid::DecomposeAPolyhedronCell ( vtkCellArray polyhedronCellArray,
vtkIdType nCellpts,
vtkIdType nCellfaces,
vtkCellArray cellArray,
vtkIdTypeArray faces
) [static]

A static method for converting a polyhedron vtkCellArray of format [nCellFaces, nFace0Pts, i, j, k, nFace1Pts, i, j, k, ...] into three components: (1) an integer indicating the number of faces (2) a standard vtkCellArray storing point ids [nCell0Pts, i, j, k] and (3) an vtkIdTypeArray storing face connectivity in format [nFace0Pts, i, j, k, nFace1Pts, i, j, k, ...] Note: input is assumed to contain only one polyhedron cell. Outputs (2) and (3) will be stacked at the end of the input cellArray and faces. The original data in the input will not be touched.

static void vtkUnstructuredGrid::DecomposeAPolyhedronCell ( vtkIdType polyhedronCellStream,
vtkIdType nCellpts,
vtkIdType nCellfaces,
vtkCellArray cellArray,
vtkIdTypeArray faces
) [static]

static void vtkUnstructuredGrid::DecomposeAPolyhedronCell ( vtkIdType  nCellFaces,
vtkIdType inFaceStream,
vtkIdType nCellpts,
vtkCellArray cellArray,
vtkIdTypeArray faces
) [static]

A static method for converting an input polyhedron cell stream of format [nFace0Pts, i, j, k, nFace1Pts, i, j, k, ...] into three components: (1) an integer indicating the number of faces (2) a standard vtkCellArray storing point ids [nCell0Pts, i, j, k] and (3) an vtkIdTypeArray storing face connectivity in format [nFace0Pts, i, j, k, nFace1Pts, i, j, k, ...] Note: input is assumed to contain only one polyhedron cell. Outputs (2) and (3) will be stacked at the end of the input cellArray and faces. The original data in the input will not be touched.

static void vtkUnstructuredGrid::ConvertFaceStreamPointIds ( vtkIdList faceStream,
vtkIdType idMap
) [static]

Convert pid in a face stream into idMap[pid]. The face stream is of format [nCellFaces, nFace0Pts, i, j, k, nFace1Pts, i, j, k, ...]. The user is responsible to make sure all the Ids in faceStream do not exceed the range of idMap.

static void vtkUnstructuredGrid::ConvertFaceStreamPointIds ( vtkIdType  nfaces,
vtkIdType faceStream,
vtkIdType idMap
) [static]

Convert pid in a face stream into idMap[pid]. The face stream is of format [nFace0Pts, i, j, k, nFace1Pts, i, j, k, ...]. The user is responsible to make sure all the Ids in faceStream do not exceed the range of idMap.


Member Data Documentation

Definition at line 331 of file vtkUnstructuredGrid.h.

Definition at line 332 of file vtkUnstructuredGrid.h.

Definition at line 333 of file vtkUnstructuredGrid.h.

Definition at line 334 of file vtkUnstructuredGrid.h.

Definition at line 335 of file vtkUnstructuredGrid.h.

Definition at line 336 of file vtkUnstructuredGrid.h.

Definition at line 337 of file vtkUnstructuredGrid.h.

Definition at line 338 of file vtkUnstructuredGrid.h.

Definition at line 339 of file vtkUnstructuredGrid.h.

Definition at line 340 of file vtkUnstructuredGrid.h.

Definition at line 341 of file vtkUnstructuredGrid.h.

Definition at line 342 of file vtkUnstructuredGrid.h.

Definition at line 343 of file vtkUnstructuredGrid.h.

Definition at line 344 of file vtkUnstructuredGrid.h.

Definition at line 345 of file vtkUnstructuredGrid.h.

Definition at line 346 of file vtkUnstructuredGrid.h.

Definition at line 347 of file vtkUnstructuredGrid.h.

Definition at line 348 of file vtkUnstructuredGrid.h.

Definition at line 349 of file vtkUnstructuredGrid.h.

Definition at line 350 of file vtkUnstructuredGrid.h.

Definition at line 351 of file vtkUnstructuredGrid.h.

Definition at line 352 of file vtkUnstructuredGrid.h.

Definition at line 353 of file vtkUnstructuredGrid.h.

Definition at line 354 of file vtkUnstructuredGrid.h.

Definition at line 355 of file vtkUnstructuredGrid.h.

Definition at line 356 of file vtkUnstructuredGrid.h.

Definition at line 357 of file vtkUnstructuredGrid.h.

Definition at line 358 of file vtkUnstructuredGrid.h.

Definition at line 359 of file vtkUnstructuredGrid.h.

Definition at line 360 of file vtkUnstructuredGrid.h.

Definition at line 361 of file vtkUnstructuredGrid.h.

Definition at line 362 of file vtkUnstructuredGrid.h.

Definition at line 363 of file vtkUnstructuredGrid.h.

Definition at line 364 of file vtkUnstructuredGrid.h.

Definition at line 368 of file vtkUnstructuredGrid.h.

Definition at line 369 of file vtkUnstructuredGrid.h.

Definition at line 370 of file vtkUnstructuredGrid.h.

Definition at line 371 of file vtkUnstructuredGrid.h.

Definition at line 378 of file vtkUnstructuredGrid.h.

Definition at line 379 of file vtkUnstructuredGrid.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 12:16:05 2011 for VTK by  doxygen 1.5.6
