vtkVolumeProperty Class Reference

#include <vtkVolumeProperty.h>

Inheritance diagram for vtkVolumeProperty:

Inheritance graph
[legend]

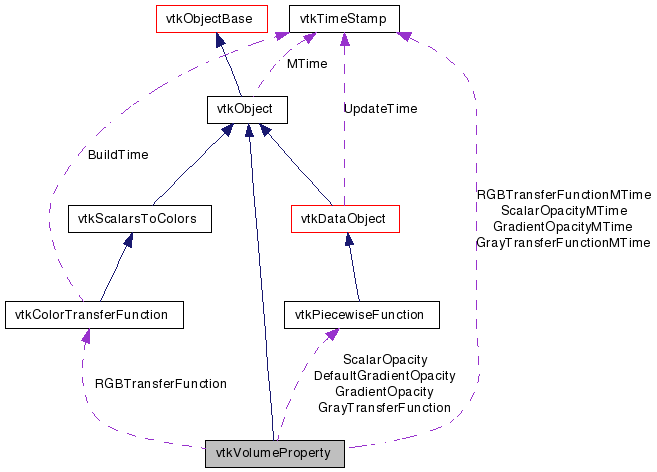

Collaboration diagram for vtkVolumeProperty:

Collaboration graph
[legend]

List of all members.


Detailed Description

represents the common properties for rendering a volume.

vtkVolumeProperty is used to represent common properties associated with volume rendering. This includes properties for determining the type of interpolation to use when sampling a volume, the color of a volume, the scalar opacity of a volume, the gradient opacity of a volume, and the shading parameters of a volume.

When the scalar opacity or the gradient opacity of a volume is not set, then the function is defined to be a constant value of 1.0. When a scalar and gradient opacity are both set simultaneously, then the opacity is defined to be the product of the scalar opacity and gradient opacity transfer functions.

Most properties can be set per "component" for volume mappers that support multiple independent components. If you are using 2 component data as LV or 4 component data as RGBV (as specified in the mapper) only the first scalar opacity and gradient opacity transfer functions will be used (and all color functions will be ignored). Omitting the index parameter on the Set/Get methods will access index = 0.

See also:
vtkPiecewiseFunction vtkColorTransferFunction
Examples:
vtkVolumeProperty (Examples)
Tests:
vtkVolumeProperty (Tests)

Definition at line 58 of file vtkVolumeProperty.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void DeepCopy (vtkVolumeProperty *p)
unsigned long GetMTime ()
void UpdateMTimes ()
virtual void SetIndependentComponents (int)
virtual int GetIndependentComponents ()
virtual void IndependentComponentsOn ()
virtual void IndependentComponentsOff ()
virtual void SetInterpolationType (int)
virtual int GetInterpolationType ()
void SetInterpolationTypeToNearest ()
void SetInterpolationTypeToLinear ()
const char * GetInterpolationTypeAsString (void)
virtual void SetComponentWeight (int index, double value)
virtual double GetComponentWeight (int index)
void SetColor (int index, vtkPiecewiseFunction *function)
void SetColor (vtkPiecewiseFunction *f)
void SetColor (int index, vtkColorTransferFunction *function)
void SetColor (vtkColorTransferFunction *f)
int GetColorChannels (int index)
int GetColorChannels ()
vtkPiecewiseFunctionGetGrayTransferFunction (int index)
vtkPiecewiseFunctionGetGrayTransferFunction ()
vtkColorTransferFunctionGetRGBTransferFunction (int index)
vtkColorTransferFunctionGetRGBTransferFunction ()
void SetScalarOpacity (int index, vtkPiecewiseFunction *function)
void SetScalarOpacity (vtkPiecewiseFunction *f)
vtkPiecewiseFunctionGetScalarOpacity (int index)
vtkPiecewiseFunctionGetScalarOpacity ()
void SetScalarOpacityUnitDistance (int index, double distance)
void SetScalarOpacityUnitDistance (double distance)
double GetScalarOpacityUnitDistance (int index)
double GetScalarOpacityUnitDistance ()
void SetGradientOpacity (int index, vtkPiecewiseFunction *function)
void SetGradientOpacity (vtkPiecewiseFunction *function)
vtkPiecewiseFunctionGetGradientOpacity (int index)
vtkPiecewiseFunctionGetGradientOpacity ()
virtual void SetDisableGradientOpacity (int index, int value)
virtual void SetDisableGradientOpacity (int value)
virtual void DisableGradientOpacityOn (int index)
virtual void DisableGradientOpacityOn ()
virtual void DisableGradientOpacityOff (int index)
virtual void DisableGradientOpacityOff ()
virtual int GetDisableGradientOpacity (int index)
virtual int GetDisableGradientOpacity ()
vtkPiecewiseFunctionGetStoredGradientOpacity (int index)
vtkPiecewiseFunctionGetStoredGradientOpacity ()
void SetShade (int index, int value)
void SetShade (int value)
int GetShade (int index)
int GetShade ()
void ShadeOn (int index)
void ShadeOn ()
void ShadeOff (int index)
void ShadeOff ()
void SetAmbient (int index, double value)
void SetAmbient (double value)
double GetAmbient (int index)
double GetAmbient ()
void SetDiffuse (int index, double value)
void SetDiffuse (double value)
double GetDiffuse (int index)
double GetDiffuse ()
void SetSpecular (int index, double value)
void SetSpecular (double value)
double GetSpecular (int index)
double GetSpecular ()
void SetSpecularPower (int index, double value)
void SetSpecularPower (double value)
double GetSpecularPower (int index)
double GetSpecularPower ()
vtkTimeStamp GetGradientOpacityMTime (int index)
vtkTimeStamp GetGradientOpacityMTime ()
vtkTimeStamp GetScalarOpacityMTime (int index)
vtkTimeStamp GetScalarOpacityMTime ()
vtkTimeStamp GetRGBTransferFunctionMTime (int index)
vtkTimeStamp GetRGBTransferFunctionMTime ()
vtkTimeStamp GetGrayTransferFunctionMTime (int index)
vtkTimeStamp GetGrayTransferFunctionMTime ()

Static Public Member Functions

static vtkVolumePropertyNew ()
static int IsTypeOf (const char *type)
static vtkVolumePropertySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkVolumeProperty ()
 ~vtkVolumeProperty ()
virtual void CreateDefaultGradientOpacity (int index)

Protected Attributes

int IndependentComponents
double ComponentWeight [VTK_MAX_VRCOMP]
int InterpolationType
int ColorChannels [VTK_MAX_VRCOMP]
vtkPiecewiseFunctionGrayTransferFunction [VTK_MAX_VRCOMP]
vtkTimeStamp GrayTransferFunctionMTime [VTK_MAX_VRCOMP]
vtkColorTransferFunctionRGBTransferFunction [VTK_MAX_VRCOMP]
vtkTimeStamp RGBTransferFunctionMTime [VTK_MAX_VRCOMP]
vtkPiecewiseFunctionScalarOpacity [VTK_MAX_VRCOMP]
vtkTimeStamp ScalarOpacityMTime [VTK_MAX_VRCOMP]
double ScalarOpacityUnitDistance [VTK_MAX_VRCOMP]
vtkPiecewiseFunctionGradientOpacity [VTK_MAX_VRCOMP]
vtkTimeStamp GradientOpacityMTime [VTK_MAX_VRCOMP]
vtkPiecewiseFunctionDefaultGradientOpacity [VTK_MAX_VRCOMP]
int DisableGradientOpacity [VTK_MAX_VRCOMP]
int Shade [VTK_MAX_VRCOMP]
double Ambient [VTK_MAX_VRCOMP]
double Diffuse [VTK_MAX_VRCOMP]
double Specular [VTK_MAX_VRCOMP]
double SpecularPower [VTK_MAX_VRCOMP]

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 62 of file vtkVolumeProperty.h.


Constructor & Destructor Documentation

vtkVolumeProperty::vtkVolumeProperty (  )  [protected]

vtkVolumeProperty::~vtkVolumeProperty (  )  [protected]


Member Function Documentation

static vtkVolumeProperty* vtkVolumeProperty::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkVolumeProperty::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkVolumeProperty::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkVolumeProperty::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkVolumeProperty* vtkVolumeProperty::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkVolumeProperty::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkVolumeProperty::DeepCopy ( vtkVolumeProperty p  )

unsigned long vtkVolumeProperty::GetMTime (  )  [virtual]

Get the modified time for this object (or the properties registered with this object).

Reimplemented from vtkObject.

virtual void vtkVolumeProperty::SetIndependentComponents ( int   )  [virtual]

Does the data have independent components, or do some define color only? If IndependentComponents is On (the default) then each component will be independently passed through a lookup table to determine RGBA, shaded. Some volume Mappers can handle 1 to 4 component unsigned char or unsigned short data (see each mapper header file to determine functionality). If IndependentComponents is Off, then you must have either 2 or 4 component data. For 2 component data, the first is passed through the first color transfer function and the second component is passed through the first opacity transfer function. Normals will be generated off of the second component. For 4 component data, the first three will directly represent RGB (no lookup table). The fourth component will be passed through the first scalar opacity transfer function for opacity. Normals will be generated from the fourth component.

virtual int vtkVolumeProperty::GetIndependentComponents (  )  [virtual]

Does the data have independent components, or do some define color only? If IndependentComponents is On (the default) then each component will be independently passed through a lookup table to determine RGBA, shaded. Some volume Mappers can handle 1 to 4 component unsigned char or unsigned short data (see each mapper header file to determine functionality). If IndependentComponents is Off, then you must have either 2 or 4 component data. For 2 component data, the first is passed through the first color transfer function and the second component is passed through the first opacity transfer function. Normals will be generated off of the second component. For 4 component data, the first three will directly represent RGB (no lookup table). The fourth component will be passed through the first scalar opacity transfer function for opacity. Normals will be generated from the fourth component.

virtual void vtkVolumeProperty::IndependentComponentsOn (  )  [virtual]

Does the data have independent components, or do some define color only? If IndependentComponents is On (the default) then each component will be independently passed through a lookup table to determine RGBA, shaded. Some volume Mappers can handle 1 to 4 component unsigned char or unsigned short data (see each mapper header file to determine functionality). If IndependentComponents is Off, then you must have either 2 or 4 component data. For 2 component data, the first is passed through the first color transfer function and the second component is passed through the first opacity transfer function. Normals will be generated off of the second component. For 4 component data, the first three will directly represent RGB (no lookup table). The fourth component will be passed through the first scalar opacity transfer function for opacity. Normals will be generated from the fourth component.

virtual void vtkVolumeProperty::IndependentComponentsOff (  )  [virtual]

Does the data have independent components, or do some define color only? If IndependentComponents is On (the default) then each component will be independently passed through a lookup table to determine RGBA, shaded. Some volume Mappers can handle 1 to 4 component unsigned char or unsigned short data (see each mapper header file to determine functionality). If IndependentComponents is Off, then you must have either 2 or 4 component data. For 2 component data, the first is passed through the first color transfer function and the second component is passed through the first opacity transfer function. Normals will be generated off of the second component. For 4 component data, the first three will directly represent RGB (no lookup table). The fourth component will be passed through the first scalar opacity transfer function for opacity. Normals will be generated from the fourth component.

virtual void vtkVolumeProperty::SetInterpolationType ( int   )  [virtual]

Set the interpolation type for sampling a volume. Initial value is VTK_NEAREST_INTERPOLATION.

virtual int vtkVolumeProperty::GetInterpolationType (  )  [virtual]

Set the interpolation type for sampling a volume. Initial value is VTK_NEAREST_INTERPOLATION.

void vtkVolumeProperty::SetInterpolationTypeToNearest (  )  [inline]

Set the interpolation type for sampling a volume. Initial value is VTK_NEAREST_INTERPOLATION.

Definition at line 96 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetInterpolationTypeToLinear (  )  [inline]

Set the interpolation type for sampling a volume. Initial value is VTK_NEAREST_INTERPOLATION.

Definition at line 98 of file vtkVolumeProperty.h.

const char * vtkVolumeProperty::GetInterpolationTypeAsString ( void   )  [inline]

Return the interpolation type as a descriptive character string.

Definition at line 356 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::SetComponentWeight ( int  index,
double  value
) [virtual]

Set/Get the scalar component weights

virtual double vtkVolumeProperty::GetComponentWeight ( int  index  )  [virtual]

Set/Get the scalar component weights

void vtkVolumeProperty::SetColor ( int  index,
vtkPiecewiseFunction function
)

Set the color of a volume to a gray level transfer function for the component indicated by index. This will set the color channels for this component to 1.

void vtkVolumeProperty::SetColor ( vtkPiecewiseFunction f  )  [inline]

Set the color of a volume to a gray level transfer function for the component indicated by index. This will set the color channels for this component to 1.

Definition at line 114 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetColor ( int  index,
vtkColorTransferFunction function
)

Set the color of a volume to an RGB transfer function for the component indicated by index. This will set the color channels for this component to 3. This will also recompute the color channels

void vtkVolumeProperty::SetColor ( vtkColorTransferFunction f  )  [inline]

Set the color of a volume to an RGB transfer function for the component indicated by index. This will set the color channels for this component to 3. This will also recompute the color channels

Definition at line 122 of file vtkVolumeProperty.h.

int vtkVolumeProperty::GetColorChannels ( int  index  )

Get the number of color channels in the transfer function for the given component.

int vtkVolumeProperty::GetColorChannels (  )  [inline]

Get the number of color channels in the transfer function for the given component.

Definition at line 129 of file vtkVolumeProperty.h.

vtkPiecewiseFunction* vtkVolumeProperty::GetGrayTransferFunction ( int  index  )

Get the gray transfer function. If no transfer function has been set for this component, a default one is created and returned.

vtkPiecewiseFunction* vtkVolumeProperty::GetGrayTransferFunction (  )  [inline]

Get the gray transfer function. If no transfer function has been set for this component, a default one is created and returned.

Definition at line 136 of file vtkVolumeProperty.h.

vtkColorTransferFunction* vtkVolumeProperty::GetRGBTransferFunction ( int  index  )

Get the RGB transfer function for the given component. If no transfer function has been set for this component, a default one is created and returned.

vtkColorTransferFunction* vtkVolumeProperty::GetRGBTransferFunction (  )  [inline]

Get the RGB transfer function for the given component. If no transfer function has been set for this component, a default one is created and returned.

Definition at line 145 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetScalarOpacity ( int  index,
vtkPiecewiseFunction function
)

Set the opacity of a volume to an opacity transfer function based on scalar value for the component indicated by index.

void vtkVolumeProperty::SetScalarOpacity ( vtkPiecewiseFunction f  )  [inline]

Set the opacity of a volume to an opacity transfer function based on scalar value for the component indicated by index.

Definition at line 153 of file vtkVolumeProperty.h.

vtkPiecewiseFunction* vtkVolumeProperty::GetScalarOpacity ( int  index  )

Get the scalar opacity transfer function for the given component. If no transfer function has been set for this component, a default one is created and returned.

vtkPiecewiseFunction* vtkVolumeProperty::GetScalarOpacity (  )  [inline]

Get the scalar opacity transfer function for the given component. If no transfer function has been set for this component, a default one is created and returned.

Definition at line 162 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetScalarOpacityUnitDistance ( int  index,
double  distance
)

Set/Get the unit distance on which the scalar opacity transfer function is defined. By default this is 1.0, meaning that over a distance of 1.0 units, a given opacity (from the transfer function) is accumulated. This is adjusted for the actual sampling distance during rendering.

void vtkVolumeProperty::SetScalarOpacityUnitDistance ( double  distance  )  [inline]

Set/Get the unit distance on which the scalar opacity transfer function is defined. By default this is 1.0, meaning that over a distance of 1.0 units, a given opacity (from the transfer function) is accumulated. This is adjusted for the actual sampling distance during rendering.

Definition at line 173 of file vtkVolumeProperty.h.

double vtkVolumeProperty::GetScalarOpacityUnitDistance ( int  index  )

Set/Get the unit distance on which the scalar opacity transfer function is defined. By default this is 1.0, meaning that over a distance of 1.0 units, a given opacity (from the transfer function) is accumulated. This is adjusted for the actual sampling distance during rendering.

double vtkVolumeProperty::GetScalarOpacityUnitDistance (  )  [inline]

Set/Get the unit distance on which the scalar opacity transfer function is defined. By default this is 1.0, meaning that over a distance of 1.0 units, a given opacity (from the transfer function) is accumulated. This is adjusted for the actual sampling distance during rendering.

Definition at line 176 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetGradientOpacity ( int  index,
vtkPiecewiseFunction function
)

Set the opacity of a volume to an opacity transfer function based on gradient magnitude for the given component.

void vtkVolumeProperty::SetGradientOpacity ( vtkPiecewiseFunction function  )  [inline]

Set the opacity of a volume to an opacity transfer function based on gradient magnitude for the given component.

Definition at line 185 of file vtkVolumeProperty.h.

vtkPiecewiseFunction* vtkVolumeProperty::GetGradientOpacity ( int  index  )

Get the gradient magnitude opacity transfer function for the given component. If no transfer function has been set for this component, a default one is created and returned. This default function is always returned if DisableGradientOpacity is On for that component.

vtkPiecewiseFunction* vtkVolumeProperty::GetGradientOpacity (  )  [inline]

Get the gradient magnitude opacity transfer function for the given component. If no transfer function has been set for this component, a default one is created and returned. This default function is always returned if DisableGradientOpacity is On for that component.

Definition at line 195 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::SetDisableGradientOpacity ( int  index,
int  value
) [virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

virtual void vtkVolumeProperty::SetDisableGradientOpacity ( int  value  )  [inline, virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 206 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::DisableGradientOpacityOn ( int  index  )  [inline, virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 208 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::DisableGradientOpacityOn (  )  [inline, virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 210 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::DisableGradientOpacityOff ( int  index  )  [inline, virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 212 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::DisableGradientOpacityOff (  )  [inline, virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 214 of file vtkVolumeProperty.h.

virtual int vtkVolumeProperty::GetDisableGradientOpacity ( int  index  )  [virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

virtual int vtkVolumeProperty::GetDisableGradientOpacity (  )  [inline, virtual]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 217 of file vtkVolumeProperty.h.

vtkPiecewiseFunction* vtkVolumeProperty::GetStoredGradientOpacity ( int  index  )

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

vtkPiecewiseFunction* vtkVolumeProperty::GetStoredGradientOpacity (  )  [inline]

Enable/Disable the gradient opacity function for the given component. If set to true, any call to GetGradientOpacity() will return a default function for this component. Note that the gradient opacity function is still stored, it is not set or reset and can be retrieved using GetStoredGradientOpacity().

Definition at line 220 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetShade ( int  index,
int  value
)

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

void vtkVolumeProperty::SetShade ( int  value  )  [inline]

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

Definition at line 234 of file vtkVolumeProperty.h.

int vtkVolumeProperty::GetShade ( int  index  )

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

int vtkVolumeProperty::GetShade (  )  [inline]

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

Definition at line 236 of file vtkVolumeProperty.h.

void vtkVolumeProperty::ShadeOn ( int  index  )

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

void vtkVolumeProperty::ShadeOn (  )  [inline]

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

Definition at line 238 of file vtkVolumeProperty.h.

void vtkVolumeProperty::ShadeOff ( int  index  )

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

void vtkVolumeProperty::ShadeOff (  )  [inline]

Set/Get the shading of a volume. If shading is turned off, then the mapper for the volume will not perform shading calculations. If shading is turned on, the mapper may perform shading calculations - in some cases shading does not apply (for example, in a maximum intensity projection) and therefore shading will not be performed even if this flag is on. For a compositing type of mapper, turning shading off is generally the same as setting ambient=1, diffuse=0, specular=0. Shading can be independently turned on/off per component.

Definition at line 240 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetAmbient ( int  index,
double  value
)

Set/Get the ambient lighting coefficient.

void vtkVolumeProperty::SetAmbient ( double  value  )  [inline]

Set/Get the ambient lighting coefficient.

Definition at line 246 of file vtkVolumeProperty.h.

double vtkVolumeProperty::GetAmbient ( int  index  )

Set/Get the ambient lighting coefficient.

double vtkVolumeProperty::GetAmbient (  )  [inline]

Set/Get the ambient lighting coefficient.

Definition at line 248 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetDiffuse ( int  index,
double  value
)

Set/Get the diffuse lighting coefficient.

void vtkVolumeProperty::SetDiffuse ( double  value  )  [inline]

Set/Get the diffuse lighting coefficient.

Definition at line 254 of file vtkVolumeProperty.h.

double vtkVolumeProperty::GetDiffuse ( int  index  )

Set/Get the diffuse lighting coefficient.

double vtkVolumeProperty::GetDiffuse (  )  [inline]

Set/Get the diffuse lighting coefficient.

Definition at line 256 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetSpecular ( int  index,
double  value
)

Set/Get the specular lighting coefficient.

void vtkVolumeProperty::SetSpecular ( double  value  )  [inline]

Set/Get the specular lighting coefficient.

Definition at line 262 of file vtkVolumeProperty.h.

double vtkVolumeProperty::GetSpecular ( int  index  )

Set/Get the specular lighting coefficient.

double vtkVolumeProperty::GetSpecular (  )  [inline]

Set/Get the specular lighting coefficient.

Definition at line 264 of file vtkVolumeProperty.h.

void vtkVolumeProperty::SetSpecularPower ( int  index,
double  value
)

Set/Get the specular power.

void vtkVolumeProperty::SetSpecularPower ( double  value  )  [inline]

Set/Get the specular power.

Definition at line 270 of file vtkVolumeProperty.h.

double vtkVolumeProperty::GetSpecularPower ( int  index  )

Set/Get the specular power.

double vtkVolumeProperty::GetSpecularPower (  )  [inline]

Set/Get the specular power.

Definition at line 272 of file vtkVolumeProperty.h.

void vtkVolumeProperty::UpdateMTimes (  )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE UpdateMTimes performs a Modified() on all TimeStamps. This is used by vtkVolume when the property is set, so that any other object that might have been caching information for the property will rebuild.

vtkTimeStamp vtkVolumeProperty::GetGradientOpacityMTime ( int  index  )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the gradient opacity transfer function was set

vtkTimeStamp vtkVolumeProperty::GetGradientOpacityMTime (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the gradient opacity transfer function was set

Definition at line 286 of file vtkVolumeProperty.h.

vtkTimeStamp vtkVolumeProperty::GetScalarOpacityMTime ( int  index  )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the scalar opacity transfer function was set.

vtkTimeStamp vtkVolumeProperty::GetScalarOpacityMTime (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the scalar opacity transfer function was set.

Definition at line 294 of file vtkVolumeProperty.h.

vtkTimeStamp vtkVolumeProperty::GetRGBTransferFunctionMTime ( int  index  )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the RGBTransferFunction was set

vtkTimeStamp vtkVolumeProperty::GetRGBTransferFunctionMTime (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the RGBTransferFunction was set

Definition at line 302 of file vtkVolumeProperty.h.

vtkTimeStamp vtkVolumeProperty::GetGrayTransferFunctionMTime ( int  index  )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the GrayTransferFunction was set

vtkTimeStamp vtkVolumeProperty::GetGrayTransferFunctionMTime (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Get the time that the GrayTransferFunction was set

Definition at line 310 of file vtkVolumeProperty.h.

virtual void vtkVolumeProperty::CreateDefaultGradientOpacity ( int  index  )  [protected, virtual]


Member Data Documentation

Definition at line 319 of file vtkVolumeProperty.h.

double vtkVolumeProperty::ComponentWeight[VTK_MAX_VRCOMP] [protected]

Definition at line 320 of file vtkVolumeProperty.h.

Definition at line 322 of file vtkVolumeProperty.h.

int vtkVolumeProperty::ColorChannels[VTK_MAX_VRCOMP] [protected]

Definition at line 324 of file vtkVolumeProperty.h.

Definition at line 326 of file vtkVolumeProperty.h.

Definition at line 327 of file vtkVolumeProperty.h.

Definition at line 329 of file vtkVolumeProperty.h.

Definition at line 330 of file vtkVolumeProperty.h.

Definition at line 332 of file vtkVolumeProperty.h.

Definition at line 333 of file vtkVolumeProperty.h.

double vtkVolumeProperty::ScalarOpacityUnitDistance[VTK_MAX_VRCOMP] [protected]

Definition at line 334 of file vtkVolumeProperty.h.

Definition at line 336 of file vtkVolumeProperty.h.

Definition at line 337 of file vtkVolumeProperty.h.

Definition at line 338 of file vtkVolumeProperty.h.

int vtkVolumeProperty::DisableGradientOpacity[VTK_MAX_VRCOMP] [protected]

Definition at line 339 of file vtkVolumeProperty.h.

int vtkVolumeProperty::Shade[VTK_MAX_VRCOMP] [protected]

Definition at line 341 of file vtkVolumeProperty.h.

double vtkVolumeProperty::Ambient[VTK_MAX_VRCOMP] [protected]

Definition at line 342 of file vtkVolumeProperty.h.

double vtkVolumeProperty::Diffuse[VTK_MAX_VRCOMP] [protected]

Definition at line 343 of file vtkVolumeProperty.h.

double vtkVolumeProperty::Specular[VTK_MAX_VRCOMP] [protected]

Definition at line 344 of file vtkVolumeProperty.h.

double vtkVolumeProperty::SpecularPower[VTK_MAX_VRCOMP] [protected]

Definition at line 345 of file vtkVolumeProperty.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 12:18:30 2011 for VTK by  doxygen 1.5.6
