| Summary | 0010324: Translucent polygons do not always render correctly infront of a vtkImagePlaneWidget |
| Description | When I have a scene that includes both translucent polygonal geometry and an Imageplane widget, the translucent object fails to render at all when infront of the plane. The renderer is sensitive to the order the actors are added : if the planeWidget is turned on after the translucent geometry, it appears buggy. If the planeWidget is turned on before, the scene looks OK.
|
| Additional Information | This may be a limitation of the alpha-blending, since depth peeling works OK.
I have attached a version of the modified version of the Medical1 example that displays the issue. [Link with additional library : vtkWidgets] |
| Tags | No tags attached. |
|
| Project | |
| Type | |
|
| Attached Files |  Medical1.cxx [^] (6,634 bytes) 2010-02-23 07:48

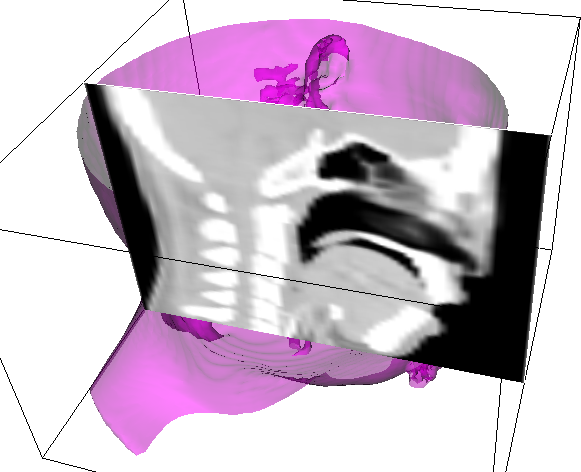

 buggyHead.png [^] (97,722 bytes) 2010-02-23 07:55

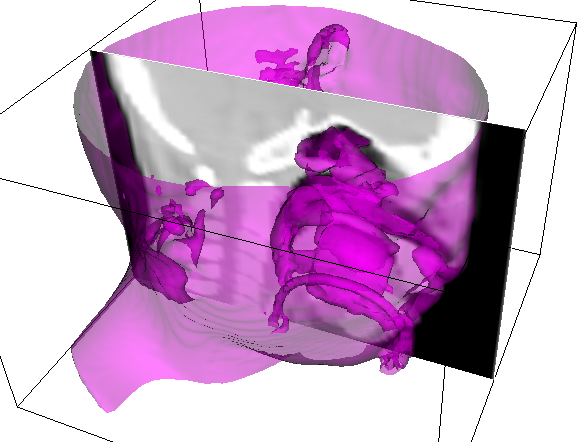

okHead.png [^] (137,711 bytes) 2010-02-23 07:55
 |
|
