| Summary | 0014963: vtkTextActor scaling and justification bug | ||||||||
| Description | In the attached example, the text actor is configured such that the text to display has a height of 3% of the viewport and is centered to the viewport. When starting the example the text is centered and the height of the text is OK. However: when maximizing the Window, the text is not centered anymore and it is also not scaled up to 3% of the maximized window. Using vtk 5.10.1 scaling/justification worked as expected. Using vtk 6.1.0 the described issue can be reproduced. | ||||||||
| Tags | centered, justification, scaling, vtkTextActor | ||||||||
| Project | TBD | ||||||||
| Type | incorrect functionality | ||||||||
| Attached Files |  vtkTextActor_scaling_and_alignment_issue.py [^] (1,528 bytes) 2014-08-23 12:07 vtkTextActor_scaling_and_alignment_works_in_vtk5.10.1.tcl [^] (1,882 bytes) 2014-08-23 12:49 Screen Shot 2014-10-02 at 2.35.06 PM.png [^] (177,304 bytes) 2014-10-02 14:35
 vtkTextActor_scaling_and_alignment_works_in_vtk5.10.1_2014-10-03_08-03_PM.png [^] (145,223 bytes) 2014-10-03 14:08
vtkTextActor_scaling_and_alignment_issue_10%.py [^] (1,527 bytes) 2014-10-03 14:16 vtkTextActor_scaling_and_alignment_works_in_vtk5.10.1_10%.tcl [^] (1,881 bytes) 2014-10-03 14:16 vtkTextActor_scaling_and_alignment_works_in_vtk5.10.1_10%_2014-10-03_08-15_PM.png [^] (156,378 bytes) 2014-10-03 14:17
| ||||||||
| Relationships | |
| Relationships |
| Notes | |
|
(0033283) Michael Bachmann (reporter) 2014-08-23 12:50 |
Added an example file for VTK 5.10.1. |
|
(0033510) Utkarsh Ayachit (administrator) 2014-10-02 14:36 |

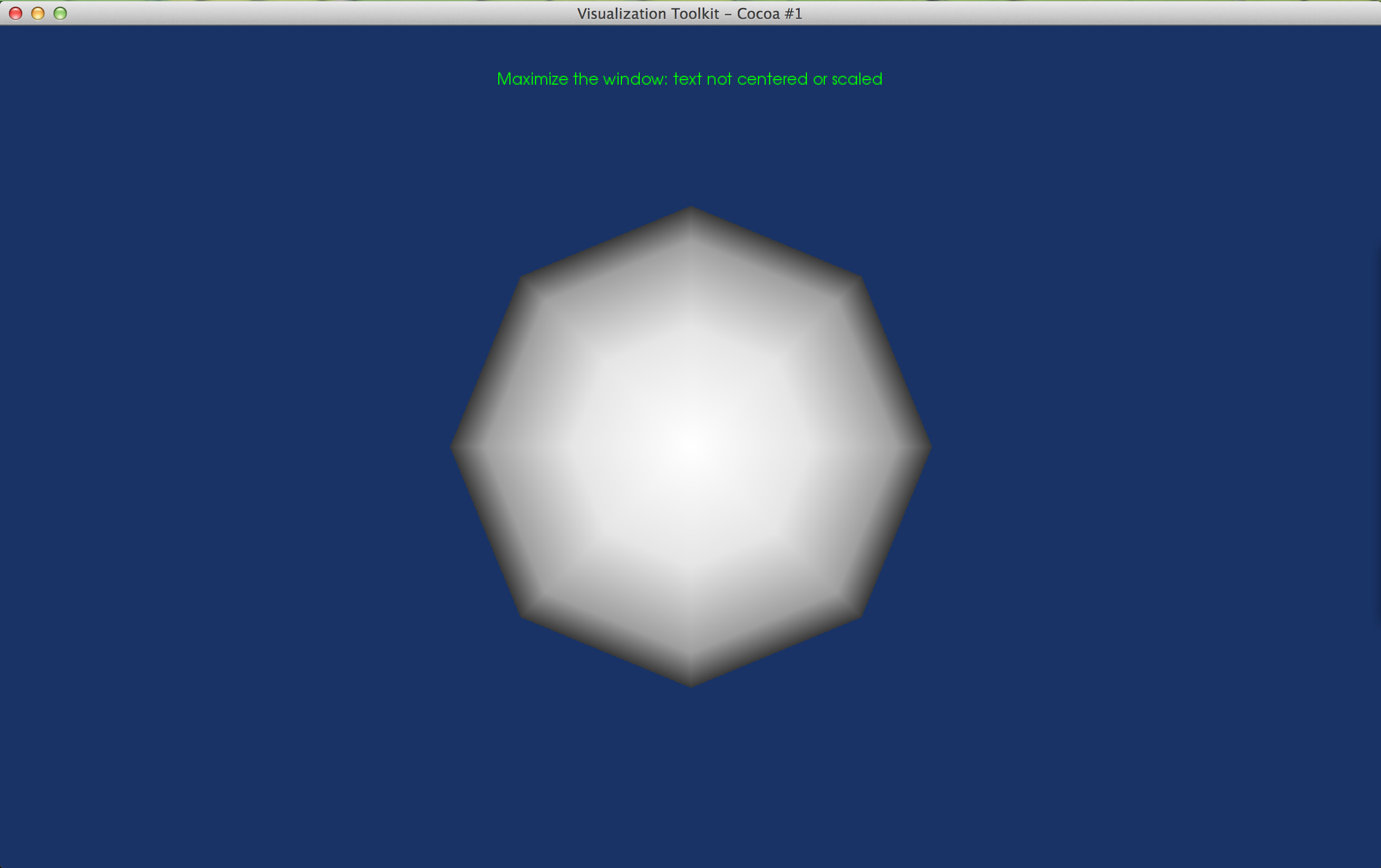

Works as expected in development version of VTK (image attached). Fix will be included in 6.2. |
|
(0033572) Michael Bachmann (reporter) 2014-10-03 14:08 edited on: 2014-10-09 03:01 |
I built the latest version of the development version of VTK 6.2 and the centering works now as expected :) However the text is not scaled up to 3% of the viewport height when maximizing the window. See the attached screenshot how the font was scaled up in VTK 5.10.1. :( Maybe it is more obvious when changing the maximum line height to 10% => attached modified scripts and a screenshot for 10% |
|
(0036257) Berk Geveci (administrator) 2016-07-06 16:48 |
Setting to status of bugs that have not been updated in the last year to expired. Please re-open if still important. |
|
(0037339) Kitware Robot (administrator) 2016-08-12 09:55 |
Resolving issue as `moved`. This issue tracker is no longer used. Further discussion of this issue may take place in the current VTK Issues page linked in the banner at the top of this page. |
