vtkCellLocator Class Reference

octree-based spatial search object to quickly locate cells. More...

#include <vtkCellLocator.h>

Inheritance diagram for vtkCellLocator:

Inheritance graph
[legend]

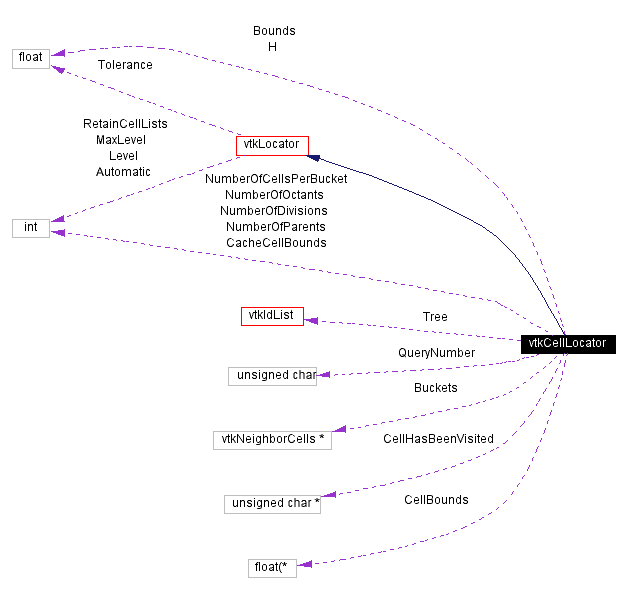

Collaboration diagram for vtkCellLocator:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkIdListGetCells (int bucket)
virtual int GetNumberOfBuckets (void)
virtual void SetNumberOfCellsPerBucket (int)
virtual int GetNumberOfCellsPerBucket ()
virtual void SetCacheCellBounds (int)
virtual int GetCacheCellBounds ()
virtual void CacheCellBoundsOn ()
virtual void CacheCellBoundsOff ()
virtual int IntersectWithLine (float a0[3], float a1[3], float tol, float &t, float x[3], float pcoords[3], int &subId)
virtual int IntersectWithLine (float a0[3], float a1[3], float tol, float &t, float x[3], float pcoords[3], int &subId, vtkIdType &cellId)
virtual int IntersectWithLine (float a0[3], float a1[3], float tol, float &t, float x[3], float pcoords[3], int &subId, vtkIdType &cellId, vtkGenericCell *cell)
void FindClosestPoint (float x[3], float closestPoint[3], vtkIdType &cellId, int &subId, float &dist2)
void FindClosestPoint (float x[3], float closestPoint[3], vtkGenericCell *cell, vtkIdType &cellId, int &subId, float &dist2)
int FindClosestPointWithinRadius (float x[3], float radius, float closestPoint[3], vtkIdType &cellId, int &subId, float &dist2)
int FindClosestPointWithinRadius (float x[3], float radius, float closestPoint[3], vtkGenericCell *cell, vtkIdType &cellId, int &subId, float &dist2)
int FindClosestPointWithinRadius (float x[3], float radius, float closestPoint[3], vtkGenericCell *cell, vtkIdType &cellId, int &subId, float &dist2, int &inside)
void FreeSearchStructure ()
void BuildLocator ()
void GenerateRepresentation (int level, vtkPolyData *pd)

Static Public Methods

int IsTypeOf (const char *type)
vtkCellLocator * SafeDownCast (vtkObject *o)
vtkCellLocator * New ()

Protected Methods

 vtkCellLocator ()
 ~vtkCellLocator ()
void GetBucketNeighbors (int ijk[3], int ndivs, int level)
void GetOverlappingBuckets (float x[3], int ijk[3], float dist, int prevMinLevel[3], int prevMaxLevel[3])
void ClearCellHasBeenVisited ()
void ClearCellHasBeenVisited (int id)
float Distance2ToBucket (float x[3], int nei[3])
float Distance2ToBounds (float x[3], float bounds[6])
void MarkParents (void *, int, int, int, int, int)
void GetChildren (int idx, int level, int children[8])
int GenerateIndex (int offset, int numDivs, int i, int j, int k, vtkIdType &idx)
void GenerateFace (int face, int numDivs, int i, int j, int k, vtkPoints *pts, vtkCellArray *polys)

Protected Attributes

int NumberOfCellsPerBucket
int NumberOfOctants
float Bounds [6]
int NumberOfParents
float H [3]
int NumberOfDivisions
vtkIdList ** Tree
vtkNeighborCells * Buckets
unsigned char * CellHasBeenVisited
unsigned char QueryNumber
int CacheCellBounds
float(* CellBounds )[6]

Detailed Description

octree-based spatial search object to quickly locate cells.

Date:
2001/11/13 14:12:55
Revision:
1.55

vtkCellLocator is a spatial search object to quickly locate cells in 3D. vtkCellLocator uses a uniform-level octree subdivision, where each octant (an octant is also referred to as a bucket) carries an indication of whether it is empty or not, and each leaf octant carries a list of the cells inside of it. (An octant is not empty if it has one or more cells inside of it.) Typical operations are intersection with a line to return candidate cells, or intersection with another vtkCellLocator to return candidate cells.

Warning:
Many other types of spatial locators have been developed, such as variable depth octrees and kd-trees. These are often more efficient for the operations described here. vtkCellLocator has been designed for subclassing; so these locators can be derived if necessary.
See also:
vtkLocator vtkPointLocator vtkOBBTree
Tests:
vtkCellLocator (Tests)

Definition at line 75 of file vtkCellLocator.h.


Constructor & Destructor Documentation

vtkCellLocator::vtkCellLocator   [protected]


vtkCellLocator::~vtkCellLocator   [protected]



Member Function Documentation

virtual const char* vtkCellLocator::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

int vtkCellLocator::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

virtual int vtkCellLocator::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

vtkCellLocator* vtkCellLocator::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

void vtkCellLocator::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLocator.

vtkCellLocator* vtkCellLocator::New   [static]


Construct with automatic computation of divisions, averaging 25 cells per bucket.

Reimplemented from vtkObject.

Reimplemented in vtkOBBTree.

virtual void vtkCellLocator::SetNumberOfCellsPerBucket int    [virtual]


Specify the average number of cells in each octant.

virtual int vtkCellLocator::GetNumberOfCellsPerBucket   [virtual]


Specify the average number of cells in each octant.

virtual void vtkCellLocator::SetCacheCellBounds int    [virtual]


Boolean controls whether the bounds of each cell are computed only once and then saved. Should be 10 to 20% faster if repeatedly calling any of the FindClosestPoint routines and the extra memory won't cause disk caching (24 extra bytes per cell are required to save the bounds).

virtual int vtkCellLocator::GetCacheCellBounds   [virtual]


Boolean controls whether the bounds of each cell are computed only once and then saved. Should be 10 to 20% faster if repeatedly calling any of the FindClosestPoint routines and the extra memory won't cause disk caching (24 extra bytes per cell are required to save the bounds).

virtual void vtkCellLocator::CacheCellBoundsOn   [virtual]


Boolean controls whether the bounds of each cell are computed only once and then saved. Should be 10 to 20% faster if repeatedly calling any of the FindClosestPoint routines and the extra memory won't cause disk caching (24 extra bytes per cell are required to save the bounds).

virtual void vtkCellLocator::CacheCellBoundsOff   [virtual]


Boolean controls whether the bounds of each cell are computed only once and then saved. Should be 10 to 20% faster if repeatedly calling any of the FindClosestPoint routines and the extra memory won't cause disk caching (24 extra bytes per cell are required to save the bounds).

virtual int vtkCellLocator::IntersectWithLine float    a0[3],
float    a1[3],
float    tol,
float &    t,
float    x[3],
float    pcoords[3],
int &    subId
[virtual]


Return intersection point (if any) of finite line with cells contained in cell locator.

Reimplemented in vtkOBBTree.

virtual int vtkCellLocator::IntersectWithLine float    a0[3],
float    a1[3],
float    tol,
float &    t,
float    x[3],
float    pcoords[3],
int &    subId,
vtkIdType   cellId
[virtual]


Return intersection point (if any) AND the cell which was intersected by the finite line.

Reimplemented in vtkOBBTree.

virtual int vtkCellLocator::IntersectWithLine float    a0[3],
float    a1[3],
float    tol,
float &    t,
float    x[3],
float    pcoords[3],
int &    subId,
vtkIdType   cellId,
vtkGenericCell   cell
[virtual]


Return intersection point (if any) AND the cell which was intersected by the finite line. The cell is returned as a cell id and as a generic cell.

Reimplemented in vtkOBBTree.

void vtkCellLocator::FindClosestPoint float    x[3],
float    closestPoint[3],
vtkIdType   cellId,
int &    subId,
float &    dist2


Return the closest point and the cell which is closest to the point x. The closest point is somewhere on a cell, it need not be one of the vertices of the cell.

void vtkCellLocator::FindClosestPoint float    x[3],
float    closestPoint[3],
vtkGenericCell   cell,
vtkIdType   cellId,
int &    subId,
float &    dist2


Return the closest point and the cell which is closest to the point x. The closest point is somewhere on a cell, it need not be one of the vertices of the cell. This version takes in a vtkGenericCell to avoid allocating and deallocating the cell. This is much faster than the version which does not take a *cell, especially when this function is called many times in a row such as by a for loop, where the allocation and deallocation can be done only once outside the for loop. If a cell is found, "cell" contains the points and ptIds for the cell "cellId" upon exit.

int vtkCellLocator::FindClosestPointWithinRadius float    x[3],
float    radius,
float    closestPoint[3],
vtkIdType   cellId,
int &    subId,
float &    dist2


Return the closest point within a specified radius and the cell which is closest to the point x. The closest point is somewhere on a cell, it need not be one of the vertices of the cell. This method returns 1 if a point is found within the specified radius. If there are no cells within the specified radius, the method returns 0 and the values of closestPoint, cellId, subId, and dist2 are undefined.

int vtkCellLocator::FindClosestPointWithinRadius float    x[3],
float    radius,
float    closestPoint[3],
vtkGenericCell   cell,
vtkIdType   cellId,
int &    subId,
float &    dist2


Return the closest point within a specified radius and the cell which is closest to the point x. The closest point is somewhere on a cell, it need not be one of the vertices of the cell. This method returns 1 if a point is found within the specified radius. If there are no cells within the specified radius, the method returns 0 and the values of closestPoint, cellId, subId, and dist2 are undefined. This version takes in a vtkGenericCell to avoid allocating and deallocating the cell. This is much faster than the version which does not take a *cell, especially when this function is called many times in a row such as by a for loop, where the allocation and deallocation can be done only once outside the for loop. If a closest point is found, "cell" contains the points and ptIds for the cell "cellId" upon exit.

int vtkCellLocator::FindClosestPointWithinRadius float    x[3],
float    radius,
float    closestPoint[3],
vtkGenericCell   cell,
vtkIdType   cellId,
int &    subId,
float &    dist2,
int &    inside


Return the closest point within a specified radius and the cell which is closest to the point x. The closest point is somewhere on a cell, it need not be one of the vertices of the cell. This method returns 1 if a point is found within the specified radius. If there are no cells within the specified radius, the method returns 0 and the values of closestPoint, cellId, subId, and dist2 are undefined. This version takes in a vtkGenericCell to avoid allocating and deallocating the cell. This is much faster than the version which does not take a *cell, especially when this function is called many times in a row such as by a for loop, where the allocation and dealloction can be done only once outside the for loop. If a closest point is found, "cell" contains the points and ptIds for the cell "cellId" upon exit. If a closest point is found, inside returns the return value of the EvaluatePosition call to the closest cell; inside(=1) or outside(=0).

virtual vtkIdList* vtkCellLocator::GetCells int    bucket [virtual]


Get the cells in a particular bucket.

virtual int vtkCellLocator::GetNumberOfBuckets void    [virtual]


Return number of buckets available. Insure that the locator has been built before attempting to access buckets (octants).

void vtkCellLocator::FreeSearchStructure   [virtual]


Satisfy vtkLocator abstract interface.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

void vtkCellLocator::BuildLocator   [virtual]


Satisfy vtkLocator abstract interface.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

void vtkCellLocator::GenerateRepresentation int    level,
vtkPolyData   pd
[virtual]


Satisfy vtkLocator abstract interface.

Reimplemented from vtkLocator.

Reimplemented in vtkOBBTree.

void vtkCellLocator::GetBucketNeighbors int    ijk[3],
int    ndivs,
int    level
[protected]


void vtkCellLocator::GetOverlappingBuckets float    x[3],
int    ijk[3],
float    dist,
int    prevMinLevel[3],
int    prevMaxLevel[3]
[protected]


void vtkCellLocator::ClearCellHasBeenVisited   [protected]


void vtkCellLocator::ClearCellHasBeenVisited int    id [protected]


float vtkCellLocator::Distance2ToBucket float    x[3],
int    nei[3]
[protected]


float vtkCellLocator::Distance2ToBounds float    x[3],
float    bounds[6]
[protected]


void vtkCellLocator::MarkParents void *   ,
int   ,
int   ,
int   ,
int   ,
int
[protected]


void vtkCellLocator::GetChildren int    idx,
int    level,
int    children[8]
[protected]


int vtkCellLocator::GenerateIndex int    offset,
int    numDivs,
int    i,
int    j,
int    k,
vtkIdType   idx
[protected]


void vtkCellLocator::GenerateFace int    face,
int    numDivs,
int    i,
int    j,
int    k,
vtkPoints   pts,
vtkCellArray   polys
[protected]



Member Data Documentation

int vtkCellLocator::NumberOfCellsPerBucket [protected]


Definition at line 233 of file vtkCellLocator.h.

int vtkCellLocator::NumberOfOctants [protected]


Definition at line 234 of file vtkCellLocator.h.

float vtkCellLocator::Bounds[6] [protected]


Definition at line 235 of file vtkCellLocator.h.

int vtkCellLocator::NumberOfParents [protected]


Definition at line 236 of file vtkCellLocator.h.

float vtkCellLocator::H[3] [protected]


Definition at line 237 of file vtkCellLocator.h.

int vtkCellLocator::NumberOfDivisions [protected]


Definition at line 238 of file vtkCellLocator.h.

vtkIdList** vtkCellLocator::Tree [protected]


Reimplemented in vtkOBBTree.

Definition at line 239 of file vtkCellLocator.h.

vtkNeighborCells* vtkCellLocator::Buckets [protected]


Definition at line 248 of file vtkCellLocator.h.

unsigned char* vtkCellLocator::CellHasBeenVisited [protected]


Definition at line 249 of file vtkCellLocator.h.

unsigned char vtkCellLocator::QueryNumber [protected]


Definition at line 250 of file vtkCellLocator.h.

int vtkCellLocator::CacheCellBounds [protected]


Definition at line 251 of file vtkCellLocator.h.

float(* vtkCellLocator::CellBounds)[6] [protected]


Definition at line 253 of file vtkCellLocator.h.


The documentation for this class was generated from the following file:
