vtkPolyVertex Class Reference

cell represents a set of 0D vertices. More...

#include <vtkPolyVertex.h>

Inheritance diagram for vtkPolyVertex:

Inheritance graph
[legend]

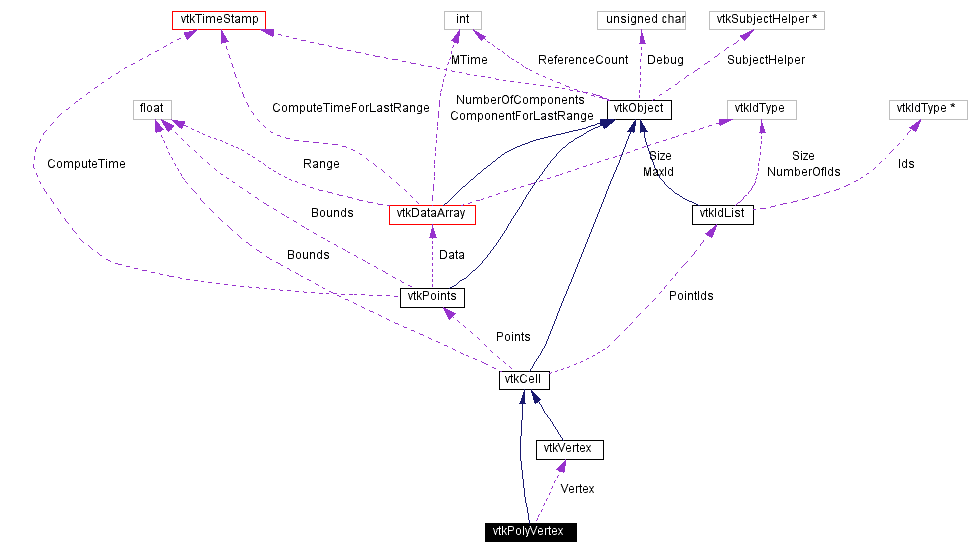

Collaboration diagram for vtkPolyVertex:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
int GetParametricCenter (float pcoords[3])
vtkCell * MakeObject ()
int GetCellType ()
int GetCellDimension ()
int GetNumberOfEdges ()
int GetNumberOfFaces ()
vtkCell * GetEdge (int vtkNotUsed(edgeId))
vtkCell * GetFace (int vtkNotUsed(faceId))
int CellBoundary (int subId, float pcoords[3], vtkIdList *pts)
void Contour (float value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)
void Clip (float value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)
int EvaluatePosition (float x[3], float *closestPoint, int &subId, float pcoords[3], float &dist2, float *weights)
void EvaluateLocation (int &subId, float pcoords[3], float x[3], float *weights)
int IntersectWithLine (float p1[3], float p2[3], float tol, float &t, float x[3], float pcoords[3], int &subId)
int Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts)
void Derivatives (int subId, float pcoords[3], float *values, int dim, float *derivs)

Static Public Methods

vtkPolyVertex * New ()
int IsTypeOf (const char *type)
vtkPolyVertex * SafeDownCast (vtkObject *o)

Protected Methods

 vtkPolyVertex ()
 ~vtkPolyVertex ()

Protected Attributes

vtkVertex * Vertex

Detailed Description

cell represents a set of 0D vertices.

Date:
2001/11/02 16:41:16
Revision:
1.56

vtkPolyVertex is a concrete implementation of vtkCell to represent a set of 3D vertices.

Examples:
vtkPolyVertex (Examples)
Tests:
vtkPolyVertex (Tests)

Definition at line 62 of file vtkPolyVertex.h.

Constructor & Destructor Documentation

vtkPolyVertex::vtkPolyVertex (    )  [protected]


vtkPolyVertex::~vtkPolyVertex (    )  [protected]


Member Function Documentation

vtkPolyVertex* vtkPolyVertex::New (    )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPolyVertex::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

int vtkPolyVertex::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

virtual int vtkPolyVertex::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

vtkPolyVertex* vtkPolyVertex::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

vtkCell* vtkPolyVertex::MakeObject (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkPolyVertex::GetCellType (    )  [inline, virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

Definition at line 71 of file vtkPolyVertex.h.

int vtkPolyVertex::GetCellDimension (    )  [inline, virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

Definition at line 72 of file vtkPolyVertex.h.

int vtkPolyVertex::GetNumberOfEdges (    )  [inline, virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

Definition at line 73 of file vtkPolyVertex.h.

int vtkPolyVertex::GetNumberOfFaces (    )  [inline, virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

Definition at line 74 of file vtkPolyVertex.h.

vtkCell* vtkPolyVertex::GetEdge (  int vtkNotUsed(edgeId)    )  [inline]


See the vtkCell API for descriptions of these methods.

Definition at line 75 of file vtkPolyVertex.h.

vtkCell* vtkPolyVertex::GetFace (  int vtkNotUsed(faceId)    )  [inline]


See the vtkCell API for descriptions of these methods.

Definition at line 76 of file vtkPolyVertex.h.

int vtkPolyVertex::CellBoundary (  int    subId,
float    pcoords[3],
vtkIdList *    pts
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkPolyVertex::Contour (  float    value,
vtkDataArray *    cellScalars,
vtkPointLocator *    locator,
vtkCellArray *    verts,
vtkCellArray *    lines,
vtkCellArray *    polys,
vtkPointData *    inPd,
vtkPointData *    outPd,
vtkCellData *    inCd,
vtkIdType    cellId,
vtkCellData *    outCd
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkPolyVertex::Clip (  float    value,
vtkDataArray *    cellScalars,
vtkPointLocator *    locator,
vtkCellArray *    verts,
vtkPointData *    inPd,
vtkPointData *    outPd,
vtkCellData *    inCd,
vtkIdType    cellId,
vtkCellData *    outCd,
int    insideOut
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkPolyVertex::EvaluatePosition (  float    x[3],
float *    closestPoint,
int &    subId,
float    pcoords[3],
float &    dist2,
float *    weights
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkPolyVertex::EvaluateLocation (  int &    subId,
float    pcoords[3],
float    x[3],
float *    weights
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkPolyVertex::IntersectWithLine (  float    p1[3],
float    p2[3],
float    tol,
float &    t,
float    x[3],
float    pcoords[3],
int &    subId
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkPolyVertex::Triangulate (  int    index,
vtkIdList *    ptIds,
vtkPoints *    pts
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkPolyVertex::Derivatives (  int    subId,
float    pcoords[3],
float *    values,
int    dim,
float *    derivs
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkPolyVertex::GetParametricCenter (  float    pcoords[3] )  [virtual]


Return the center of the point cloud in parametric coordinates.

Reimplemented from vtkCell.

Member Data Documentation

vtkVertex* vtkPolyVertex::Vertex [protected]


Definition at line 108 of file vtkPolyVertex.h.

The documentation for this class was generated from the following file:
