vtkUnstructuredGridToPolyDataFilter Class Reference

abstract filter class. More...

#include <vtkUnstructuredGridToPolyDataFilter.h>

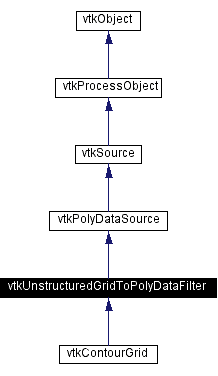

Inheritance diagram for vtkUnstructuredGridToPolyDataFilter:

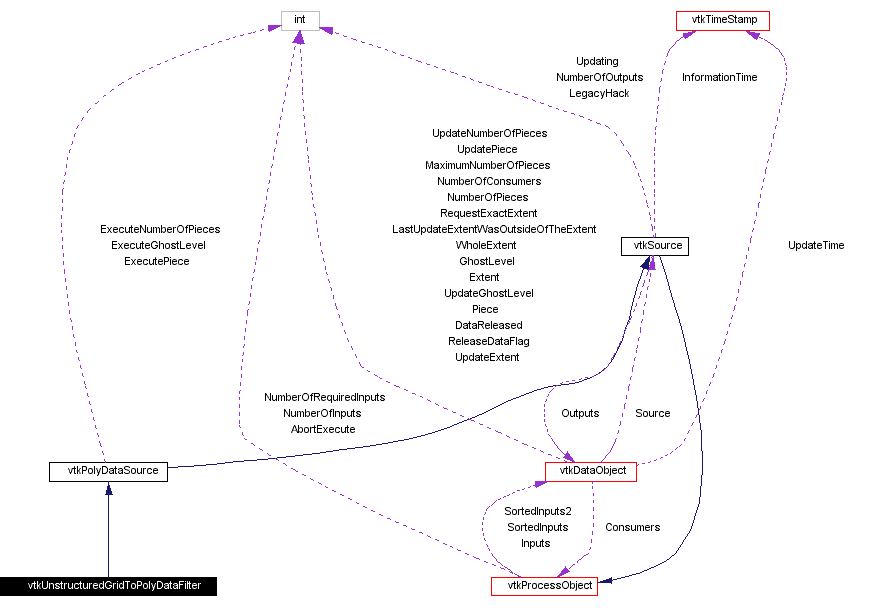

[legend]Collaboration diagram for vtkUnstructuredGridToPolyDataFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	SetInput (vtkUnstructuredGrid *input)
vtkUnstructuredGrid *	GetInput ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkUnstructuredGridToPolyDataFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkUnstructuredGridToPolyDataFilter ()
	~vtkUnstructuredGridToPolyDataFilter ()

---

Detailed Description

abstract filter class.

Date:

2001/10/11 13:36:40

Revision:

1.4

vtkUnstructuredGridToPolyDataFilter is an abstract filter class whose subclasses take as input datasets of type vtkUnstructuredGrid and generate polygonal data on output.

See also:

vtkContourGrid

Definition at line 60 of file vtkUnstructuredGridToPolyDataFilter.h.

---

Constructor & Destructor Documentation

vtkUnstructuredGridToPolyDataFilter::vtkUnstructuredGridToPolyDataFilter (    )  [inline, protected]

Definition at line 75 of file vtkUnstructuredGridToPolyDataFilter.h.

vtkUnstructuredGridToPolyDataFilter::~vtkUnstructuredGridToPolyDataFilter (    )  [inline, protected]

Definition at line 76 of file vtkUnstructuredGridToPolyDataFilter.h.

---

Member Function Documentation

virtual const char* vtkUnstructuredGridToPolyDataFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkContourGrid.

int vtkUnstructuredGridToPolyDataFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkContourGrid.

virtual int vtkUnstructuredGridToPolyDataFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkContourGrid.

vtkUnstructuredGridToPolyDataFilter* vtkUnstructuredGridToPolyDataFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkContourGrid.

virtual void vtkUnstructuredGridToPolyDataFilter::SetInput (  vtkUnstructuredGrid *    input )  [virtual]

Set / get the input data or filter.

vtkUnstructuredGrid* vtkUnstructuredGridToPolyDataFilter::GetInput (    )

Set / get the input data or filter.

virtual void vtkUnstructuredGridToPolyDataFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [virtual]

Do not let datasets return more than requested. Reimplemented from vtkPolyDataSource.

---

The documentation for this class was generated from the following file:

• Filtering/vtkUnstructuredGridToPolyDataFilter.h

---
