vtkDataArray Class Reference

#include <vtkDataArray.h>

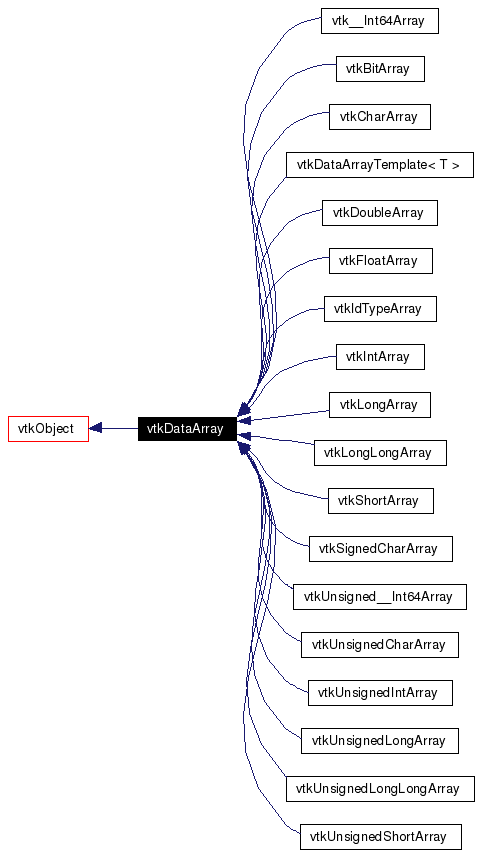

Inheritance diagram for vtkDataArray:

Inheritance graph
[legend]
Collaboration diagram for vtkDataArray:

Collaboration graph
[legend]
List of all members.

Detailed Description

abstract superclass for arrays

vtkDataArray is an abstract superclass for data array objects. This class defines an API that all array objects must support. Note that the concrete subclasses of this class represent data in native form (char, int, etc.) and often have specialized more efficient methods for operating on this data (for example, getting pointers to data or getting/inserting data in native form).

The logical structure of this class is an array of tuples, where each tuple is made up of n-components (also called a component group), and n is the number of component values in a tuple(n >= 1). Another view of this class is a mxn matrix, where m is the number of tuples, and n is the number of components in a tuple. Thus vtkDataArray can be used to represent scalars (1-4 components), 3D vectors (3 components), texture coordinates (1-3 components), tensors, (9 components) and so on.

Each data array is required to have a character-string name. The naming of the array occurs automatically when it is instantiated, but you are free to name arrays using the SetName() method. (The array name is used for data manipulation.)

See also:
vtkBitArray vtkCharArray vtkUnsignedCharArray vtkShortArray vtkUnsignedShortArray vtkIntArray vtkUnsignedIntArray vtkLongArray vtkUnsignedLongArray vtkDoubleArray vtkDoubleArray
Tests:
vtkDataArray (Tests)

Definition at line 58 of file vtkDataArray.h.
virtual int GetDataType ()=0
virtual int GetDataTypeSize ()=0
static unsigned long GetDataTypeSize (int type)
void GetDataTypeRange (double range[2])
double GetDataTypeMin ()
double GetDataTypeMax ()
static void GetDataTypeRange (int type, double range[2])
static double GetDataTypeMin (int type)
static double GetDataTypeMax (int type)

Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int Allocate (vtkIdType sz, vtkIdType ext=1000)=0
virtual void Initialize ()=0
virtual double * GetTuple (vtkIdType i)=0
void GetTuples (vtkIdList *ptIds, vtkDataArray *output)
virtual double GetComponent (vtkIdType i, int j)
virtual void SetComponent (vtkIdType i, int j, double c)
virtual void DeepCopy (vtkDataArray *da)
virtual void * WriteVoidPointer (vtkIdType id, vtkIdType number)=0
virtual void * GetVoidPointer (vtkIdType id)=0
virtual void Squeeze ()=0
virtual void ExportToVoidPointer (void *vtkNotUsed(out_ptr))
unsigned long GetActualMemorySize ()
virtual double GetMaxNorm ()
virtual void SetNumberOfComponents (int)
int GetNumberOfComponents ()
virtual void SetNumberOfTuples (vtkIdType number)=0
vtkIdType GetNumberOfTuples ()
virtual void GetTuple (vtkIdType i, double *tuple)=0
double GetTuple1 (vtkIdType i)
double * GetTuple2 (vtkIdType i)
double * GetTuple3 (vtkIdType i)
double * GetTuple4 (vtkIdType i)
double * GetTuple9 (vtkIdType i)
void GetTuples (vtkIdType p1, vtkIdType p2, vtkDataArray *output)
virtual void SetTuple (vtkIdType i, const float *tuple)=0
virtual void SetTuple (vtkIdType i, const double *tuple)=0
void SetTuple1 (vtkIdType i, double value)
void SetTuple2 (vtkIdType i, double val0, double val1)
void SetTuple3 (vtkIdType i, double val0, double val1, double val2)
void SetTuple4 (vtkIdType i, double val0, double val1, double val2, double val3)
void SetTuple9 (vtkIdType i, double val0, double val1, double val2, double val3, double val4, double val5, double val6, double val7, double val8)
virtual void InsertTuple (vtkIdType i, const float *tuple)=0
virtual void InsertTuple (vtkIdType i, const double *tuple)=0
void InsertTuple1 (vtkIdType i, double value)
void InsertTuple2 (vtkIdType i, double val0, double val1)
void InsertTuple3 (vtkIdType i, double val0, double val1, double val2)
void InsertTuple4 (vtkIdType i, double val0, double val1, double val2, double val3)
void InsertTuple9 (vtkIdType i, double val0, double val1, double val2, double val3, double val4, double val5, double val6, double val7, double val8)
virtual vtkIdType InsertNextTuple (const float *tuple)=0
virtual vtkIdType InsertNextTuple (const double *tuple)=0
void InsertNextTuple1 (double value)
void InsertNextTuple2 (double val0, double val1)
void InsertNextTuple3 (double val0, double val1, double val2)
void InsertNextTuple4 (double val0, double val1, double val2, double val3)
void InsertNextTuple9 (double val0, double val1, double val2, double val3, double val4, double val5, double val6, double val7, double val8)
virtual void InsertComponent (vtkIdType i, int j, double c)
virtual void GetData (vtkIdType tupleMin, vtkIdType tupleMax, int compMin, int compMax, vtkDoubleArray *data)
virtual void FillComponent (int j, double c)
virtual void CopyComponent (int j, vtkDataArray *from, int fromComponent)
virtual int Resize (vtkIdType numTuples)=0
void Reset ()
vtkIdType GetSize ()
vtkIdType GetMaxId ()
virtual void SetVoidArray (void *vtkNotUsed(array), vtkIdType vtkNotUsed(size), int vtkNotUsed(save))
void CreateDefaultLookupTable ()
void SetLookupTable (vtkLookupTable *lut)
virtual vtkLookupTableGetLookupTable ()
virtual void SetName (const char *)
virtual char * GetName ()
void GetRange (double range[2], int comp)
double * GetRange (int comp)
virtual void ComputeRange (int comp)
double * GetRange ()
void GetRange (double range[2])

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkDataArraySafeDownCast (vtkObject *o)
static vtkDataArrayCreateDataArray (int dataType)

Protected Member Functions

 vtkDataArray (vtkIdType numComp=1)
 ~vtkDataArray ()

Protected Attributes

vtkLookupTableLookupTable
vtkIdType Size
vtkIdType MaxId
int NumberOfComponents
char * Name
double Range [2]
vtkTimeStamp ComponentRangeComputeTime [VTK_MAXIMUM_NUMBER_OF_CACHED_COMPONENT_RANGES]
double ComponentRange [VTK_MAXIMUM_NUMBER_OF_CACHED_COMPONENT_RANGES][2]


Member Typedef Documentation

typedef vtkObject vtkDataArray::Superclass


Reimplemented from vtkObject.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDataArrayTemplate< T >, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

Definition at line 61 of file vtkDataArray.h.


Constructor & Destructor Documentation

vtkDataArray::vtkDataArray vtkIdType  numComp = 1  )  [protected]


vtkDataArray::~vtkDataArray  )  [protected]



Member Function Documentation

virtual const char* vtkDataArray::GetClassName  )  [virtual]


Reimplemented from vtkObject.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

static int vtkDataArray::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

virtual int vtkDataArray::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

static vtkDataArray* vtkDataArray::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkObject.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

void vtkDataArray::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDataArrayTemplate< T >, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

virtual int vtkDataArray::Allocate vtkIdType  sz,
vtkIdType  ext = 1000
[pure virtual]


Allocate memory for this array. Delete old storage only if necessary. Note that ext is no longer used.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

Referenced by vtkStructuredVisibilityConstraint::Blank().

virtual void vtkDataArray::Initialize  )  [pure virtual]


Release storage and reset array to initial state.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual int vtkDataArray::GetDataType  )  [pure virtual]


Return the underlying data type. An integer indicating data type is returned as specified in vtkSetGet.h.

Implemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

virtual int vtkDataArray::GetDataTypeSize  )  [pure virtual]


Return the size of the underlying data type. For a bit, 0 is returned.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

static unsigned long vtkDataArray::GetDataTypeSize int  type  )  [static]


Return the underlying data type. An integer indicating data type is returned as specified in vtkSetGet.h.

virtual void vtkDataArray::SetNumberOfComponents int   )  [virtual]


Set/Get the dimension (n) of the components. Must be >= 1. Make sure that this is set before allocation.

Referenced by vtkPoints::SetNumberOfPoints().

int vtkDataArray::GetNumberOfComponents  )  [inline]


Set/Get the dimension (n) of the components. Must be >= 1. Make sure that this is set before allocation.

Definition at line 86 of file vtkDataArray.h.

virtual void vtkDataArray::SetNumberOfTuples vtkIdType  number  )  [pure virtual]


Set the number of tuples (a component group) in the array. Note that this may allocate space depending on the number of components.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

Referenced by vtkPoints::SetNumberOfPoints().

vtkIdType vtkDataArray::GetNumberOfTuples  )  [inline]


Get the number of tuples (a component group) in the array.

Definition at line 95 of file vtkDataArray.h.

virtual double* vtkDataArray::GetTuple vtkIdType  i  )  [pure virtual]


Get the data tuple at ith location. Return it as a pointer to an array. Note: this method is not thread-safe, and the pointer is only valid as long as another method invocation to a vtk object is not performed.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::GetTuple vtkIdType  i,
double *  tuple
[pure virtual]


Get the data tuple at ith location by filling in a user-provided array, Make sure that your array is large enough to hold the NumberOfComponents amount of data being returned.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

double vtkDataArray::GetTuple1 vtkIdType  i  )


These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

double* vtkDataArray::GetTuple2 vtkIdType  i  )


Get the data tuple at ith location by filling in a user-provided array, Make sure that your array is large enough to hold the NumberOfComponents amount of data being returned.

double* vtkDataArray::GetTuple3 vtkIdType  i  )


Get the data tuple at ith location by filling in a user-provided array, Make sure that your array is large enough to hold the NumberOfComponents amount of data being returned.

double* vtkDataArray::GetTuple4 vtkIdType  i  )


Get the data tuple at ith location by filling in a user-provided array, Make sure that your array is large enough to hold the NumberOfComponents amount of data being returned.

double* vtkDataArray::GetTuple9 vtkIdType  i  )


Get the data tuple at ith location by filling in a user-provided array, Make sure that your array is large enough to hold the NumberOfComponents amount of data being returned.

void vtkDataArray::GetTuples vtkIdList ptIds,
vtkDataArray output


Given a list of point ids, return an array of tuples. You must insure that the output array has been previously allocated with enough space to hold the data.

void vtkDataArray::GetTuples vtkIdType  p1,
vtkIdType  p2,
vtkDataArray output


Get the tuples for the range of points ids specified (i.e., p1->p2 inclusive). You must insure that the output array has been previously allocated with enough space to hold the data.

virtual void vtkDataArray::SetTuple vtkIdType  i,
const float *  tuple
[pure virtual]


Set the data tuple at ith location. Note that range checking or memory allocation is not performed; use this method in conjunction with SetNumberOfTuples() to allocate space.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

Referenced by vtkPoints::SetPoint().

virtual void vtkDataArray::SetTuple vtkIdType  i,
const double *  tuple
[pure virtual]


Get the tuples for the range of points ids specified (i.e., p1->p2 inclusive). You must insure that the output array has been previously allocated with enough space to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::SetTuple1 vtkIdType  i,
double  value


These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple2 vtkIdType  i,
double  val0,
double  val1


These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple3 vtkIdType  i,
double  val0,
double  val1,
double  val2


These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple4 vtkIdType  i,
double  val0,
double  val1,
double  val2,
double  val3


These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple9 vtkIdType  i,
double  val0,
double  val1,
double  val2,
double  val3,
double  val4,
double  val5,
double  val6,
double  val7,
double  val8


These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

virtual void vtkDataArray::InsertTuple vtkIdType  i,
const float *  tuple
[pure virtual]


Insert the data tuple at ith location. Note that memory allocation is performed as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

Referenced by vtkPoints::InsertPoint().

virtual void vtkDataArray::InsertTuple vtkIdType  i,
const double *  tuple
[pure virtual]


Insert the data tuple at ith location. Note that memory allocation is performed as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::InsertTuple1 vtkIdType  i,
double  value


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple2 vtkIdType  i,
double  val0,
double  val1


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple3 vtkIdType  i,
double  val0,
double  val1,
double  val2


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple4 vtkIdType  i,
double  val0,
double  val1,
double  val2,
double  val3


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple9 vtkIdType  i,
double  val0,
double  val1,
double  val2,
double  val3,
double  val4,
double  val5,
double  val6,
double  val7,
double  val8


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

virtual vtkIdType vtkDataArray::InsertNextTuple const float *  tuple  )  [pure virtual]


Insert the data tuple at the end of the array and return the location at which the data was inserted. Memory is allocated as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

Referenced by vtkPoints::InsertNextPoint().

virtual vtkIdType vtkDataArray::InsertNextTuple const double *  tuple  )  [pure virtual]


Insert the data tuple at the end of the array and return the location at which the data was inserted. Memory is allocated as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::InsertNextTuple1 double  value  )


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple2 double  val0,
double  val1


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple3 double  val0,
double  val1,
double  val2


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple4 double  val0,
double  val1,
double  val2,
double  val3


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple9 double  val0,
double  val1,
double  val2,
double  val3,
double  val4,
double  val5,
double  val6,
double  val7,
double  val8


These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

virtual double vtkDataArray::GetComponent vtkIdType  i,
int  j
[virtual]


Return the data component at the ith tuple and jth component location. Note that i is less than NumberOfTuples and j is less than NumberOfComponents.

Reimplemented in vtkDataArrayTemplate< T >.

virtual void vtkDataArray::SetComponent vtkIdType  i,
int  j,
double  c
[virtual]


Set the data component at the ith tuple and jth component location. Note that i is less than NumberOfTuples and j is less than NumberOfComponents. Make sure enough memory has been allocated (use SetNumberOfTuples() and SetNumberOfComponents()).

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::InsertComponent vtkIdType  i,
int  j,
double  c
[virtual]


Insert the data component at ith tuple and jth component location. Note that memory allocation is performed as necessary to hold the data.

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::GetData vtkIdType  tupleMin,
vtkIdType  tupleMax,
int  compMin,
int  compMax,
vtkDoubleArray data
[virtual]


Get the data as a double array in the range (tupleMin,tupleMax) and (compMin, compMax). The resulting double array consists of all data in the tuple range specified and only the component range specified. This process typically requires casting the data from native form into doubleing point values. This method is provided as a convenience for data exchange, and is not very fast.

virtual void vtkDataArray::DeepCopy vtkDataArray da  )  [virtual]


Deep copy of data. Copies data from different data arrays even if they are different types (using doubleing-point exchange).

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::FillComponent int  j,
double  c
[virtual]


Fill a component of a data array with a specified value. This method sets the specified component to specified value for all tuples in the data array. This methods can be used to initialize or reinitialize a single component of a multi-component array.

virtual void vtkDataArray::CopyComponent int  j,
vtkDataArray from,
int  fromComponent
[virtual]


Copy a component from one data array into a component on this data array. This method copies the specified component ("fromComponent") from the specified data array ("from") to the specified component ("j") over all the tuples in this data array. This method can be used to extract a component (column) from one data array and paste that data into a component on this data array.

virtual void* vtkDataArray::WriteVoidPointer vtkIdType  id,
vtkIdType  number
[pure virtual]


Get the address of a particular data index. Make sure data is allocated for the number of items requested. Set MaxId according to the number of data values requested.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void* vtkDataArray::GetVoidPointer vtkIdType  id  )  [pure virtual]


Return a void pointer. For image pipeline interface and other special pointer manipulation.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::Squeeze  )  [pure virtual]


Free any unnecessary memory.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual int vtkDataArray::Resize vtkIdType  numTuples  )  [pure virtual]


Resize the array while conserving the data. Returns 1 if resizing succeeded and 0 otherwise.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::Reset  )  [inline]


Reset to an empty state, without freeing any memory.

Definition at line 262 of file vtkDataArray.h.

Referenced by vtkCellArray::Reset().

vtkIdType vtkDataArray::GetSize  )  [inline]


Return the size of the data.

Definition at line 268 of file vtkDataArray.h.

vtkIdType vtkDataArray::GetMaxId  )  [inline]


What is the maximum id currently in the array.

Definition at line 274 of file vtkDataArray.h.

Referenced by vtkPriorityQueue::DeleteId(), vtkCellArray::GetNextCell(), vtkPriorityQueue::GetPriority(), and vtkCellArray::InsertNextCell().

virtual void vtkDataArray::SetVoidArray void *  vtkNotUsed(array),
vtkIdType   vtkNotUsed(size),
int   vtkNotUsed(save)
[inline, virtual]


This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the supplied array.

Definition at line 285 of file vtkDataArray.h.

virtual void vtkDataArray::ExportToVoidPointer void *  vtkNotUsed(out_ptr)  )  [inline, virtual]


This method copies the array data to the void pointer specified by the user. It is up to the user to allocate enough memory for the void pointer.

Definition at line 293 of file vtkDataArray.h.

unsigned long vtkDataArray::GetActualMemorySize  )


Return the memory in kilobytes consumed by this data array. Used to support streaming and reading/writing data. The value returned is guaranteed to be greater than or equal to the memory required to actually represent the data represented by this object. The information returned is valid only after the pipeline has been updated.

void vtkDataArray::CreateDefaultLookupTable  )


Create default lookup table. Generally used to create one when none is available.

void vtkDataArray::SetLookupTable vtkLookupTable lut  )


Set/get the lookup table associated with this scalar data, if any.

virtual vtkLookupTable* vtkDataArray::GetLookupTable  )  [virtual]


Create default lookup table. Generally used to create one when none is available.

virtual void vtkDataArray::SetName const char *   )  [virtual]


Set/get array's name

virtual char* vtkDataArray::GetName  )  [virtual]


Set/get array's name

Referenced by vtkFieldData::GetArrayName().

void vtkDataArray::GetRange double  range[2],
int  comp
[inline]


Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

Definition at line 324 of file vtkDataArray.h.

double* vtkDataArray::GetRange int  comp  )  [inline]


Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

Definition at line 329 of file vtkDataArray.h.

virtual void vtkDataArray::ComputeRange int  comp  )  [virtual]


Reimplemented in vtkDataArrayTemplate< T >.

double* vtkDataArray::GetRange  )  [inline]


Return the range of the array values for the 0th component. Range is copied into the array provided.

Definition at line 340 of file vtkDataArray.h.

void vtkDataArray::GetRange double  range[2]  )  [inline]


Definition at line 345 of file vtkDataArray.h.

void vtkDataArray::GetDataTypeRange double  range[2]  )


These methods return the Min and Max possible range of the native data type. For example if a vtkScalars consists of unsigned char data these will return (0,255).

double vtkDataArray::GetDataTypeMin  )


These methods return the Min and Max possible range of the native data type. For example if a vtkScalars consists of unsigned char data these will return (0,255).

double vtkDataArray::GetDataTypeMax  )


These methods return the Min and Max possible range of the native data type. For example if a vtkScalars consists of unsigned char data these will return (0,255).

static void vtkDataArray::GetDataTypeRange int  type,
double  range[2]
[static]


These methods return the Min and Max possible range of the native data type. For example if a vtkScalars consists of unsigned char data these will return (0,255).

static double vtkDataArray::GetDataTypeMin int  type  )  [static]


These methods return the Min and Max possible range of the native data type. For example if a vtkScalars consists of unsigned char data these will return (0,255).

static double vtkDataArray::GetDataTypeMax int  type  )  [static]


These methods return the Min and Max possible range of the native data type. For example if a vtkScalars consists of unsigned char data these will return (0,255).

virtual double vtkDataArray::GetMaxNorm  )  [virtual]


Return the maximum norm for the tuples. Note that the max. is computed everytime GetMaxNorm is called.

static vtkDataArray* vtkDataArray::CreateDataArray int  dataType  )  [static]


Creates an array for dataType where dataType is one of VTK_BIT, VTK_CHAR, VTK_SIGNED_CHAR, VTK_UNSIGNED_CHAR, VTK_SHORT, VTK_UNSIGNED_SHORT, VTK_INT, VTK_UNSIGNED_INT, VTK_LONG, VTK_UNSIGNED_LONG, VTK_DOUBLE, VTK_DOUBLE, VTK_ID_TYPE. Note that the data array returned has be deleted by the user.


Member Data Documentation

vtkLookupTable* vtkDataArray::LookupTable [protected]


Definition at line 379 of file vtkDataArray.h.

vtkIdType vtkDataArray::Size [protected]


Definition at line 381 of file vtkDataArray.h.

vtkIdType vtkDataArray::MaxId [protected]


Definition at line 382 of file vtkDataArray.h.

Referenced by vtkBitArray::InsertNextValue(), vtkBitArray::InsertValue(), and vtkBitArray::SetNumberOfValues().

int vtkDataArray::NumberOfComponents [protected]


Definition at line 383 of file vtkDataArray.h.

char* vtkDataArray::Name [protected]


Definition at line 385 of file vtkDataArray.h.

double vtkDataArray::Range[2] [protected]


Definition at line 387 of file vtkDataArray.h.

vtkTimeStamp vtkDataArray::ComponentRangeComputeTime[VTK_MAXIMUM_NUMBER_OF_CACHED_COMPONENT_RANGES] [protected]


Definition at line 396 of file vtkDataArray.h.

double vtkDataArray::ComponentRange[VTK_MAXIMUM_NUMBER_OF_CACHED_COMPONENT_RANGES][2] [protected]


Definition at line 397 of file vtkDataArray.h.


The documentation for this class was generated from the following file:
Generated on Mon Jan 21 23:39:24 2008 for VTK by  doxygen 1.4.3-20050530
