vtkProp3D Class Reference

#include <vtkProp3D.h>

Inheritance diagram for vtkProp3D:

[legend]Collaboration diagram for vtkProp3D:

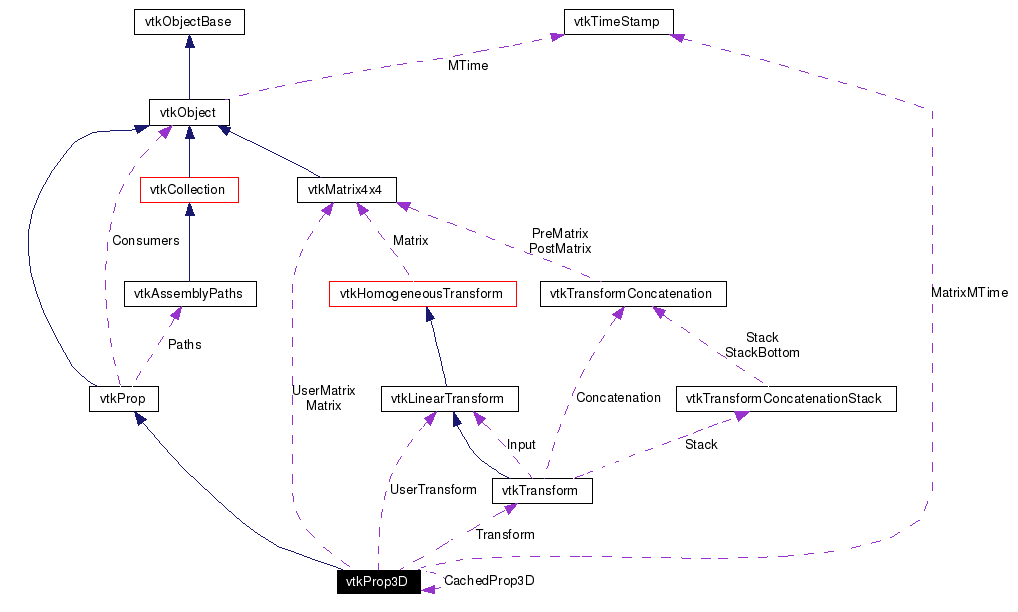

[legend]List of all members.

---

Detailed Description

represents an 3D object for placement in a rendered scene

vtkProp3D is an abstract class used to represent an entity in a rendering scene (i.e., vtkProp3D is a vtkProp with an associated transformation matrix). It handles functions related to the position, orientation and scaling. It combines these instance variables into one 4x4 transformation matrix as follows: [x y z 1] = [x y z 1] Translate(-origin) Scale(scale) Rot(y) Rot(x) Rot (z) Trans(origin) Trans(position). Both vtkActor and vtkVolume are specializations of class vtkProp. The constructor defaults to: origin(0,0,0) position=(0,0,0) orientation=(0,0,0), no user defined matrix or transform, and no texture map.

See also:

vtkProp vtkActor vtkAssembly vtkVolume

Definition at line 41 of file vtkProp3D.h.

Public Types
typedef vtkProp	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
double *	GetCenter ()
double *	GetXRange ()
double *	GetYRange ()
double *	GetZRange ()
double	GetLength ()
void	RotateX (double)
void	RotateY (double)
void	RotateZ (double)
void	RotateWXYZ (double, double, double, double)
void	SetOrientation (double, double, double)
double *	GetOrientationWXYZ ()
void	AddOrientation (double, double, double)
void	AddOrientation (double a[3])
void	PokeMatrix (vtkMatrix4x4 *matrix)
void	InitPathTraversal ()
unsigned long int	GetMTime ()
unsigned long int	GetUserTransformMatrixMTime ()
void	ShallowCopy (vtkProp *prop)
virtual void	SetPosition (double _arg1, double _arg2, double _arg3)
virtual void	SetPosition (double _arg[3])
virtual double *	GetPosition ()
virtual void	GetPosition (double data[3])
void	AddPosition (double deltaPosition[3])
void	AddPosition (double deltaX, double deltaY, double deltaZ)
virtual void	SetOrigin (double _arg1, double _arg2, double _arg3)
virtual void	SetOrigin (double _arg[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetScale (double _arg1, double _arg2, double _arg3)
virtual void	SetScale (double _arg[3])
virtual double *	GetScale ()
virtual void	GetScale (double data[3])
void	SetScale (double s)
void	SetUserTransform (vtkLinearTransform *transform)
virtual vtkLinearTransform *	GetUserTransform ()
void	SetUserMatrix (vtkMatrix4x4 *matrix)
vtkMatrix4x4 *	GetUserMatrix ()
virtual void	GetMatrix (vtkMatrix4x4 *m)
virtual void	GetMatrix (double m[16])
void	GetBounds (double bounds[6])
virtual double *	GetBounds ()=0
void	SetOrientation (double a[3])
double *	GetOrientation ()
void	GetOrientation (double o[3])
virtual void	ComputeMatrix ()
vtkMatrix4x4 *	GetMatrix ()
virtual int	GetIsIdentity ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkProp3D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkProp3D ()
	~vtkProp3D ()
Protected Attributes
vtkLinearTransform *	UserTransform
vtkMatrix4x4 *	UserMatrix
vtkMatrix4x4 *	Matrix
vtkTimeStamp	MatrixMTime
double	Origin [3]
double	Position [3]
double	Orientation [3]
double	Scale [3]
double	Center [3]
vtkTransform *	Transform
double	Bounds [6]
vtkProp3D *	CachedProp3D
int	IsIdentity

---

Member Typedef Documentation

typedef vtkProp vtkProp3D::Superclass

Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkImageActor, vtkLODActor, vtkLODProp3D, vtkMesaActor, vtkMesaImageActor, vtkOpenGLActor, vtkOpenGLImageActor, vtkTextActor3D, and vtkVolume. Definition at line 44 of file vtkProp3D.h.

---

Constructor & Destructor Documentation

vtkProp3D::vtkProp3D (   )  [protected]

vtkProp3D::~vtkProp3D (   )  [protected]

---

Member Function Documentation

virtual const char* vtkProp3D::GetClassName (   )  [virtual]

Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkImageActor, vtkLODActor, vtkLODProp3D, vtkMesaActor, vtkMesaImageActor, vtkOpenGLActor, vtkOpenGLImageActor, vtkTextActor3D, and vtkVolume.

static int vtkProp3D::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkImageActor, vtkLODActor, vtkLODProp3D, vtkMesaActor, vtkMesaImageActor, vtkOpenGLActor, vtkOpenGLImageActor, vtkTextActor3D, and vtkVolume.

virtual int vtkProp3D::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkImageActor, vtkLODActor, vtkLODProp3D, vtkMesaActor, vtkMesaImageActor, vtkOpenGLActor, vtkOpenGLImageActor, vtkTextActor3D, and vtkVolume.

static vtkProp3D* vtkProp3D::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkImageActor, vtkLODActor, vtkLODProp3D, vtkMesaActor, vtkMesaImageActor, vtkOpenGLActor, vtkOpenGLImageActor, vtkTextActor3D, and vtkVolume.

void vtkProp3D::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkImageActor, vtkLODActor, vtkLODProp3D, vtkMesaActor, vtkMesaImageActor, vtkOpenGLActor, vtkOpenGLImageActor, vtkTextActor3D, and vtkVolume.

void vtkProp3D::ShallowCopy (  vtkProp *  prop  )  [virtual]

Shallow copy of this vtkProp3D. Reimplemented from vtkProp. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkFollower, vtkLODActor, vtkLODProp3D, vtkTextActor3D, and vtkVolume.

virtual void vtkProp3D::SetPosition (  double  _arg1, double  _arg2, double  _arg3 )  [inline, virtual]

Set/Get/Add the position of the Prop3D in world coordinates. Definition at line 52 of file vtkProp3D.h. References vtkObject::Modified().

virtual void vtkProp3D::SetPosition (  double  _arg[3]  )  [inline, virtual]

Shallow copy of this vtkProp3D. Definition at line 68 of file vtkProp3D.h.

virtual double* vtkProp3D::GetPosition (   )  [virtual]

Shallow copy of this vtkProp3D.

virtual void vtkProp3D::GetPosition (  double  data[3]  )  [virtual]

Shallow copy of this vtkProp3D.

void vtkProp3D::AddPosition (  double  deltaPosition[3]  )

Shallow copy of this vtkProp3D.

void vtkProp3D::AddPosition (  double  deltaX, double  deltaY, double  deltaZ )

Shallow copy of this vtkProp3D.

virtual void vtkProp3D::SetOrigin (  double  _arg1, double  _arg2, double  _arg3 )  [inline, virtual]

Set/Get the origin of the Prop3D. This is the point about which all rotations take place. Definition at line 80 of file vtkProp3D.h. References vtkObject::Modified().

virtual void vtkProp3D::SetOrigin (  double  _arg[3]  )  [inline, virtual]

Set/Get the origin of the Prop3D. This is the point about which all rotations take place. Definition at line 96 of file vtkProp3D.h.

virtual double* vtkProp3D::GetOrigin (   )  [virtual]

Set/Get the origin of the Prop3D. This is the point about which all rotations take place.

virtual void vtkProp3D::GetOrigin (  double  data[3]  )  [virtual]

Set/Get the origin of the Prop3D. This is the point about which all rotations take place.

virtual void vtkProp3D::SetScale (  double  _arg1, double  _arg2, double  _arg3 )  [inline, virtual]

Set/Get the scale of the actor. Scaling in performed independently on the X, Y and Z axis. A scale of zero is illegal and will be replaced with one. Definition at line 107 of file vtkProp3D.h. References vtkObject::Modified().

virtual void vtkProp3D::SetScale (  double  _arg[3]  )  [inline, virtual]

Set/Get the scale of the actor. Scaling in performed independently on the X, Y and Z axis. A scale of zero is illegal and will be replaced with one. Definition at line 123 of file vtkProp3D.h.

virtual double* vtkProp3D::GetScale (   )  [virtual]

Set/Get the scale of the actor. Scaling in performed independently on the X, Y and Z axis. A scale of zero is illegal and will be replaced with one.

virtual void vtkProp3D::GetScale (  double  data[3]  )  [virtual]

Set/Get the scale of the actor. Scaling in performed independently on the X, Y and Z axis. A scale of zero is illegal and will be replaced with one.

void vtkProp3D::SetScale (  double  s  )  [inline]

Method to set the scale isotropically Definition at line 131 of file vtkProp3D.h.

void vtkProp3D::SetUserTransform (  vtkLinearTransform *  transform  )

In addition to the instance variables such as position and orientation, you can add an additional transformation for your own use. This transformation is concatenated with the actor's internal transformation, which you implicitly create through the use of SetPosition(), SetOrigin() and SetOrientation(). If the internal transformation is identity (i.e. if you don't set the Position, Origin, or Orientation) then the actors final transformation will be the UserTransform, concatenated with the UserMatrix if the UserMatrix is present.

virtual vtkLinearTransform* vtkProp3D::GetUserTransform (   )  [virtual]

Method to set the scale isotropically

void vtkProp3D::SetUserMatrix (  vtkMatrix4x4 *  matrix  )

The UserMatrix can be used in place of UserTransform.

vtkMatrix4x4* vtkProp3D::GetUserMatrix (   )

The UserMatrix can be used in place of UserTransform.

virtual void vtkProp3D::GetMatrix (  vtkMatrix4x4 *  m  )  [virtual]

Return a reference to the Prop3D's 4x4 composite matrix. Get the matrix from the position, origin, scale and orientation This matrix is cached, so multiple GetMatrix() calls will be efficient. Reimplemented in vtkFollower.

virtual void vtkProp3D::GetMatrix (  double  m[16]  )  [virtual]

Return a reference to the Prop3D's 4x4 composite matrix. Get the matrix from the position, origin, scale and orientation This matrix is cached, so multiple GetMatrix() calls will be efficient. Reimplemented in vtkFollower.

void vtkProp3D::GetBounds (  double  bounds[6]  )

Get the bounds for this Prop3D as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkImageActor, vtkLODProp3D, and vtkVolume.

virtual double* vtkProp3D::GetBounds (   )  [pure virtual]

Get the bounds for this Prop3D as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Reimplemented from vtkProp. Implemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, vtkImageActor, vtkLODProp3D, vtkTextActor3D, and vtkVolume. Referenced by vtkVolume::GetBounds(), vtkLODProp3D::GetBounds(), vtkAssembly::GetBounds(), and vtkActor::GetBounds().

double* vtkProp3D::GetCenter (   )

Get the center of the bounding box in world coordinates.

double* vtkProp3D::GetXRange (   )

Get the Prop3D's x range in world coordinates.

double* vtkProp3D::GetYRange (   )

Get the Prop3D's y range in world coordinates.

double* vtkProp3D::GetZRange (   )

Get the Prop3D's z range in world coordinates.

double vtkProp3D::GetLength (   )

Get the length of the diagonal of the bounding box.

void vtkProp3D::RotateX (  double   )

Rotate the Prop3D in degrees about the X axis using the right hand rule. The axis is the Prop3D's X axis, which can change as other rotations are performed. To rotate about the world X axis use RotateWXYZ (angle, 1, 0, 0). This rotation is applied before all others in the current transformation matrix.

void vtkProp3D::RotateY (  double   )

Rotate the Prop3D in degrees about the Y axis using the right hand rule. The axis is the Prop3D's Y axis, which can change as other rotations are performed. To rotate about the world Y axis use RotateWXYZ (angle, 0, 1, 0). This rotation is applied before all others in the current transformation matrix.

void vtkProp3D::RotateZ (  double   )

Rotate the Prop3D in degrees about the Z axis using the right hand rule. The axis is the Prop3D's Z axis, which can change as other rotations are performed. To rotate about the world Z axis use RotateWXYZ (angle, 0, 0, 1). This rotation is applied before all others in the current transformation matrix.

void vtkProp3D::RotateWXYZ (  double  , double  , double  , double  )

Rotate the Prop3D in degrees about an arbitrary axis specified by the last three arguments. The axis is specified in world coordinates. To rotate an about its model axes, use RotateX, RotateY, RotateZ.

void vtkProp3D::SetOrientation (  double  , double  , double  )

Sets the orientation of the Prop3D. Orientation is specified as X,Y and Z rotations in that order, but they are performed as RotateZ, RotateX, and finally RotateY.

void vtkProp3D::SetOrientation (  double  a[3]  )

Sets the orientation of the Prop3D. Orientation is specified as X,Y and Z rotations in that order, but they are performed as RotateZ, RotateX, and finally RotateY.

double* vtkProp3D::GetOrientation (   )

Returns the orientation of the Prop3D as s vector of X,Y and Z rotation. The ordering in which these rotations must be done to generate the same matrix is RotateZ, RotateX, and finally RotateY. See also SetOrientation.

void vtkProp3D::GetOrientation (  double  o[3]  )

Sets the orientation of the Prop3D. Orientation is specified as X,Y and Z rotations in that order, but they are performed as RotateZ, RotateX, and finally RotateY.

double* vtkProp3D::GetOrientationWXYZ (   )

Returns the WXYZ orientation of the Prop3D.

void vtkProp3D::AddOrientation (  double  , double  , double  )

Add to the current orientation. See SetOrientation and GetOrientation for more details. This basically does a GetOrientation, adds the passed in arguments, and then calls SetOrientation.

void vtkProp3D::AddOrientation (  double  a[3]  )

Add to the current orientation. See SetOrientation and GetOrientation for more details. This basically does a GetOrientation, adds the passed in arguments, and then calls SetOrientation.

void vtkProp3D::PokeMatrix (  vtkMatrix4x4 *  matrix  )

This method modifies the vtkProp3D so that its transformation state is set to the matrix specified. The method does this by setting appropriate transformation-related ivars to initial values (i.e., not transformed), and placing the user-supplied matrix into the UserMatrix of this vtkProp3D. If the method is called again with a NULL matrix, then the original state of the vtkProp3D will be restored. This method is used to support picking and assembly structures.

void vtkProp3D::InitPathTraversal (   )  [virtual]

Overload vtkProp's method for setting up assembly paths. See the documentation for vtkProp. Reimplemented from vtkProp. Reimplemented in vtkAssembly.

unsigned long int vtkProp3D::GetMTime (   )  [virtual]

Get the vtkProp3D's mtime Reimplemented from vtkObject. Reimplemented in vtkAnnotatedCubeActor, vtkAxesActor, vtkActor, vtkAssembly, and vtkVolume.

unsigned long int vtkProp3D::GetUserTransformMatrixMTime (   )

Get the modified time of the user matrix or user transform.

virtual void vtkProp3D::ComputeMatrix (   )  [virtual]

Generate the matrix based on ivars

vtkMatrix4x4* vtkProp3D::GetMatrix (   )  [inline, virtual]

Get a pointer to an internal vtkMatrix4x4. that represents Reimplemented from vtkProp. Reimplemented in vtkFollower. Definition at line 267 of file vtkProp3D.h. Referenced by vtkFollower::GetMatrix().

virtual int vtkProp3D::GetIsIdentity (   )  [virtual]

Is the matrix for this actor identity

---

Member Data Documentation

vtkLinearTransform* vtkProp3D::UserTransform [protected]

Definition at line 283 of file vtkProp3D.h.

vtkMatrix4x4* vtkProp3D::UserMatrix [protected]

Definition at line 284 of file vtkProp3D.h.

vtkMatrix4x4* vtkProp3D::Matrix [protected]

Definition at line 285 of file vtkProp3D.h.

vtkTimeStamp vtkProp3D::MatrixMTime [protected]

Definition at line 286 of file vtkProp3D.h.

double vtkProp3D::Origin[3] [protected]

Definition at line 287 of file vtkProp3D.h.

double vtkProp3D::Position[3] [protected]

Definition at line 288 of file vtkProp3D.h.

double vtkProp3D::Orientation[3] [protected]

Definition at line 289 of file vtkProp3D.h.

double vtkProp3D::Scale[3] [protected]

Definition at line 290 of file vtkProp3D.h.

double vtkProp3D::Center[3] [protected]

Definition at line 291 of file vtkProp3D.h.

vtkTransform* vtkProp3D::Transform [protected]

Reimplemented in vtkAnnotatedCubeActor. Definition at line 292 of file vtkProp3D.h.

double vtkProp3D::Bounds[6] [protected]

Definition at line 293 of file vtkProp3D.h.

vtkProp3D* vtkProp3D::CachedProp3D [protected]

Definition at line 294 of file vtkProp3D.h.

int vtkProp3D::IsIdentity [protected]

Definition at line 295 of file vtkProp3D.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkProp3D.h

---
