vtkVolumeRayCastMapper Class Reference

#include <vtkVolumeRayCastMapper.h>

Inheritance diagram for vtkVolumeRayCastMapper:

Inheritance graph
[legend]
Collaboration diagram for vtkVolumeRayCastMapper:

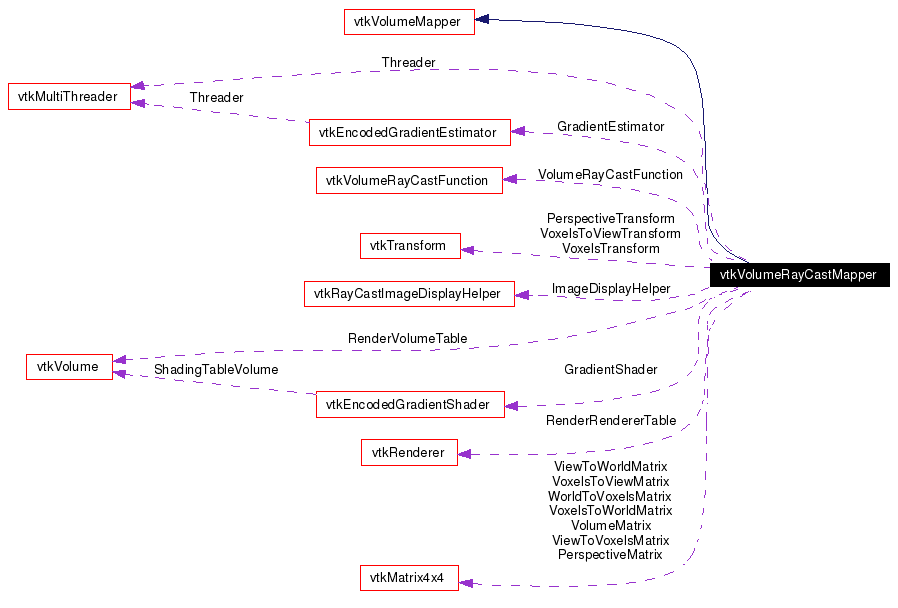

Collaboration graph
[legend]
List of all members.

Detailed Description

A slow but accurate mapper for rendering volumes.

This is a software ray caster for rendering volumes in vtkImageData.

See also:
vtkVolumeMapper
Examples:
vtkVolumeRayCastMapper (Examples)
Tests:
vtkVolumeRayCastMapper (Tests)

Definition at line 83 of file vtkVolumeRayCastMapper.h.

Public Types

typedef vtkVolumeMapper Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void Render (vtkRenderer *, vtkVolume *)
void ReleaseGraphicsResources (vtkWindow *)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetSampleDistance (double)
virtual double GetSampleDistance ()
virtual void SetVolumeRayCastFunction (vtkVolumeRayCastFunction *)
virtual vtkVolumeRayCastFunctionGetVolumeRayCastFunction ()
virtual void SetGradientEstimator (vtkEncodedGradientEstimator *gradest)
virtual vtkEncodedGradientEstimatorGetGradientEstimator ()
virtual vtkEncodedGradientShaderGetGradientShader ()
virtual void SetImageSampleDistance (double)
virtual double GetImageSampleDistance ()
virtual void SetMinimumImageSampleDistance (double)
virtual double GetMinimumImageSampleDistance ()
virtual void SetMaximumImageSampleDistance (double)
virtual double GetMaximumImageSampleDistance ()
virtual void SetAutoAdjustSampleDistances (int)
virtual int GetAutoAdjustSampleDistances ()
virtual void AutoAdjustSampleDistancesOn ()
virtual void AutoAdjustSampleDistancesOff ()
void SetNumberOfThreads (int num)
int GetNumberOfThreads ()
virtual void SetIntermixIntersectingGeometry (int)
virtual int GetIntermixIntersectingGeometry ()
virtual void IntermixIntersectingGeometryOn ()
virtual void IntermixIntersectingGeometryOff ()
float GetZeroOpacityThreshold (vtkVolume *vol)
virtual float GetGradientMagnitudeScale ()
virtual float GetGradientMagnitudeBias ()
virtual float GetGradientMagnitudeScale (int)
virtual float GetGradientMagnitudeBias (int)

Static Public Member Functions

static vtkVolumeRayCastMapperNew ()
static int IsTypeOf (const char *type)
static vtkVolumeRayCastMapperSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkVolumeRayCastMapper ()
 ~vtkVolumeRayCastMapper ()
virtual void ReportReferences (vtkGarbageCollector *)
void UpdateShadingTables (vtkRenderer *ren, vtkVolume *vol)
void ComputeMatrices (vtkImageData *data, vtkVolume *vol)
int ComputeRowBounds (vtkVolume *vol, vtkRenderer *ren)
void StoreRenderTime (vtkRenderer *ren, vtkVolume *vol, float t)
float RetrieveRenderTime (vtkRenderer *ren, vtkVolume *vol)
int ClipRayAgainstVolume (vtkVolumeRayCastDynamicInfo *dynamicInfo, float bounds[6])
void InitializeClippingPlanes (vtkVolumeRayCastStaticInfo *staticInfo, vtkPlaneCollection *planes)
int ClipRayAgainstClippingPlanes (vtkVolumeRayCastDynamicInfo *dynamicInfo, vtkVolumeRayCastStaticInfo *staticInfo)
double GetZBufferValue (int x, int y)

Protected Attributes

vtkVolumeRayCastFunctionVolumeRayCastFunction
vtkEncodedGradientEstimatorGradientEstimator
vtkEncodedGradientShaderGradientShader
vtkRayCastImageDisplayHelperImageDisplayHelper
double SampleDistance
double ImageSampleDistance
double MinimumImageSampleDistance
double MaximumImageSampleDistance
int AutoAdjustSampleDistances
double WorldSampleDistance
int ScalarDataType
void * ScalarDataPointer
vtkMultiThreaderThreader
vtkMatrix4x4PerspectiveMatrix
vtkMatrix4x4ViewToWorldMatrix
vtkMatrix4x4ViewToVoxelsMatrix
vtkMatrix4x4VoxelsToViewMatrix
vtkMatrix4x4WorldToVoxelsMatrix
vtkMatrix4x4VoxelsToWorldMatrix
vtkMatrix4x4VolumeMatrix
vtkTransformPerspectiveTransform
vtkTransformVoxelsTransform
vtkTransformVoxelsToViewTransform
int ImageViewportSize [2]
int ImageMemorySize [2]
int ImageInUseSize [2]
int ImageOrigin [2]
unsigned char * Image
int * RowBounds
int * OldRowBounds
float * RenderTimeTable
vtkVolume ** RenderVolumeTable
vtkRenderer ** RenderRendererTable
int RenderTableSize
int RenderTableEntries
int IntermixIntersectingGeometry
float * ZBuffer
int ZBufferSize [2]
int ZBufferOrigin [2]
float MinimumViewDistance

Friends

VTK_THREAD_RETURN_TYPE VolumeRayCastMapper_CastRays (void *arg)


Member Typedef Documentation

typedef vtkVolumeMapper vtkVolumeRayCastMapper::Superclass


Reimplemented from vtkVolumeMapper.

Definition at line 87 of file vtkVolumeRayCastMapper.h.


Constructor & Destructor Documentation

vtkVolumeRayCastMapper::vtkVolumeRayCastMapper  )  [protected]


vtkVolumeRayCastMapper::~vtkVolumeRayCastMapper  )  [protected]



Member Function Documentation

static vtkVolumeRayCastMapper* vtkVolumeRayCastMapper::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkVolumeRayCastMapper::GetClassName  )  [virtual]


Reimplemented from vtkVolumeMapper.

static int vtkVolumeRayCastMapper::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeMapper.

virtual int vtkVolumeRayCastMapper::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeMapper.

static vtkVolumeRayCastMapper* vtkVolumeRayCastMapper::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkVolumeMapper.

void vtkVolumeRayCastMapper::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVolumeMapper.

virtual void vtkVolumeRayCastMapper::SetSampleDistance double   )  [virtual]


Set/Get the distance between samples. This variable is only used for sampling ray casting methods. Methods that compute a ray value by stepping cell-by-cell are not affected by this value.

virtual double vtkVolumeRayCastMapper::GetSampleDistance  )  [virtual]


virtual void vtkVolumeRayCastMapper::SetVolumeRayCastFunction vtkVolumeRayCastFunction  )  [virtual]


Get / Set the volume ray cast function. This is used to process values found along the ray to compute a final pixel value.

virtual vtkVolumeRayCastFunction* vtkVolumeRayCastMapper::GetVolumeRayCastFunction  )  [virtual]


Get / Set the volume ray cast function. This is used to process values found along the ray to compute a final pixel value.

virtual void vtkVolumeRayCastMapper::SetGradientEstimator vtkEncodedGradientEstimator gradest  )  [virtual]


Set / Get the gradient estimator used to estimate normals

virtual vtkEncodedGradientEstimator* vtkVolumeRayCastMapper::GetGradientEstimator  )  [virtual]


Set / Get the gradient estimator used to estimate normals

virtual vtkEncodedGradientShader* vtkVolumeRayCastMapper::GetGradientShader  )  [virtual]


Get the gradient shader.

virtual void vtkVolumeRayCastMapper::SetImageSampleDistance double   )  [virtual]


Sampling distance in the XY image dimensions. Default value of 1 meaning 1 ray cast per pixel. If set to 0.5, 4 rays will be cast per pixel. If set to 2.0, 1 ray will be cast for every 4 (2 by 2) pixels.

virtual double vtkVolumeRayCastMapper::GetImageSampleDistance  )  [virtual]


Sampling distance in the XY image dimensions. Default value of 1 meaning 1 ray cast per pixel. If set to 0.5, 4 rays will be cast per pixel. If set to 2.0, 1 ray will be cast for every 4 (2 by 2) pixels.

virtual void vtkVolumeRayCastMapper::SetMinimumImageSampleDistance double   )  [virtual]


This is the minimum image sample distance allow when the image sample distance is being automatically adjusted

virtual double vtkVolumeRayCastMapper::GetMinimumImageSampleDistance  )  [virtual]


This is the minimum image sample distance allow when the image sample distance is being automatically adjusted

virtual void vtkVolumeRayCastMapper::SetMaximumImageSampleDistance double   )  [virtual]


This is the maximum image sample distance allow when the image sample distance is being automatically adjusted

virtual double vtkVolumeRayCastMapper::GetMaximumImageSampleDistance  )  [virtual]


This is the maximum image sample distance allow when the image sample distance is being automatically adjusted

virtual void vtkVolumeRayCastMapper::SetAutoAdjustSampleDistances int   )  [virtual]


If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual int vtkVolumeRayCastMapper::GetAutoAdjustSampleDistances  )  [virtual]


If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual void vtkVolumeRayCastMapper::AutoAdjustSampleDistancesOn  )  [virtual]


If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual void vtkVolumeRayCastMapper::AutoAdjustSampleDistancesOff  )  [virtual]


If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

void vtkVolumeRayCastMapper::SetNumberOfThreads int  num  )


Set/Get the number of threads to use. This by default is equal to the number of available processors detected.

int vtkVolumeRayCastMapper::GetNumberOfThreads  )


Set/Get the number of threads to use. This by default is equal to the number of available processors detected.

virtual void vtkVolumeRayCastMapper::SetIntermixIntersectingGeometry int   )  [virtual]


If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual int vtkVolumeRayCastMapper::GetIntermixIntersectingGeometry  )  [virtual]


If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkVolumeRayCastMapper::IntermixIntersectingGeometryOn  )  [virtual]


If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkVolumeRayCastMapper::IntermixIntersectingGeometryOff  )  [virtual]


If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

void vtkVolumeRayCastMapper::Render vtkRenderer ,
vtkVolume
[virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Initialize rendering for this volume.

Implements vtkVolumeMapper.

void vtkVolumeRayCastMapper::ReleaseGraphicsResources vtkWindow  )  [virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkVolumeMapper.

float vtkVolumeRayCastMapper::GetZeroOpacityThreshold vtkVolume vol  )


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Return the scalar value below which all opacities are zero

virtual float vtkVolumeRayCastMapper::GetGradientMagnitudeScale  )  [virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Values needed by the volume

Reimplemented from vtkAbstractVolumeMapper.

virtual float vtkVolumeRayCastMapper::GetGradientMagnitudeBias  )  [virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Return the scalar value below which all opacities are zero

Reimplemented from vtkAbstractVolumeMapper.

virtual float vtkVolumeRayCastMapper::GetGradientMagnitudeScale int   )  [inline, virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Return the scalar value below which all opacities are zero

Reimplemented from vtkAbstractVolumeMapper.

Definition at line 182 of file vtkVolumeRayCastMapper.h.

References vtkAbstractVolumeMapper::GetGradientMagnitudeScale().

virtual float vtkVolumeRayCastMapper::GetGradientMagnitudeBias int   )  [inline, virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Return the scalar value below which all opacities are zero

Reimplemented from vtkAbstractVolumeMapper.

Definition at line 184 of file vtkVolumeRayCastMapper.h.

References vtkAbstractVolumeMapper::GetGradientMagnitudeBias().

virtual void vtkVolumeRayCastMapper::ReportReferences vtkGarbageCollector  )  [protected, virtual]


Reimplemented from vtkAlgorithm.

void vtkVolumeRayCastMapper::UpdateShadingTables vtkRenderer ren,
vtkVolume vol
[protected]


void vtkVolumeRayCastMapper::ComputeMatrices vtkImageData data,
vtkVolume vol
[protected]


int vtkVolumeRayCastMapper::ComputeRowBounds vtkVolume vol,
vtkRenderer ren
[protected]


void vtkVolumeRayCastMapper::StoreRenderTime vtkRenderer ren,
vtkVolume vol,
float  t
[protected]


float vtkVolumeRayCastMapper::RetrieveRenderTime vtkRenderer ren,
vtkVolume vol
[protected]


int vtkVolumeRayCastMapper::ClipRayAgainstVolume vtkVolumeRayCastDynamicInfo dynamicInfo,
float  bounds[6]
[protected]


void vtkVolumeRayCastMapper::InitializeClippingPlanes vtkVolumeRayCastStaticInfo staticInfo,
vtkPlaneCollection planes
[protected]


int vtkVolumeRayCastMapper::ClipRayAgainstClippingPlanes vtkVolumeRayCastDynamicInfo dynamicInfo,
vtkVolumeRayCastStaticInfo staticInfo
[protected]


double vtkVolumeRayCastMapper::GetZBufferValue int  x,
int  y
[protected]



Friends And Related Function Documentation

VTK_THREAD_RETURN_TYPE VolumeRayCastMapper_CastRays void *  arg  )  [friend]



Member Data Documentation

vtkVolumeRayCastFunction* vtkVolumeRayCastMapper::VolumeRayCastFunction [protected]


Definition at line 194 of file vtkVolumeRayCastMapper.h.

vtkEncodedGradientEstimator* vtkVolumeRayCastMapper::GradientEstimator [protected]


Definition at line 195 of file vtkVolumeRayCastMapper.h.

vtkEncodedGradientShader* vtkVolumeRayCastMapper::GradientShader [protected]


Definition at line 196 of file vtkVolumeRayCastMapper.h.

vtkRayCastImageDisplayHelper* vtkVolumeRayCastMapper::ImageDisplayHelper [protected]


Definition at line 197 of file vtkVolumeRayCastMapper.h.

double vtkVolumeRayCastMapper::SampleDistance [protected]


Definition at line 202 of file vtkVolumeRayCastMapper.h.

double vtkVolumeRayCastMapper::ImageSampleDistance [protected]


Definition at line 203 of file vtkVolumeRayCastMapper.h.

double vtkVolumeRayCastMapper::MinimumImageSampleDistance [protected]


Definition at line 204 of file vtkVolumeRayCastMapper.h.

double vtkVolumeRayCastMapper::MaximumImageSampleDistance [protected]


Definition at line 205 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::AutoAdjustSampleDistances [protected]


Definition at line 206 of file vtkVolumeRayCastMapper.h.

double vtkVolumeRayCastMapper::WorldSampleDistance [protected]


Definition at line 208 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ScalarDataType [protected]


Definition at line 209 of file vtkVolumeRayCastMapper.h.

void* vtkVolumeRayCastMapper::ScalarDataPointer [protected]


Definition at line 210 of file vtkVolumeRayCastMapper.h.

vtkMultiThreader* vtkVolumeRayCastMapper::Threader [protected]


Definition at line 220 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::PerspectiveMatrix [protected]


Definition at line 222 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::ViewToWorldMatrix [protected]


Definition at line 223 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::ViewToVoxelsMatrix [protected]


Definition at line 224 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::VoxelsToViewMatrix [protected]


Definition at line 225 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::WorldToVoxelsMatrix [protected]


Definition at line 226 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::VoxelsToWorldMatrix [protected]


Definition at line 227 of file vtkVolumeRayCastMapper.h.

vtkMatrix4x4* vtkVolumeRayCastMapper::VolumeMatrix [protected]


Definition at line 229 of file vtkVolumeRayCastMapper.h.

vtkTransform* vtkVolumeRayCastMapper::PerspectiveTransform [protected]


Definition at line 231 of file vtkVolumeRayCastMapper.h.

vtkTransform* vtkVolumeRayCastMapper::VoxelsTransform [protected]


Definition at line 232 of file vtkVolumeRayCastMapper.h.

vtkTransform* vtkVolumeRayCastMapper::VoxelsToViewTransform [protected]


Definition at line 233 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ImageViewportSize[2] [protected]


Definition at line 236 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ImageMemorySize[2] [protected]


Definition at line 242 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ImageInUseSize[2] [protected]


Definition at line 248 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ImageOrigin[2] [protected]


Definition at line 252 of file vtkVolumeRayCastMapper.h.

unsigned char* vtkVolumeRayCastMapper::Image [protected]


Definition at line 255 of file vtkVolumeRayCastMapper.h.

int* vtkVolumeRayCastMapper::RowBounds [protected]


Definition at line 257 of file vtkVolumeRayCastMapper.h.

int* vtkVolumeRayCastMapper::OldRowBounds [protected]


Definition at line 258 of file vtkVolumeRayCastMapper.h.

float* vtkVolumeRayCastMapper::RenderTimeTable [protected]


Definition at line 260 of file vtkVolumeRayCastMapper.h.

vtkVolume** vtkVolumeRayCastMapper::RenderVolumeTable [protected]


Definition at line 261 of file vtkVolumeRayCastMapper.h.

vtkRenderer** vtkVolumeRayCastMapper::RenderRendererTable [protected]


Definition at line 262 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::RenderTableSize [protected]


Definition at line 263 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::RenderTableEntries [protected]


Definition at line 264 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::IntermixIntersectingGeometry [protected]


Definition at line 269 of file vtkVolumeRayCastMapper.h.

float* vtkVolumeRayCastMapper::ZBuffer [protected]


Definition at line 271 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ZBufferSize[2] [protected]


Definition at line 272 of file vtkVolumeRayCastMapper.h.

int vtkVolumeRayCastMapper::ZBufferOrigin[2] [protected]


Definition at line 273 of file vtkVolumeRayCastMapper.h.

float vtkVolumeRayCastMapper::MinimumViewDistance [protected]


Definition at line 275 of file vtkVolumeRayCastMapper.h.


The documentation for this class was generated from the following file:
Generated on Tue Jan 22 00:29:14 2008 for VTK by  doxygen 1.4.3-20050530
