Fill a vtkBlueObeliskData container with data from the BODR XML dataset. More...

#include <vtkBlueObeliskDataParser.h>

Inheritance diagram for vtkBlueObeliskDataParser:

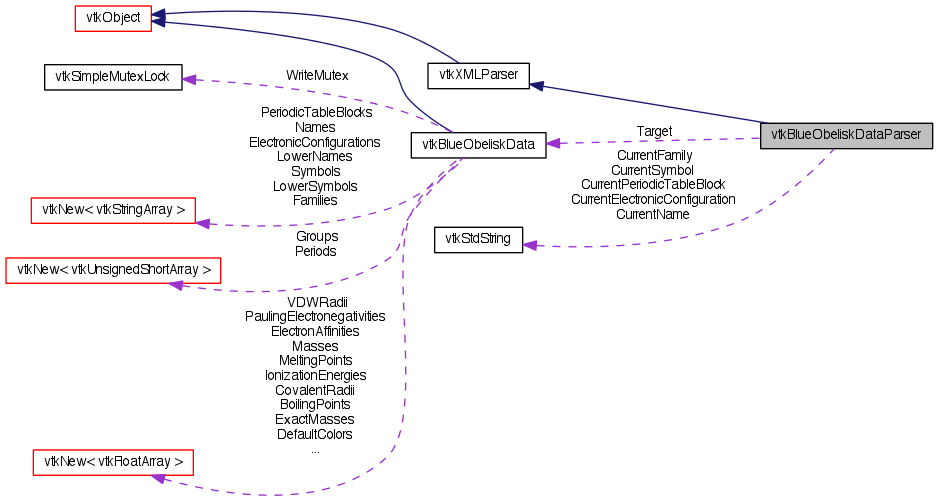

Collaboration diagram for vtkBlueObeliskDataParser:

Public Types
typedef vtkXMLParser	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	SetTarget (vtkBlueObeliskData *bodr)
virtual int	Parse ()

virtual int	Parse (const char *)
virtual int	Parse (const char *, unsigned int)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkBlueObeliskDataParser *	SafeDownCast (vtkObject *o)
static vtkBlueObeliskDataParser *	New ()
Protected Types
enum	AtomValueType { None = 0, AtomicNumber, Symbol, Name, PeriodicTableBlock, ElectronicConfiguration, Family, Mass, ExactMass, IonizationEnergy, ElectronAffinity, PaulingElectronegativity, CovalentRadius, VDWRadius, DefaultColor, BoilingPoint, MeltingPoint, Period, Group }
Protected Member Functions
	vtkBlueObeliskDataParser ()
	~vtkBlueObeliskDataParser ()
void	StartElement (const char name, const char *attr)
void	EndElement (const char *name)
void	CharacterDataHandler (const char *data, int length)
void	SetCurrentValue (const char *data, int length)
void	SetCurrentValue (const char *data)
void	NewAtomStarted (const char **attr)
void	NewAtomFinished ()
void	NewValueStarted (const char **attr)
void	NewValueFinished ()
Protected Attributes
vtkBlueObeliskData *	Target
bool	IsProcessingAtom
bool	IsProcessingValue
enum vtkBlueObeliskDataParser::AtomValueType	CurrentValueType
int	CurrentAtomicNumber
vtkStdString *	CurrentSymbol
vtkStdString *	CurrentName
vtkStdString *	CurrentPeriodicTableBlock
vtkStdString *	CurrentElectronicConfiguration
vtkStdString *	CurrentFamily
float	CurrentMass
float	CurrentExactMass
float	CurrentIonizationEnergy
float	CurrentElectronAffinity
float	CurrentPaulingElectronegativity
float	CurrentCovalentRadius
float	CurrentVDWRadius
float	CurrentDefaultColor [3]
float	CurrentBoilingPoint
float	CurrentMeltingPoint
unsigned int	CurrentPeriod
unsigned int	CurrentGroup

Detailed Description

Fill a vtkBlueObeliskData container with data from the BODR XML dataset.

The Blue Obelisk Data Repository is a free, open repository of chemical information. This class extracts the BODR information into vtk arrays, which are stored in a vtkBlueObeliskData object.

Warning:: The vtkBlueObeliskDataParser class should never need to be used directly. For convenient access to the BODR data, use vtkPeriodicTable. For access to the raw arrays produced by this parser, see the vtkBlueObeliskData class. A static vtkBlueObeliskData object is accessible via vtkPeriodicTable::GetBlueObeliskData().

See also:: vtkPeriodicTable vtkBlueObeliskData

Definition at line 49 of file vtkBlueObeliskDataParser.h.

Member Typedef Documentation

typedef vtkXMLParser vtkBlueObeliskDataParser::Superclass

Reimplemented from vtkXMLParser.

Definition at line 52 of file vtkBlueObeliskDataParser.h.

Member Enumeration Documentation

enum vtkBlueObeliskDataParser::AtomValueType [protected]

Enumerator:

None
AtomicNumber
Symbol
Name
PeriodicTableBlock
ElectronicConfiguration
Family
Mass
ExactMass
IonizationEnergy
ElectronAffinity
PaulingElectronegativity
CovalentRadius
VDWRadius
DefaultColor
BoilingPoint
MeltingPoint
Period
Group

Definition at line 92 of file vtkBlueObeliskDataParser.h.

Constructor & Destructor Documentation

vtkBlueObeliskDataParser::vtkBlueObeliskDataParser ( ) [protected]

vtkBlueObeliskDataParser::~vtkBlueObeliskDataParser ( ) [protected]

Member Function Documentation

virtual const char* vtkBlueObeliskDataParser::GetClassName ( ) [virtual]

Reimplemented from vtkXMLParser.

static int vtkBlueObeliskDataParser::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLParser.

virtual int vtkBlueObeliskDataParser::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLParser.

static vtkBlueObeliskDataParser* vtkBlueObeliskDataParser::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkXMLParser.

static vtkBlueObeliskDataParser* vtkBlueObeliskDataParser::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkXMLParser.

virtual void vtkBlueObeliskDataParser::SetTarget ( vtkBlueObeliskData * bodr ) [virtual]

Set the target vtkBlueObeliskData object that this parser will populate

virtual int vtkBlueObeliskDataParser::Parse ( ) [virtual]

Start parsing

Reimplemented from vtkXMLParser.

virtual int vtkBlueObeliskDataParser::Parse ( const char * ) [virtual]
