This class implements the data structures, construction algorithms for fast cell location presented in "Fast, Memory-Efficient Cell location in Unstructured Grids for Visualization" by Christop Garth and Kenneth I. Joy in VisWeek, 2011. More...

#include <vtkCellTreeLocator.h>

Inheritance diagram for vtkCellTreeLocator:

[legend]

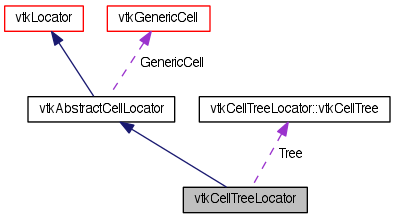

Collaboration diagram for vtkCellTreeLocator:

[legend]

List of all members.

Classes
class	vtkCellTree
class	vtkCellTreeNode
Public Types
typedef vtkAbstractCellLocator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	FindCellsWithinBounds (double bbox, vtkIdList cells)

virtual vtkIdType	FindCell (double pos[3], double vtkNotUsed, vtkGenericCell cell, double pcoords[3], double weights)

virtual int	IntersectWithLine (double a0[3], double a1[3], double tol, double &t, double x[3], double pcoords[3], int &subId, vtkIdType &cellId, vtkGenericCell *cell)

virtual int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)

virtual int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId, vtkIdType &cellId)

virtual int	IntersectWithLine (const double p1[3], const double p2[3], vtkPoints points, vtkIdList cellIds)

virtual vtkIdType	FindCell (double x[3])

virtual void	FreeSearchStructure ()
virtual void	GenerateRepresentation (int level, vtkPolyData *pd)
virtual void	BuildLocatorInternal ()
virtual void	BuildLocatorIfNeeded ()
virtual void	ForceBuildLocator ()
virtual void	BuildLocator ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkCellTreeLocator *	SafeDownCast (vtkObject *o)
static vtkCellTreeLocator *	New ()
int	NumberOfBuckets
vtkCellTree *	Tree
class	vtkCellPointTraversal
class	vtkCellTreeNode
class	vtkCellTreeBuilder
	vtkCellTreeLocator ()
	~vtkCellTreeLocator ()
bool	RayMinMaxT (const double origin[3], const double dir[3], double &rTmin, double &rTmax)
bool	RayMinMaxT (const double bounds[6], const double origin[3], const double dir[3], double &rTmin, double &rTmax)
int	getDominantAxis (const double dir[3])
void	Classify (const double origin[3], const double dir[3], double &rDist, vtkCellTreeNode &near, vtkCellTreeNode &mid, vtkCellTreeNode *&far, int &mustCheck)
virtual int	IntersectCellInternal (vtkIdType cell_ID, const double p1[3], const double p2[3], const double tol, double &t, double ipt[3], double pcoords[3], int &subId)

Detailed Description

This class implements the data structures, construction algorithms for fast cell location presented in "Fast, Memory-Efficient Cell location in Unstructured Grids for Visualization" by Christop Garth and Kenneth I. Joy in VisWeek, 2011.

Cell Tree is a bounding interval hierarchy based data structure, where child boxes do not form an exact split of the parent boxes along a dimension. Therefore two axis- aligned bounding planes (left max and right min) are stored for each node along a dimension. This class implements the data structure (Cell Tree Node) and its build and traversal algorithms described in the paper. Some methods in building and traversing the cell tree in this class were derived avtCellLocatorBIH class in the VisIT Visualization Tool

See also:: vtkLocator vtkCellLocator vtkModifiedBSPTree

Tests:: vtkCellTreeLocator (Tests)

Definition at line 49 of file vtkCellTreeLocator.h.

Member Typedef Documentation

typedef vtkAbstractCellLocator vtkCellTreeLocator::Superclass

Reimplemented from vtkAbstractCellLocator.

Definition at line 53 of file vtkCellTreeLocator.h.

Constructor & Destructor Documentation

vtkCellTreeLocator::vtkCellTreeLocator ( ) [protected]

vtkCellTreeLocator::~vtkCellTreeLocator ( ) [protected]

Member Function Documentation

virtual const char* vtkCellTreeLocator::GetClassName ( ) [virtual]

Reimplemented from vtkAbstractCellLocator.

static int vtkCellTreeLocator::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractCellLocator.

virtual int vtkCellTreeLocator::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractCellLocator.

static vtkCellTreeLocator* vtkCellTreeLocator::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkAbstractCellLocator.

void vtkCellTreeLocator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractCellLocator.

static vtkCellTreeLocator* vtkCellTreeLocator::New ( ) [static]

Constructor sets the maximum number of cells in a leaf to 8 and number of buckets to 5. Buckets are used in building the cell tree as described in the paper

Reimplemented from vtkObject.

virtual vtkIdType vtkCellTreeLocator::FindCell	(	double	pos[3],
		double	vtkNotUsed,
		vtkGenericCell *	cell,
		double	pcoords[3],
		double *	weights
	)		`[virtual]`

Test a point to find if it is inside a cell. Returns the cellId if inside or -1 if not.

Reimplemented from vtkAbstractCellLocator.

virtual int vtkCellTreeLocator::IntersectWithLine	(	double	a0[3],
		double	a1[3],
		double	tol,
		double &	t,
		double	x[3],
		double	pcoords[3],
		int &	subId,
		vtkIdType &	cellId,
		vtkGenericCell *	cell
	)		`[virtual]`

Return intersection point (if any) AND the cell which was intersected by the finite line. The cell is returned as a cell id and as a generic cell.

Reimplemented from vtkAbstractCellLocator.

virtual void vtkCellTreeLocator::FindCellsWithinBounds	(	double *	bbox,
		vtkIdList *	cells
	)		`[virtual]`

Return a list of unique cell ids inside of a given bounding box. The user must provide the vtkIdList to populate. This method returns data only after the locator has been built.

Reimplemented from vtkAbstractCellLocator.

virtual int vtkCellTreeLocator::IntersectWithLine	(	double	p1[3],
		double	p2[3],
		double	tol,
		double &	t,
		double	x[3],
		double	pcoords[3],
		int &	subId
	)		`[inline, virtual]`

reimplemented from vtkAbstractCellLocator to support bad compilers

Reimplemented from vtkAbstractCellLocator.

Definition at line 96 of file vtkCellTreeLocator.h.

virtual int vtkCellTreeLocator::IntersectWithLine	(	double	p1[3],
		double	p2[3],
		double	tol,
		double &	t,
		double	x[3],
		double	pcoords[3],
		int &	subId,
		vtkIdType &	cellId
	)		`[virtual]`

Return intersection point (if any) AND the cell which was intersected by the finite line. The cell is returned as a cell id and as a generic cell. This function is a modification from the vtkModifiedBSPTree class using the data structures in the paper to find intersections.

Reimplemented from vtkAbstractCellLocator.

virtual int vtkCellTreeLocator::IntersectWithLine	(	const double	p1[3],
		const double	p2[3],
		vtkPoints *	points,
		vtkIdList *	cellIds
	)		`[inline, virtual]`

reimplemented from vtkAbstractCellLocator to support bad compilers

Reimplemented from vtkAbstractCellLocator.

Definition at line 117 of file vtkCellTreeLocator.h.

virtual vtkIdType vtkCellTreeLocator::FindCell ( double x[3] ) [inline, virtual]

reimplemented from vtkAbstractCellLocator to support bad compilers

Reimplemented from vtkAbstractCellLocator.

Definition at line 127 of file vtkCellTreeLocator.h.

virtual void vtkCellTreeLocator::FreeSearchStructure ( ) [virtual]
