Geometry for a reslice cursor. More...

#include <vtkResliceCursor.h>

Inheritance diagram for vtkResliceCursor:

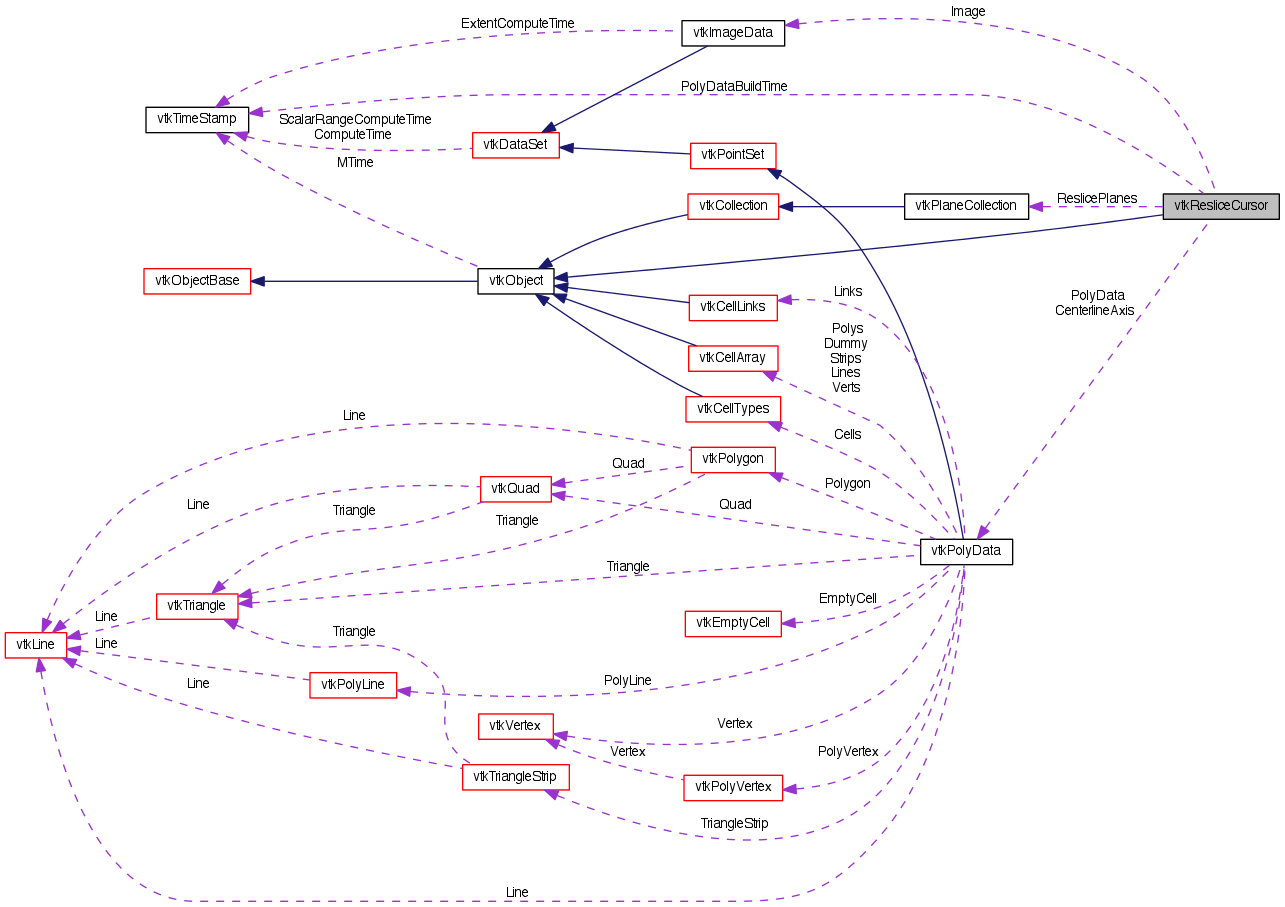

Collaboration diagram for vtkResliceCursor:

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual vtkPolyData *	GetPolyData ()
virtual vtkPolyData *	GetCenterlineAxisPolyData (int axis)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkPlane *	GetPlane (int n)
virtual void	Update ()
virtual unsigned long int	GetMTime ()
virtual void	Reset ()

virtual void	SetImage (vtkImageData *)
virtual vtkImageData *	GetImage ()

virtual void	SetCenter (double, double, double)
virtual void	SetCenter (double center[3])
virtual double *	GetCenter ()
virtual void	GetCenter (double &, double &, double &)
virtual void	GetCenter (double[3])

virtual void	SetThickness (double, double, double)
virtual void	SetThickness (double[3])
virtual double *	GetThickness ()
virtual void	GetThickness (double &, double &, double &)
virtual void	GetThickness (double[3])

virtual void	SetThickMode (int)
virtual int	GetThickMode ()
virtual void	ThickModeOn ()
virtual void	ThickModeOff ()

virtual double *	GetXAxis ()
virtual void	GetXAxis (double &, double &, double &)
virtual void	GetXAxis (double[3])
virtual double *	GetYAxis ()
virtual void	GetYAxis (double &, double &, double &)
virtual void	GetYAxis (double[3])
virtual double *	GetZAxis ()
virtual void	GetZAxis (double &, double &, double &)
virtual void	GetZAxis (double[3])
virtual void	SetXAxis (double, double, double)
virtual void	SetXAxis (double[3])
virtual void	SetYAxis (double, double, double)
virtual void	SetYAxis (double[3])
virtual void	SetZAxis (double, double, double)
virtual void	SetZAxis (double[3])
virtual double *	GetAxis (int i)

virtual void	SetHole (int)
virtual int	GetHole ()

virtual void	SetHoleWidth (double)
virtual double	GetHoleWidth ()

virtual void	SetHoleWidthInPixels (double)
virtual double	GetHoleWidthInPixels ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkResliceCursor *	SafeDownCast (vtkObject *o)
static vtkResliceCursor *	New ()
Protected Member Functions
	vtkResliceCursor ()
	~vtkResliceCursor ()
virtual void	BuildCursorGeometry ()
virtual void	BuildPolyData ()
virtual void	BuildCursorTopology ()
virtual void	BuildCursorTopologyWithHole ()
virtual void	BuildCursorTopologyWithoutHole ()
virtual void	BuildCursorGeometryWithoutHole ()
virtual void	BuildCursorGeometryWithHole ()
virtual void	ComputeAxes ()
Protected Attributes
int	ThickMode
int	Hole
double	HoleWidth
double	HoleWidthInPixels
double	Thickness [3]
double	Center [3]
double	XAxis [3]
double	YAxis [3]
double	ZAxis [3]
vtkImageData *	Image
vtkPolyData *	PolyData
vtkPolyData *	CenterlineAxis [3]
vtkPlaneCollection *	ReslicePlanes
vtkTimeStamp	PolyDataBuildTime

Detailed Description

Geometry for a reslice cursor.

This class represents a reslice cursor. It consists of two cross sectional hairs, with an optional thickness. The crosshairs hairs may have a hole in the center. These may be translated or rotated independent of each other in the view. The result is used to reslice the data along these cross sections. This allows the user to perform multi-planar thin or thick reformat of the data on an image view, rather than a 3D view.

See also:: vtkResliceCursorWidget vtkResliceCursor vtkResliceCursorPolyDataAlgorithm vtkResliceCursorRepresentation vtkResliceCursorThickLineRepresentation vtkResliceCursorActor vtkImagePlaneWidget

Tests:: vtkResliceCursor (Tests)

Definition at line 44 of file vtkResliceCursor.h.

Member Typedef Documentation

typedef vtkObject vtkResliceCursor::Superclass

Reimplemented from vtkObject.

Definition at line 47 of file vtkResliceCursor.h.

Constructor & Destructor Documentation

vtkResliceCursor::vtkResliceCursor ( ) [protected]

vtkResliceCursor::~vtkResliceCursor ( ) [protected]

Member Function Documentation

virtual const char* vtkResliceCursor::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

static int vtkResliceCursor::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkResliceCursor::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkResliceCursor* vtkResliceCursor::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

static vtkResliceCursor* vtkResliceCursor::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkResliceCursor::SetImage ( vtkImageData * ) [virtual]

Set the image (3D) that we are slicing

virtual vtkImageData* vtkResliceCursor::GetImage ( ) [virtual]

Set the image (3D) that we are slicing

virtual void vtkResliceCursor::SetCenter	(	double	,
		double	,
		double
	)		`[virtual]`

Set/Get the cente of the reslice cursor.

virtual void vtkResliceCursor::SetCenter ( double center[3] ) [virtual]

Set/Get the cente of the reslice cursor.

virtual double* vtkResliceCursor::GetCenter ( ) [virtual]

Set/Get the cente of the reslice cursor.

virtual void vtkResliceCursor::GetCenter	(	double &	,
		double &	,
		double &
	)		`[virtual]`

Set/Get the cente of the reslice cursor.

virtual void vtkResliceCursor::GetCenter ( double [3] ) [virtual]

Set/Get the cente of the reslice cursor.

virtual void vtkResliceCursor::SetThickness	(	double	,
		double	,
		double
	)		`[virtual]`

Set/Get the thickness of the cursor

virtual void vtkResliceCursor::SetThickness ( double [3] ) [virtual]

Set/Get the thickness of the cursor

virtual double* vtkResliceCursor::GetThickness ( ) [virtual]

Set/Get the thickness of the cursor

virtual void vtkResliceCursor::GetThickness	(	double &	,
		double &	,
		double &
	)		`[virtual]`

Set/Get the thickness of the cursor

virtual void vtkResliceCursor::GetThickness ( double [3] ) [virtual]

Set/Get the thickness of the cursor

virtual void vtkResliceCursor::SetThickMode ( int ) [virtual]

Enable disable thick mode. Default is to enable it.

virtual int vtkResliceCursor::GetThickMode ( ) [virtual]

Enable disable thick mode. Default is to enable it.

virtual void vtkResliceCursor::ThickModeOn ( ) [virtual]

Enable disable thick mode. Default is to enable it.

virtual void vtkResliceCursor::ThickModeOff ( ) [virtual]

Enable disable thick mode. Default is to enable it.

virtual vtkPolyData* vtkResliceCursor::GetPolyData ( ) [virtual]

Get the 3D PolyData representation

virtual vtkPolyData* vtkResliceCursor::GetCenterlineAxisPolyData ( int axis ) [virtual]

Get the slab and centerline polydata along an axis

virtual void vtkResliceCursor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Printself method.

Reimplemented from vtkObject.

virtual vtkPlane* vtkResliceCursor::GetPlane ( int n ) [virtual]

Get the planes that represent normals along the X, Y and Z. The argument passed to this method must be an integer in the range 0-2 (corresponding to the X, Y and Z axes.

virtual void vtkResliceCursor::Update ( ) [virtual]

Build the polydata

virtual double* vtkResliceCursor::GetXAxis ( ) [virtual]
