container for a matrix of charts. More...

#include <vtkScatterPlotMatrix.h>

Inheritance diagram for vtkScatterPlotMatrix:

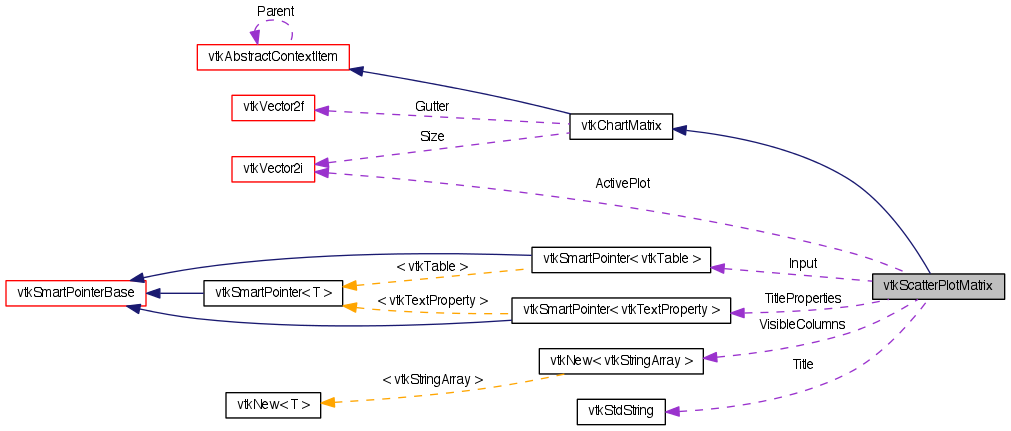

Collaboration diagram for vtkScatterPlotMatrix:

Public Types
enum	{ SCATTERPLOT, HISTOGRAM, ACTIVEPLOT, NOPLOT }
typedef vtkChartMatrix	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
virtual bool	Paint (vtkContext2D *painter)
virtual bool	SetActivePlot (const vtkVector2i &position)
virtual vtkVector2i	GetActivePlot ()
vtkAnnotationLink *	GetActiveAnnotationLink ()
vtkAnnotationLink *	GetAnnotationLink ()
virtual void	SetInput (vtkTable *table)
void	SetColumnVisibility (const vtkStdString &name, bool visible)
void	InsertVisibleColumn (const vtkStdString &name, int index)
bool	GetColumnVisibility (const vtkStdString &name)
void	SetColumnVisibilityAll (bool visible)
virtual vtkStringArray *	GetVisibleColumns ()
virtual void	SetVisibleColumns (vtkStringArray *visColumns)
virtual void	SetNumberOfBins (int numberOfBins)
virtual int	GetNumberOfBins () const
void	SetPlotColor (int plotType, const vtkColor4ub &color)
void	SetPlotMarkerStyle (int plotType, int style)
void	SetPlotMarkerSize (int plotType, float size)
bool	Hit (const vtkContextMouseEvent &mouse)
bool	MouseMoveEvent (const vtkContextMouseEvent &mouse)
bool	MouseButtonPressEvent (const vtkContextMouseEvent &mouse)
bool	MouseButtonReleaseEvent (const vtkContextMouseEvent &mouse)
void	UpdateSettings ()
void	UpdateChartSettings (int plotType)

int	GetPlotType (const vtkVector2i &pos)
int	GetPlotType (int row, int column)

void	SetTitle (const vtkStdString &title)
vtkStdString	GetTitle ()

void	SetTitleProperties (vtkTextProperty *prop)
vtkTextProperty *	GetTitleProperties ()

void	SetGridVisibility (int plotType, bool visible)
bool	GetGridVisibility (int plotType)

void	SetBackgroundColor (int plotType, const vtkColor4ub &color)
vtkColor4ub	GetBackgroundColor (int plotType)

void	SetAxisColor (int plotType, const vtkColor4ub &color)
vtkColor4ub	GetAxisColor (int plotType)

void	SetGridColor (int plotType, const vtkColor4ub &color)
vtkColor4ub	GetGridColor (int plotType)

void	SetAxisLabelVisibility (int plotType, bool visible)
bool	GetAxisLabelVisibility (int plotType)

void	SetAxisLabelProperties (int plotType, vtkTextProperty *prop)
vtkTextProperty *	GetAxisLabelProperties (int plotType)

void	SetAxisLabelNotation (int plotType, int notation)
int	GetAxisLabelNotation (int plotType)

void	SetAxisLabelPrecision (int plotType, int precision)
int	GetAxisLabelPrecision (int plotType)

void	SetTooltipNotation (int plotType, int notation)
void	SetTooltipPrecision (int plotType, int precision)
int	GetTooltipNotation (int plotType)
int	GetTooltipPrecision (int plotType)

void	SetScatterPlotSelectedRowColumnColor (const vtkColor4ub &color)
vtkColor4ub	GetScatterPlotSelectedRowColumnColor ()

void	SetScatterPlotSelectedActiveColor (const vtkColor4ub &color)
vtkColor4ub	GetScatterPlotSelectedActiveColor ()

virtual void	SetSelectionMode (int)
virtual int	GetSelectionMode ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkScatterPlotMatrix *	SafeDownCast (vtkObject *o)
static vtkScatterPlotMatrix *	New ()
Protected Member Functions
	vtkScatterPlotMatrix ()
	~vtkScatterPlotMatrix ()
void	UpdateLayout ()
void	BigChartSelectionCallback (vtkObject , unsigned long, void )
virtual void	UpdateAnimationPath (const vtkVector2i &newActivePos)
virtual void	StartAnimation (vtkRenderWindowInteractor *interactor)

void	AttachAxisRangeListener (vtkAxis *)
void	AxisRangeForwarderCallback (vtkObject , unsigned long, void )
Protected Attributes
PIMPL *	Private
vtkVector2i	ActivePlot
vtkSmartPointer< vtkTable >	Input
vtkNew< vtkStringArray >	VisibleColumns
int	NumberOfBins
vtkStdString	Title
vtkSmartPointer< vtkTextProperty >	TitleProperties
int	SelectionMode

Detailed Description

container for a matrix of charts.

This class contains a matrix of charts. These charts will be of type vtkChartXY by default, but this can be overridden. The class will manage their layout and object lifetime.

Tests:: vtkScatterPlotMatrix (Tests)

Definition at line 44 of file vtkScatterPlotMatrix.h.

Member Typedef Documentation

typedef vtkChartMatrix vtkScatterPlotMatrix::Superclass

Reimplemented from vtkChartMatrix.

Definition at line 54 of file vtkScatterPlotMatrix.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

SCATTERPLOT
HISTOGRAM
ACTIVEPLOT
NOPLOT

Definition at line 47 of file vtkScatterPlotMatrix.h.

Constructor & Destructor Documentation

vtkScatterPlotMatrix::vtkScatterPlotMatrix ( ) [protected]

vtkScatterPlotMatrix::~vtkScatterPlotMatrix ( ) [protected]

Member Function Documentation

virtual const char* vtkScatterPlotMatrix::GetClassName ( ) [virtual]

Reimplemented from vtkChartMatrix.

static int vtkScatterPlotMatrix::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkChartMatrix.

virtual int vtkScatterPlotMatrix::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkChartMatrix.

static vtkScatterPlotMatrix* vtkScatterPlotMatrix::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkChartMatrix.

virtual void vtkScatterPlotMatrix::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkChartMatrix.

static vtkScatterPlotMatrix* vtkScatterPlotMatrix::New ( ) [static]

Creates a new object.

Reimplemented from vtkChartMatrix.

virtual void vtkScatterPlotMatrix::Update ( ) [virtual]

Perform any updates to the item that may be necessary before rendering.

Reimplemented from vtkChartMatrix.

virtual bool vtkScatterPlotMatrix::Paint ( vtkContext2D * painter ) [virtual]

Paint event for the chart matrix.

Reimplemented from vtkChartMatrix.

virtual bool vtkScatterPlotMatrix::SetActivePlot ( const vtkVector2i & position ) [virtual]

Set the active plot, the one that will be displayed in the top-right. This defaults to (0, n-2), the plot below the first histogram on the left.

Returns:: false is the position specified is not valid.

virtual vtkVector2i vtkScatterPlotMatrix::GetActivePlot ( ) [virtual]

Get the position of the active plot.

vtkAnnotationLink* vtkScatterPlotMatrix::GetActiveAnnotationLink ( )

Get the active AnnotationLink from the big chart, which is the only active AnnotationLink in the matrix.

Deprecated:: Replaced by GetAnnotationLink(), never in a VTK release.

vtkAnnotationLink* vtkScatterPlotMatrix::GetAnnotationLink ( )

Get the AnnotationLink for the scatter plot matrix, this gives you access to the currently selected points in the scatter plot matrix.

virtual void vtkScatterPlotMatrix::SetInput ( vtkTable * table ) [virtual]

Set the input table for the scatter plot matrix. This will cause all columns to be plotted against each other - a square scatter plot matrix.

void vtkScatterPlotMatrix::SetColumnVisibility	(	const vtkStdString &	name,
		bool	visible
	)

Set the visibility of the specified column.

void vtkScatterPlotMatrix::InsertVisibleColumn	(	const vtkStdString &	name,
		int	index
	)

Insert the specified column at the index position of the visible columns.

bool vtkScatterPlotMatrix::GetColumnVisibility ( const vtkStdString & name )

Get the visibility of the specified column.

void vtkScatterPlotMatrix::SetColumnVisibilityAll ( bool visible )

Set the visibility of all columns (true will make them all visible, false will remove all visible columns).

virtual vtkStringArray* vtkScatterPlotMatrix::GetVisibleColumns ( ) [virtual]

Get a list of the columns, and the order in which they are displayed.

virtual void vtkScatterPlotMatrix::SetVisibleColumns ( vtkStringArray * visColumns ) [virtual]

Set the list of visible columns, and the order in which they will be displayed.

virtual void vtkScatterPlotMatrix::SetNumberOfBins ( int numberOfBins ) [virtual]

Set the number of bins in the histograms along the central diagonal of the scatter plot matrix.

virtual int vtkScatterPlotMatrix::GetNumberOfBins ( ) const [inline, virtual]

Get the number of bins the histograms along the central diagonal scatter plot matrix. The default value is 10.

Definition at line 116 of file vtkScatterPlotMatrix.h.

void vtkScatterPlotMatrix::SetPlotColor	(	int	plotType,
		const vtkColor4ub &	color
	)

Set the color for the specified plotType.

void vtkScatterPlotMatrix::SetPlotMarkerStyle	(	int	plotType,
		int	style
	)

Sets the marker style for the specified plotType.

void vtkScatterPlotMatrix::SetPlotMarkerSize	(	int	plotType,
		float	size
	)

Sets the marker size for the specified plotType.

bool vtkScatterPlotMatrix::Hit ( const vtkContextMouseEvent & mouse ) [virtual]

Return true if the supplied x, y coordinate is inside the item.

Reimplemented from vtkAbstractContextItem.

bool vtkScatterPlotMatrix::MouseMoveEvent ( const vtkContextMouseEvent & mouse ) [virtual]

Mouse move event.

Reimplemented from vtkAbstractContextItem.

bool vtkScatterPlotMatrix::MouseButtonPressEvent ( const vtkContextMouseEvent & mouse ) [virtual]

Mouse button down event

Reimplemented from vtkAbstractContextItem.

bool vtkScatterPlotMatrix::MouseButtonReleaseEvent ( const vtkContextMouseEvent & mouse ) [virtual]

Mouse button release event.

Reimplemented from vtkAbstractContextItem.

int vtkScatterPlotMatrix::GetPlotType ( const vtkVector2i & pos )

Returns the type of the plot at the given position. The return value is one of: SCATTERPLOT, HISTOGRAM, ACTIVEPLOT, or NOPLOT.

int vtkScatterPlotMatrix::GetPlotType	(	int	row,
		int	column
	)

Returns the type of the plot at the given position. The return value is one of: SCATTERPLOT, HISTOGRAM, ACTIVEPLOT, or NOPLOT.

void vtkScatterPlotMatrix::SetTitle ( const vtkStdString & title )

Set/get the scatter plot title.

vtkStdString vtkScatterPlotMatrix::GetTitle ( )

Set/get the scatter plot title.

void vtkScatterPlotMatrix::SetTitleProperties ( vtkTextProperty * prop )

Set/get the text properties for the chart title, i.e. color, font, size.

vtkTextProperty* vtkScatterPlotMatrix::GetTitleProperties ( )

Set/get the text properties for the chart title, i.e. color, font, size.

void vtkScatterPlotMatrix::SetGridVisibility	(	int	plotType,
		bool	visible
	)

Sets whether or not the grid for the given axis is visible given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

bool vtkScatterPlotMatrix::GetGridVisibility ( int plotType )

Sets whether or not the grid for the given axis is visible given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetBackgroundColor	(	int	plotType,
		const vtkColor4ub &	color
	)

Sets the background color for the chart given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

vtkColor4ub vtkScatterPlotMatrix::GetBackgroundColor ( int plotType )

Sets the background color for the chart given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetAxisColor	(	int	plotType,
		const vtkColor4ub &	color
	)

Sets the color for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

vtkColor4ub vtkScatterPlotMatrix::GetAxisColor ( int plotType )

Sets the color for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetGridColor	(	int	plotType,
		const vtkColor4ub &	color
	)

Sets the color for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

vtkColor4ub vtkScatterPlotMatrix::GetGridColor ( int plotType )

Sets the color for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetAxisLabelVisibility	(	int	plotType,
		bool	visible
	)

Sets whether or not the labels for the axes are visible, given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

bool vtkScatterPlotMatrix::GetAxisLabelVisibility ( int plotType )

Sets whether or not the labels for the axes are visible, given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetAxisLabelProperties	(	int	plotType,
		vtkTextProperty *	prop
	)

Set/get the text property for the axis labels of the given plot type, possible types are vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

vtkTextProperty* vtkScatterPlotMatrix::GetAxisLabelProperties ( int plotType )

Set/get the text property for the axis labels of the given plot type, possible types are vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetAxisLabelNotation	(	int	plotType,
		int	notation
	)

Sets the axis label notation for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

int vtkScatterPlotMatrix::GetAxisLabelNotation ( int plotType )

Sets the axis label notation for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetAxisLabelPrecision	(	int	plotType,
		int	precision
	)

Sets the axis label precision for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

int vtkScatterPlotMatrix::GetAxisLabelPrecision ( int plotType )

Sets the axis label precision for the axes given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetTooltipNotation	(	int	plotType,
		int	notation
	)

Set chart's tooltip notation and precision, given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetTooltipPrecision	(	int	plotType,
		int	precision
	)

Set chart's tooltip notation and precision, given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

int vtkScatterPlotMatrix::GetTooltipNotation ( int plotType )

Set chart's tooltip notation and precision, given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

int vtkScatterPlotMatrix::GetTooltipPrecision ( int plotType )

Set chart's tooltip notation and precision, given a plot type, which refers to vtkScatterPlotMatrix::{SCATTERPLOT, HISTOGRAM, ACTIVEPLOT}.

void vtkScatterPlotMatrix::SetScatterPlotSelectedRowColumnColor ( const vtkColor4ub & color )

Set the scatter plot selected row/column charts' background color.

vtkColor4ub vtkScatterPlotMatrix::GetScatterPlotSelectedRowColumnColor ( )

Set the scatter plot selected row/column charts' background color.

void vtkScatterPlotMatrix::SetScatterPlotSelectedActiveColor ( const vtkColor4ub & color )

Set the scatter plot selected active chart background color.

vtkColor4ub vtkScatterPlotMatrix::GetScatterPlotSelectedActiveColor ( )

Set the scatter plot selected active chart background color.

void vtkScatterPlotMatrix::UpdateSettings ( )

Convenient method to update all the chart settings

void vtkScatterPlotMatrix::UpdateChartSettings ( int plotType )

Update charts based on settings given the plot type

virtual void vtkScatterPlotMatrix::SetSelectionMode ( int ) [virtual]

Set/get the Selection Mode that will be used by the chart while doing selection. The only valid enums are vtkContextScene::SELECTION_NONE, SELECTION_DEFAULT, SELECTION_ADDITION, SELECTION_SUBTRACTION, SELECTION_TOGGLE

virtual int vtkScatterPlotMatrix::GetSelectionMode ( ) [virtual]

Set/get the Selection Mode that will be used by the chart while doing selection. The only valid enums are vtkContextScene::SELECTION_NONE, SELECTION_DEFAULT, SELECTION_ADDITION, SELECTION_SUBTRACTION, SELECTION_TOGGLE

void vtkScatterPlotMatrix::UpdateLayout ( ) [protected]

Internal helper to do the layout of the charts in the scatter plot matrix.

void vtkScatterPlotMatrix::AttachAxisRangeListener ( vtkAxis * ) [protected]

Attach axis range listener so we can forward to dependent axes in matrix.

void vtkScatterPlotMatrix::AxisRangeForwarderCallback	(	vtkObject *	,
		unsigned	long,
		void *
	)		`[protected]`

Attach axis range listener so we can forward to dependent axes in matrix.

void vtkScatterPlotMatrix::BigChartSelectionCallback	(	vtkObject *	,
		unsigned	long,
		void *
	)		`[protected]`

The callback function when SelectionChangedEvent is invoked from the Big chart. This class will just forward the event.

virtual void vtkScatterPlotMatrix::UpdateAnimationPath ( const vtkVector2i & newActivePos ) [protected, virtual]

Given a new position for the active plot, calculate a an animation path from the old active plot to the new active plot.

virtual void vtkScatterPlotMatrix::StartAnimation ( vtkRenderWindowInteractor * interactor ) [protected, virtual]

Given the render window interactor, start animation of the animation path calculated above.

Member Data Documentation

PIMPL* vtkScatterPlotMatrix::Private [protected]

Reimplemented from vtkChartMatrix.

Definition at line 281 of file vtkScatterPlotMatrix.h.

vtkVector2i vtkScatterPlotMatrix::ActivePlot [protected]

Definition at line 285 of file vtkScatterPlotMatrix.h.

vtkSmartPointer<vtkTable> vtkScatterPlotMatrix::Input [protected]

Definition at line 288 of file vtkScatterPlotMatrix.h.

vtkNew<vtkStringArray> vtkScatterPlotMatrix::VisibleColumns [protected]

Definition at line 291 of file vtkScatterPlotMatrix.h.

int vtkScatterPlotMatrix::NumberOfBins [protected]

Definition at line 294 of file vtkScatterPlotMatrix.h.

vtkStdString vtkScatterPlotMatrix::Title [protected]

Definition at line 297 of file vtkScatterPlotMatrix.h.

vtkSmartPointer<vtkTextProperty> vtkScatterPlotMatrix::TitleProperties [protected]

Definition at line 298 of file vtkScatterPlotMatrix.h.

int vtkScatterPlotMatrix::SelectionMode [protected]

Definition at line 301 of file vtkScatterPlotMatrix.h.

The documentation for this class was generated from the following file:

dox/Charts/vtkScatterPlotMatrix.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
