vtkBridgeCellIteratorOnCellBoundaries Class Reference

#include <vtkBridgeCellIteratorOnCellBoundaries.h>

Inheritance diagram for vtkBridgeCellIteratorOnCellBoundaries:

Inheritance graph
[legend]

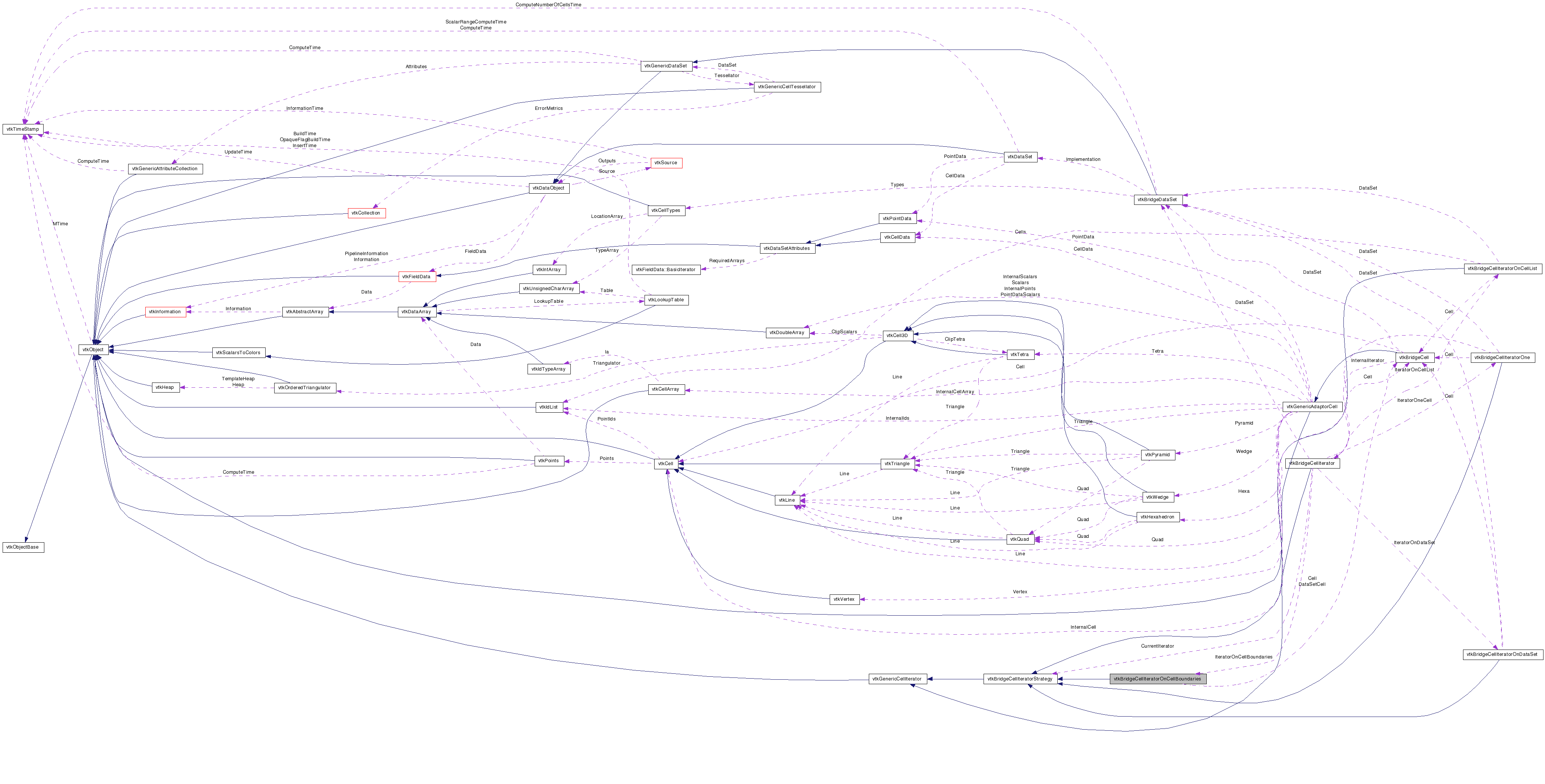

Collaboration diagram for vtkBridgeCellIteratorOnCellBoundaries:

Collaboration graph
[legend]

List of all members.


Detailed Description

Iterate over boundary cells of a cell.

See also:
vtkBridgeCellIterator, vtkBridgeDataSet, vtkBridgeCellIteratorStrategy
Tests:
vtkBridgeCellIteratorOnCellBoundaries (Tests)

Definition at line 36 of file vtkBridgeCellIteratorOnCellBoundaries.h.


Public Types

typedef
vtkBridgeCellIteratorStrategy
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Begin ()
int IsAtEnd ()
void GetCell (vtkGenericAdaptorCell *c)
vtkGenericAdaptorCellGetCell ()
void Next ()
void InitWithCellBoundaries (vtkBridgeCell *cell, int dim)

Static Public Member Functions

static
vtkBridgeCellIteratorOnCellBoundaries
New ()
static int IsTypeOf (const char *type)
static
vtkBridgeCellIteratorOnCellBoundaries
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkBridgeCellIteratorOnCellBoundaries ()
virtual ~vtkBridgeCellIteratorOnCellBoundaries ()

Protected Attributes

int Dim
vtkBridgeCellDataSetCell
vtkIdType Id
vtkBridgeCellCell
vtkIdType NumberOfFaces
vtkIdType NumberOfEdges
vtkIdType NumberOfVertices

Member Typedef Documentation

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

Definition at line 41 of file vtkBridgeCellIteratorOnCellBoundaries.h.


Constructor & Destructor Documentation

vtkBridgeCellIteratorOnCellBoundaries::vtkBridgeCellIteratorOnCellBoundaries (  )  [protected]

virtual vtkBridgeCellIteratorOnCellBoundaries::~vtkBridgeCellIteratorOnCellBoundaries (  )  [protected, virtual]


Member Function Documentation

static vtkBridgeCellIteratorOnCellBoundaries* vtkBridgeCellIteratorOnCellBoundaries::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgeCellIteratorOnCellBoundaries::GetClassName (  )  [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

static int vtkBridgeCellIteratorOnCellBoundaries::IsTypeOf ( const char *  type  )  [static]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

virtual int vtkBridgeCellIteratorOnCellBoundaries::IsA ( const char *  type  )  [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

static vtkBridgeCellIteratorOnCellBoundaries* vtkBridgeCellIteratorOnCellBoundaries::SafeDownCast ( vtkObject o  )  [static]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

void vtkBridgeCellIteratorOnCellBoundaries::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

void vtkBridgeCellIteratorOnCellBoundaries::Begin (  )  [virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericCellIterator.

int vtkBridgeCellIteratorOnCellBoundaries::IsAtEnd (  )  [virtual]

Is there no cell at iterator position? (exit condition).

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOnCellBoundaries::GetCell ( vtkGenericAdaptorCell c  )  [virtual]

Cell at current position

Precondition:
not_at_end: !IsAtEnd()

c_exists: c!=0 THREAD SAFE

Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIteratorOnCellBoundaries::GetCell (  )  [virtual]

Cell at current position. NOT THREAD SAFE

Precondition:
not_at_end: !IsAtEnd()
Postcondition:
result_exits: result!=0

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOnCellBoundaries::Next (  )  [virtual]

Move iterator to next position. (loop progression).

Precondition:
not_at_end: !IsAtEnd()

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOnCellBoundaries::InitWithCellBoundaries ( vtkBridgeCell cell,
int  dim
)

Used internally by vtkBridgeCell. Iterate on boundary cells of a cell.

Precondition:
cell_exists: cell!=0

valid_dim_range: (dim==-1) || ((dim>=0)&&(dim<cell->GetDimension()))


Member Data Documentation

Definition at line 74 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Definition at line 76 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Definition at line 77 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Definition at line 78 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Definition at line 79 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Definition at line 80 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Definition at line 81 of file vtkBridgeCellIteratorOnCellBoundaries.h.


The documentation for this class was generated from the following file:
