vtkCameraInterpolator Class Reference

#include <vtkCameraInterpolator.h>

Inheritance diagram for vtkCameraInterpolator:

Inheritance graph
[legend]

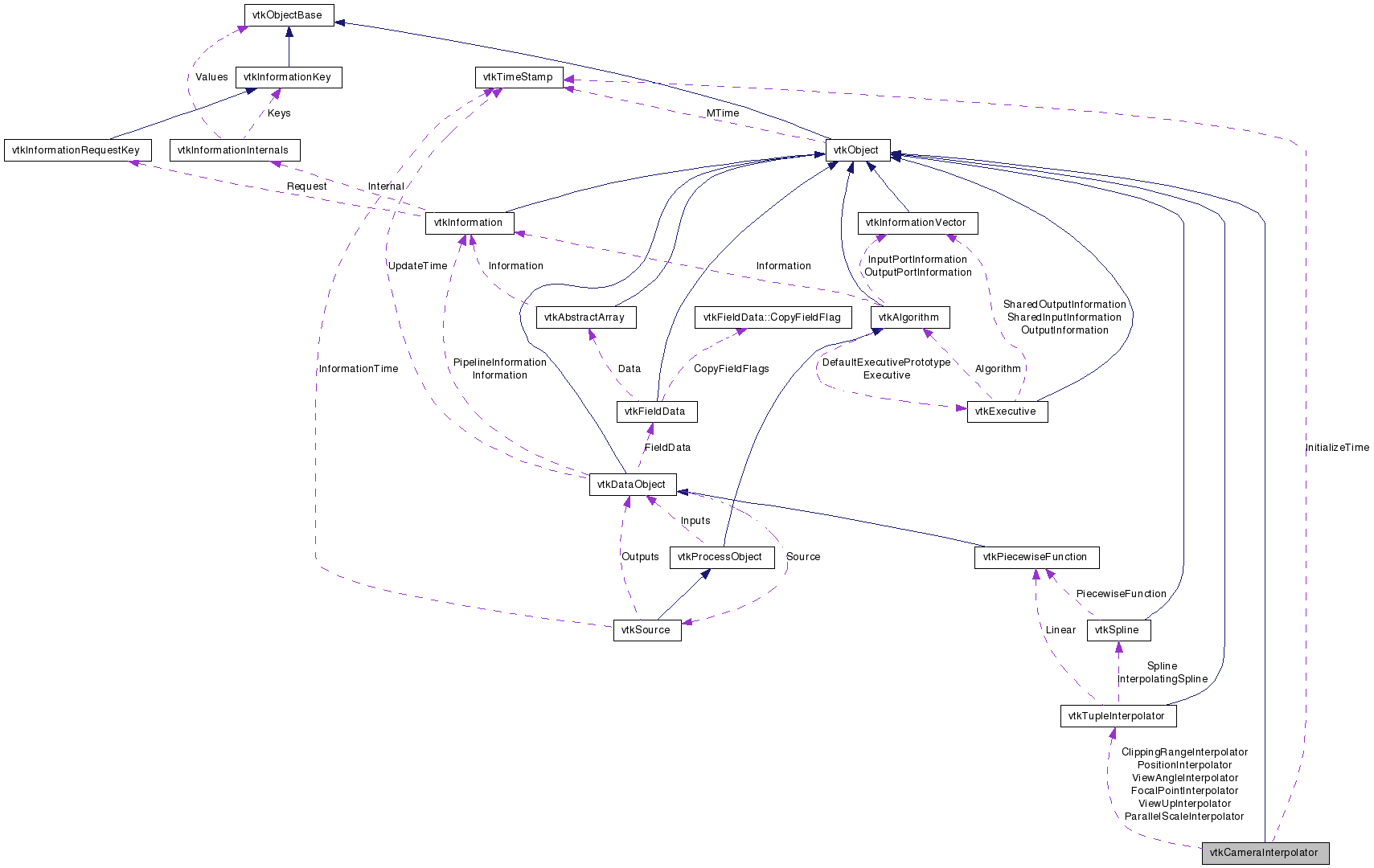

Collaboration diagram for vtkCameraInterpolator:

Collaboration graph
[legend]

List of all members.


Detailed Description

interpolate a series of cameras to update a new camera

This class is used to interpolate a series of cameras to update a specified camera. Either linear interpolation or spline interpolation may be used. The instance variables currently interpolated include position, focal point, view up, view angle, parallel scale, and clipping range.

To use this class, specify the type of interpolation to use, and add a series of cameras at various times "t" to the list of cameras from which to interpolate. Then to interpolate in between cameras, simply invoke the function InterpolateCamera(t,camera) where "camera" is the camera to be updated with interpolated values. Note that "t" should be in the range (min,max) times specified with the AddCamera() method. If outside this range, the interpolation is clamped. This class copies the camera information (as compared to referencing the cameras) so you do not need to keep separate instances of the camera around for each camera added to the list of cameras to interpolate.

Warning:
The interpolator classes are initialized the first time InterpolateCamera() is called. Any later changes to the interpolators, or additions to the list of cameras to be interpolated, causes a reinitialization of the interpolators the next time InterpolateCamera() is invoked. Thus the best performance is obtained by 1) configuring the interpolators, 2) adding all the cameras, and 3) finally performing interpolation.

Currently position, focal point and view up are interpolated to define the orientation of the camera. Quaternion interpolation may be added in the future as an alternative interpolation method for camera orientation.

Examples:
vtkCameraInterpolator (Examples)
Tests:
vtkCameraInterpolator (Tests)

Definition at line 65 of file vtkCameraInterpolator.h.


Public Types

typedef vtkObject Superclass
enum  { INTERPOLATION_TYPE_LINEAR = 0, INTERPOLATION_TYPE_SPLINE, INTERPOLATION_TYPE_MANUAL }

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetNumberOfCameras ()
void Initialize ()
void AddCamera (double t, vtkCamera *camera)
void RemoveCamera (double t)
void InterpolateCamera (double t, vtkCamera *camera)
unsigned long GetMTime ()
double GetMinimumT ()
double GetMaximumT ()
virtual void SetInterpolationType (int)
virtual int GetInterpolationType ()
void SetInterpolationTypeToLinear ()
void SetInterpolationTypeToSpline ()
void SetInterpolationTypeToManual ()
virtual void SetPositionInterpolator (vtkTupleInterpolator *)
virtual vtkTupleInterpolatorGetPositionInterpolator ()
virtual void SetFocalPointInterpolator (vtkTupleInterpolator *)
virtual vtkTupleInterpolatorGetFocalPointInterpolator ()
virtual void SetViewUpInterpolator (vtkTupleInterpolator *)
virtual vtkTupleInterpolatorGetViewUpInterpolator ()
virtual void SetViewAngleInterpolator (vtkTupleInterpolator *)
virtual vtkTupleInterpolatorGetViewAngleInterpolator ()
virtual void SetParallelScaleInterpolator (vtkTupleInterpolator *)
virtual vtkTupleInterpolatorGetParallelScaleInterpolator ()
virtual void SetClippingRangeInterpolator (vtkTupleInterpolator *)
virtual vtkTupleInterpolatorGetClippingRangeInterpolator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCameraInterpolatorSafeDownCast (vtkObject *o)
static vtkCameraInterpolatorNew ()

Protected Member Functions

 vtkCameraInterpolator ()
virtual ~vtkCameraInterpolator ()
void InitializeInterpolation ()

Protected Attributes

int InterpolationType
vtkTupleInterpolatorPositionInterpolator
vtkTupleInterpolatorFocalPointInterpolator
vtkTupleInterpolatorViewUpInterpolator
vtkTupleInterpolatorViewAngleInterpolator
vtkTupleInterpolatorParallelScaleInterpolator
vtkTupleInterpolatorClippingRangeInterpolator
int Initialized
vtkTimeStamp InitializeTime
vtkCameraList * CameraList

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 68 of file vtkCameraInterpolator.h.


Member Enumeration Documentation

anonymous enum

Enums to control the type of interpolation to use.

Enumerator:
INTERPOLATION_TYPE_LINEAR
INTERPOLATION_TYPE_SPLINE
INTERPOLATION_TYPE_MANUAL

Definition at line 105 of file vtkCameraInterpolator.h.


Constructor & Destructor Documentation

vtkCameraInterpolator::vtkCameraInterpolator (  )  [protected]

virtual vtkCameraInterpolator::~vtkCameraInterpolator (  )  [protected, virtual]


Member Function Documentation

virtual const char* vtkCameraInterpolator::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkCameraInterpolator::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkCameraInterpolator::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkCameraInterpolator* vtkCameraInterpolator::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkCameraInterpolator::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkCameraInterpolator* vtkCameraInterpolator::New (  )  [static]

Instantiate the class.

Reimplemented from vtkObject.

int vtkCameraInterpolator::GetNumberOfCameras (  )

Return the number of cameras in the list of cameras.

double vtkCameraInterpolator::GetMinimumT (  )

Obtain some information about the interpolation range. The numbers returned are undefined if the list of cameras is empty.

double vtkCameraInterpolator::GetMaximumT (  )

Obtain some information about the interpolation range. The numbers returned are undefined if the list of cameras is empty.

void vtkCameraInterpolator::Initialize (  )

Clear the list of cameras.

void vtkCameraInterpolator::AddCamera ( double  t,
vtkCamera camera
)

Add another camera to the list of cameras defining the camera function. Note that using the same time t value more than once replaces the previous camera value at t. At least one camera must be added to define a function.

void vtkCameraInterpolator::RemoveCamera ( double  t  )

Delete the camera at a particular parameter t. If there is no camera defined at location t, then the method does nothing.

void vtkCameraInterpolator::InterpolateCamera ( double  t,
vtkCamera camera
)

Interpolate the list of cameras and determine a new camera (i.e., fill in the camera provided). If t is outside the range of (min,max) values, then t is clamped to lie within this range.

virtual void vtkCameraInterpolator::SetInterpolationType ( int   )  [virtual]

These are convenience methods to switch between linear and spline interpolation. The methods simply forward the request for linear or spline interpolation to the instance variable interpolators (i.e., position, focal point, clipping range, orientation, etc.) interpolators. Note that if the InterpolationType is set to "Manual", then the interpolators are expected to be directly manipulated and this class does not forward the request for interpolation type to its interpolators.

virtual int vtkCameraInterpolator::GetInterpolationType (  )  [virtual]

These are convenience methods to switch between linear and spline interpolation. The methods simply forward the request for linear or spline interpolation to the instance variable interpolators (i.e., position, focal point, clipping range, orientation, etc.) interpolators. Note that if the InterpolationType is set to "Manual", then the interpolators are expected to be directly manipulated and this class does not forward the request for interpolation type to its interpolators.

void vtkCameraInterpolator::SetInterpolationTypeToLinear (  )  [inline]

These are convenience methods to switch between linear and spline interpolation. The methods simply forward the request for linear or spline interpolation to the instance variable interpolators (i.e., position, focal point, clipping range, orientation, etc.) interpolators. Note that if the InterpolationType is set to "Manual", then the interpolators are expected to be directly manipulated and this class does not forward the request for interpolation type to its interpolators.

Definition at line 124 of file vtkCameraInterpolator.h.

void vtkCameraInterpolator::SetInterpolationTypeToSpline (  )  [inline]

These are convenience methods to switch between linear and spline interpolation. The methods simply forward the request for linear or spline interpolation to the instance variable interpolators (i.e., position, focal point, clipping range, orientation, etc.) interpolators. Note that if the InterpolationType is set to "Manual", then the interpolators are expected to be directly manipulated and this class does not forward the request for interpolation type to its interpolators.

Definition at line 126 of file vtkCameraInterpolator.h.

void vtkCameraInterpolator::SetInterpolationTypeToManual (  )  [inline]

These are convenience methods to switch between linear and spline interpolation. The methods simply forward the request for linear or spline interpolation to the instance variable interpolators (i.e., position, focal point, clipping range, orientation, etc.) interpolators. Note that if the InterpolationType is set to "Manual", then the interpolators are expected to be directly manipulated and this class does not forward the request for interpolation type to its interpolators.

Definition at line 128 of file vtkCameraInterpolator.h.

virtual void vtkCameraInterpolator::SetPositionInterpolator ( vtkTupleInterpolator  )  [virtual]

Set/Get the tuple interpolator used to interpolate the position portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual vtkTupleInterpolator* vtkCameraInterpolator::GetPositionInterpolator (  )  [virtual]

Set/Get the tuple interpolator used to interpolate the position portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual void vtkCameraInterpolator::SetFocalPointInterpolator ( vtkTupleInterpolator  )  [virtual]

Set/Get the tuple interpolator used to interpolate the focal point portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual vtkTupleInterpolator* vtkCameraInterpolator::GetFocalPointInterpolator (  )  [virtual]

Set/Get the tuple interpolator used to interpolate the focal point portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual void vtkCameraInterpolator::SetViewUpInterpolator ( vtkTupleInterpolator  )  [virtual]

Set/Get the tuple interpolator used to interpolate the view up portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual vtkTupleInterpolator* vtkCameraInterpolator::GetViewUpInterpolator (  )  [virtual]

Set/Get the tuple interpolator used to interpolate the view up portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual void vtkCameraInterpolator::SetViewAngleInterpolator ( vtkTupleInterpolator  )  [virtual]

Set/Get the tuple interpolator used to interpolate the view angle portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual vtkTupleInterpolator* vtkCameraInterpolator::GetViewAngleInterpolator (  )  [virtual]

Set/Get the tuple interpolator used to interpolate the view angle portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual void vtkCameraInterpolator::SetParallelScaleInterpolator ( vtkTupleInterpolator  )  [virtual]

Set/Get the tuple interpolator used to interpolate the parallel scale portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual vtkTupleInterpolator* vtkCameraInterpolator::GetParallelScaleInterpolator (  )  [virtual]

Set/Get the tuple interpolator used to interpolate the parallel scale portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual void vtkCameraInterpolator::SetClippingRangeInterpolator ( vtkTupleInterpolator  )  [virtual]

Set/Get the tuple interpolator used to interpolate the clipping range portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

virtual vtkTupleInterpolator* vtkCameraInterpolator::GetClippingRangeInterpolator (  )  [virtual]

Set/Get the tuple interpolator used to interpolate the clipping range portion of the camera. Note that you can modify the behavior of the interpolator (linear vs spline interpolation; change spline basis) by manipulating the interpolator instances directly.

unsigned long vtkCameraInterpolator::GetMTime (  )  [virtual]

Override GetMTime() because we depend on the interpolators which may be modified outside of this class.

Reimplemented from vtkObject.

void vtkCameraInterpolator::InitializeInterpolation (  )  [protected]


Member Data Documentation

Definition at line 195 of file vtkCameraInterpolator.h.

Definition at line 198 of file vtkCameraInterpolator.h.

Definition at line 199 of file vtkCameraInterpolator.h.

Definition at line 200 of file vtkCameraInterpolator.h.

Definition at line 201 of file vtkCameraInterpolator.h.

Definition at line 202 of file vtkCameraInterpolator.h.

Definition at line 203 of file vtkCameraInterpolator.h.

Definition at line 206 of file vtkCameraInterpolator.h.

Definition at line 207 of file vtkCameraInterpolator.h.

vtkCameraList* vtkCameraInterpolator::CameraList [protected]

Definition at line 211 of file vtkCameraInterpolator.h.


The documentation for this class was generated from the following file:
