vtkDistanceRepresentation2D Class Reference

#include <vtkDistanceRepresentation2D.h>

Inheritance diagram for vtkDistanceRepresentation2D:

[legend]

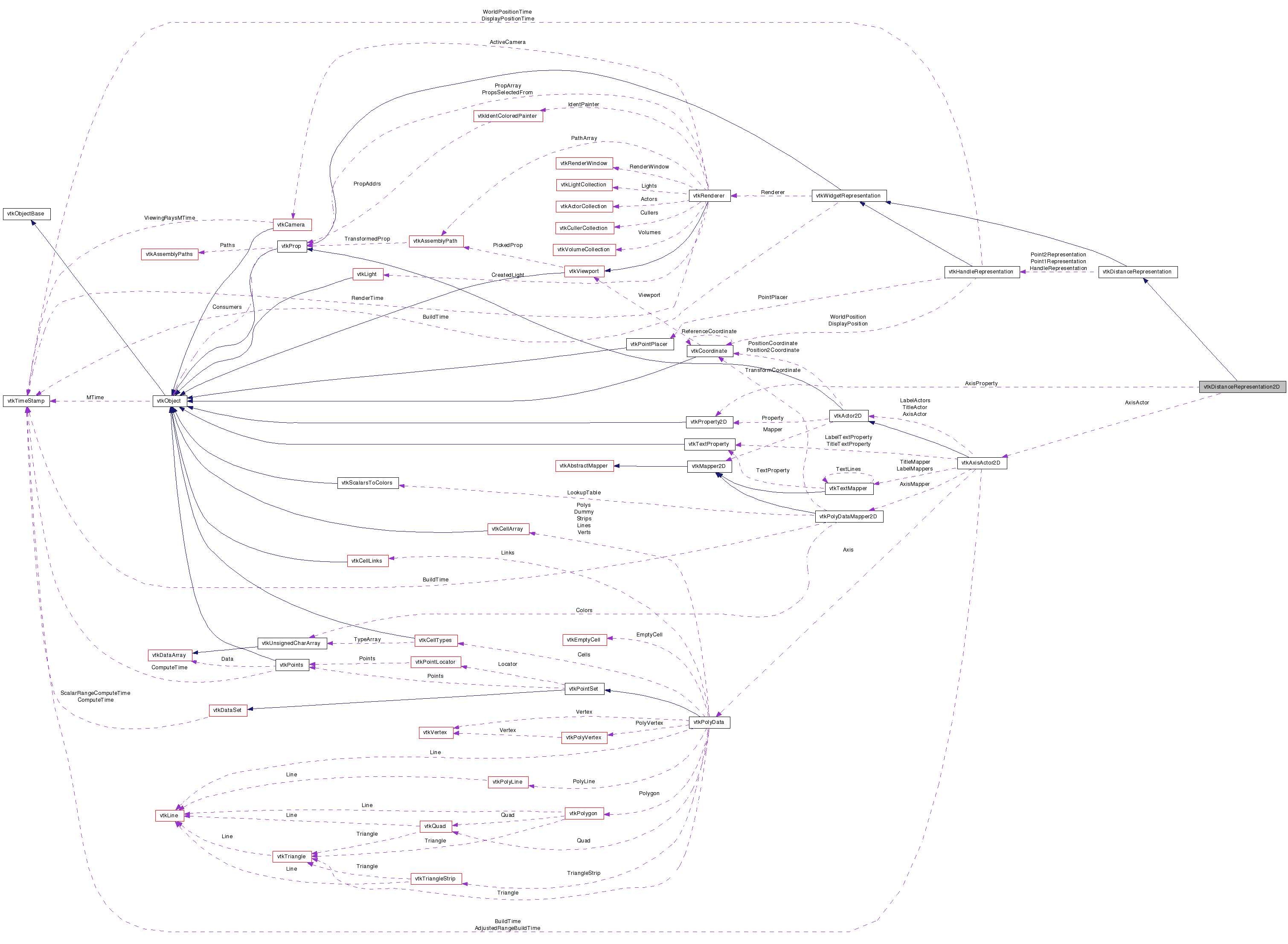

Collaboration diagram for vtkDistanceRepresentation2D:

[legend]

List of all members.

---

Detailed Description

represent the vtkDistanceWidget

The vtkDistanceRepresentation2D is a representation for the vtkDistanceWidget. This representation consists of a measuring line (axis) and two vtkHandleWidgets to place the end points of the line. Note that this particular widget draws its representation in the overlay plane.

See also:

vtkDistanceWidget vtkDistanceRepresentation

Tests:

vtkDistanceRepresentation2D (Tests)

Definition at line 39 of file vtkDistanceRepresentation2D.h.

typedef vtkDistanceRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkDistanceRepresentation2D *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
vtkAxisActor2D *	GetAxis ()
virtual void	BuildRepresentation ()
virtual double	GetDistance ()
void	GetPoint1WorldPosition (double pos[3])
void	GetPoint2WorldPosition (double pos[3])
void	SetPoint1DisplayPosition (double pos[3])
void	SetPoint2DisplayPosition (double pos[3])
void	GetPoint1DisplayPosition (double pos[3])
void	GetPoint2DisplayPosition (double pos[3])
virtual void	ReleaseGraphicsResources (vtkWindow *w)
virtual int	RenderOverlay (vtkViewport *viewport)
virtual int	RenderOpaqueGeometry (vtkViewport *viewport)
Static Public Member Functions
static vtkDistanceRepresentation2D *	New ()
Protected Member Functions
	vtkDistanceRepresentation2D ()
	~vtkDistanceRepresentation2D ()
Protected Attributes
vtkAxisActor2D *	AxisActor
vtkProperty2D *	AxisProperty
double	Distance

---

Member Typedef Documentation

typedef vtkDistanceRepresentation vtkDistanceRepresentation2D::Superclass

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

Definition at line 47 of file vtkDistanceRepresentation2D.h.

---

Constructor & Destructor Documentation

vtkDistanceRepresentation2D::vtkDistanceRepresentation2D

(

)

[protected]

vtkDistanceRepresentation2D::~vtkDistanceRepresentation2D

(

)

[protected]

---

Member Function Documentation

static vtkDistanceRepresentation2D* vtkDistanceRepresentation2D::New

(

)

[static]

Instantiate class.

Reimplemented from vtkObject.

virtual const char* vtkDistanceRepresentation2D::GetClassName

(

)

[virtual]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

static int vtkDistanceRepresentation2D::IsTypeOf

(

const char *

type

)

[static]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

virtual int vtkDistanceRepresentation2D::IsA

(

const char *

type

)

[virtual]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

static vtkDistanceRepresentation2D* vtkDistanceRepresentation2D::SafeDownCast

(

vtkObject *

o

)

[static]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

void vtkDistanceRepresentation2D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

virtual double vtkDistanceRepresentation2D::GetDistance

(

)

[inline, virtual]

Satisfy the superclasses API.

Implements vtkDistanceRepresentation.

Definition at line 53 of file vtkDistanceRepresentation2D.h.

void vtkDistanceRepresentation2D::GetPoint1WorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkDistanceRepresentation.

void vtkDistanceRepresentation2D::GetPoint2WorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkDistanceRepresentation.

void vtkDistanceRepresentation2D::SetPoint1DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkDistanceRepresentation.

void vtkDistanceRepresentation2D::SetPoint2DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkDistanceRepresentation.

void vtkDistanceRepresentation2D::GetPoint1DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkDistanceRepresentation.

void vtkDistanceRepresentation2D::GetPoint2DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkDistanceRepresentation.

vtkAxisActor2D* vtkDistanceRepresentation2D::GetAxis

(

)

Retrieve the vtkAxisActor2D used to draw the measurement axis. With this properties can be set and so on.

virtual void vtkDistanceRepresentation2D::BuildRepresentation

(

)

[virtual]

Method to satisfy superclasses' API.

Reimplemented from vtkDistanceRepresentation.

virtual void vtkDistanceRepresentation2D::ReleaseGraphicsResources

(

vtkWindow *

w

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkDistanceRepresentation2D::RenderOverlay

(

vtkViewport *

viewport

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkProp.

virtual int vtkDistanceRepresentation2D::RenderOpaqueGeometry

(

vtkViewport *

viewport

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkProp.

---

Member Data Documentation

vtkAxisActor2D* vtkDistanceRepresentation2D::AxisActor [protected]

Definition at line 88 of file vtkDistanceRepresentation2D.h.

vtkProperty2D* vtkDistanceRepresentation2D::AxisProperty [protected]

Definition at line 89 of file vtkDistanceRepresentation2D.h.

double vtkDistanceRepresentation2D::Distance [protected]

Definition at line 92 of file vtkDistanceRepresentation2D.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkDistanceRepresentation2D.h
