vtkImageButterworthLowPass Class Reference

#include <vtkImageButterworthLowPass.h>

Inheritance diagram for vtkImageButterworthLowPass:

Inheritance graph
[legend]

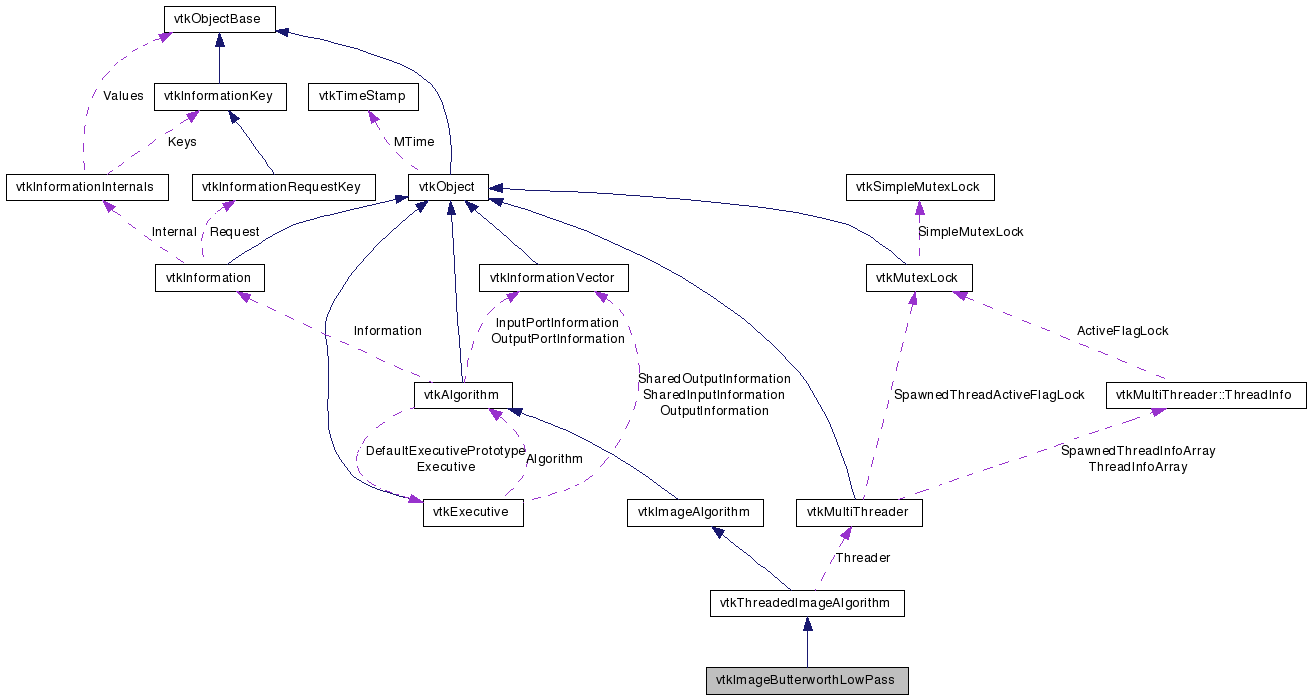

Collaboration diagram for vtkImageButterworthLowPass:

Collaboration graph
[legend]

List of all members.


Detailed Description

Frequency domain Low pass.

This filter only works on an image after it has been converted to frequency domain by a vtkImageFFT filter. A vtkImageRFFT filter can be used to convert the output back into the spatial domain. vtkImageButterworthLowPass the high frequency components are attenuated. Input and output are in doubles, with two components (complex numbers). out(i, j) = (1 + pow(CutOff/Freq(i,j), 2*Order));

See also:
vtkImageButterworthHighPass vtkImageFFT vtkImageRFFT
Tests:
vtkImageButterworthLowPass (Tests)

Definition at line 39 of file vtkImageButterworthLowPass.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetCutOff (double, double, double)
virtual void SetCutOff (double[3])
void SetCutOff (double v)
void SetXCutOff (double v)
void SetYCutOff (double v)
void SetZCutOff (double v)
virtual double * GetCutOff ()
virtual void GetCutOff (double &, double &, double &)
virtual void GetCutOff (double[3])
double GetXCutOff ()
double GetYCutOff ()
double GetZCutOff ()
virtual void SetOrder (int)
virtual int GetOrder ()

Static Public Member Functions

static vtkImageButterworthLowPassNew ()
static int IsTypeOf (const char *type)
static vtkImageButterworthLowPassSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageButterworthLowPass ()
 ~vtkImageButterworthLowPass ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int outExt[6], int id)

Protected Attributes

int Order
double CutOff [3]

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 43 of file vtkImageButterworthLowPass.h.


Constructor & Destructor Documentation

vtkImageButterworthLowPass::vtkImageButterworthLowPass (  )  [protected]

vtkImageButterworthLowPass::~vtkImageButterworthLowPass (  )  [inline, protected]

Definition at line 70 of file vtkImageButterworthLowPass.h.


Member Function Documentation

static vtkImageButterworthLowPass* vtkImageButterworthLowPass::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageButterworthLowPass::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageButterworthLowPass::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageButterworthLowPass::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageButterworthLowPass* vtkImageButterworthLowPass::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageButterworthLowPass::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageButterworthLowPass::SetCutOff ( double  ,
double  ,
double
) [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthLowPass::SetCutOff ( double  [3]  )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageButterworthLowPass::SetCutOff ( double  v  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 51 of file vtkImageButterworthLowPass.h.

void vtkImageButterworthLowPass::SetXCutOff ( double  v  )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageButterworthLowPass::SetYCutOff ( double  v  )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageButterworthLowPass::SetZCutOff ( double  v  )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual double* vtkImageButterworthLowPass::GetCutOff (  )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthLowPass::GetCutOff ( double &  ,
double &  ,
double &
) [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthLowPass::GetCutOff ( double  [3]  )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

double vtkImageButterworthLowPass::GetXCutOff (  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 56 of file vtkImageButterworthLowPass.h.

double vtkImageButterworthLowPass::GetYCutOff (  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 57 of file vtkImageButterworthLowPass.h.

double vtkImageButterworthLowPass::GetZCutOff (  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 58 of file vtkImageButterworthLowPass.h.

virtual void vtkImageButterworthLowPass::SetOrder ( int   )  [virtual]

The order determines sharpness of the cutoff curve.

virtual int vtkImageButterworthLowPass::GetOrder (  )  [virtual]

The order determines sharpness of the cutoff curve.

void vtkImageButterworthLowPass::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

Definition at line 70 of file vtkImageButterworthLowPass.h.

double vtkImageButterworthLowPass::CutOff[3] [protected]

Definition at line 73 of file vtkImageButterworthLowPass.h.
